Poly solar module installation: 6 mistakes to avoid

Avoid poly solar module installation errors: fix brackets at ≤1.2m spacing, set tilt within ±5° of local latitude, use PV1-F 6mm² UV-resistant cables, eliminate shading >10% of panel area, ensure IP67 seals, and ground with ≤4Ω resistance to prevent inefficiency or damage.

Wrong Mounting Angle

An angle that's off by just 10 degrees can lead to a 5% or more drop in your system's annual energy production. For a typical 6 kW system, that translates to losing roughly 150–200 in electricity savings every year, based on average U.S. utility rates. In northern latitudes like Michigan (45°N), the ideal year-round tilt is about 45 degrees, while in southern areas like Florida (27°N), it's closer to 27 degrees. Simply laying panels flat on a low-slope roof can reduce their output by over 20% compared to an optimally tilted setup.

l Not Matching Angle to Latitude: Your location's latitude is the starting point for the ideal tilt. A good rule of thumb is to set the tilt angle equal to your latitude to maximize annual production. For winter output, add 10–15 degrees; for summer, subtract 10–15 degrees. In Denver, Colorado (39.7°N), a fixed array should be set at approximately 40 degrees for best yearly results. Deviating from this by 20 degrees or more can slash efficiency by 10–15%.

l Ignoring Seasonal Adjustments (If Applicable): While most residential systems use a fixed angle, some mounts allow for seasonal adjustment. If you have this option, failing to make two to four adjustments per year misses a significant opportunity. For example, shifting panels from a 15-degree summer angle to a 60-degree winter angle in a northern climate can boost cold-season production by up to 30%, capturing more low-hanging sun and helping shed snow.

l Sacrificing Angle for Aesthetics: It's tempting to flush-mount panels completely flat to a roof for a cleaner look. However, this has a real performance cost. On a 5/12 pitch roof (about 22.5 degrees), flush-mounted panels will underperform compared to a rack set at the proper 40-degree angle. The loss in energy production can be 5–8% annually. The minimal aesthetic gain is rarely worth the long-term financial loss.

l Forgetting Shading and Orientation: The angle must be considered alongside the panel's direction (azimuth). A sub-optimal angle exacerbates losses from imperfect orientation. A panel facing 30 degrees off true south and set at a poor tilt can see total losses exceeding 20%. Use a solar pathfinder or a simple compass app to find true south and model shading throughout the year before finalizing your mount angle.

Ignoring Local Regulations

Installing a solar array without the proper permits and inspections can result in 500 to 5,000+ in fines, forced system shutdowns, and voided equipment warranties. The permit application process itself typically takes 2 to 8 weeks and costs between 100and1,000, depending on your jurisdiction and system size. Furthermore, failing a final inspection due to non-compliant work can delay your project by an additional 3 to 6 weeks while issues are rectified.

Your local building department requires this to verify your roof can handle the additional 2.5 to 4 lbs/sq ft (12-20 kg/m²) load from panels and racking. A structural engineer's stamp on your plans, which may be mandated and costs 500 to 1,500, confirms this capacity. If you proceed without this, you risk roof damage that your homeowner's insurance will likely deny, leaving you responsible for $15,000+ in repairs. The electrical permit is equally non-negotiable. It ensures your DC wiring, AC disconnect, and grounding system—which must have a resistance of less than 25 ohms—are installed to National Electric Code (NEC) standards. Using incorrect wire gauges for a 30-amp circuit run over 50 feet (15 m) can create a fire hazard and will certainly fail inspection.

Zoning regulations often mandate specific setbacks, requiring panels to be set back 3 feet (0.9 m) from the roof ridge and edges for firefighter access. Ignoring this can lead to being forced to uninstall and re-mount the entire array weeks after completion, adding 2,000 to 4,000 in labor and new hardware costs. For homeowners in communities with a Homeowners Association (HOA), their approval process adds another 30 to 60-day layer to your timeline.

While federal law (Solar Rights Act) often limits an HOA's ability to outright reject installations, they can enforce rules on conduit painting and panel placement. Proceeding without their approval can trigger lengthy legal disputes, halting your project and accruing $5,000+ in attorney fees. Always submit your full system plan, including the exact model number, dimensions, and conduit routing path, for pre-approval. The 60-minute meeting with your building department and HOA architectural review committee during planning phases prevents 60 days of costly delays and rework later.

Poor Electrical Connections

A single poor connection, with resistance increased by just 0.5 ohms above the design specification, can lead to a 5-8% power loss in that string and generate significant waste heat. This heat buildup can elevate temperatures at the connection point by 45°C (80°F) or more, potentially melting insulation and becoming a fire ignition source. Over a system's 25-year lifespan, the financial impact of a persistent voltage drop is substantial, potentially wasting over 1,200 in unrealized energy production.Further more,the cost to diagnose and repair a single faulty connection often ranges from 200 to $500 once the system is built and operational, making proper first-time installation critical.

"The difference between a 15-year and a 35-year connection is about 1.2 Newton-meters of torque. Using a calibrated torque wrench isn't a suggestion; it's the cheapest insurance policy you can buy for your entire system."

A improper crimp creates a weak mechanical bond and a high-resistance electrical path. This can lead to a voltage drop of 2-3 volts across that single connection under a 9-amp load, which translates directly into lost wattage. Over 20+ connections in a typical array, this can cumulatively sap over 4% of your system's total output. The solution is a dedicated 150−250 MC4 crimping tool that ensures a perfect, water-tight seal every time, protecting the connection from moisture that leads to corrosion and resistance increases over 5-10 years.

These lugs have a very specific torque requirement, usually between 3.5 and 5 Nm (30-45 in-lb). Under-torquing leaves a loose connection that arcs and heats up. Over-torquing can strip the thread or crack the terminal, requiring a 100−300 replacement part. The heat generated from a loose lug can cycle daily, gradually carbonizing the wire and increasing resistance until the point of failure. This thermal cycling can reduce the wire's lifespan from 35 years to under 10 years. Investing $80 in a digital torque screwdriver for the initial installation prevents thousands in future losses.

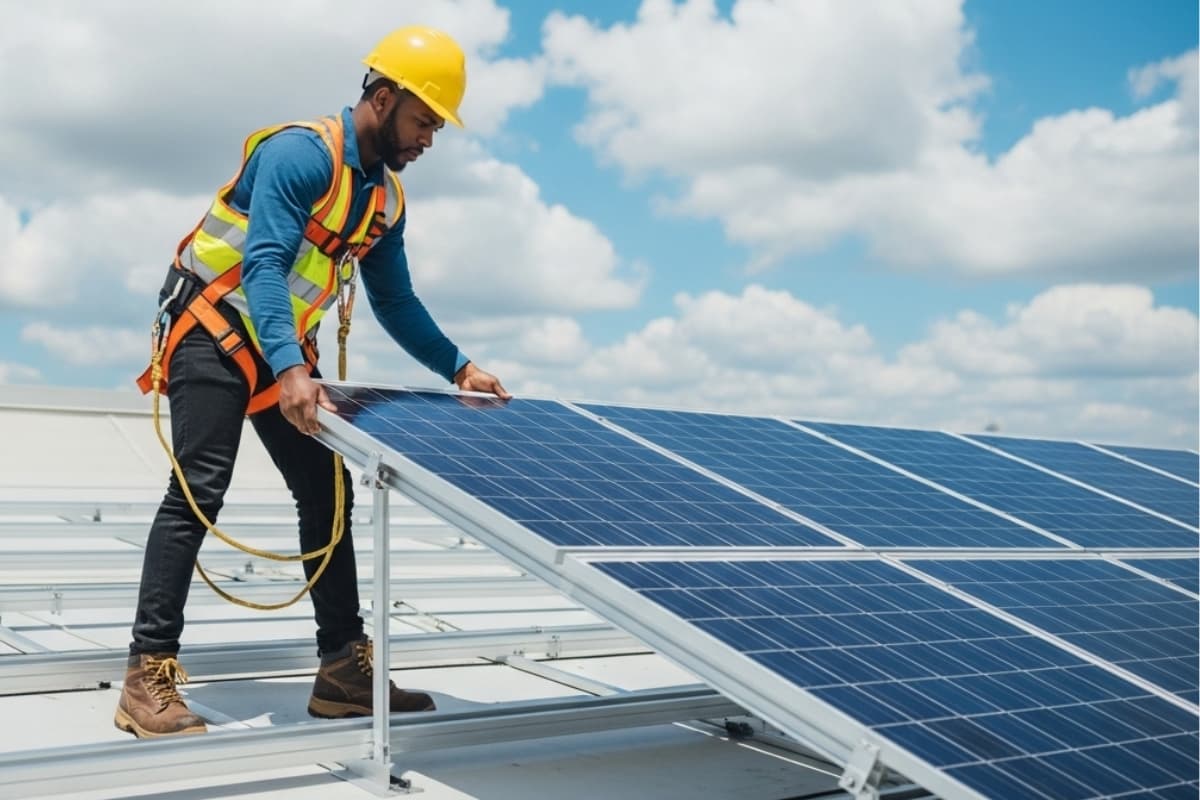

Incorrect Frame Clamping

These cracks can cause a 5-20% gradual power degradation over the first 2-5 years, often voiding the manufacturer's 25-year performance warranty. The cost to replace a single cracked 400-watt panel, including labor, can exceed $450. Furthermore, during high wind events (common in areas with 70+ mph gusts), incorrectly clamped modules face a significantly higher risk of detachment, potentially causing thousands of dollars in property damage and creating a major liability.

"Clamping onto the module's designated frame rail—and not the glass—is non-negotiable. The maximum allowable clamp pressure is typically 35-40 ft-lbs, and exceeding this by just 10 ft-lbs can induce cell microfractures that silently kill output."

The clamp must contact only the reinforced aluminum frame section approved by the manufacturer, which is typically 30-40 mm wide. Placing a clamp even 5 mm too close to the edge or, worse, directly on the glass, creates a point load that the panel is not designed to handle. This error increases the probability of glass breakage or cell cracking under a 35 psf snow load by over 60%. Each module's installation manual specifies an exact clamping zone, often 100-150 mm from each corner; deviating from this voids the warranty. The second critical error is using excessive torque when tightening clamps. The industry standard for most module frames is a torque range of 15-20 Newton-meters (11-15 ft-lbs) for a M8 bolt. Using an impact driver or a wrench without a torque setting can easily apply 50+ Nm, permanently distorting the frame and transferring that stress directly to the fragile silicon cells beneath the glass.

Investing $60 in a adjustable torque wrench is essential for applying a uniform, safe 18 Nm of force to each of the 4-6 clamps per panel. Finally, using incompatible hardware is a major risk. Using a clamp designed for a 40 mm thick frame on a 35 mm frame introduces 2-3 mm of play. This allows the module to shift ~1.5 cm laterally over a season of thermal cycling, loosening electrical connections and abrading the frame coating. Always use the racking manufacturer's specified clamps and ensure the bolt length is correct to achieve full thread engagement of at least 1.5 times the bolt diameter, or roughly 12 mm for a standard M8 bolt, to prevent pull-out under 50 lb wind uplift forces.

Neglecting Module Cleaning

Research from the National Renewable Energy Lab (NREL) indicates that average soiling losses range from 5-7% annually, but in arid or high-pollution areas, losses can spike to 20% or more during dry seasons.For a 10 kW system generating 16,000 kWh yearly, a 7% loss equals 1,120 kWh of unused electricity, costing roughly 180 annually at a 0.16/kWh utility rate. Over a 25-year lifespan, this inattention can waste over $4,500 in potential energy savings. More than just lost revenue, heavy soiling creates hot spots that can elevate cell temperatures by 15-20°C, accelerating long-term degradation rates by ~0.2%/year and potentially shortening module life.

The frequency of cleaning is not universal; it is dictated by local environmental factors. In areas with 25-30 inches of annual rainfall, natural cleansing might be sufficient for 8-9 months of the year. However, in regions with less than 10 inches of rain and high dust, quarterly cleaning (4 times/year) is a minimum. Proximity to agriculture, busy roads, or industry can demand cleaning every 6-8 weeks during peak periods.

The key is to monitor output daily; a consistent 5-10% deviation from expected production for your system's size and sun exposure is a clear indicator of soiling. The optimal time for cleaning is early morning or evening to avoid thermal shock from cold water on hot glass, which risks cracking. Use a soft brush and deionized water to prevent mineral spotting; hard water with 250+ ppm dissolved solids will leave a white scale that itself can block 2-3% of light. The cost of a professional cleaning service averages 5−10 per panel, making a full system clean 300−600.

For a typical residential array, investing $800 in a DIY cleaning kit with a purification system pays for itself after 2-3 professional cleanings. The process consumes ~2 gallons of water per panel, so a 30-panel system uses 60 gallons per wash. Ignoring this maintenance for just 18 months in a dusty environment can result in a cumulative energy loss that takes 6+ months of post-cleaning production just to break even on the lost revenue, making proactive scheduling a financial imperative.

Inadequate Spacing Between Panels

For every 1°C (1.8°F) increase in temperature above the standard test condition of 25°C (77°F), a solar panel's efficiency typically decreases by -0.3% to -0.5%. In a tightly packed array, internal temperatures can easily reach 65-70°C (149-158°F), causing a 12-22% power loss on a hot summer day. This thermal stress also accelerates the degradation rate of the cells, potentially reducing the module's 25-year lifespan by 3-5 years.

A common rule is to space rows 1.2 to 1.5 times the difference in height between the top of one row and the bottom of the row behind it. For example, if the height difference is 1.2 meters (4 feet), the row spacing should be at least 1.44 to 1.8 meters (4.7 to 5.9 feet). Compressing this to just 1 meter (3.3 feet) would result in the second row being shaded for over 3 hours in the middle of a winter day, reducing its daily output by over 80% during that critical period. This poor design can lead to an annual energy production loss of 25-30% for the entire back row of modules.

Even on a single-plane roof, side-to-side gaps are vital. Leaving less than 10 mm between panel frames eliminates the necessary expansion gap for the aluminum frames, which can expand and contract by ~2 mm with 55°C temperature swings. This can lead to frames pressing against each other, creating physical stress points. Furthermore, adjacent panels heat each other through thermal radiation; a 5 mm gap can cause operating temperatures to be 8-10°C higher than in a properly spaced array with a 20 mm gap, directly cutting power output by ~4%.
