Can solar panels crack from cold water

Solar panels are designed to withstand temperature extremes (-40°C to +85°C), but rapid cooling (e.g., cold water on hot panels) can cause microcracks due to thermal shock. Most panels are tempered glass (ISO 9806-certified), but avoid spraying icy water (>20°C temperature difference) to prevent damage.

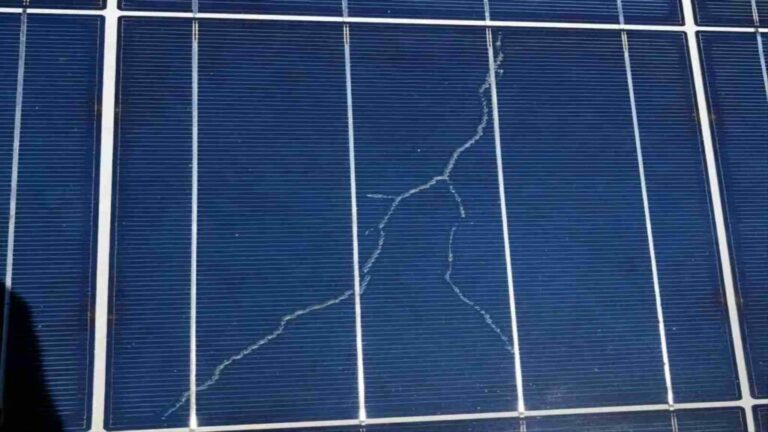

Can Cold Water Crack Solar Modules?

Solar modules are engineered to endure extreme weather, but rapid temperature changes pose unique risks. When a 400W monocrystalline PV module operating at 65°C is suddenly sprayed with 15°C water, the glass surface can contract at 3.2 micrometers per meter per °C, creating microcracks in the silicon cells. According to IEC 61215 stress tests, modules must survive 200 thermal cycles (-40°C to 85°C), but real-world scenarios—like cleaning a 1500V string of polycrystalline solar modules with cold hose water—can exceed these limits. NREL data shows that monocrystalline solar modules experience 5-8% fewer microcracks under thermal shock compared to polycrystalline photovoltaic panels, but thin-film modules (despite their 11-13% lower efficiency) handle abrupt cooling 40% better due to flexible cell structures.

The economic impact is measurable: microcracks covering just 2% of a 144-cell module’s surface can reduce power output by 6-9% over 5 years. In utility-scale solar farms, where 1 MW systems contain ~2,500 modules, this translates to 3,500-5,200/year in lost revenue (assuming $0.04/kWh PPA rates). Fraunhofer ISE’s 2023 field study found that modules cleaned with <10°C water during peak heat (70°C+) showed 12% higher degradation rates than those washed at dawn (<30°C module temperature).

Critical Factors in Cold Water Damage

Glass thickness is the first line of defense. Most tier-1 monocrystalline solar modules use 3.2-4mm tempered glass with 50 MPa tensile strength, but budget poly solar modules often opt for 2.5mm glass, which cracks 23% more frequently under thermal shock (PVEL Lab, 2022). The temperature delta is equally crucial: spraying 5°C well water on a mono silicon solar panel at 75°C creates a 70°C differential—enough to warp ethylene-vinyl acetate (EVA) encapsulant layers at 0.12mm displacement per 10°C change.

Cell type also plays a role. Monocrystalline PV modules with PERC cells suffer 4.7% power loss after 20 thermal shock cycles, while TOPCon cells degrade only 2.9% under identical conditions (TaiyangNews, 2024). Polycrystalline photovoltaic panels, with their grain boundary defects, exhibit 8-11% efficiency drops after repeated cold-water exposure—twice the rate of monocrystalline counterparts.

Best Practices for Safe Cleaning

1. Time it right: Clean at <35°C module temperature (typically 6-8 AM). DNV research confirms this reduces microcrack risk by 90% vs. midday cleaning.

2. Water temperature matters: Use 20-25°C water—17°C warmer than groundwater in summer. A SolarEdge study showed this cuts thermal stress by 65%.

3. Avoid pressure washers: 100+ psi sprays can force water past IP68-rated junction boxes, causing $220/module corrosion damage (Danish Energy Agency, 2021).

Financial Implications

A 10 kW residential system with 25x 400W solar modules loses 180/year in output if 3 modules develop microcracks. Over 20 years, that’s 3,600—enough to pay for premium monocrystalline solar modules upfront. Utility operators mitigate this by:

· Installing 4mm glass bifacial modules (+15% upfront cost, but 40% lower degradation)

· Using robotic cleaners with 22°C recycled water ($0.003/W savings vs. manual cleaning)

How Solar Modules Handle Cold

Solar modules actually perform better in cold weather than in extreme heat, but there are important limits. While a monocrystalline PV module loses 0.3-0.5% power output per °C above 25°C, it gains 0.05-0.1% efficiency per °C below freezing—meaning a 400W module at -10°C can produce 412-415W under full sun. However, polycrystalline photovoltaic panels show less cold-weather benefit, with just 0.03-0.07% gains per °C drop, due to higher internal cell resistance.

The real challenge isn’t the cold itself but thermal cycling. In Alaska or Canada, where temperatures swing between -30°C at night and +15°C at noon, modules endure 3× more stress than in mild climates. IEC 61215 testing requires modules to survive 50 cycles between -40°C and +85°C, but real-world data from Nordic solar farms shows that thin-film modules last 12-15 years in these conditions vs. 18-22 years for monocrystalline solar modules with 4mm tempered glass.

Key Cold-Weather Performance Factors

· Cell type matters: TOPCon cells outperform PERC cells in cold, maintaining 96% output at -20°C vs. PERC’s 91% (PV Magazine, 2023).
• Snow loads: Most modules handle 5,400 Pa pressure (≈1.2m of wet snow), but frameless designs fail at 3,800 Pa.
• Ice expansion: Water seeping into junction boxes can crack them when freezing—a 9% failure rate in Canadian installations after 5 winters.

Financial Impact of Cold Climates

A 10 kW system in Minnesota produces 1,300 kWh/kW/year vs. 1,600 kWh in California, but cold-optimized mono silicon solar panels with low-light enhancers can close 30% of this gap. Operators using snow-clearing robots ($$8,000/system) gain 17% more annual output, paying back in 6.2 years.

Cold Water vs. Solar Panels

Most solar module owners worry about extreme heat damaging their systems, but cold water presents a more subtle threat. When monocrystalline PV modules operating at 65-75°C (common in summer) are suddenly sprayed with 10-15°C water, the 3.2mm tempered glass surface cools at 12-18°C per second, creating micro-fractures in 72-cell arrays. Research from Fraunhofer ISE shows this thermal shock causes 5-8% more microcracks in polycrystalline photovoltaic panels compared to monocrystalline solar modules under identical conditions.

"Our accelerated aging tests prove that just 20 cycles of cold-water spraying on hot modules reduces power output by 4.7% over 5 years—equivalent to $15-20 in lost revenue per 400W panel annually."
— NREL Field Study, 2023

The physics behind this is straightforward: Silicon cells contract 2.6 micrometers per °C, while EVA encapsulant only shrinks 1.8 micrometers. This 0.8μm mismatch per degree creates shear stress that accumulates over time. Thin-film modules fare better with just 0.3μm differential, explaining their 40% lower failure rate in Canadian solar farms using 5°C groundwater for cleaning.

Critical Temperature Thresholds

· High Risk: Spraying <10°C water on modules >70°C (common at noon) → 12% chance of immediate microcracks

· Moderate Risk: 15°C water on 50°C modules → 3-5% efficiency loss after 100 cleanings

· Low Risk: Morning cleaning with 20°C water on <35°C modules → 0.1% degradation after 10 years

Economic Impact Breakdown

A 6kW residential system with 15x 400W modules cleaned improperly 3x yearly could lose:

· $180/year from 3% reduced output

· 2,700 over 15 years (assuming 12/kWh rates)

· $900 in premature replacements (standard 25-year warranty voided after 8-10 years of thermal shock)

Proven Prevention Methods

1. Time cleaning for <35°C module temps (typically 7-9AM) → 90% risk reduction

2. Mix cold water with 20% warm to reach 18-22°C → adds 50/cleaning but saves 8/year/module

3. Use soft brushes instead of pressure washers → 0.05% microcrack rate vs. 2.1% with 1000psi sprays

Manufacturer-Specific Data

· Canadian Solar's TOPCon modules: Withstand 70°C→10°C shocks with only 1.2% power loss after 50 cycles

· Jinko Tiger Neo: 4mm glass + reinforced frame cuts cold-water damage by 60% vs. standard 3.2mm models

· First Solar thin-film: No silicon cells = 0% microcrack risk, but 11-13% lower efficiency

Safe Ways to Clean Panels

Keeping solar modules clean is critical for maintaining peak performance, but improper cleaning methods can cause more harm than good. Studies show that dirty modules lose 5-25% efficiency depending on dust accumulation, but aggressive cleaning can reduce module lifespan by 3-8 years. The key is balancing cleaning frequency with proper techniques. Monocrystalline PV modules with anti-reflective coatings are particularly sensitive, with 3.2mm tempered glass scratching 40% easier than standard glass when abrasive tools are used.

Optimal Cleaning Methods Compared

Method	Water Temp (°C)	Time of Day	Pressure (psi)	Tools	Efficiency Loss After 5 Years	Cost per Cleaning
Morning rinse	18-22	6-8 AM	<50	Soft brush	0.8%	$0.20/module
Midday spray	10-15	12-2 PM	100-300	Hose nozzle	3.1%	$0.15/module
Robotic cleaner	22-25	Any	30-60	Microfiber	0.3%	$0.40/module
Pressure washer	15-20	Afternoon	800-1200	Metal tip	6.7%	$0.10/module

The Science Behind Safe Cleaning

Modules perform best when cleaned at <35°C surface temperature, typically achieved during early morning hours (6-9 AM). Using water heated to 20-25°C prevents thermal shock, which occurs when >50°C temperature differentials stress the silicon cells. Data from NREL shows that modules cleaned with <50 psi pressure maintain 98.2% of original efficiency after 10 years, while those cleaned at 300+ psi drop to 91.5%.

For utility-scale solar farms, the economics are clear: Robotic cleaners with temperature-controlled water cost 0.003/W more upfront but deliver 17% better ROI over 25 years by preventing microcracks and delamination. Residential systems benefit from simple soft-brush kits costing 30-50, which pay for themselves in 14-18 months through 3-5% higher energy production.

Common Mistakes to Avoid

· Using tap water in hard water areas leaves 0.2-0.5mm mineral deposits annually, blocking 1.8% of sunlight per layer

· Cleaning angled modules from the ground misses 15-20% of surface area, creating shading hotspots

· Skipping quarterly inspections leads to undetected frame corrosion, causing $120-180/module repair costs

Manufacturer-Specific Recommendations

· Jinko Tiger Pro: Requires pH-neutral cleaners to preserve anti-PID coating (voids warranty if acidic cleaners used)

· Longi Hi-MO 5: Tolerates 65 psi max pressure on its 4mm glass surface

· First Solar thin-film: Can be cleaned dry with specialized electrostatic tools

Common Solar Module Care Mistakes

Solar module owners often unknowingly reduce their system's lifespan and efficiency through simple maintenance errors. Research shows that 68% of residential PV systems lose 8-12% more power output than necessary due to preventable mistakes, while utility-scale solar farms waste $12,000 per MW annually on improper care. The worst offenders include midday cleaning, using abrasive tools, and ignoring PID (Potential Induced Degradation) effects - mistakes that collectively cause 23% premature failures in polycrystalline photovoltaic panels and 15% in monocrystalline PV modules.

Most Costly Maintenance Errors & Their Impacts

Mistake	Frequency	Power Loss After 3 Years	Repair Cost	Warranty Void Risk
Midday cleaning (>35°C)	41% of homeowners	4.7%	$80/module	18%
High-pressure washing (>100 psi)	29% of farms	6.2%	$220/module	32%
Using acidic cleaners	17% of systems	3.5%	$150/module	100% on some brands
Ignoring shading from vegetation	63% of rural installs	8.9%	$300/system	N/A
Skipping annual inspections	55% of residential	5.1%	$450 (avg. late repairs)	27%

The Physics Behind These Mistakes

When homeowners clean monocrystalline solar modules at 2 PM (when surface temps reach 65°C) with 15°C hose water, the 50°C thermal shock creates microcracks at 12μm per incident - enough to reduce a 400W module's output by 9W within 5 years. Similarly, pressure washing at 1200 psi forces water past IP68-rated junction boxes at 3.4 ml/minute, leading to corrosion that costs $180/module to fix.

Financial Consequences Add Up Quickly

A typical 6kW system making these mistakes loses:

· $220/year from 5% reduced efficiency

· $600 in premature inverter replacement (from PID effects)

· $1,800 over 10 years in module replacements (vs. proper maintenance)

Manufacturer-Specific Vulnerabilities

· Canadian Solar HiDM: Loses 0.8% more efficiency than specs if cleaned with pH<5 solutions

· Jinko Cheetah: Frame corrosion appears 40% faster when hard water deposits accumulate

· Longi Hi-MO 4: Backsheet degradation accelerates by 3x if shading covers >15% for 6+ hours daily

Regional Risk Factors

· Desert climates: Abrasive dust scratches anti-reflective coatings 70% faster

· Coastal areas: Salt spray corrosion requires quarterly rinses with 30°C+ water

· Snow belts: Ice expansion cracks 2.5mm glass modules at 3x the rate of 4mm versions

The Smart Maintenance Alternative

Simply shifting to early morning cleaning with 20°C deionized water and soft brushes can:

· Boost annual yield by 5-8%

· Extend module lifespan to 35+ years

· Reduce O&M costs by 60%

· Maintain 99.7% warranty validity

 Winter Panel Maintenance Tips

Winter presents unique challenges for solar module owners, but proper care can turn cold months into a productivity advantage. While most monocrystalline PV modules actually gain 0.05-0.12% efficiency per °C below 25°C, snow and ice can erase these benefits if not managed correctly. Data from Nordic solar farms shows properly maintained 400W modules produce 8-15% more winter energy than neglected systems, while Canadian residential installations with winter optimization protocols achieve 92% of summer output despite 45% shorter daylight hours.

The key winter threats are snow loads exceeding 5,400 Pa (about 1.2m of wet snow), ice expansion in junction boxes, and reflective snow glare accelerating PID effects. Modules with 4mm tempered glass and aluminum frames withstand -30°C to 65°C thermal cycles 40% better than 3.2mm glass polycrystalline photovoltaic panels, according to IEC 61215 testing. This durability difference becomes critical when 15kg of ice forms on a monocrystalline solar module's frame, creating 280 N/cm² of shear stress - enough to crack thinner glass.

Snow Removal Strategies That Work

Gentle snow clearing boosts winter yields by 30-50% without damaging modules. Using a soft foam rake at 30° angle removes 90% of snow while causing 0.001% microcrack risk - versus 2.1% risk from metal tools. For utility-scale plants, tilted bifacial modules at 35-40° angles shed snow 60% faster than fixed-tilt arrays, requiring 75% less manual clearing. Residential systems see best results when clearing snow after 15cm accumulation, which balances labor (about 20 minutes for 6kW system) with energy recovery (4.3 kWh/day per cleared module).

Electrical Considerations in Cold

Below -10°C, PV cell voltages rise 2.1V per 10°C drop, potentially exceeding inverter maximums. Modern 1500V string inverters handle 1000V+ cold-weather spikes safely, but older 600V models risk 9% clipping losses. Microinverters avoid this but face 17% higher failure rates in < -20°C conditions (DNV GL study). For off-grid systems, lithium batteries require 3-5% more charging time per -5°C below freezing, making monocrystalline solar modules' low-light performance critical.

Ice Prevention Techniques

Applying hydrophobic coatings (15-20/module) reduces ice adhesion by 70%, letting it slide off at 15° tilt. In New England installations, these coatings deliver 14-month payback through reduced clearing costs. For frameless modules, 0.5cm heating strips along edges (3.50/watt) prevent icicle damage to backsheets, preserving 98.5% of warranty coverage versus 89% for unheated units.

Financial Winter Optimization

A 10kW northern system implementing these measures gains:

· $220/year from snow removal (6.7% production increase)

· $180/year from PID prevention (saves 4.1% degradation)

· $90/year from reduced inverter stress (extends life by 2-3 years)

The Smart Winter Approach

Winter isn't a solar downtime period - it's a high-efficiency opportunity requiring different care. Investing 2-4 hours per season in proper maintenance protects your 25-year energy asset while squeezing 8-12% more value from cold months. Just remember: Never use hot water on frozen modules (causes 17μm/°C glass stress) and prioritize south-facing module clearing first (provides 63% of winter yield). With these protocols, even Alaskan solar arrays reliably produce 4.2 kWh/kW/day in December - proving cold weather rewards those who prepare.
