How Do You Know If You Need a 10 kW Solar System | Power Use, Property Size, Load Demand

Monthly electricity use exceeds 1200 units, and the roof reaches 70 square meters, suggesting installing a 10 kW system.

Daily average power generation of 40 units can offset large loads, need to check peak power, ensure self-use rate exceeds 70% to optimize cost recovery period.

Power Use

Judging whether you need to install a 10 kW solar system, the most direct basis is not the house area, but your past 12 months' electricity bills. A 10 kW system under standard light conditions, on average, can produce 40 kWh to 55 kWh of electricity. If your family's average monthly electricity use is between 1,200 kWh and 1,600 kWh, then this capacity system can cover most or even all of your electricity expenditures.

If you check electricity bills and find summer electricity use surges, for example because of all-day opening of central air conditioning leading to a single month exceeding 2000 kWh, while winter is only 800 kWh, then a 10 kW system is a very stable choice. It can offset expensive tiered electricity prices during the summer power generation peak period.

We need to focus on the "Average Daily Usage" on the electricity bill. Below is the matching degree reference for different electricity use levels and 10 kW systems:

This scale of system usually consists of 25 to 30 high-efficiency solar panels. If your bill shows the unit price of each unit of electricity is constantly rising, especially when family electricity use enters the highest rate bracket, every unit of electricity produced by the 10 kW system is saving you the most expensive electricity expenditure.

You need to count a whole year's data, rather than just looking at one certain month. Many families use very little electricity in the spring and autumn seasons, but in extreme weather electricity use will double. The 10 kW system possesses a certain error-tolerance space, able to balance the energy gap produced by cloudy/rainy days through more electricity produced on sunny days.

There is also a data point on the electricity bill often ignored: peak electricity use time. If your power company implements Time of Use billing, and your electricity use peak is concentrated between 2 PM and 8 PM, the electricity produced by the 10 kW system can be directly consumed when produced, avoiding buying electricity from the grid during the most expensive periods.

If your monthly average electricity bill often exceeds 300 dollars (or equivalent local currency), the economic benefit of a 10 kW system will be very obvious. Large families or households possessing high energy consumption lifestyles, by installing a 10 kW system, usually can recover equipment costs within 5 to 7 years through saved electricity bills.

When evaluating bills, also consider the electricity use increase in future years. For example, whether you plan to buy the first electric car within two years, or whether you plan to replace the gas water heater at home with a heat pump water heater. One electric car, if driven 50 kilometers daily, needs to consume about 300 kWh of electricity monthly. Choosing 10 kW in advance rather than a just-enough 6 kW can reserve sufficient electricity quotas for these future appliances.

Property Size

Is the roof big enough?

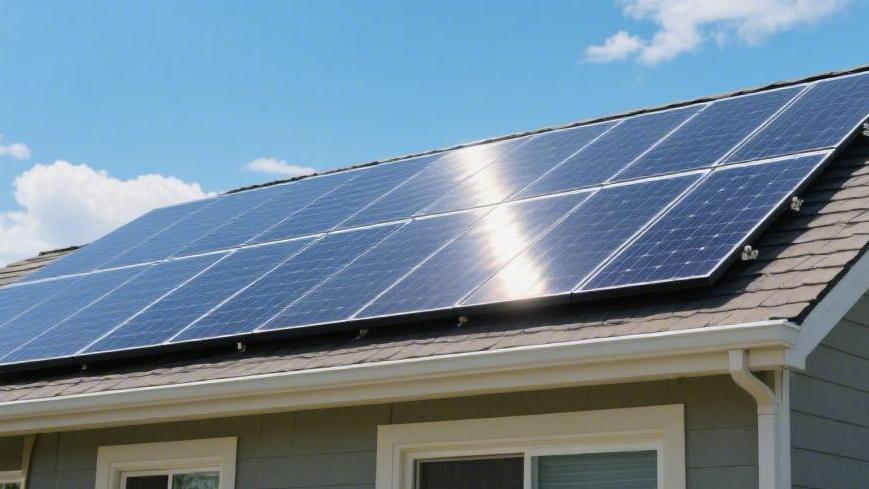

Installing a set of 10 kW solar system, first, must see if the roof's physical space is sufficient. Currently, mainstream high-efficiency monocrystalline silicon cell panels' power is usually between 400W and 450W. To reach 10 kW total power, you need to place about 22 to 25 cell panels on the roof. Each standard specification cell panel size is about 1.72 meters long, 1.13 meters wide, area close to 2 square meters.

Considering the installation gaps between panels and the edge space occupied by fixed brackets, the whole system usually needs 45 to 60 square meters of open roof. If your roof is a sloped structure, this area must be continuous and facing the sun. If the roof is divided very fragmented by chimneys, skylights, or vents, even if the total area reaches the standard, it might be because of inability to place rows of modules, leading to installation capacity reduction.

The table below shows the space requirement differences for modules of different power specifications when reaching 10 kW total amount:

Building codes usually require reserving certain fire passages or safety distances at roof edges, ridges, and gables, generally 30 to 90 centimeters ranging. You cannot spread cell panels across every inch of the roof. If your available roof total area is exactly only 50 square meters, then installing a 10 kW system will be very tight, even might need to adopt higher efficiency but higher price modules to reduce land occupation area.

Which side faces the sun?

The direction of the roof determines the actual production efficiency of the 10 kW system. In the Northern Hemisphere, south-facing roofs are the best choice for installing solar panels, because here you can obtain the longest light time all day. If your roof mainly faces East or West, although it can still be installed, the power generation will be about 15% to 20% lower than a south-facing installation.

East-facing roofs have the highest power generation in the morning, suitable for families with large morning electricity use; West-facing roofs perform better in the afternoon, can effectively offset expensive afternoon air conditioning electricity bills in summer. If you plan to install symmetrically on the East and West sides to reach a total of 10 kW, then you might need more cell panels than a pure south-facing installation to compensate for efficiency loss, or install a larger capacity inverter to process current at different periods.

The tilt angle of the roof likewise cannot be ignored. Usually, around 30 to 35 degrees is considered an ideal state. If the roof is too flat, rainwater and dust easily accumulate on the cell panel surface, which will affect light transmittance and lead to efficiency drop in the long term. If the roof angle is too steep, although drainage performance is good, it will increase installation difficulty and labor cost, and in some latitude regions, it might not be able to obtain the best annual total light.

For multi-slope roofs, installers will calculate the effective light time of each facade. If the 10 kW system is split into three or four small arrays with different orientations, system wiring will become complex. At this time, we might need to use microinverters or power optimizers to ensure that even if the cell panels of one slope are blocked by shadows, modules of other slopes still can work at full load, and will not be like series systems where one point's problem leads to overall power generation collapse.

Shadows blocked it

Even if the roof area is big enough, shadows caused by the surrounding environment will seriously weaken the 10 kW system's performance. Tall trees, neighbors' two-story buildings, or own roof satellite antennas, as long as they block a small part of the modules during a certain time period, will produce hot spot effects, not only reducing power generation efficiency, but also might shorten equipment lifespan.

When planning installation positions, need to observe whether there are continuous shadows covering the roof during the golden period from 9 AM to 3 PM. Current survey technology can simulate all-year light trajectories through software, evaluating the blocking situation before and after trees drop leaves. If your property's surroundings have very good greening, or it is in a building-dense area, the space originally planned for 10 kW might only have half as truly "clean" a light-receiving area.

In this situation, the solution is usually adjusting the installation layout or pruning trees. If shadows cannot be completely avoided, installing a 10 kW system must consider adding electronic optimization equipment. Even if you bought 10 kW of panels, the actual highest instantaneous power seen in the system backend might never reach this value. For properties with limited space and complex shadows, reducing module quantity and choosing higher conversion rate products often has higher revenue than forcibly stuffing 30 pieces of cheap cell panels.

Is the roof heavy?

A 10 kW solar system contains cell panels, aluminum alloy brackets, guide rails, and pressure blocks, the overall weight cannot be underestimated. Under normal circumstances, the system weight per square meter is around 15 to 20 kilograms. 25 cell panels plus all accessories, the total weight will reach 500 to 700 kilograms.

Old house roof structures when designed might not have reserved this extra long-term static load. If roof wooden beams have already shown aging, corrosion, or span is too large, need to perform structural reinforcement before installation. For tile roofs, installation workers need to frequently step and install hooks under tiles. If tiles have already become brittle, the breakage rate during the installation process will be very high, increasing extra repair expenditures.

Below are common considerations when installing 10 kW systems on different roof materials:

l Asphalt Shingles/Color-coated Steel: This is the most ideal installation surface, construction speed is fast, waterproof sealing is simple, structural support is stable.

l Cement Tiles/Clay Tiles: Need to move away tiles to fix hooks, has high requirements for construction personnel's technology, and increases overall weight.

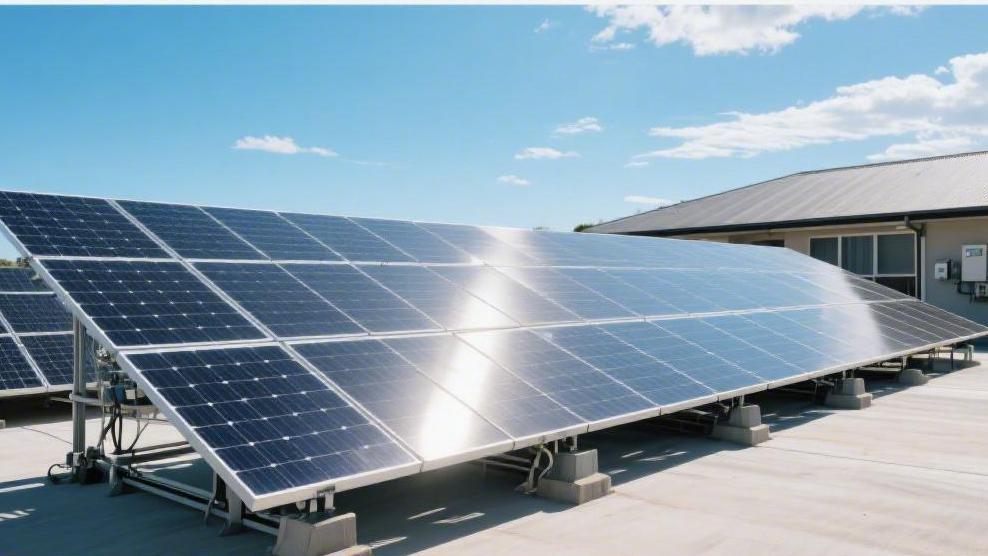

l Flat Roof: Usually needs tilted brackets (ballasted or drilled). Ballast brackets will increase several tons of pressure blocks, having extremely high requirements for roof load-bearing capacity.

If your roof due to waterproof layer aging is expected to need overhaul within 3 to 5 years, then installing a 10 kW system now is unwise. Disassembling and re-installing these dozens of cell panels' labor cost is very high, usually suggested to conduct solar construction while replacing the roof.

Can the yard install it?

If your roof space indeed cannot accommodate a 10 kW system, or roof orientation is very bad, then an open yard is another choice. Ground Mount systems are very popular in properties possessing large pieces of land. The advantage of ground installation is being able to precisely adjust angle and orientation, completely not limited by the house's original structure, and cell panel backs have good ventilation, power generation efficiency in hot weather is higher than roof installation.

However, a 10 kW ground system will occupy about 60 to 80 square meters of ground space. To stabilize the system, you need to pour concrete foundations or drive in screw piles. You also need to consider the cable laying between the ground array and the home distribution box. This usually involves 20 to 50 meters or even longer trenching and pipe burying work. The longer the distance, the more voltage drop on the cable, the thicker the needed cable specification, and the cost increases accordingly.

Ground systems also need to consider lawn mowing, rust prevention, and possible collision damage. In some areas, ground-installed solar belongs to fixed buildings, and might need to apply for extra building permits. If your yard has large pieces of open space and roof conditions are not good, adopting a 10 kW ground installation can ensure the system annually produces about 10% more electricity. This is very attractive to users pursuing ultimate energy output.

Load Demand

Many big items at home

A 10 kW system under ideal sunlight can produce about 10 units of electricity per hour, but these energy units will be quickly divided up by high energy consumption devices in the home. For ordinary families, basic appliances like LED lights, refrigerators, computers, and TVs have relatively low power consumption, together usually not exceeding 1.5 kW. However, the real electricity consumption giants are those devices containing electric motors or large power heating elements.

For example, a 2-horsepower swimming pool water pump, power during operation is around 1.5 kW to 2.2 kW, if running 8 hours daily, it consumes one-third of the 10 kW system's daily power generation. Electric clothes dryers when working can reach instantaneous power of 4 kW to 6 kW. If there are two children at home needing frequent laundry, the moment the dryer starts, more than half of the electricity produced by the solar system will be sucked away by it. Dishwashers, although usually have low standby power, during the water heating and drying stages, power will also soar to 2.5 kW.

A typical 10 kW solar system on a sunny summer day can provide about 45 to 55 kWh of energy. This looks like a lot, but if you have a 5-ton central air conditioner running all day (consuming about 25 kWh), plus a water heater (consuming about 10 kWh) and basic home appliances (consuming about 8 kWh), the margin left for other appliances is actually already very limited.

If your home possesses multiple high energy consumption devices and often uses them at the same time, a 10 kW system is actually the "standard configuration". For large families possessing more than 4 bedrooms and a population between 4 and 6 people, the power guarantee a 10 kW system can provide is only covering daily expenses, very difficult to produce a large amount of surplus electricity to sell back to the grid.

Does air conditioning consume electricity?

A common 5-ton central air conditioning system has a very large current at the starting moment, and power during steady operation is between 5 kW and 7 kW. In the blazing noon sun, when your 10 kW solar system output reaches its peak, just one central air conditioner might eat up 70% of the power generation.

If your house's insulation performance is ordinary, or the window area is very large, the air conditioner needs to be in a high-load operation state for a long time in order to maintain indoor temperature. At this time, the help 10 kW system can provide is very obvious, it can offset high expenditures caused by tiered electricity prices. For those families using heat pump systems for winter heating, load pressure will be even larger. Under extreme cold weather, the heat pump, in order to defrost or increase temperature, might start auxiliary electric heating wires. The instantaneous power at that time might even break through 10 kW, completely relying on solar power supply will become quite unrealistic, still needing to supplement by taking electricity from the grid.

We need to focus on the air conditioner's SEER (Seasonal Energy Efficiency Ratio) grade. If your family uses an old AC from over ten years ago, its electricity consumption might be twice that of modern high-efficiency models. In this situation, the original intention of installing a 10 kW solar system is often to offset the high electricity bill black holes brought by these old devices. Conversely, if your home has already been comprehensively replaced with high-efficiency appliances, the 10 kW power generation can support longer-term household electricity needs.

How to charge an electric car?

A standard Level 2 Charger output power is usually 7 kW or 9.6 kW. If you charge the car during the day when sunlight is abundant, this charging pile will almost squeeze dry all the current produced by the 10 kW solar system, leading to other appliances in the home having to rely on grid power supply.

Assume you commute 60 kilometers back and forth daily, the electric car needs to supplement about 12 kWh to 15 kWh of electricity. This is equivalent to consuming one-fourth of the 10 kW solar system's all-day power generation. If your home has two electric cars, and both need to perform supplementary charging during the day, then the 10 kW system capacity might appear stretched. Many people will choose to charge at night when electricity prices are cheap. You cannot directly use solar, unless you additionally configure expensive storage cell sets.

Worth noting is, with the increase of vehicle cell capacity, future charging power might be higher. If you choose a 10 kW system now, you are actually making an advanced investment for your future 5 to 10 years' travel costs. If the system capacity is too small, for example only 5 kW, then it cannot even cover a single charging pile's instantaneous power requirement, leading to you always needing to pay the grid's electricity fees.

For families with electric cars, when installing a 10 kW system, suggest cooperating with smart load balancing devices. This type of device can monitor solar power generation, and dynamically adjust the charging pile's output power. When clouds block sunlight, leading to system power generation dropping to 4 kW, the charging pile will also automatically slow down, ensuring not pulling extra electricity from the grid, achieving true zero-emission driving.

Opening at the same time okay?

The "10 kW" of a 10 kW solar system refers to the total output of all cell panels under standard light, but after inverter conversion, the maximum electricity you can actually use at the same time in the home is limited by the inverter's rated capacity. Common 10 kW systems usually are equipped with an 8 kW or 10 kW inverter.

Imagine a Saturday afternoon. You are preparing dinner for the whole family: the electric oven is preheating (3.5 kW), the electric dryer is drying sheets (5 kW), meanwhile, the central air conditioner, in order to resist the afternoon heat wave, is running at full speed (6 kW). At this time, your family's total instantaneous load reached 14.5 kW. Even if the solar system is at this time exactly in a 10 kW full-load power generation state, there is still a 4.5 kW gap needing to be bought from the grid in real-time.

This kind of instantaneous electricity gap is very common in families possessing modern lifestyles. If your electricity use habits are relatively concentrated, for example, the whole family starts using large power appliances after returning home in the evening, then the 10 kW system's immediate power generation advantage cannot be played out, because at that time the sun has already gone down or is close to going down. To increase the 10 kW system's self-utilization rate, you need to change electricity use habits, for example, setting timers on dishwashers, dryers, and pond pumps to run between 11 AM and 2 PM at noon.

If we look at a one-year cycle, because its capacity reserve is larger, a 10 kW system's performance in winter will be much better than small systems. Winter light time is short and light intensity is weak, a 6 kW system might only be able to produce a few units of electricity, barely maintaining refrigerator operation; while a 10 kW system, even on cloudy days, can maintain a certain output power, reducing your sense of dependence on the grid.

Will it be enough in the future?

Before deciding to install a 10 kW system, you must consider the family's future 10-year electrification upgrade plans. Currently, many families are in the process of transitioning from gas to all-electric. For example, do you plan to replace the natural gas stove at home with an induction cooker? An induction cooker's four eyes when all open, power can reach around 7 kW.

If your house has expansion plans in the future, for example, adding a guest room with an independent bath, or building a studio with air conditioning in the backyard, electricity use will rise in a tiered manner accordingly. A 10 kW system is usually considered a "sweet spot" for a family's energy self-sufficiency—it can both satisfy current heavy load requirements, and reserve about 20% to 30% space for future equipment increase.

For most standard middle-class families, a 6 kW system might just be enough to cover the electricity bill, but facing newly added electronic products, electric tools, or smart home systems, it will quickly become outdated. Choosing a 10 kW system actually is buying a kind of "sense of energy security". This security comes from when you open any appliance, you don't have to worry about the electric meter jumping crazily.

In addition, also must take into account that solar cell panels as time passes will show tiny efficiency decay, usually about 0.5% annually. A 10 kW system after 20 years still can provide about 9 kW of production capacity. If you installed an 8 kW system at the beginning, then in the later period, its output might not be able to satisfy the increasingly growing family's electronic equipment needs. Therefore, based on long-term load growth curves, 10 kW is a rational choice able to balance current cost-effectiveness and future compatibility.
