5 Differences Between Solar Cells and Photodiodes

Solar cells (photovoltaic effect, ~20% efficiency mono PERC) generate power; photodiodes (photodiode effect, nA reverse current) detect light. Solar has thick EVA/AR coatings; photodiodes are thin, reverse-biased. Spectral peaks: solar 400-1100nm, photodiodes (PIN) 800-1700nm. Uses: power vs. sensing.


How They Work: Power vs. Signal


A solar cell is designed for energy conversion, aiming to capture as much photon energy as possible and transform it into usable electrical power. In contrast, a photodiode is a sensing device engineered to detect changes in light intensity and convert them into a rapid, precise electrical signal. This fundamental difference in purpose dictates every aspect of their design, from the materials used to the physical structure of the semiconductor junction. For instance, a typical silicon solar cell operates at an open-circuit voltage between 0.5V to 0.7V and is optimized for high current output, measured in Amperes. A photodiode, however, typically operates in reverse bias, often at voltages around 5V to 12V, and its output is a tiny current signal, measured in microamperes (µA) or even picoamperes (pA), that must be amplified by external circuitry.

The operational mode is the clearest differentiator. A solar cell works in photovoltaic mode—it is a forward-biased device that generates its own voltage and current when illuminated. Its performance is measured by its power conversion efficiency (PCE), with commercial silicon cells achieving 20% to 25% efficiency. The key metric is maximizing power output per unit cost, often expressed as $/Watt.

A photodiode almost always operates in photoconductive mode. It is reverse-biased, which dramatically reduces its junction capacitance. This allows it to respond to light changes extremely quickly. Its performance is measured by its:

· Responsivity (e.g., 0.65 A/W at a 900 nm wavelength), which defines how much current is generated per watt of incident light.

· Response speed or rise time, which can be as fast as 1 to 100 nanoseconds for standard silicon photodiodes, enabling them to detect high-frequency optical signals.

This speed comes at a cost: the dark current (~1 to 10 nA), a small leakage current that flows even in complete darkness, introduces noise and limits the device's sensitivity for detecting very weak light signals. Therefore, while a solar cell's design focuses on absorbing 100% of incident photons, a photodiode's design is a careful balance between achieving high speed, high responsivity, and low noise.



Key Difference: PN Junction Design


A solar cell's PN junction is optimized for maximum photon absorption and carrier collection across a broad area. It is a large, shallow structure, often with a surface area of 156 mm x 156 mm for standard commercial cells, designed to capture as much sunlight as possible. Conversely, a photodiode's junction is a precision instrument, engineered for high speed and linear response. Its active area is intentionally kept small, typically ranging from 0.1 mm² to 25 mm², to minimize junction capacitance, which is the primary factor limiting its switching speed.

A solar cell employs a shallow junction, often only 0.5 to 1.0 micrometers deep, to ensure charge carriers (electrons and holes) generated by light are close to the junction and can be collected before they recombine. To further enhance light capture, its surface is textured into micro-pyramids 3-10 μm in height, which reduces reflection from over 30% to less than 10%, trapping light inside the cell.

A photodiode's design is a exercise in precision, balancing three key parameters: responsivity, speed, and noise. Its junction is even shallaller, frequently less than 0.5 μm deep, and its small active area is crucial for achieving a low junction capacitance, typically between 5 pF to 50 pF for a standard device. This low capacitance allows for a rapid time response, with rise times as fast as 1 ns.

Design Feature

Solar Cell

Photodiode

Primary Goal

Maximize Photon Absorption

Maximize Speed and Signal Fidelity

Junction Depth

0.5 - 1.0 μm

< 0.5 μm

Active Area

Large (e.g., 243 cm²)

Small (e.g., 0.1 - 25 mm²)

Junction Capacitance

Very High (nF range)

Very Low (5 - 50 pF)

Key Structural trait

Textured Anti-Reflective Surface

Planar, Passivated Surface

Furthermore, photodiodes often incorporate a passivated surface, a critical layer of silicon dioxide (SiO₂) that reduces surface recombination of charge carriers. This process is vital for minimizing dark current, which can be kept as low as 0.1 nA at a reverse bias of 10 V in high-quality devices. The doping concentrations are also meticulously controlled to create a well-defined depletion region width of 1-10 μm, ensuring efficient and fast carrier collection under reverse bias. In short, a solar cell is a broad, shallow photon trap, while a photodiode is a small, fast, and precise optical sensor.


Performance: Efficiency vs. Speed


Commercial silicon solar cells now achieve PCEs between 20% and 25%, with laboratory prototypes exceeding 47% under concentrated light. The primary goal is to maximize energy harvest per unit cost, driving the industry's focus on metrics like cost-per-watt, which has fallen below $0.20/W for utility-scale projects. In stark contrast, a photodiode's performance is judged by its speed and sensitivity. Its critical parameters are responsivity (A/W), response time (nanoseconds), and noise equivalent power (NEP), which define its ability to accurately detect rapid or faint optical signals.

Performance Metric

Solar Cell

Photodiode

Key Parameter

Power Conversion Efficiency (PCE)

Response Time / Bandwidth

Typical Value

20% - 25%

1 ns - 100 ns

Operating Bias

0 V (Forward-biased by light)

5 V - 12 V (Reverse Bias)

Output

Power (Watts)

Current (microamperes)

Critical Limitation

Spectral Mismatch, Recombination

Junction Capacitance, Dark Current

The immense physical size of a solar cell, necessary for capturing substantial solar energy, creates a large junction capacitance—often in the nanofarad (nF) range. This capacitance, in conjunction with the module's inherent electrical resistance, forms a Resistor-Capacitor (RC) circuit with a time constant that severely limits switching speed. This results in a relatively slow response time, typically on the order of milliseconds, as the cell's output sluggishly follows changes in light intensity, such as from cloud cover.

A photodiode is engineered to minimize this exact problem. Its tiny active area, often just 1 mm², results in an extremely low junction capacitance, typically 5 picoFarads (pF) to 50 pF. When combined with a standard 50-ohm load resistor, this low capacitance enables a calculated RC time constant as fast as 0.25 nanoseconds (for 5 pF and 50 Ω). This allows photodiodes to track light changes at frequencies up to 350 MHz. Key design choices enabling this speed include:

· Application of Reverse Bias: Applying a 5V to 12V reverse bias voltage widens the depletion region, which reduces capacitance and accelerates charge carrier drift velocity, cutting the transit time of carriers across the junction to less than 100 ps.

· Minimizing Dark Current: This unwanted leakage current, typically 0.1 nA to 10 nA, is the primary source of noise. It sets the lower limit of detectable light power, known as Noise Equivalent Power (NEP), which can be as low as 10^(-15) W/√Hz for specialized devices.


Circuit Connection Methods


A standard 156 mm x 156 mm silicon solar cell, producing around 0.6V and 9A under full sun (1000 W/m²), is designed to be connected directly to a load, such as a cell or an inverter. Its goal is to deliver maximum power, a point tracked by sophisticated Maximum Power Point Tracking (MPPT) algorithms that constantly adjust the electrical operating point to counteract losses from factors like 20-25% module temperature increases. A photodiode, generating a minuscule current signal in the range of microamperes (µA), is useless on its own. It must be connected into a circuit that converts this tiny current into a measurable voltage, a process that always requires an external reverse bias voltage of 5V to 12V and almost always necessitates an operational amplifier (op-amp) to be practical.

Connecting a solar cell is an exercise in power management. The cell itself has a low internal impedance when illuminated, allowing it to drive significant current. The primary challenge is not the connection itself but optimizing it for maximum energy extraction. This is why real-world systems use MPPT controllers, which are switching regulators that sample the cell's output and adjust the effective load resistance to keep the operating voltage near the cell's peak power point, typically around 80% of its open-circuit voltage. For a cell with a 0.7V open-circuit voltage, this means operating near 0.55V. System losses from mismatched connections or under-sized wiring must be minimized, as a 1% voltage drop in a low-voltage, high-current string can result in a >1% power loss.

In contrast, connecting a photodiode is an exercise in signal integrity and noise reduction. The most common configuration is the transimpedance amplifier (TIA), where an op-amp is used to convert the photodiode's current directly into a precise output voltage. The key module is the feedback resistor (Rf). Its value, which can range from 1 kΩ to 10 MΩ, sets the gain of the circuit (Vout = Iphotodiode * Rf). A 10 MΩ resistor will yield 10 volts of output per microampere of input current. However, this high-value resistor introduces Johnson-Nyquist thermal noise, which can be on the order of 100 µV/√Hz, limiting the sensitivity for detecting very weak signals.

Furthermore, the parasitic capacitance across this resistor (often 0.2 pF to 1 pF) creates a pole that limits the circuit's bandwidth. To combat this, a feedback capacitor (Cf) of 0.1 pF to 5 pF is added in parallel to the resistor to stabilize the amplifier and prevent oscillation, but this intentionally trades off bandwidth for stability. This is why a TIA circuit designed for DC measurements might have a bandwidth of only 10 Hz, while one designed for high-speed communications might achieve 100 MHz but with lower gain.




Main Applications: Energy vs. Detection

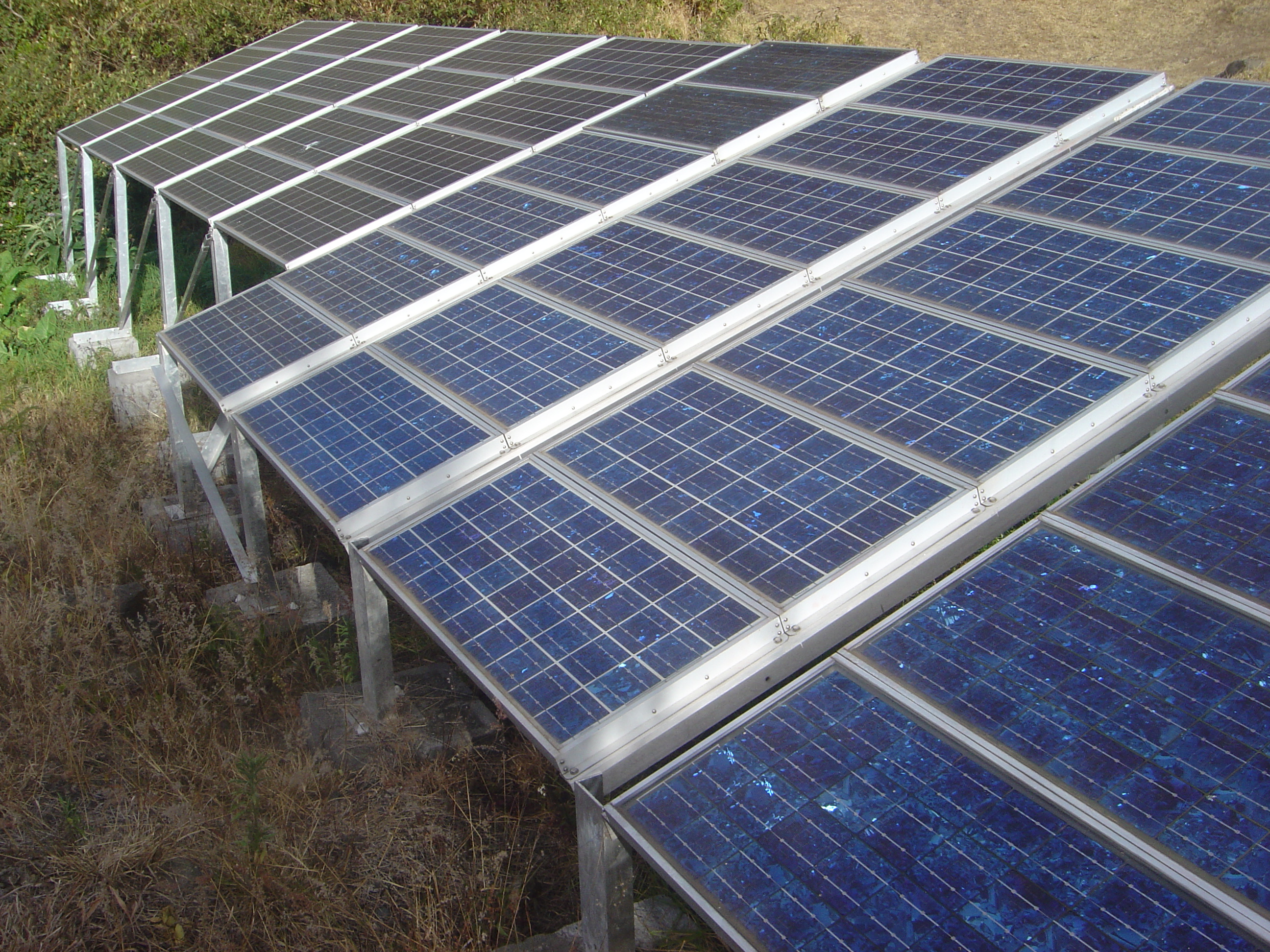

Solar cells are fundamentally macroscale energy infrastructure modules. Their primary, and almost exclusive, application is the generation of electrical power from sunlight. This spans from massive utility-scale solar farms generating hundreds of Megawatts (MW) of AC power to smaller residential installations typically ranging from 5 kW to 20 kW, and down to milliwatt (mW)-scale applications like pocket calculators and wireless sensors. Photodiodes, in contrast, are microscale sensing and measurement modules. They are the critical optical input device in systems that require precise, high-speed light detection, operating on signal currents measured in microamperes (µA) and dealing with response times in nanoseconds

Application Domain

Solar Cell Implementation

Photodiode Implementation

Primary Function

Generate usable electrical power

Detect, measure, or decode light signals

Scale of Operation

Macroscale (Watts to Gigawatts)

Microscale (picoamps to microamps)

Key System

Grid-tied or off-grid PV system

Optical receiver & signal conditioning circuit

Performance Driver

$/Watt cost, LCOE, PCE (%)

Responsivity (A/W), Speed (ns), NEP (W/√Hz)

A commercial solar panel's sole purpose is to push electrons into a grid or cell at the lowest possible Levelized Cost of Energy (LCOE), now often below $0.05 per kWh. Its 25-year lifespan and >80% performance retention after 25 years are its most critical metrics, making reliability and degradation rates (typically <0.5% per year) paramount.

In a fiber optic communication system, an InGaAs photodiode with a 50 GHz bandwidth and a responsivity of 0.9 A/W at the 1550 nm wavelength is used to receive data streams traveling at 100 Gbps. Its incredibly fast response, enabled by a reverse bias of 3V, is what allows you to stream high-definition video. In a precision analytical instrument like a spectrophotometer, a photodiode array is used to measure the intensity of light at specific wavelengths with an accuracy of ±0.5% and a noise level of less than 0.0003 Absorbance units, enabling precise chemical concentration measurements. In your everyday barcode scanner, a simple silicon photodiode with a response time of 100 µs detects the reflected laser light pattern to decode the product information.
