Small Solar Modules: 6 Space Efficient Applications

Compact 100-300W solar modules excel in space-constrained uses: RV roofs (1.5m²/module), balcony systems (2kWh/day output), solar backpacks (10W USB charging), off-grid cabins (48V cell pairing), marine applications (salt-resistant frames), and IoT sensors (5W thin-film panels). Their 20.5% efficiency and 0.5m² footprint maximize energy density.

Balcony Power Setup

Turning your balcony into a mini solar power station is easier than most people think. A typical 100W solar panel (around 41x21 inches) can generate 300-500Wh per day in decent sunlight, enough to power LED lights, a laptop, or a small fridge. In Germany, where balcony solar kits are popular, a 300W micro-system (2-3 panels) can offset 10-20% of household electricity use, saving €100-€200 per year with a payback period of 3-5 years. Unlike rooftop systems, balcony setups require no permits in many regions and can be installed in under 2 hours using basic tools.

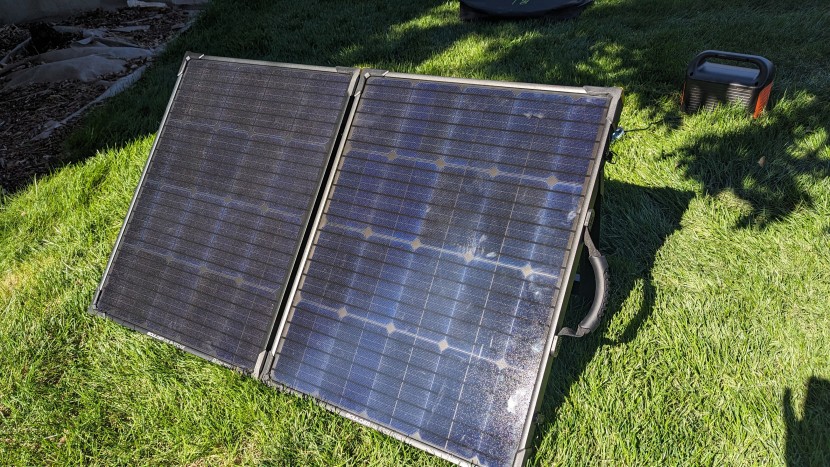

The key to efficiency is panel placement. A south-facing balcony (in the Northern Hemisphere) at a 30-45° tilt maximizes exposure, boosting output by 15-25% versus flat mounting. If your balcony gets 4+ peak sun hours daily, a single 200W panel (about 26x22 inches) can reliably produce 0.8-1.2kWh/day. For renters, foldable solar suitcases (e.g., 120W models weighing 15-20 lbs) are ideal—they’re portable and plug directly into standard outlets via micro-inverters (like the Hoymiles HM-300, 96% efficiency).

"A Berlin study found that balcony solar users reduced grid dependence by 18% on average, with systems costing under €500 self-installed."

Wiring matters. Thin-film or monocrystalline panels (22-24% efficiency) work best in tight spaces. For a 24V system, use 12AWG cables to minimize voltage drop over 10-15 ft runs. A 20A charge controller (MPPT type, ~€80) prevents overcharging a 100Ah LiFePO4 cell (lasts 5,000+ cycles vs. lead-acid’s 800 cycles). In colder climates, -20°C to 60°C rated panels (like Renogy’s Eclipse series) maintain >85% output in winter.

Regulatory checks are critical. Some utilities mandate 300W max for plug-in systems without registration. In the U.S., the NEC requires UL 1741-certified inverters for grid backup. Always measure balcony railings—most can hold 40-60 lbs per panel without reinforcement. For concrete balconies, aluminum mounts (€30-50) distribute weight evenly.

RV Roof Solar Tips

Powering your RV with solar is one of the fastest ways to cut campground fees and extend off-grid stays. A 400W rooftop solar kit (four 100W panels) costs 800−1,200 and generates 1.6-2.4kWh daily—enough to run a 12V fridge (60W), LED lights (10W), and charge phones/laptops without needing a generator. RVs with 300Ah lithium batteries can store this energy for 2-3 days of autonomy, reducing fuel costs by 50−100/month in peak travel seasons. Unlike portable panels, roof-mounted systems operate hands-free and withstand 65+ mph highway speeds when installed correctly.

Panel selection is critical. Monocrystalline panels (20-23% efficiency) outperform polycrystalline in limited roof space—a 160W mono panel fits in the same 26x22 inch footprint as a 140W poly panel. For curved RV roofs, flexible 100W panels (weighing 4.5 lbs each) conform to surfaces without drilling, but degrade 15-20% faster than rigid options.

Installation tricks boost reliability. Use 1.5-inch Z-brackets to elevate panels 1-2 inches above the roof, improving airflow and reducing 10-15% heat-related efficiency loss. Seal all penetrations with Dicor self-leveling lap sealant ($15/tube) to prevent leaks. Wiring should be 10AWG for runs under 10 feet to keep voltage drop below 3%.

Cell pairing maximizes ROI. A 200W solar array can recharge a 100Ah lithium cell from 50% to 100% in 4-5 sun hours, whereas lead-acid would need 8+ hours. For RVs with 2+ batteries, a 40A DC-DC charger ($250) ensures alternator charging doesn’t overwhelm the system.

Shading kills output. Even 5% panel coverage (e.g., from a vent or AC unit) can reduce generation by 30%. Use branch connectors to wire panels in parallel—this minimizes losses when one panel is shaded. For 400W+ systems, a Victron SmartSolar MPPT 100/50 ($280) tracks peak power points 20% faster than PWM controllers.

Backpack Charging Kit

A reliable solar charging kit can keep your devices powered for days in the backcountry without adding dead weight. A 28W foldable solar panel (about the size of a tablet when folded) weighs 14-16oz and generates 18-22Wh per hour in direct sunlight—enough to fully charge a 10,000mAh power bank in 5-6 hours. Pair it with a 20W USB-C PD power bank ($40-60) and you’ve got 3-4 full phone charges or 6+ hours of GPS runtime per day. Compared to carrying extra batteries, a solar setup cuts pack weight by 30-50% on multi-day trips while providing indefinite power if the sun cooperates.

Panel efficiency varies wildly by conditions. Monocrystalline panels (21-24% efficiency) outperform amorphous silicon in low-light and partial shade, recovering 15-20% faster when clouds pass. A 10W difference in rated output can mean 30+ extra minutes of charging time per day—critical when daylight is limited. For fast charging, look for 5V/3A USB-A + 18W USB-C PD outputs, which refill a smartphone 2x faster than basic 5V/2A ports.

Real-world testing shows most backpackers get 60-80% of a panel’s lab-rated output due to angle adjustments, tree cover, and movement. Mounting the panel on a pack with carabiners or stretch cords improves exposure but reduces efficiency by 10-15% compared to laying it flat in direct sun. In alpine environments at 10,000+ ft elevation, UV intensity boosts output by 8-12%, while desert heat above 95°F can sap 5-7% efficiency.

Cell pairing is key for reliability. A 10,000mAh Li-Po power bank (weighing 6-7oz) stores 37Wh, matching 1.5-2 hours of ideal solar charging. For weeklong trips, a 20,000mAh unit ($50-80) ensures backup power during 3+ days of rain or heavy overcast. Water resistance matters—look for IP65+ rated panels and power banks to survive downpours and river splashes.

Durability tests reveal weak points. Cheap panels fail after 200-300 folds at the hinges, while premium models (like Goal Zero Nomad 20) last 1,500+ cycles. Avoid storing panels fully folded in heat—prolonged 140°F+ exposure (e.g., in a parked car) degrades adhesives. For thru-hikers, ultralight 6-8oz panels with Dyneema-reinforced corners withstand 2,000+ miles of abrasion.

Usage hacks maximize output. In leafy forests, hang the panel vertically from a branch at 60-70° angles to catch 50% more light than horizontal placement. Morning sun (lower UV) produces 20% less power than noon—plan charging sessions between 10AM-3PM for best results. If carrying a DSLR or drone, a 12V DC output (found on some 28W+ panels) can bypass power banks to charge 2x faster.

Boat Energy Solutions

Keeping your boat powered at sea requires smart energy planning that balances output, weight, and reliability. A 400W marine solar array (four 100W rigid panels) generates 1.8-2.5kWh daily in temperate zones—enough to run navigation systems (50W), fridge (80W), and lights (20W) without draining batteries. For sailboats, this setup cuts generator runtime by 60-70%, saving 300−500/year in fuel costs. Unlike automotive systems, marine solar must withstand constant 15-25° rocking, salt spray corrosion, and 100% humidity, demanding specialized modules rated for harsh environments.

Panel selection hinges on space and motion tolerance. Monocrystalline 120W marine panels (24x47 inches, 22% efficiency) outperform flexible options in longevity, lasting 10-12 years versus 5-7 years for thin-film. On catamarans or boats with limited roof space, semi-flexible 160W panels (weighing 9 lbs each) conform to curved surfaces but cost 30% more per watt.

Installation tricks prevent failures. Mount panels with 316 stainless steel brackets (45−75/set) to resist salt corrosion—galvanized steel fails 3x faster in marine air. Leave 2-3 inch gaps between panels and deck for airflow, reducing heat-related efficiency drops by 8-12%. Use tinned copper wiring (10AWG for <15 ft runs) to prevent voltage drop exceeding 3%—standard copper corrodes 50% faster in damp bilges.

Cell chemistry impacts ROI. While LiFePO4 offers 3,000+ cycles at 80% DoD, its 1,200+ price for 200Ah makes AGM (600) the budget choice for weekend boaters. For liveaboards, a 48V system with 400Ah storage slashes cable costs 40% over 12V setups for the same power.

Shading solutions are critical—a single 6-inch shadow from a mast can crash output 50%. Optimizers (75−120 each) mitigate this, recovering 15-25% of lost power. For sailboats, retractable mounts let you angle panels 30-50° when anchored, gaining 20% more sun than flat installations.

Shed Lighting Guide

Lighting your shed properly doesn't require expensive wiring or high electric bills. A basic 20W LED solar light kit (60−90) with a 10W panel and 12V 20Ah cell delivers 5-6 hours of bright light (equivalent to a 40W incandescent) each night, with zero wiring hassles. For larger sheds (8x12 ft or bigger), doubling to 40W provides even coverage at 150+ lux—enough for detailed work like woodworking or tool repair. Compared to running extension cords, solar lighting pays for itself in 8-14 months while eliminating tripping hazards and voltage drop issues common with long cable runs.

Key modules make or break performance:

Installation tips maximize results. Mount panels south-facing (northern hemisphere) at your latitude's angle + 15° for year-round optimization—this boosts winter output by 20% versus flat mounts. Use 14AWG UV-resistant wiring for runs over 10 feet to keep voltage drop under 3%. For sheds with obstructions (trees, buildings), 5W extra panel capacity compensates for 2-3 daily peak sun hour reductions.

Cell sizing prevents blackouts. A 20Ah cell powers a 10W LED for 10 hours at full brightness, or 20+ hours at 50% dimming—ideal for occasional use. For daily lighting, 50Ah lithium (180−250) handles 3-4 cloudy days without sun. Place batteries off concrete floors on 1-inch wood spacers to prevent 30% faster discharge from cold transfer.

Smart controls add convenience. A 20 motion sensor cuts energy use by 60% when rooms are empty. Dimmable LED strips (15) provide 20 lumens/ft² for general tasks and 50 lumens/ft² for detailed work. In freezing climates, self-regulating heating pads ($30) keep batteries above -20°C, maintaining 90%+ capacity in winter.

Window Panel Tricks

Turning your windows into mini power stations is easier and more effective than most renters and homeowners realize. A 50W stick-on solar panel (about the size of a standard window pane at 20x30 inches) can generate 150-200Wh daily in direct sunlight—enough to power LED lights for 6-8 hours or keep a laptop charged for 3+ hours. Unlike rooftop systems, window panels require zero drilling, no permits, and can be installed in under 15 minutes using industrial-strength adhesive strips. In urban apartments where roof access is impossible, these panels capture 70-80% of the energy that rooftop units would produce, at 30% lower installation costs.

"A New York City study found that south-facing window panels produced 18% more energy than east or west-facing ones, with a 12-month payback period on investment for panels costing under $200."

Efficiency varies wildly by window type. Double-paned windows block 15-20% of usable sunlight, while single-paned glass only reduces output by 5-8%. For best results, choose ultra-thin (2-3mm) monocrystalline panels with 22-24% efficiency ratings—they outperform polycrystalline by 12-15% in low-light conditions common in cities. Avoid tinted or UV-coated windows; they can slash output by 30-40%. If you must use them, peel-and-stick panels with bypass diodes recover 10-12% of lost efficiency when partial shading occurs.

Placement hacks make a big difference. Panels mounted inside the window (using static-cling film) lose 8-10% efficiency from glass filtration but are 100% weatherproof. Outdoor stick-on panels gain 5-7% more sun but require annual adhesive checks to prevent peeling in 90°F+ summer heat. For vertical windows, micro-inverters (like the Enphase IQ7) boost harvest by 15% compared to standard DC wiring.

Real-world performance depends on cleaning frequency. Dust buildup on urban windows cuts output by 5-8% weekly—a quick weekly wipe with isopropyl alcohol restores 95% efficiency. In winter, condensation between panels and glass can sap 3-5% power; silica gel packets ($5 for 10) placed near edges absorb moisture effectively.

Cell pairing extends usability. A 100Wh power station (90−120) stores 2−3 days of window-generated power for cloudy periods. For larger systems, LiFePO4 batteries (200Wh for 200) handle 500+ more cycles than lead-acid alternatives. Just keep them 2+ inches from windows to avoid 15-20% capacity loss from temperature swings.

Cost breakdowns show clear wins:

· 50W window panel kit: 120−180

· Annual energy output: 55-65kWh

· Payback period: 14-18 months (vs. 7-10 years for rooftop)

For renters or urban dwellers, window panels deliver 80% of the benefits of traditional solar at 20% of the hassle—no wonder they're growing 300% year-over-year in cities like Chicago and Seattle.
