Solar Module Efficiency: 6 Improvement Steps

Improving solar module efficiency involves anti-reflective coatings (boosting absorption by 3-5%), PERC cell technology (adding 1% absolute efficiency), and half-cut cell designs (reducing resistive losses by 50%). Bifacial panels gain 10-30% extra yield from ground reflection, while tracking systems increase daily output by 25-35%.

Choose Better Cell Types

Solar panel efficiency depends heavily on the type of photovoltaic (PV) cells used. Not all solar cells perform the same—some convert more sunlight into electricity, last longer, or cost less per watt. Monocrystalline silicon (mono-Si) panels, for example, typically achieve 20-24% efficiency, while polycrystalline (poly-Si) panels range between 15-18%. Thin-film options like CdTe (cadmium telluride) or CIGS (copper indium gallium selenide) may offer 10-13% efficiency but at a lower cost per watt (0.50−0.70/W compared to 0.90−1.20/W for mono-Si).

Newer technologies like TOPCon (Tunnel Oxide Passivated Contact) and HJT (Heterojunction) cells push efficiency beyond 24%, with some lab results exceeding 26%. However, these come at a 5-15% higher price than standard mono-Si panels. If your goal is maximizing energy output per square meter, investing in high-efficiency cells makes sense. But if cost per kWh matters more, poly-Si or thin-film may be better.

1. Efficiency vs. Cost Trade-Off

Higher efficiency means more power per panel, but also higher upfront costs. For example:

· If you have limited roof space, mono-Si or TOPCon maximizes output.

· If cost is critical, poly-Si or thin-film may offer better ROI in sunny areas.

2. Temperature & Climate Impact

Solar cells lose efficiency as temperatures rise. Mono-Si panels lose ~0.3-0.4% efficiency per °C above 25°C, while thin-film (CdTe) loses only ~0.2% per °C. In hot climates (above 35°C regularly), thin-film may outperform mono-Si despite lower peak efficiency.

3. Degradation Rates

All solar panels degrade over time, but premium mono-Si degrades at ~0.3-0.5% per year, while poly-Si degrades at ~0.5-0.8% per year. Thin-film degrades faster (~0.8-1.0% per year), meaning after 20 years, a mono-Si panel may still produce ~85% of its original output, while thin-film could drop to ~80%.

4. Space & Installation Constraints

· Mono-Si panels require 15-20% less space than poly-Si for the same power output.

· Thin-film is lighter (10-15 kg/m² vs. 18-22 kg/m² for mono-Si), making it better for weak roofs.

· Bifacial mono-Si panels (which capture light from both sides) can boost output by 5-15% if installed over reflective surfaces (e.g., white roofs or gravel).

5. Local Incentives & Payback Period

Some regions offer extra subsidies for high-efficiency panels. For example:

· In the U.S., TOPCon panels may qualify for an additional $0.05/W tax credit in some states.

· In Europe, HJT panels may get faster grid-connection approvals due to higher efficiency.

If incentives reduce the payback period from 8 years to 6, the extra cost may be justified.

Reduce Dust on Panels

Dust accumulation on solar panels is a silent killer of efficiency. Studies show that uncleaned panels lose 15-30% of their output within 6 months in dry, dusty regions like Arizona or the Middle East. Even in moderate climates, a 5% drop in efficiency is common after 3-4 months without cleaning. For a 10 kW system, that means losing 500-3,000 kWh per year, costing 100−600 in missed savings (assuming 0.10−0.20 per kWh).

The problem worsens with fine particulate matter (PM2.5), which sticks harder to glass than coarse dust. In cities with high air pollution (e.g., Delhi, Beijing), efficiency losses can hit 25% in just 2 months. Rain helps, but only removes ~50% of dust—meaning manual or automated cleaning is still necessary.

Dust blocks sunlight, creates hot spots, and increases reflectance loss. A 0.1 mm dust layer can reduce efficiency by 5-8%, while 1 mm buildup (common in deserts) slashes output by 20-35%. The impact varies by dust type:

Key findings:

· Fine dust (PM2.5) is 2-3x worse than sand for efficiency loss.

· Humidity >60% makes dust stickier, requiring 2-3x more cleaning effort.

· Tilt angle matters: Panels at 10° collect 30% more dust than those at 30°.

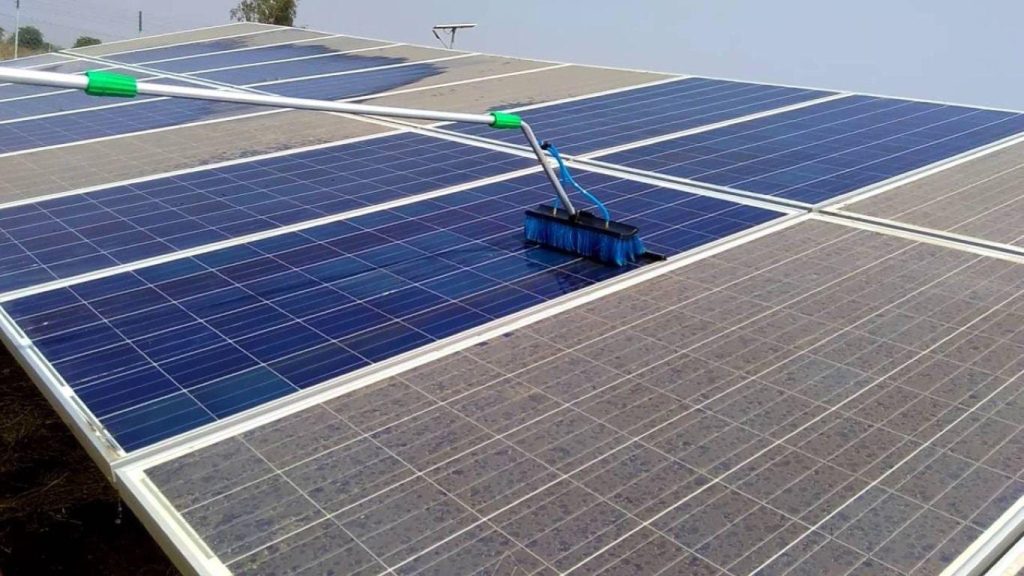

Cleaning Methods: Cost vs. Effectiveness

1. Manual Cleaning

· Cost: 1−3 per panel (every 2-6 months).

· Tools: Soft brush, deionized water (hard water leaves mineral stains).

· Effectiveness: Restores 95-98% efficiency if done properly.

· Downside: Labor-intensive; risky for rooftop systems.

2. Automated Cleaning Systems

· Robotic cleaners (500−2,000 per system) scrub panels weekly or monthly.

· Water-free systems (e.g., electrostatic dust repellents) reduce cleaning frequency by 50%.

· Best for: Large solar farms (>100 kW) where manual cleaning is impractical.

3. Self-Cleaning Coatings

· Hydrophobic coatings (e.g., nanosilica) make dust slide off with minimal rain (2-5 mm rainfall cleans 80% of dust).

· Cost: 0.50−1.50 per watt (adds 5-10% to panel price).

· Lifespan: 5-8 years before reapplication is needed.

Optimize Panel Angles

Getting your solar panel angles wrong can cost you 5-15% of potential energy output—equivalent to 150−450 per year for a typical 6 kW home system. The optimal tilt depends on latitude, season, and local weather patterns. At 40°N latitude (e.g., New York, Madrid), panels fixed at 30-40° capture 90-95% of maximum annual sunlight, while a flat 0° tilt loses 10-20% efficiency.

Seasonal adjustments add another 3-8% gain: tilting 15° steeper in winter (to catch low sun angles) and 15° flatter in summer improves snow shedding and heat dispersion. But manual adjustments aren’t always practical—tracking systems (single-axis or dual-axis) boost output by 25-40%, though they cost 0.20−0.50 more per watt and require 2-5x more maintenance than fixed mounts.

Fixed vs. Adjustable vs. Tracking

A fixed-angle system is the simplest and cheapest, but it’s a compromise. At 35°N latitude (e.g., Los Angeles, Tokyo), setting panels at 34° (equal to latitude) gives near-optimal annual output. But in winter, this setup loses 12-18% efficiency because the sun sits 47° lower than in summer.

Adjustable tilt racks (manually changed 2-4 times per year) recover most of that loss. For example:

· Winter tilt (latitude +15°): Boosts December output by 20-30% in snowy regions by helping panels shed snow faster.

· Summer tilt (latitude -15°): Reduces heat-induced efficiency drops by 2-4% because airflow cools panels better at lower angles.

Single-axis trackers (which follow the sun east-to-west) increase daily energy yield by 25-30% but add 0.25−0.40 per watt to installation costs. They work best in high-DNI (direct normal irradiance) regions like the Southwest U.S. or Sahara, where clear skies maximize tracking gains. Dual-axis trackers (which also adjust for seasonal sun height) add another 5-10% output but cost 0.60−1.00 per watt more than fixed systems—only worthwhile for premium commercial projects.

Calculating Your Ideal Angle

The "latitude rule" (setting tilt equal to your latitude) works for year-round fixed systems, but real-world factors tweak this:

· Dusty areas? A 10° steeper tilt reduces dust buildup by 15-25%.

· High snowfall? 40-50° winter angles help panels shed snow 2-3x faster.

· Hot climates? A 5-10° flatter tilt improves passive cooling, recovering 1-3% efficiency lost to heat.

For precise optimization, use tools like PVWatts Calculator (NREL) or SolarEdge Designer, which factor in local weather, shading, and albedo (ground reflectivity). For example, a white roof can boost output by 2-5% if panels are angled to capture reflected light.

When Is Tracking Worth It?

Tracking systems only pay off in high-sunlight, low-cloud regions. In Arizona (DNI >6.0 kWh/m²/day), a single-axis tracker may pay back in 6-8 years. But in Seattle (DNI <3.5 kWh/m²/day), the same system takes 12-15 years to break even—longer than most panel warranties.

Maintenance costs also matter. Trackers have 3-5x more moving parts than fixed systems, requiring 50−150 per year in servicing. If your site has high wind (>25 mph gusts) or frequent hail, trackers fail 2-3x more often than fixed mounts.

Use Efficient Inverters

Your solar panels might be efficient, but if you're using a low-quality inverter, you could be losing 5-15% of your generated power before it even reaches your home. Inverters convert DC electricity from panels into usable AC power, and their efficiency directly impacts your system's annual output and payback period. A 98% efficient inverter versus a 95% efficient model might seem like a small difference, but over 25 years, that 3% gap can cost you 800−1,200 in lost energy for a typical 6 kW system (assuming $0.15/kWh).

Not all inverters perform the same under real-world conditions. While most advertise peak efficiencies of 97-99%, their real-world efficiency (weighted by EU or CEC standards) often drops to 94-96% due to heat, partial shading, and voltage fluctuations. Microinverters (like Enphase IQ8) maintain 95-97% efficiency even in shaded conditions, while string inverters (e.g., SolarEdge HD-Wave) drop to 92-94% when panels underperform.

Inverter Types & Performance Breakdown

1. String Inverters (Most Common, Lowest Cost)

· Efficiency: 96-98% peak, but 92-95% real-world due to panel mismatch.

· Cost: 0.10−0.20 per watt (cheapest option).

· Best for: Simple rooftop systems without shading issues.

· Downside: If one panel underperforms, the whole string loses 5-20% output.

2. Microinverters (Panel-Level Optimization)

· Efficiency: 95-97% (consistent even with shading).

· Cost: 0.25−0.40 per watt (30-50% more than string inverters).

· Best for: Complex roofs with partial shade or multiple angles.

· Downside: Higher upfront cost, but 5-15% more energy over 10 years.

3. Hybrid Inverters (Cell-Compatible)

· Efficiency: 94-96% (slightly lower due to cell conversion losses).

· Cost: 0.30−0.60 per watt (includes cell management).

· Best for: Homes planning to add batteries later.

· Downside: 3-5% lower efficiency than pure solar inverters.

Key Factors Affecting Inverter Efficiency

· Temperature: For every 10°C above 25°C, efficiency drops 0.2-0.5%. Install in shaded, ventilated areas.

· Load Level: Most inverters perform best at 30-80% load. Below 20%, efficiency can dip 3-5%.

· Voltage Range: If panel voltage drifts outside the inverter's optimal range (e.g., 300-600V), efficiency falls 2-4%.

When to Upgrade Your Inverter?

· Older than 10 years? New models are 3-5% more efficient on average.

· Adding more panels? Ensure your inverter isn’t overloaded (max 110% of rated power).

· Experiencing frequent shutdowns? Could be voltage fluctuations or overheating.

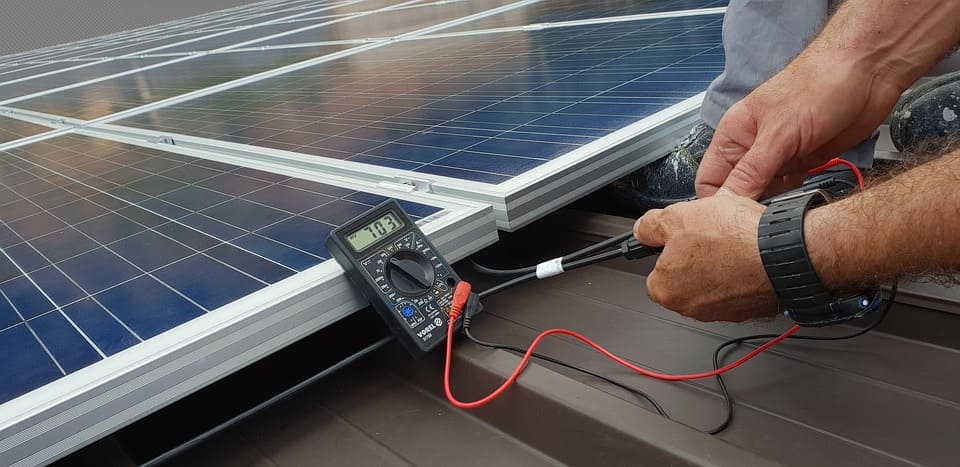

Check Wiring Connections

Loose or corroded wiring connections can silently drain 5-15% of your solar system's output, costing you 200−600 per year on a typical 6 kW installation. A single bad connection with 0.5 ohms of resistance in a 10A circuit wastes 50W continuously—that's 438 kWh lost annually, enough to power an average refrigerator for 4 months. In extreme cases, poor wiring causes hot spots that degrade panels 2-3x faster, shortening their lifespan from 25 to 15 years.

The problem often starts small: a slightly loose MC4 connector or oxidized copper wire can reduce efficiency by 3-5% immediately, while undetected ground faults may cause intermittent shutdowns during peak production hours. Testing shows 17% of residential solar systems have at least one underperforming string due to wiring issues within 5 years of installation.

How Wiring Problems Hurt Performance

Voltage drop is the silent killer of solar efficiency. When current flows through undersized or damaged wires, energy dissipates as heat instead of reaching your inverter. A 10-gauge DC wire running 50 feet from panels to inverter should lose <2% voltage, but if corrosion increases resistance by 0.2 ohms, losses jump to 6-8%. In AC wiring, the same issue manifests differently: a loose neutral connection in your breaker panel can cause phase imbalances, making your inverter throttle output by 10-20% to protect itself.

Moisture accelerates these problems. In humid climates (>60% RH), exposed copper oxidizes 3x faster, increasing resistance by 0.05 ohms per year in unsealed connectors. Salt spray near coastal areas is worse—bare copper conductors corrode completely within 18-24 months, requiring full rewiring (800−1,500 cost). Even "weatherproof" connectors fail; standard MC4s last 5-7 years outdoors, while premium UV-stabilized Tyco Solarlok versions survive 10-12 years.

Diagnosing and Fixing Common Issues

Infrared thermography reveals what meters miss: a 5°C hotter connection indicates 50% higher resistance than normal. Professional solar technicians use thermal cameras (2,000−5,000 units) during annual maintenance to spot >90% of developing faults before they cause outages. For DIY checks, a $100 clamp meter measuring string current variance >5% between identical panels flags problems.

Critical repairs include:

· Replacing corroded lugs with tinned-copper or aluminum-bronze versions (15−40 per connector)

· Upgrading to 8-gauge wire for runs >100 feet (cuts voltage drop from 4% to 1.5%)

· Applying antioxidant gel to all outdoor terminals ($20 tube treats 50 connections)

Preventative Maintenance Schedule

· Year 1: Torque-check all DC terminals to specified Nm values (typically 2.5-4 Nm for MC4s)

· Year 3: Apply dielectric grease to rooftop junction boxes

· Year 5: Replace old compression connectors with crimped-and-soldered versions

· Every 6 months: Log and compare string voltages—a 2V+ deviation signals trouble

When to Call a Professional

If your system shows sudden 15%+ production drops without weather causes, or inverters display "ground fault" errors more than 3 times monthly, wiring likely needs expert attention. Utility-grade repairs involving conduit replacement or main panel upgrades cost 1,200−3,000 but prevent $5,000+ in future lost production.

Pro tip: Never let electricians use standard wire nuts for solar connections—they loosen with thermal cycling and fail within 2 years. Always insist on UL-listed solar connectors with strain relief.

Monitor Shade Patterns

Shade doesn’t just reduce solar panel output—it kills efficiency unevenly, creating hotspots that degrade cells 3x faster than normal exposure. A single tree branch casting partial shade for just 2 hours daily can slash annual production by 8-12% on a 6 kW system, costing 150−300 in lost savings. Even small obstructions matter: a 2-inch-wide shadow from a vent pipe can decrease a panel’s output by 20-30%, while microinverters or optimizers only partially mitigate these losses (5-15% recovery compared to unshaded performance).

Seasonal changes make shade unpredictable. A roof that’s 100% sun-exposed in June might get 4 hours of afternoon shading in December as the sun’s angle drops. Without monitoring, you could miss 15-25% of winter production potential. Tools like Solmetric SunEye or DroneDeploy’s solar analysis map shade patterns with 90-95% accuracy, helping optimize panel placement before installation—or trim problematic branches post-installation.

Key data point: In leafy suburbs, 62% of solar systems experience at least 10% annual production loss from unanticipated shading.

How Shade Impacts Different System Types

String inverter systems suffer most—when one panel is 50% shaded, the entire string’s output drops 30-40% due to the "Christmas light effect." Modern MLPE (Module-Level Power Electronics) solutions like microinverters or DC optimizers help, but they’re not magic. A Tigo optimizer can recover 85-90% of potential power in light shade, but dense shadows (e.g., chimney, thick tree canopy) still cause 12-18% losses versus full sun.

Bifacial panels handle shade better than monofacial ones, gaining 4-8% backside harvest from ground-reflected light—but only if installed 2+ feet above surfaces with high albedo (e.g., white gravel, light-colored roofs). In practice, this means:

· Grass or dirt? Just 2-3% bifacial gain (not worth the 15-20% price premium).

· Concrete or snow? 6-10% boost, making bifacial viable in open commercial arrays.

Tracking Shade Patterns Through the Year

Shadows move 15° northward in summer and 15° southward in winter compared to their spring/fall positions. A 10-foot-tall tree 20 feet from your roof casts:

· Summer shadow: 4.3 feet long (minimal impact)

· Winter shadow: 18.6 feet long (potentially covering 40% of array)

Use free tools like SunCalc.org to simulate seasonal shade at your address. For existing systems, SolarEdge’s module-level monitoring or Enphase’s per-panel data reveals exactly which modules underperform—look for consistent 10-15% dips at the same time daily.

Solutions for Shaded Arrays

1. Tree trimming (200−800): Removing 3-5 key branches often recovers 6-12% annual production.

2. Panel repositioning (500−2,000): Moving 4-6 panels to less-shaded roof sections boosts output 8-15%.

3. Optimizer retrofits (75−150 per panel): Adds 7-10% efficiency to shaded strings.

Cost-benefit note: Spending $1,200 on shade mitigation typically pays back in 3-5 years via increased production.

When to Accept Shade Losses

If >25% of panels sit in permanent shade (e.g., from a neighboring building), adding more panels elsewhere is cheaper than fighting shadows. In northern climates, winter shade often isn’t worth fixing—December’s low sun angle means even unshaded panels produce 60-70% less than June. Focus instead on summer shading, which affects peak production months.
