Which Type of Solar panel is Best for Home？

For most homes, monocrystalline panels are the best choice due to their high efficiency (typically 20-24%), which maximizes power generation on limited roof space. They offer superior longevity and performance in various light conditions compared to polycrystalline or thin-film alternatives, providing greater long-term value.

How Solar Panels Work

Solar panels might seem like complex technology, but their core function is surprisingly simple: they convert sunlight directly into usable electricity. This process, known as the photovoltaic effect, is what allows a typical residential solar system to generate between 350 and 450 kilowatt-hours (kWh) of electricity per month for every 5 kilowatts (kW) of installed capacity.

The fundamental building block of a solar panel is the photovoltaic (PV) cell, a thin wafer typically made from highly purified silicon. This silicon is a 'semiconductor', a material whose atomic structure has properties between a conductor (like metal) and an insulator (like rubber). Manufacturers intentionally introduce tiny amounts of other elements, like phosphorus and boron, into the silicon in a process called "doping." Adding phosphorus creates a layer with extra electrons (called N-type, for Negative), while adding boron creates a layer with "holes" where electrons can go (P-type, for Positive).

When particles of light (photons) from the sun strike the surface of the cell, they transfer their energy to the silicon atoms. If a photon has enough energy—which depends on its wavelength—it can knock an electron loose from its atomic bond. The internal electric field at the P-N junction then pushes this freed electron in a specific direction. This movement of electrons, driven by sunlight, is an electric current. This is Direct Current (DC) electricity, similar to what comes from a cell. A single silicon cell, measuring about 156mm x 156mm, generates around 5 to 6 amps of current at approximately 0.5 volts—not nearly enough to power a home.

Typically, 60, 66, or 72 individual cells are wired in series and sealed between a protective glass sheet and a polymer back sheet to form a single panel. Wiring the cells in series adds their voltage together. A standard 60-cell panel, for instance, might have an open-circuit voltage of around 38 volts and an operating voltage of about 30-32 volts under load.

The power output, measured in watts (W), is the product of voltage and current. This is why residential panels are commonly rated between 350W and 450W. The panel's efficiency rating, which for modern panels ranges from 19% to 22% for most home options, tells you what percentage of the sunlight hitting the panel is converted into electricity. A 400-watt panel with 20% efficiency will produce the same power as a 350-watt panel with 17.5% efficiency, but it will do so in a smaller physical area.

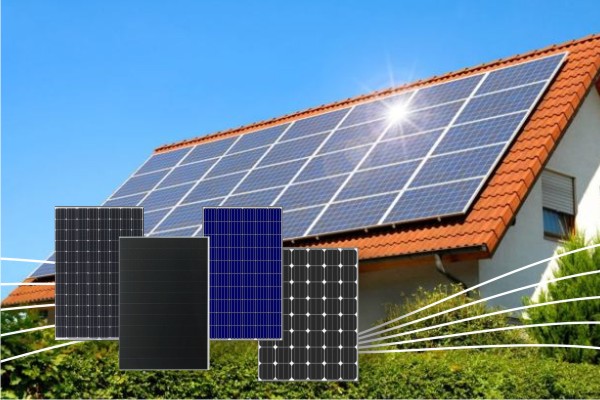

Monocrystalline vs. Polycrystalline

Monocrystalline panels are made from a single, pure crystal of silicon, grown in a complex process called the Czochralski method, which results in a uniform, dark black color. Polycrystalline panels are made by melting multiple fragments of silicon together, creating a crystal structure with boundaries and a characteristic blue, speckled appearance. This fundamental manufacturing difference leads to a clear performance and cost trade-off. Monocrystalline panels typically offer higher efficiencies, in the range of 20-23%, compared to polycrystalline panels, which usually range from 15-18%. This means a mono panel of the same physical size (e.g., 1.7m x 1.0m) will have a higher wattage output, say 400W, versus a 330W poly panel. However, this performance comes at a price; mono panels can cost between 10-15% more per watt.

To quickly summarize the core differences:

· Efficiency & Space: Monocrystalline panels are more efficient. You need less roof space to generate the same amount of power.

· Cost: Polycrystalline panels are less expensive upfront, offering a lower cost per panel.

· Temperature Coefficient: Monocrystalline panels generally perform slightly better in high temperatures.

· Esthetics: Monocrystalline panels have a uniform black color, which many homeowners prefer for a sleek, low-profile look.

For a typical 6 kW system, you might need only 15 x 400W monocrystalline panels but would require around 18 x 335W polycrystalline panels. This 3-panel difference translates to roughly 15-20 square meters of saved roof space. If your roof is small, has multiple obstructions like vents or chimneys, or you simply want to maximize your system's potential output on a limited area, monocrystalline is almost always the necessary choice. The higher efficiency also means that over 25 years, the total energy yield of a mono system will be greater, which can improve your long-term return on investment, especially if you have net metering.

While polycrystalline panels are less efficient, their key advantage is a lower initial cost. The price gap has narrowed significantly over the past decade, but poly panels still maintain a price advantage of approximately 0.10 to 0.15 per watt. For a full 7 kW system, that can mean a total installation cost difference of 700 to 1,050.

A critical but often overlooked specification is the temperature coefficient. This number, expressed as a percentage per degree Celsius (%/°C), tells you how much a panel's power output decreases as its temperature rises above the standard testing condition of 25°C (77°F). All panels lose efficiency in the heat, but monocrystalline panels typically have a better (less negative) temperature coefficient. For example, a high-quality mono panel might have a coefficient of -0.30%/°C, while a poly panel might be at -0.39%/°C. On a hot summer day when the roof temperature soars and the panel surface reaches 65°C (a 40°C increase), the mono panel's output would be reduced by 12%, while the poly panel's output would drop by 15.6%. This 3.6% difference might seem small, but it translates to more consistent performance during peak afternoon hours in warm climates.

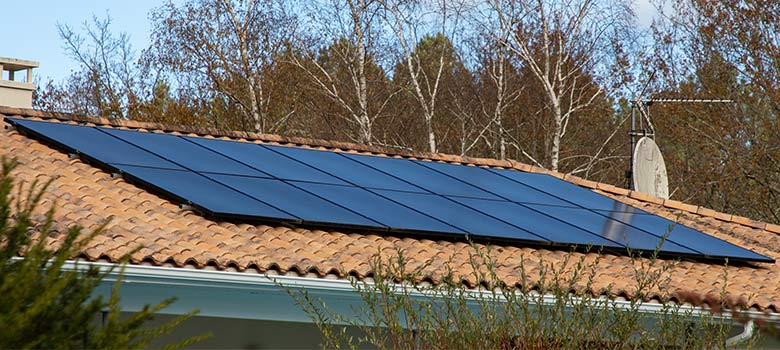

Roof Space and Installation

A common misconception is that you need a massive, south-facing roof to go solar. In reality, a wide variety of roof types and sizes can accommodate a viable system. The key is a precise match between your roof's dimensions, orientation, and shading profile and the technology you select. For example, a typical residential solar panel measures approximately 65 inches by 39 inches (or 1.65m x 1.0m), occupying about 17.5 square feet. A standard 6-kilowatt (kW) system, which can offset most of the energy use for an average 2,000-square-foot home, requires between 15 and 20 of these panels, demanding a total of 260 to 350 square feet of unshaded, usable roof area.

Before a single panel is mounted, a professional installer will evaluate several key factors that determine your roof's solar potential:

· Total Usable Area: This is the net area available after accounting for obstructions like chimneys, vents, and skylights, which can reduce usable space by 10-15%.

· Sunlight Exposure: The roof's orientation (azimuth) and tilt (pitch) drastically impact energy production. A south-facing roof at a 30-degree pitch is ideal in the Northern Hemisphere, but east/west setups can still achieve 80-85% of the optimal output.

· Structural Integrity: The roof must be able to support the additional weight of the system, about 2.5 to 4 pounds per square foot.

· Shading Analysis: Even small areas of shade from trees or neighboring structures can disproportionately reduce system output, making shade mitigation technology like power optimizers a crucial consideration.

If your roof space is limited or partially shaded, high-efficiency monocrystalline panels (21-23% efficiency) are almost always the better financial decision. While they cost 10-15% more per panel, their higher energy density means you can generate the same total annual energy (e.g., 9,000 kWh) with a smaller array. For a roof with only 300 square feet of ideal space, standard-efficiency panels (16-18% efficiency) might only allow for a 5 kW system, whereas high-efficiency panels could enable a 6.5 kW system on the same area, increasing annual energy production by over 25%.

The physical installation process is a multi-stage operation typically completed by a crew of 3-4 installers in 1 to 3 days. It begins with a comprehensive engineering plan that specifies the exact placement of every mounting foot. These aluminum or stainless-steel feet are bolted directly into the roof rafters, not just the decking, to ensure a wind load rating that can withstand gusts of up to 140 miles per hour.

Lifespan and Weathering

A high-quality solar panel is a remarkably durable product, with most manufacturers guaranteeing a useful life of 25 to 30 years. The key metric isn't that the panel stops working after this period, but that its power output gradually decreases. The industry standard warranty ensures that panels will still produce at least 80% to 87% of their original rated power after 25 years. This degradation occurs at a predictable average rate of about 0.5% to 0.7% per year. This means a 400-watt panel might only produce around 320 watts in its 25th year.

The gradual decline in a solar panel's power output is a normal chemical process called degradation. The following table outlines the primary causes and their typical impact rates.

Degradation Factor	Typical Annual Impact Rate	Effect on Panel Performance
Light-Induced Degradation (LID)	~0.5% (occurs in first 1,000 hours)	Initial, one-time power drop due to oxygen impurities in silicon.
UV Exposure & Photodegradation	0.05% - 0.15%	Slow breakdown of encapsulant materials, reducing light transmission.
Thermal Cycling Stress	0.2% - 0.4%	Repeated expansion/contraction from daily temperature swings stresses solder bonds.
Potential-Induced Degradation (PID)	Up to 3% per year (if susceptible)	Power leakage due to voltage differences between the panel and grounded frame.

The most significant wear occurs in the first few hours of operation through Light-Induced Degradation (LID), an initial, one-time power loss of approximately 1% to 2% as the silicon crystal structure stabilizes under sunlight. After this initial drop, the long-term degradation rate settles into a predictable linear pattern. The primary driver of this ongoing decline is thermal cycling. A panel installed in a desert climate may experience a daily temperature swing of 30°C (54°F), causing its modules to expand and contract over 10,000 times in 25 years.

The product warranty, often 10 to 12 years, covers defects in materials and workmanship, such as physical cracks in the frame or failures in the junction box. The more important performance warranty guarantees a specific power output level over 25 to 30 years. A standard warranty might promise 97% output in the first year, 90% after 10 years, and 82% after 25 years.
