5 Ways To Assemble A 500-Watt Solar System

Assemble a 500W system by connecting panels in series (4x12V=48V) or parallel (match inverter current); use MPPT charge controllers (95% efficiency) to optimize input; mount at 30-45° tilt for sunlight; pair with 600-700W inverter (85%+ efficiency); test with multimeter, ensuring <2% voltage drop.

Selecting the Right Solar Panels

A typical 500W system often consists of two 250-watt panels or a single higher-output model. With panel efficiencies now commonly between 19% and 22%, the physical size of your array directly impacts your space requirements. For a limited roof area, spending a bit more for a high-efficiency 400-watt panel instead of two 200-watt units can save crucial space. Budget is a major factor, with prices for new, reputable panels averaging 0.70to1.00 per watt, meaning your total panel cost for a 500W system will likely land between 350and500. Don't overlook used or refurbished panels, which can slash that cost by 30-50%, but always verify they come with a remaining manufacturer's warranty.

A standard 60-cell mono panel outputs between 285 and 375 watts, boasts an efficiency rating above 20%, and typically occupies about 1.6 meters by 1 meter (approx. 5.5 ft x 3.3 ft) per panel. They are the go-to for maximizing power in a confined space, though they command a 10-20% price premium. Polycrystalline panels are the budget-friendly workhorse. You'll find 60-cell poly panels ranging from 250 to 300 watts with efficiencies around 16-17%. This lower efficiency means they require roughly 10-15% more square footage to produce the same amount of power as a mono system.

For a small 500W system, a Voc under 50 volts is a safe benchmark for many common 12V or 24V charge controllers. Physically, a 300-watt panel can weigh 18-20 kg (40-45 lbs), so ensure your roof or mounting structure can handle the load. Always prioritize panels from Tier 1 manufacturers; they offer proven reliability and crucial 25-year performance warranties that guarantee 80% output after two decades, protecting your long-term investment.

Choosing a Compatible Solar Inverter

The inverter is the core of your solar system, converting the DC power from your panels into usable AC power for your home. For a 500-watt system, this isn't a one-size-fits-all choice; picking the wrong type or size can tank your efficiency by 15% or more. You're primarily deciding between a pure sine wave and a modified sine wave inverter, with efficiency ratings and cost being the main trade-offs. A good pure sine wave unit for a system this size will run you between 150and300, but it's crucial for running modern electronics smoothly. The inverter's continuous output rating must handle your system's peak output; a 600-watt unit is a common and safe choice for a 500-watt panel array, providing a 20% buffer for power surges.

Your first step is matching the inverter's input voltage (VDC) to your solar cell bank's voltage. A 12V cell bank requires a 12V inverter. A 600-watt, 12V inverter will draw up to 50 amps from your batteries under full load (600W / 12V = 50A), so your cell wiring and fuse must be rated for at least that current to prevent a hazardous overload. For a 500-watt system, a 12V setup is standard, but if you plan to expand, starting with a 24V cell bank and inverter cuts the amperage in half, allowing for thinner, less expensive wiring and reduced energy loss. The inverter's efficiency rating is your most critical performance metric. High-quality models boast 90-93% conversion efficiency, meaning for every 100 watts of DC power sent from the panels, you get 90-93 watts of usable AC power. A cheaper inverter with 85% efficiency would waste 35-40 watts from your array, a significant loss for a small system.

Always size your inverter's continuous wattage rating to be at least 20% higher than the total wattage of all AC devices you intend to run simultaneously. This headroom prevents overload shutdowns and extends the unit's lifespan.

A 600-watt pure sine wave inverter typically measures around 25cm x 13cm x 8cm (10" x 5" x 3") and weighs 2.5-3.5 kg (5.5-8 lbs). It will also have a no-load power draw, which is the power it consumes just being on; look for a model that uses less than 0.5 amps (~6 watts) when idle to avoid draining your batteries overnight. Finally, prioritize inverters from brands that offer a solid 3 to 5-year warranty and have a reputation for reliable surge power handling, which is the ability to briefly supply ~1200 watts to start motors in appliances like small refrigerators or pumps.

Picking Batteries for Energy Storage

Selecting the right cell is about balancing your need for power with your budget and maintenance tolerance. For a 500-watt solar system, your cell bank's capacity determines how long you can run devices when the sun isn't shining. The most common choice is between lead-acid and lithium-ion (LiFePO4) chemistries. A 12V 100Ah lead-acid cell provides roughly 1.2 kWh of energy, but due to a 50% recommended Depth of Discharge (DoD), you can only use ~0.6 kWh of that. In contrast, a similar 12V 100Ah lithium cell has a 90% DoD, delivering a usable ~1.08 kWh. While a lead-acid cell may cost 100−200, a lithium counterpart is 300−500 but will last 5-7 times more charge cycles.

The fundamental calculation for your system starts with your daily energy needs. If your 500-watt panel array generates 2 kWh on a sunny day, you need a cell bank that can store this excess. To power 300 watts of appliances for 3 hours overnight, you require 900 watt-hours of usable storage. For a 12V system, that's 75 Ah (900Wh / 12V = 75Ah). However, accounting for inverter efficiency (~90%) and the cell's DoD, your actual cell capacity needs to be larger. For lead-acid, you'd need roughly ~150 Ah (75Ah / 0.5 DoD = 150Ah). For lithium, you'd need about ~85 Ah (75Ah / 0.9 DoD ≈ 83.3Ah). This directly impacts cost and physical space; two 12V 100Ah lead-acid batteries weighing ~60 lbs (27 kg) each might be needed, whereas a single 12V 100Ah lithium cell at ~25 lbs (11 kg) could suffice.

A 12V lithium cell requires a 14.6V absorption charge and a 13.6V float, while lead-acid needs 14.4V and 13.8V respectively. A 500-watt solar array can push over 40 amps into a 12V cell, so your cell must tolerate a ≥0.4C charge rate. Lithium batteries typically handle 0.5-1C rates easily, while lead-acid should be charged at ≤0.2C for longevity. Temperature is another key factor; lead-acid efficiency drops ~40% at 32°F (0°C) and they can be damaged if charged when cold. Lithium batteries can operate in a wider range but often have internal heaters for charging near freezing, consuming ~5% of their capacity. Always ensure your cell bank is housed in a well-ventilated area and secured, as a single 12V 100Ah AGM cell can weigh 65 lbs (29.5 kg).

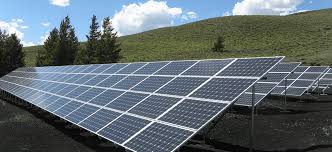

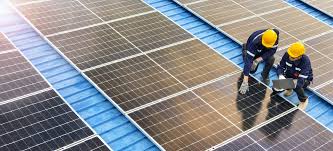

Installing Mounts and Wiring Safely

A poorly installed 500-watt array can lose 10-15% of its potential energy output due to suboptimal angle or shading, and faulty wiring poses a serious fire risk. For a typical two-panel system, you'll need a robust mounting kit, which for a corrugated metal roof costs 100−200 and includes lag bolts, L-feet, and rails. The installation time for a novice is roughly 4-6 hours, requiring basic tools like a drill, wrench set, and a wire stripper. The primary goal is to create a secure mechanical foundation and an electrical pathway with less than 3% voltage drop between the panels and the charge controller.

Two 250-watt panels can weigh 40-50 lbs (18-23 kg) combined, but the mounting system must withstand wind loads exceeding 130 mph (209 kph) and snow loads of ≥40 psf (195 kg/m²). For a pitched roof, angled mounts are standard, positioning the panels at a 30-45 degree angle for your latitude to maximize annual production. Flush mounts sit just 2-4 inches (5-10 cm) above the roof surface but can reduce winter output by up to 15% due to snow accumulation and less optimal angle. Ground mounts require ≥4 galvanized steel posts sunk ≥24 inches (60 cm) into concrete footings to prevent frost heave and wind lift. All stainless steel hardware should be torqued to 15-20 ft-lbs (20-27 Nm).

With each panel having a Short-Circuit Current (Isc) of ~9 amps, the combined current running to the charge controller is ~18 amps. For a 10-foot (3-meter) run, you need 10 AWG copper wire, which has an ampacity of 30 amps at 194°F (90°C), providing a safe margin. Using thinner 12 AWG wire (ampacity 20 amps) for this run would cause the wire to heat up under full sun, increasing resistance and creating a potential hazard. Every connection must be made with MC4-compatible connectors and protected by an inline fuse rated for ≤150% of the array's Isc; a 15-amp fuse is typical. All outdoor conduit must be UV-resistant PVC (schedule 40 or 80), and all entry points into a building must use waterproof ½-inch liquid-tight connectors.

Testing the System After Setup

A single loose connection or a Configuration Error setting can lead to a 15-20% loss in efficiency or, worse, create a safety hazard. This phase requires a digital multimeter (DMM) with a ±1% accuracy rating and a clamp meter capable of measuring DC current up to 50 amps. Your initial tests, performed under full sun between 10 AM and 2 PM, will establish a performance baseline. Expect your actual output to be within 90-95% of the panels' combined STC rating due to real-world factors like cell temperature and atmospheric attenuation, meaning a 500W system should consistently produce 450-475 watts at peak.

Your measured Open-Circuit Voltage (Voc) should be within ±5% of the sum of the panels' rated Voc listed on their data sheets. For two panels in series, if each has a Voc of 23V, you should read approximately 46V; a significant deviation indicates a wiring fault or a problematic connection. Next, reconnect the cell and measure the charging voltage at the controller's output. For a 12V lithium cell, this should read between 13.6V (float) and 14.6V (absorb), depending on its current state of charge. A discrepancy here suggests incorrect controller settings. Now, use the clamp meter to measure the Short-Circuit Current (Isc); the measured value should be within ±10% of the combined Isc of your panels. A reading of 16.5 amps against an expected 18 amps could point to partial shading or soiling on the panels.

· Performance Benchmarking: Under peak sun, the system's output power should reach 85-90% of its rated capacity within 30-45 minutes of continuous operation. The charge controller's display should show a steady current flow within 5% of its maximum expected value.

· Load Testing: Apply a 400-watt AC load for 60 minutes using a resistive heater or a known dummy load. The cell voltage should drop gradually by no more than 0.5V per hour for a 12V lithium system, indicating stable discharge.

· Voltage Drop Validation: Measure the voltage at the solar panel terminals and again at the charge controller input. The difference should not exceed 2% of the system voltage (e.g., <0.24V for a 12V system) to confirm proper wire sizing.

· Terminal Temperature Inspection: After 2 hours of full operation, use an infrared thermometer to scan all wire connections and terminal blocks. Any point reading 20°F (11°C) or more above ambient temperature indicates a high-resistance, loose connection that must be addressed immediately.

Over a 7-day period, your system should generate between 2.2 kWh and 3.5 kWh per day, depending on your location and seasonal insolation. Consistently logging below 80% of your expected output necessitates a re-inspection of all modules. Monitor the cell's charge cycle; a 100Ah cell bank should take ~4-5 hours to charge from 20% to 90% capacity with your 500-watt array. Any abnormal shutdowns, error codes on the inverter display, or a rapid voltage sag under minimal load are clear indicators that a specific module requires troubleshooting or replacement under its 3 to 10-year warranty.
