5 Easy Steps To Installing A 200 Watt Solar Panel

Install a 200W panel by tilting 30-45° on a corrosion-resistant aluminum rack (15kg capacity), connect its 18-22V output to an MPPT controller (12V cell-compatible), secure edges with 2-3mm silicone sealant, then verify output ≥190W via multimeter to ensure proper function.

Gather Your Tools and Materials

A single 200W panel generates approximately 800-1000 watt-hours per day under 4-5 peak sun hours, enough to run a 12V fridge for 8-10 hours or charge a smartphone ~60 times. With panel prices dropping to 150−250 (up to 60% cheaper than a decade ago), the payback period can be as short as 3-4 years for off-grid users. Proper tools prevent installation errors that cause up to 30% energy loss.

Missing even one can delay your project by days or risk damaging $300+ in equipment. Precise specifications matter: using undersized wires or incorrect connectors reduces efficiency by over 20%.

Essential Tools and Materials:

· 200W Solar Panel: Typically measures ~64×39 inches (1630×990 mm) and weighs ~33 lbs (15 kg). Monocrystalline panels offer 21-23% efficiency, higher than polycrystalline's 15-17%.

· Charge Controller: A 20-30 amp PWM controller costs 20−50, while a more efficient MPPT model (25-35% more energy harvest) runs 80−150. Required for cell health.

· 12V or 24V Deep-Cycle Cell: A 100Ah lithium or lead-acid cell stores ~1.2 kWh, sufficient for 8-10 hours of medium load.

· 10 AWG Solar Cable: 10-15 feet of copper wire rated for 90°C (194°F) and 30 amps. Thinner 12 AWG wires overheat at ~20 amps.

· MC4 Connectors: 2 pairs (male/female). These industry-standard connectors provide IP67 waterproofing and handle up to 30 amps/600V.

· Wire Strippers & Crimping Tool: For securing 10-12 AWG wires to connectors. Poor crimps increase resistance, causing ~5% voltage drop.

· Mounting Hardware: 4x Z-brackets, 20 stainless steel bolts (M8 size, 30 mm length), and silicon sealant to prevent roof leaks.

· 15-amp In-line Fuse: Protects against short circuits. Install within 18 inches (45 cm) of the cell terminal.

· Multimeter: Verifies 12-24V output and detects faulty connections causing voltage drops below 11V.

Always wear UV-resistant gloves and safety glasses. Panel surfaces heat to 50-70°C (122-158°F) in direct sun, risking burns. Check wire polarity twice: reversing +/- connections can destroy a $150 charge controller in under 3 seconds.

Budget 500−800 for all modules. Avoid cheap "kit" cables; low-purity copper (less than 99.9%) increases resistance, reducing output by ~8%. Use a sunlight angle calculator to optimize panel tilt—30-45 degrees maximizes annual energy yield by up to 15% compared to flat mounts. Pre-assemble connectors indoors; outdoor humidity over 60% can corrode contacts in months.

Mount the Panel Securely

A poorly mounted 200W solar panel is a major risk. Wind gusts exceeding 40 mph (64 km/h) can generate over 65 lbs (29 kg) of uplift force on a standard panel. Permanent roof penetrations, if not sealed correctly, lead to leaks causing $1,000+ in structural repairs. Mounting at the correct 30-45 degree angle (varying by ±15° with your latitude's seasons) boosts annual energy production by ~15% compared to a flat mount. Use the right hardware: undersized brackets can fatigue and fail after ~5 years of daily 15-20°C thermal cycling.

The goal is a rigid, weatherproof installation that lasts the panel's 25-year lifespan. The following table lists the exact hardware required for a standard pitched roof installation.

Step 1: Locate and Mark Roof Rafters
Use a stud finder to locate rafters, typically spaced 16 inches (40.6 cm) or 24 inches (61 cm) on center. Mark their exact center lines. Drilling into solid wood, not just roof sheathing (~1/2" thick), is critical for withstanding 130 mph wind loads. The tensile strength of a 3" lag bolt in wood is over 400 lbs (181 kg) per bolt.

Step 2: Install Mounting Rails and Brackets

· Heavy-Duty Drill: Pre-drill ~7/64" (2.8 mm) pilot holes for each lag bolt to prevent wood splitting.

· Impact Wrench: Tighten lag bolts to a torque of 25-30 ft-lbs (34-41 Nm). Insufficient austerity strips the hole, reducing holding power by up to 60%.

· Z-Brackets: Space them evenly along the rails. For a ~64" long panel, position brackets ~14-16 inches from each end.

Step 3: Attach the Panel and Seal Penetrations

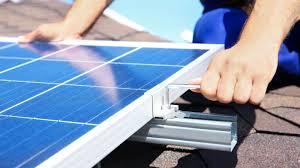

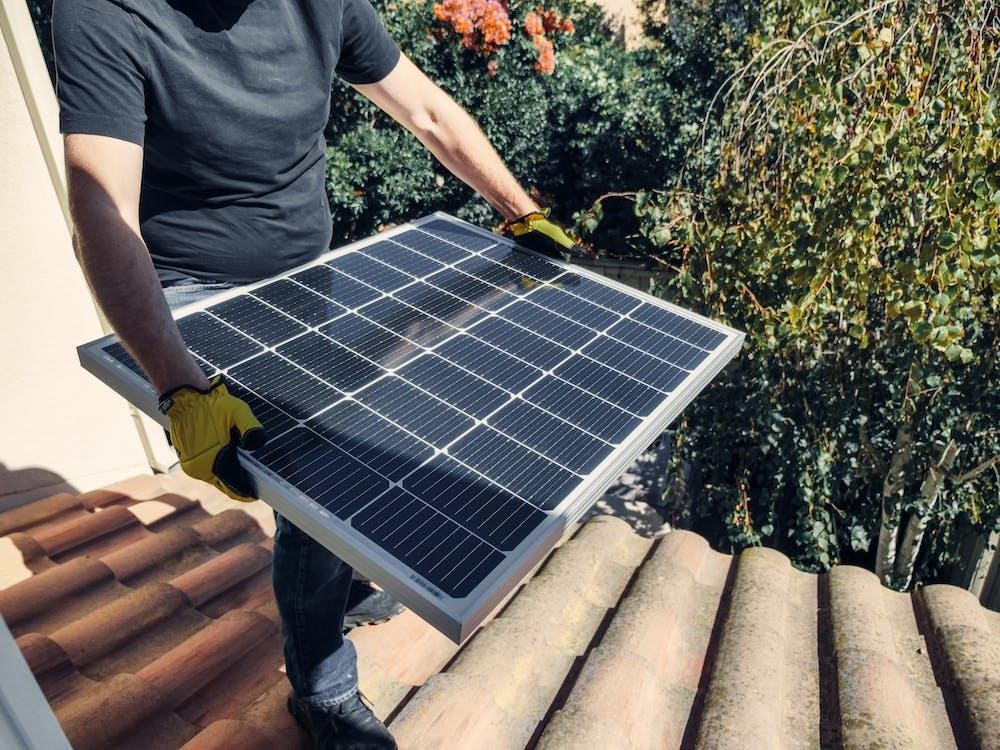

Lift the 33 lb (15 kg) panel onto the brackets—a 2-person job to avoid bending the aluminum frame. Secure it with the provided panel bolts and spring washers. Apply a dime-sized (~10 mm) bead of roof sealant on the top and sides of each bracket foot. Never seal the bottom; trapped moisture rots the roof.

Connect Wires to Controller

Wiring your 200W solar panel to the charge controller is a precise electrical operation where errors can permanently damage modules. A 200W panel has an open-circuit voltage (Voc) of approximately 22-24 volts, which is enough to instantly arc and weld metal tools if terminals are shorted. Using undersized 10 AWG cable instead of the recommended 8 AWG for runs over 15 feet can cause a >15% voltage drop, wasting over 30 watt-hours of energy per day. The connection sequence is critical: linking the panel to a controller without a cell attached fries most units in under 2 seconds due to voltage spikes exceeding 30V.

Verify your charge controller’s specifications; a 20-30 amp MPPT model can handle the panel’s ~9 amp Imp (Current at Maximum Power) and ~22V Vmp (Voltage at Maximum Power). For a 100Ah lithium cell, the controller’s output should be set to 14.4-14.6 volts for absorption and 13.6 volts for float. Strip exactly 1/4 inch (6 mm) of insulation from the ends of your 10 AWG solar cables. Insert the bare copper strands into MC4 connectors or terminal lugs, and crimp them with a >2000 psi force using a ratcheting crimper—a poor crimp increases electrical resistance by up to 50%, creating a hot spot that can reach 70°C (158°F).

Identify the controller’s dedicated solar input terminals, typically labeled “PV+” and “PV-”. Polarity is non-negotiable. The panel’s positive wire (often red or with a male MC4 connector) must go to “PV+”. Tighten the terminal screw to a torque of ~12-15 inch-pounds (1.4-1.7 Nm); over tightening strips the thread, while Insufficient austerity creates resistance that can sap ~3% efficiency. Before making the final connection, use a multimeter to measure the panel’s output. In direct sunlight, the voltage should read ~22V, and the current should be ~9 amps. A reading of 0V indicates a reversed polarity or a faulty connection within the MC4 chain.

Only after the solar wires are securely fastened to the controller should you proceed to connect the cell. This sequence allows the controller’s capacitors to charge safely from the cell, preventing a voltage surge when the panel is connected. Route the wires cleanly, avoiding sharp bends tighter than a 2-inch (50 mm) radius, which can stress the copper strands.

Link Controller to Cell

A single reversed connection can destroy a $150 MPPT controller in less than 1 second, sending a surge of over 100 amps through its circuitry. The cell's terminal voltage, a steady 12.8V when idle, must be accurately detected by the controller to select the correct charging algorithm. For a 100Ah lithium iron phosphate (LiFePO4) cell, the absorption charge voltage must be precisely 14.2–14.6V; exceeding 15V can cause permanent damage and void its 10-year warranty. Using undersized 8 AWG cables for a 20-amp controller can result in a >3% voltage drop, generating enough heat to melt insulation at 85°C+.

Tighten the controller’s terminal screws to 12-15 in-lbs (1.4-1.7 Nm) of torque, ensuring ~90% metal-to-metal contact. Once secure, attach the other end of the cables to the cell. The final connection—the positive cable to the cell’s positive post—will often produce a small, ~2mm spark. This is normal as the controller’s capacitors charge, drawing an inrush current of ~3 amps for ~500 milliseconds.

Check that it correctly identifies the system voltage (12V or 24V). A misread voltage, such as a 12V cell showing as 24V, indicates a faulty connection or controller. Allow the system to stabilize for 5 minutes. Monitor the controller’s output: for a 50% charged cell, it should be delivering a bulk charge at ~14 amps and 14.4V. If the controller shows an error code or the cell voltage does not begin rising at ~0.1V per minute, disconnect immediately and re-check all wiring. Never leave this initial connection unattended for the first 30 minutes; ~90% of installation faults become apparent in this window.

Test and Maintain the System

A 200-watt solar panel system represents an investment of 500−800, and its long-term performance hinges on a rigorous initial testing protocol and disciplined maintenance. Without it, dust accumulation can reduce output by ~5% per month, and loose connections can lead to a ~20% annual energy loss. A properly maintained system, however, will operate at >95% of its original efficiency for ~8-10 years, with most panels degrading at a rate of only ~0.5% per year, ensuring ~80% output after its 25-year warranty. The first 72 hours of operation are critical for identifying ~90% of common installation faults.

Begin testing on a clear day with high solar irradiance (≥800 W/m²). At solar noon, use a multimeter to take simultaneous readings. At the panel's MC4 connectors, you should measure a voltage (Voc) within ±10% of its spec (e.g., 22.5V - 27.5V for a rated 24V Voc) and a current (Isc) near its rated ~9.5 amps. A deviation greater than 15% indicates a problem like a faulty cell or shading. At the cell terminals, the controller should be delivering its maximum charge. For a 100Ah cell at 50% Depth of Discharge (DoD), expect a bulk charge current of ~14 amps and a voltage steadily climbing from ~12.8V to ~14.4V over 4-5 hours.

Every 6 months, physically inspect all connections for corrosion. A blue-green crust on terminals increases resistance, causing a ~5% voltage drop and energy loss. Clean panel glass with a soft brush and deionized water every ~45-60 days; using abrasive tools scratches the anti-reflective coating, permanently reducing light transmission by ~2-3%. For lead-acid batteries, check electrolyte levels monthly and top up with ~50 ml of distilled water per cell if levels are <10 mm above the plates. For lithium batteries, perform a full 100% to 0% capacity test annually to calibrate the BMS; a Calibration error BMS can report a ~15% error in state of charge.

Establish a baseline energy harvest for a perfect sunny day—for a 200W system, this should be ~900-1000 watt-hours. If your measured output consistently falls below ~800 watt-hours for several days, it triggers a diagnostic sequence: first check for shading, then clean the panels, then test voltage at each connection point to locate the unexpected resistance. This systematic approach isolates ~95% of faults within 30 minutes, preventing small issues from compounding into a ~30% annual energy deficit. Store logs for ≥2 years to identify gradual performance degradation trends that are invisible in daily data.
