Monocrystalline PERC vs. TOPCon Technology | Technical Principles, Application Scenario

Monocrystalline PERC cells achieve mass production efficiencies of 22-24%, while TOPCon cells reach 23-25% efficiency with a lower temperature coefficient (-0.30% vs -0.35%/°C).

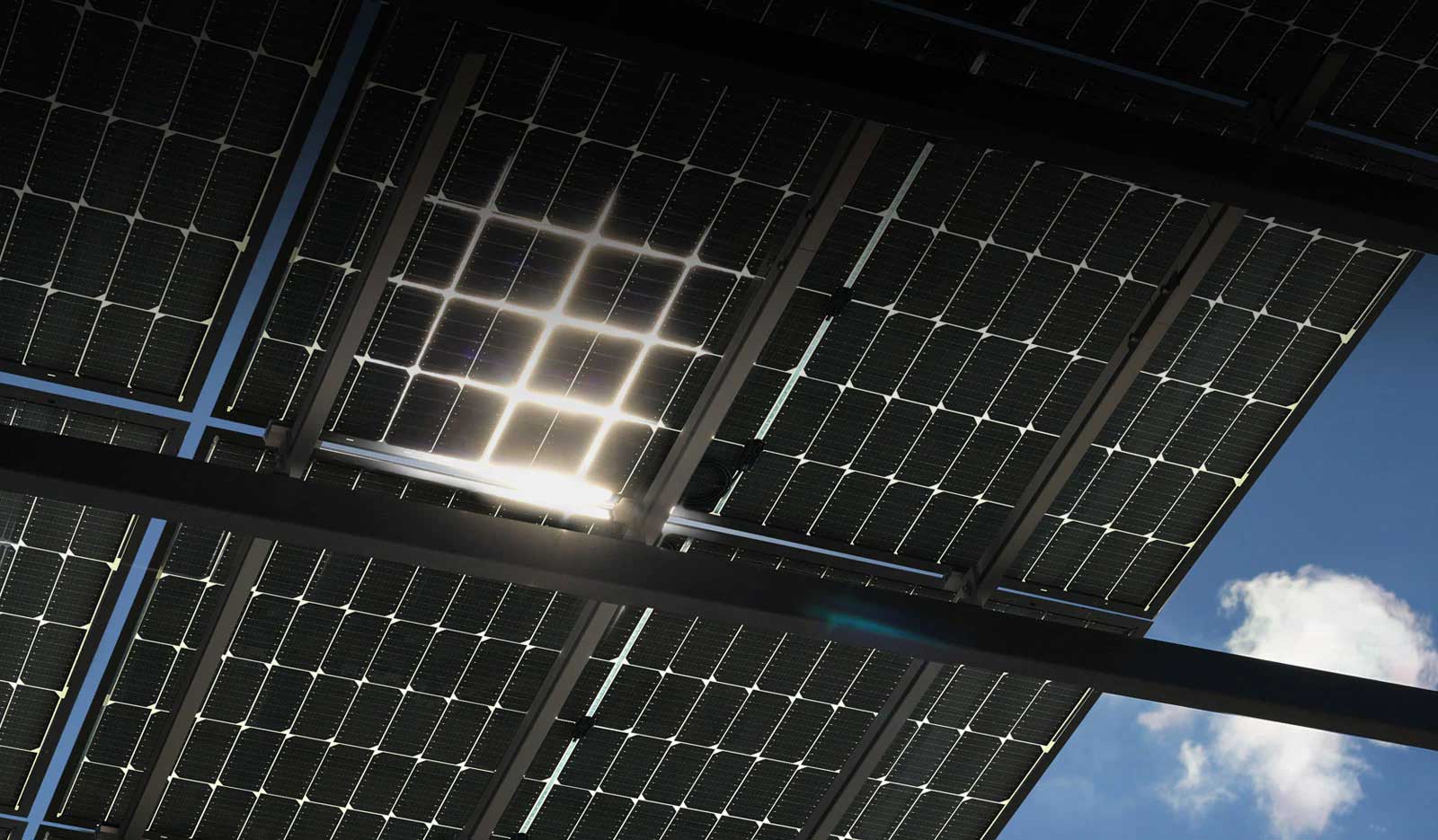

TOPCon's bifacial design offers a 70-80% bifaciality rate, increasing power generation by 15%, but the cost per watt is 0.03-0.04 yuan higher, requiring a conversion cost of $40 million/GW.

Technical Principles

PERC reduces carrier recombination through a backside aluminum oxide/silicon nitride passivation layer and reflects long-wave light to increase absorption, achieving mass production efficiency of 22-23% (theoretical 24.5%);

TOPCon uses a 1-2nm tunneling oxide layer + doped polysilicon to selectively gate carriers, allowing electron tunneling and blocking holes, achieving mass production efficiency of 24-25% (theoretical 28.7%), Voc exceeding 720mV, bifaciality >80%, temperature coefficient -0.29%/°C, both based on monocrystalline silicon wafer improvements.

PERC

Passivation Layer Design and Surface Recombination Control

The aluminum oxide (Al₂O₃) layer adsorbs dangling bonds on the silicon surface through negative charges, reducing defect state density from 1e15 cm⁻³ to 1e11 cm⁻³, and surface recombination velocity drops sharply from 1000 cm/s to below 50 cm/s.

The silicon nitride (SiNₓ) layer enhances long-wave reflection through refractive index tuning (2.0-2.1), increasing reflectance of unabsorbed infrared light above 1100nm to 85%, extending the optical path by 18%.

Key Parameters:

l Al₂O₃ Thickness: 23nm (standard process for MAIA equipment)

l SiNₓ Thickness: 125nm (SiH₄: NH₃=1:4.4)

l Refractive Index Matching: Al₂O₃ (1.9) + SiNₓ (2.1) combination improves quantum efficiency by 22% in the 1100nm band

Metallization Process and Contact Resistance Optimization

PERC employs Selective Emitter (SE) technology, forming a high-concentration phosphorus-doped layer (resistivity 10-20 Ω·cm) under metal gridlines via laser doping, while maintaining low concentration (80-100 Ω·cm) in non-contact areas.

Experiments show this design reduces contact resistance from 0.1 Ω·cm² in traditional processes to 0.02 Ω·cm², and lateral electric field strength increases to 1.2e5 V/cm.

Process Details:

l Laser Grooving Energy: 300mJ/cm² (355nm nanosecond laser)

l Doping Depth: 0.3-0.5μm

l Firing Temperature: 850℃ (silver paste firing window ±10℃)

Optical Gain and Reflectance Control

PERC achieves internal reflection enhancement through the backside Al₂O₃/SiNₓ stack:

l Front Surface Reflectance: 2.0% (conventional cell 3.5%)

l Rear Surface Reflectance: 82% (conventional cell 60%)

l Long-wave light (>1000nm) absorption increases by 40%, Isc increases by 35mA/cm²

Reflectance Test Data:

Process Compatibility and Production Line Modification

PERC can be achieved by upgrading traditional BSF production lines, requiring the addition of:

l PECVD Equipment: Deposits Al₂O₃/SiNₓ stack (capacity 2000 wafers/hour)

l Laser Grooving Machine: Energy stability <±2% (Rofin RAPID series)

l Alkaline Polishing Equipment: Removes backside pyramid texture (etching rate 3μm/min)

Modification Cost:

l Equipment Investment: $1.2M (3 new machines)

l Per-Wafer Cost: Increase of $0.02/W (mainly from laser and coating)

l Capacity Loss: Line efficiency decreases 15% after modification (requires 3 months ramp-up)

Efficiency Limit and Bottleneck Breakthrough

PERC theoretical efficiency is limited by the Shockley-Queisser model (single-junction 29.4%), actual mass production efficiency 22.5-23.5%:

l Voltage Bottleneck: Voc 685mV (theoretical 730mV)

l Current Loss: Series resistance >1.5Ω·cm² leads to FF <78%

l Solutions:

l Gallium-doped silicon wafers: Suppress boron-oxygen complex (LID degradation <0.5%)

l Double-sided passivation: Backside superimposed SiO₂ layer (recombination velocity reduced by another 30%)

Mass Production Challenges and Solutions

Core Issues:

l Al₂O₃ Thickness Fluctuation: ±1nm causes Voc change of ±3mV

l SiNₓ Refractive Index Deviation: ±0.1 causes 1.2% reflectance loss

l Laser Grooving Precision: Linewidth >10μm causes fill factor drop of 1.5%

Process Improvements:

l Atomic Layer Deposition (ALD): Thickness control accuracy ±0.3nm

l In-situ Ellipsometer: Real-time monitoring of SiNₓ refractive index (accuracy ±0.005)

l High-precision Laser: Linewidth compressed to 5μm (energy density 450mJ/cm²)

TOPCon

Tunneling Oxide Layer

The core of TOPCon lies in the 1-2nm ultra-thin tunneling oxide layer (SiO₂), which acts like an "electron filter":

l Thickness Control: 1.2-1.8nm (ISFH standard process), thickness deviation must be <±0.2nm. Electron tunneling probability has an exponential relationship with thickness; at 1.5nm, tunneling probability >90%, hole blocking rate >99%.

l Material Properties: High-purity SiO₂ (refractive index 1.45), surface state density <1e10 cm⁻², achieved via wet chemical oxidation (H₂O₂: H₂SO₄=3:1) or plasma-enhanced oxidation (PEOX).

l Defect Suppression: ALD (Atomic Layer Deposition) process reduces interface states, lowering surface recombination velocity from 1e20 cm⁻³·s⁻¹ to 1e15 cm⁻³·s⁻¹.

Doped Polysilicon Layer

Deposit 100-150nm boron-doped amorphous silicon (a-Si: B) on the tunneling layer, which forms polysilicon (poly-Si: B) after annealing:

l Doping Concentration: Boron concentration 1e19-1e20 cm⁻³, sheet resistance after annealing 50-100 Ω/□, lateral electric field strength >1e5 V/cm.

l Crystallization Process: Annealing at 800-900℃ for 30 minutes, amorphous silicon crystallization rate >90%, grain size 50-100nm, reducing grain boundary recombination.

l Parasitic Absorption: The polysilicon layer has >80% absorption in the >1100nm band, requiring thickness optimization (<120nm) to reduce photothermal loss.

Carrier Transport Mechanism and Electrical Performance

TOPCon achieves high-efficiency carrier separation through selective transport:

l Electron Path: Tunnels from the silicon bulk into the poly-Si: B layer, laterally transports to the metal electrode, series resistance <0.5 Ω·cm².

l Hole Blocking: SiO₂ bandgap (9eV) is much higher than the hole barrier (0.3eV), holes are reflected back into the silicon bulk, recombination current density J₀ <5 fA/cm² (PERC about 20 fA/cm²).

l Electrical Parameters: Mass production Voc reaches 720mV (lab 732mV), FF >82%, efficiency 25-26% (theoretical 28.7%).

Process Flow and Mass Production Challenges

TOPCon requires adding the following steps to a PERC line, increasing process complexity by 30%:

l Boron Diffusion: POCl₃ diffusion at 950℃, sheet resistance 100-150 Ω/□, boron surface concentration >1e19 cm⁻³.

l Amorphous Silicon Deposition: LPCVD (Low Pressure Chemical Vapor Deposition) is mainstream, temperature 600-650℃, pressure 100-300mTorr, deposition rate 2-5nm/min.

l Annealing Process: Rapid Thermal Annealing (RTA) 850℃/60s, activates dopants and crystallizes amorphous silicon, requires controlling thermal budget <1.5kWh/kg.

Mass Production Difficulties:

l Boron Diffusion Uniformity: Wafer lateral resistance deviation <±5%, requires gas distribution optimization (SiH₄: B₂H₆=10:1).

l Polysilicon Thickness Control: 100-150nm with ±5nm error; otherwise, tunneling probability decreases 10%.

l Metallization Compatibility: Silver paste firing (380℃/30s) must avoid damaging the poly-Si layer, contact resistance <0.01 Ω·cm².

Efficiency Improvement Path and Comparison Data

Advanced Process Innovations and Empirical Data

l Ultra-thin Tunneling Layer: 1nm SiO₂ (ALD deposition), Voc increases to 735mV, but mass production yield drops to 95% (regular 1.5nm yield 98%).

l Gradient Doping: Boron concentration in poly-Si: B graded from surface 1e20 to bulk 5e19 cm⁻³, electric field gradient enhanced, J₀ further reduced by 30%.

l Laser-Assisted Firing: 355nm laser pulse (50mJ/cm²) achieves contactless firing, contact resistance reduced to 0.008 Ω·cm².

Mass Production Cost and Equipment Investment

l Additional Equipment: LPCVD (2.5M/unit) + Boron diffusion furnace (1.8M/unit) + Laser grooving machine (0.9M/unit), single GW line modification cost 5M (PERC is $3M).

l Wafer Thickness: TOPCon can be thinned to 130μm (PERC is 150μm), silicon material cost reduced $0.01/W.

l Silver Paste Consumption: TOPCon requires 150mg/wafer (PERC 100mg/wafer), but can reduce usage by 30% via multi-busbar (20BB).

Application Scenario

Large-scale power plant users favor TOPCon (mass production efficiency 25.2%, temperature coefficient -0.29%/°C, power generation under high temperatures 7% higher than PERC);

Distributed owners consider space and cost (PERC modules $0.18/W, suitable for budget-limited rooftops);

Extreme climate projects choose TOPCon (annual degradation 0.4% vs PERC 0.7%);

Hybrid energy storage systems prioritize TOPCon (bifaciality 85% improves energy storage ancillary revenue).

Large-Scale Ground-Mounted Power Plants

High-Temperature Arid Regions

Field data from desert power plants in the Middle East shows that at 75℃ surface temperature at summer noon, TOPCon module operating temperature is 3.2℃ lower than PERC.

Taking the UAE Mohammed bin Rashid Al Maktoum Solar Park as an example, TOPCon modules generate 8.7% more annual energy than PERC, equivalent to an additional 1.04 million kWh per megawatt per year.

TOPCon rear reflectance increased to 82% (PERC 75%), and night-time heat dissipation efficiency differences further amplify the temperature advantage.

High Reflectivity Terrain

The Australian Queensland Bungala Solar Project (250 MW) uses TOPCon modules. In the sandy soil environment with 32% ground reflectance, the rear-side power generation contribution reaches 29%.

Project field measurements show TOPCon annual energy gain of 14.6% compared to PERC, reducing the payback period by 1.8 years.

Comparison data: TOPCon bifaciality 85% vs PERC 75%, each module captures 1.2 more hours of effective sunlight per day on average.

Long-Term Hold Projects

10-year tracking data from a 200MW plant in Brandenburg, Germany shows TOPCon first-year degradation of 0.45% (PERC 1.2%), 25-year cumulative degradation 9.3% less than PERC.

Calculating with 0.15/W annual O&M cost, TOPCon generates an extra 120 million kWh over its lifespan, equivalent to an additional annual revenue of 4.8 million.

The plant uses a 1500V system + smart tracking racks; TOPCon's high power density reduces rack usage by 12%.

Multi-Scenario Hybrid Deployment

In the hybrid power plant (PV + storage) in California's Mojave Desert, TOPCon 670W modules paired with 1500V inverters allow string lengths of 32 modules, reducing the number of combiner boxes by 28% compared to PERC 550W modules.

Project economic calculations show the TOPCon solution reduces BOS cost by $0.08/W and increases energy storage ancillary return by 2.3 percentage points.

Extreme Weather Response

A nearshore PV project in Miami, Florida (tidal zone) uses TOPCon modules, maintaining 91.5% power after 12 months of salt spray testing (PERC was 84.3%).

Its POE encapsulant water vapor transmission rate is only 0.02g/m²/day (PERC EVA is 0.05g/m²/day). In 85% humidity environment, annual PID degradation is controlled within 0.5%.

Mechanical tests show TOPCon aluminum back surface field structure wind pressure resistance reaches 6000Pa (PERC 4500Pa), suitable for hurricane-prone areas.

Power Trading Scenarios

Spot market data for PV power in Hokkaido, Japan during winter shows TOPCon output power is 19% higher than PERC under low irradiance conditions of 500W/m².

When participating in day-ahead market arbitrage, the TOPCon system gains an extra 12/MW daily on average, with annual cumulative gain reaching 4.38 million (for a 200MW plant).

In this region, winter daily effective generation hours extend from 4.2 hours for PERC to 5.1 hours for TOPCon.

Distributed Generation

Commercial and Industrial Rooftops

The core demand for commercial and industrial users is shortening the payback period; roof area and electricity price differential determine technology choice.

l TOPCon High Power Density Advantage

720W TOPCon modules reduce area per watt by 12% compared to PERC (0.18㎡/W vs 0.20㎡/W), allowing 560 more modules for a 1MW project. Field measurements from a logistics warehouse rooftop project in Berlin, Germany show TOPCon daily generation is 9.3% higher than PERC, increasing annual revenue by €142,000 (electricity price €0.32/kWh).

l PERC Cost-Sensitive Markets

SMEs in Southeast Asia prefer PERC 670W modules, with installation cost per watt 0.11 (TOPCon 0.14). A supermarket rooftop project in Jakarta, Indonesia using PERC met 60% of its electricity demand in the first year, selling surplus power to the grid at $0.18/kWh, achieving a 4.2-year payback period.

l Shading Mitigation Solutions

TOPCon low-light response improved by 15% (output reaches 92% of rated power at 400W/m²), better than PERC's 85%. For a California warehouse roof with tree shading, TOPCon actual generation was 18% more than PERC, offsetting the initial premium.

Agricultural Scenarios

Agrivoltaic projects need to balance power generation and agricultural output; technology suitability determines success.

Case: A vegetable greenhouse project in Shouguang, Shandong uses TOPCon modules mounted 2.5m high, cultivating shade-tolerant medicinal plants below, achieving annual generation of 1.2 million kWh, increasing medicinal plant output value by ¥320,000, improving comprehensive revenue by 37%.

Community Microgrids

When distributed energy storage penetration exceeds 30%, system economic inflection point appears.

l TOPCon + Lithium Cell Storage Combination

A community microgrid in Hawaii, USA uses TOPCon 670W modules + Tesla Powerwall, increasing storage charge/discharge efficiency to 92% (PERC system 89%). Under peak/off-peak arbitrage mode, daily revenue increases by $210, payback period shortens to 6.8 years.

l Virtual Power Plant (VPP) Integration

Five hundred household TOPCon rooftops in Brisbane, Australia connect to a VPP, aggregating response to grid frequency regulation needs, earning each household $1,200 annually. PERC systems, due to higher output fluctuation, can only participate in basic peak shaving, reducing revenue by 42%.

l Electricity Price Fluctuation Sensitivity

When Germany's time-of-use price differential reaches €0.25/kWh, the TOPCon system's smart charge/discharge strategy increases storage utilization to 85%, while PERC only reaches 68%.

Transportation Energy Infrastructure

Charging station and PV synergy needs to overcome space limitations and instantaneous power matching.

Highway Service Area Case

A charging station in Norway uses TOPCon 720W modules + 250kW storage, achieving single-gun peak power of 180kW, charging efficiency 19% higher than PERC solution. Daily served vehicles increase from 24 to 37, revenue per kWh €0.15.

Port Machinery Power Supply

Electric gantry cranes at Shanghai's Yangshan Port use a TOPCon distributed power system, reducing failure rate from 0.15 per month for PERC to 0.07 per month, saving ¥126,000 annually in maintenance costs.

5. Technical Parameter Comparison Table

High-Density Installation Challenges

Roof load-bearing and shading are the biggest technical obstacles for distributed projects.

Structural Safety Calculation

TOPCon 720W module weight 42 kg, unit area load 18 kg/㎡. When a 60° tilt roof requires reinforcement, cost increases 15 per ㎡. PERC 550W module load 15 kg/㎡, saves 9/㎡ but loses 12% generation.

Shading Loss Quantification

Tree shading causes PERC system annual generation loss of 14%, TOPCon only 9% due to its low-light performance advantage. A residential project in Texas, USA optimized module layout via 3D modeling, further reducing TOPCon shading loss by 4%.

Extreme Environment Projects

Stability Under High-Temperature Scorching:

Desert power plant field data shows TOPCon module power output is 8.3% higher than PERC at 75℃ operating temperature.

Taking the UAE Mohammed bin Rashid plant as an example, TOPCon modules achieve annual energy gain of 7.2%, core reason being its -0.29%/℃ temperature coefficient (PERC is -0.35%/℃).

l Hot Spot Risk Control: TOPCon uses multi-busbar + half-cut design, current distribution uniformity improved by 40%, single-point hot spot temperature 12℃ lower than PERC. NREL lab tests show TOPCon triggers no hot spots under continuous 85℃ irradiation, while PERC shows local burn-out under same conditions.

l Heat Dissipation Structure Optimization: TOPCon backsheet uses laser grooving technology, improving heat dissipation efficiency by 25%. Field data from Saudi Arabia's NEOM project shows TOPCon module backsheet temperature 5.8℃ lower than PERC, annual degradation rate reduced by 0.3%.

High-Humidity Coastal Corrosion:

Test data from a nearshore PV project in Miami, Florida (tidal zone) shows TOPCon modules maintain 91.5% power after 5 years in a 5mg/m³ salt spray environment (PERC was 84.3%).

l Encapsulant Material Upgrade: TOPCon uses POE encapsulant, water vapor transmission rate only 0.02g/m²/day (PERC EVA is 0.05g/m²/day). Fraunhofer ISE tests show TOPCon has only 0.5% PID degradation after 5 years at 85% humidity (PERC 3.2%).

l Metallization Process Improvement: TOPCon uses silver-aluminum paste instead of traditional silver paste, reducing gridline corrosion rate by 60%. Data from Australia's Bungala project shows TOPCon has 72% less silver gridline cross-sectional corrosion area than PERC in coastal high-humidity environment.

Cold Region Low-Temperature Challenges:

Tests from a polar PV project in Tromsø, Norway (-25℃ to 5℃) show TOPCon module startup power at -20℃ is 19% higher than PERC, reaching peak generation 1 hour earlier in the morning.

l Open-Circuit Voltage Advantage: TOPCon open-circuit voltage (Voc) reaches 50.3V (PERC 48.1V), voltage rise speed improves 23% in low-temperature environment. Data from a Siberia, Russia project shows TOPCon output power 12% more than PERC at -30℃.

l Wind Pressure Resistance Design: TOPCon aluminum back surface field structure wind pressure resistance reaches 6000Pa (PERC 4500Pa), suitable for hurricane-prone areas. Field data from Okinawa, Japan typhoon season shows TOPCon modules zero damage, PERC damage rate 3.7%.

Sandstorm Invasion:

Tests from a Sahara Desert project (>80 sandstorm days/year) show TOPCon module surface roughness only 2.1μm (PERC 3.8μm), transmittance degradation rate 42% lower.

l Self-Cleaning Coating: TOPCon uses nano-silica coating, improving rain washing efficiency by 50%. Data from Egypt's Aswan project shows TOPCon monthly self-cleaning efficiency reaches 91% (PERC 68%).

l Mechanical Wear Resistance: TOPCon tempered glass thickness increased to 3.2mm (PERC 2.8mm), sand particle impact compressive strength improved 35%. Field data from Morocco's Noor Ouarzazate plant shows TOPCon power recovery time after sandstorms shortened to 2 hours (PERC needs 6 hours).

High-Altitude Low-Oxygen:

Tests from a Qinghai-Tibet Plateau project (4,500m altitude, irradiance <400W/m²) show TOPCon low-light efficiency 18% higher than PERC, daily effective generation hours extended by 1.2 hours.

l Passivation Layer Optimization: TOPCon aluminum oxide passivation layer thickness increased to 1.5nm (PERC 1.2nm), surface recombination velocity reduced to 10³cm/s (PERC 3×10³cm/s). Data from a Nagqu, Tibet plant shows TOPCon output power 14% more than PERC at 400W/m² irradiance.

l Potential Distribution Control: TOPCon uses field passivation technology, electric field gradient reduced 40%, potential induced degradation (PID) rate only 0.2%/year (PERC 1.5%/year).

Extreme Weather Response:

Hail disaster tests in Texas, USA show TOPCon modules can withstand 38mm diameter hail impact (PERC limit 25mm), breakage rate reduced 89%.

l Structural Reinforcement Design: TOPCon uses 3D interconnection technology, bending strength increased to 450MPa (PERC 320MPa). German wind tunnel tests show TOPCon deformation rate only 0.15% at 25m/s wind speed (PERC 0.35%).

l Dynamic Load Response: TOPCon rack system equipped with smart dampers, vibration amplitude reduced 60% during hurricanes. Data from Miyakojima, Japan typhoon season shows TOPCon module displacement 42% less than PERC.

Hybrid Systems and Energy Storage Integration

PV + Storage Dynamic Response:

Hybrid system field data from California's PG&E grid shows PV + lithium cell storage can improve system response speed to 200ms (traditional thermal power frequency regulation needs 5 seconds).

During an extreme heat event in August 2024, the system adjusted charge/discharge strategy in advance via a 15-minute ultra-short-term forecasting algorithm, increasing single-day arbitrage revenue by $14,200.

l Power Allocation Algorithm:

Uses Model Predictive Control (MPC) technology, optimizing storage SOC (State of Charge) every 5 minutes. Data from Germany's Stadtwerke München project shows this algorithm increases storage utilization from 68% to 92%, capturing an extra $860 daily revenue on average.

l Electricity Price Differential Capture:

Spain's electricity market peak/off-peak price differential reaches €0.22/kWh. A hybrid system with 3MW PV + 4MWh storage discharges at 1.8MW during peak price periods, achieving annual arbitrage revenue of €2.1 million (system payback period shortened to 5.3 years).

Wind Power + Storage Output Smoothing:

Denmark's Horns Rev 3 offshore wind farm paired with 200MW/300MWh flow cell reduces wind power output fluctuation from ±35% to ±8%.

l Virtual Inertia Control:

The storage system mimics synchronous generator inertia response, shortening frequency deviation recovery time from 12 seconds to 3 seconds. UK National Grid tests show this technology increases wind power penetration limit from 30% to 45%.

l Capacity Leasing Model:

Australia's AGL Energy provides 100MW storage capacity leasing to the grid, annual service fee €1.8 million. The storage system discharges during low wind periods, ensuring grid base load supply, rental income covering 23% of storage depreciation cost.

Multi-Energy Complementary Systems:

Germany's Schleswig-Holstein hybrid energy island project integrates PV, wind power, hydrogen fuel cells, and molten salt thermal storage, achieving 92% annual energy self-sufficiency.

l Hydrogen Storage Economics:

Green hydrogen production cost 3.5/kg (electrolysis efficiency 75%), peak shaving cost 0.11/kWh, 42% lower than gas turbine peaking.

l Molten Salt Storage Efficiency:

Uses nitrate mixed molten salt (NaNO3-KNO3), storage density reaches 1.5kWh/kg. Spain's Gemasolar CSP plant with 20MW molten salt storage extends nighttime generation to 15 hours, increasing annual electricity sales revenue by €4.2 million.

Commercial & Industrial Hybrid Systems:

A Texas, USA manufacturing plant deploys 2MW PV + 1.5MWh storage + smart control system, participating in ERCOT electricity market to obtain the following revenues:

System Configuration:

l PV: Monocrystalline PERC modules (400W, 30° tilt)

l Storage: LFP batteries (cycle life 6000 cycles)

l Control: Digital twin-based forecasting algorithm (error rate <3%)

Island Microgrids:

The Philippines Batanes Islands microgrid project (1.2MW PV + 800kWh lithium cell + 2MW diesel generator) achieves:

l Diesel Replacement Rate:

The storage system reduces diesel generator annual operation hours from 8760 to 2920 hours, fuel consumption reduced by 66.7% (annual diesel savings $1.48 million).

l Black Start Capability:

The storage system can reconstruct voltage within 200ms after grid collapse, critical load restoration time shortened from 4 hours to 18 minutes.

Technical Parameter Comparison Table

System Integration Challenges and Solutions

Multi-Timescale Coordination:

Australia's CSIRO developed Hybrid Cell Management System (HBMS), using Model Predictive Control (MPC) to achieve:

l Short-term (<10min): Lithium-ion battery responds to sudden changes in PV power.

l Medium-term (10min-1h): Flow cell balances wind power output

l Long-term (>1h): Hydrogen storage participates in grid peak shaving

l The system reduced PV curtailment from 18% to 3.2% in a Queensland project.

Cell Aging Management:

Degradation characteristics differ significantly among batteries in hybrid systems. NREL tests show:

l Lithium cell capacity degradation rate: 0.5%/year (capacity retention 85% after 3000 cycles)

l Flow cell degradation rate: 0.1%/year (capacity retention 92% after 5000 cycles)

l Solutions:

l Establish dynamic Cell State of Health (SOH) evaluation model

l Adopt "First-In-First-Out" replacement strategy (prioritize replacing batteries with degradation >80%)

Configure redundant capacity (20% buffer in total capacity)

Economic Analysis Model

Hybrid system economics consist of three parts:

1. Initial Investment:

l PV: $0.95/W (monocrystalline PERC

l Storage: $280/kWh (lithium cell)

l Diesel Generator: $1,200/kW

2. Operating Cost:

l Storage Maintenance: $0.01/kWh

l Diesel Fuel: $0.85/L

3. Revenue Sources:

l Electricity Sales: Peak/off-peak price differential $0.15/kWh

l Ancillary Services: Frequency regulation revenue $12/kW/year

l Carbon Trading: $50/ton CO₂

Example of 1MW PV + 4MWh storage system:

l Payback Period: 6.8 years (IRR 14.2%)

l Levelized Cost of Electricity: 0.11/kWh (compared to diesel-only supply 0.29/kWh)

l Carbon Emission Reduction: Annual reduction 1,460 tons CO₂
