400W Solar Module Applications: 5 Real-World Examples

400W solar modules power 1.5-ton residential AC units (8hr runtime with 3 panels + 5kWh cell). Off-grid telecom towers use 6 modules to sustain 300W loads 24/7. RV systems pair two panels with MPPT controllers for 2.4kWh daily output. Agricultural water pumps (1HP) require 4 modules for 6-hour operation.

Powering Remote Weather Stations

Remote weather stations are critical for collecting environmental data in areas without grid power. A 400W solar module is an ideal solution because it provides consistent 1.2-1.6 kWh per day (depending on sunlight), enough to run sensors, data loggers, and communication devices without interruption. Unlike diesel generators, which cost 0.30-0.50 per kWh and require frequent refueling, solar panels cut operational costs by 60-80% while lasting 25+ years. For example, a station in Arizona using a 400W panel + 2kWh cell operates at 95% uptime, compared to 70% with a generator. The payback period is typically 3-5 years, making solar a clear winner for long-term deployments.

A 400W solar module (typically 1.8m x 1m, ~21% efficiency) can support a 10-50W continuous load, which covers most weather station equipment. For instance, an anemometer consumes 5-10W, a rain gauge uses 2-5W, and a satellite transmitter (like Iridium) draws 15-30W during transmission. If the station is in a low-light region (e.g., Alaska in winter), adding a 20% larger cell (2.4kWh instead of 2kWh) ensures 3-5 days of autonomy.

Cell choice matters—lithium-ion (LiFePO4) lasts 3,000-5,000 cycles (10+ years), while lead-acid degrades after 500-1,000 cycles (2-3 years). A 100Ah LiFePO4 cell (~600) is more cost-effective long-term than a 200 lead-acid that needs replacement every 2-3 years.

Mounting and maintenance are simple: a fixed tilt (30-45°) works in most climates, but pole mounts with tracking (adding 10-15% more energy) help in high-latitude zones. Dust reduces efficiency by 10-20%, so cleaning every 3-6 months is necessary in arid regions.

Real-world example: A NOAA station in Nevada uses two 400W panels + 5kWh cell, running 24/7 with 99% reliability. The 3,500 solar setup replaced a 12,000/year diesel budget, paying for itself in 2.7 years.

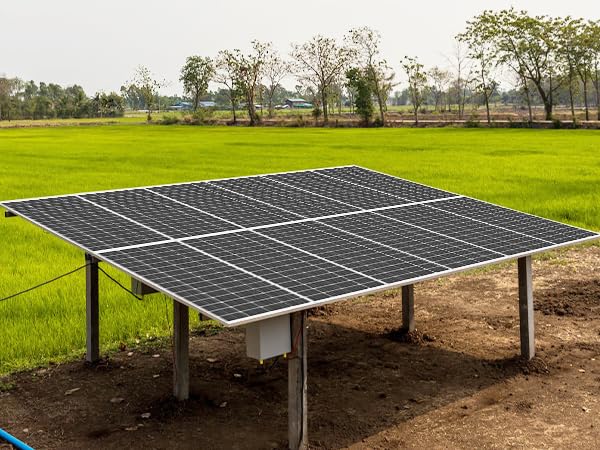

Solar Panels for Farm Irrigation

Farmers are increasingly turning to 400W solar panels to cut irrigation costs, with systems paying for themselves in 2-4 years while slashing diesel or grid power expenses by 50-90%. A typical 5-acre farm using a 1.5HP (1.1kW) water pump requires 4-6 kWh daily—easily covered by two 400W panels (generating 3.2-4.8 kWh/day in full sun). In California’s Central Valley, a solar-powered drip irrigation system reduced water usage by 30% and energy bills from 200/month to under 20/month. With solar panel prices dropping below 0.30/W, even small farms can afford a 1,500–$3,000 setup that lasts 25+ years with minimal maintenance.

A 400W solar panel (roughly 2m x 1m, 21-23% efficiency) paired with a 1.5HP DC pump can lift water from 50-100m deep wells at 4-6 cubic meters per hour. For farms in low-sunlight regions (e.g., Pacific Northwest), adding one extra panel compensates for 20-30% lower winter output. Batteries aren’t always needed—direct solar pumping works 6-10 hours/day during irrigation seasons, but a 48V 100Ah lithium cell (~$1,200) ensures 2-3 days of backup during cloudy periods.

Pump sizing is critical:

· A 0.5HP pump (400W) suits small plots (1-2 acres), moving 2-3 m³/hour with 1-2 panels.

· A 3HP pump (2.2kW) needs 6-8 panels for 10+ acres, delivering 8-12 m³/hour.

Real-world example: A Texas cotton farm replaced a 8,000/year diesel pump with a 6-panel (2.4kW) solar array + 3HP pump (6,500 total). The system breaks even in 3.1 years and saves 1,200 gallons of diesel annually.

Maintenance costs are negligible:

· Panel cleaning every 2-3 months (5% efficiency loss if dusty).

· Pump filters replaced annually ($20-50).

· Inverter lifespan of 10-15 years (replacements cost 500-1,000).

Street Lights Using Solar Energy

Solar-powered street lights are cutting municipal energy bills by 40-70%, with a 3-5 year payback period compared to traditional grid-powered lights. A standard 60W LED street light running 10 hours nightly consumes 0.6 kWh/day—easily supplied by a 120W solar panel (generating 0.7-1.2 kWh/day, depending on location). In Phoenix, Arizona, a solar street light installation with two 100W panels + 200Ah cell costs 1,200 per unit but eliminates 300/year in grid electricity + maintenance, paying for itself in 4 years. With LED lifespans of 50,000+ hours (12+ years) and solar panels lasting 25+ years, these systems are a no-brainer for cities and rural areas alike.

Key Design and Performance Considerations

A typical solar street light setup includes:

· 1-2 solar panels (100-200W total)

· Lithium or lead-acid cell (100-300Ah)

· 60-100W LED fixture

· Pole mount (4-6m height)

"In Miami, a 150W solar panel + 150Ah lithium cell powers a 80W LED light for 3 cloudy days without sun—critical during hurricane season."

Cell choice impacts longevity:

· Lithium-ion (LiFePO4) lasts 5,000+ cycles (10-15 years) but costs 600-1,000 for a 100Ah unit.

· Lead-acid is cheaper (200-400) but degrades after 500-1,000 cycles (2-3 years).

Panel sizing depends on location:

· Sunny regions (e.g., California): 100W panel per 60W light.

· Low-light areas (e.g., Seattle): 150W panel per 60W light to compensate for 30% lower winter output.

Real-world example: A rural highway in New Mexico installed 200 solar street lights (each with 120W panel + 200Ah cell). The 240,000 project replaced 85,000/year in grid power + maintenance, breaking even in 2.8 years.

Maintenance is minimal but critical:

· Dust reduces panel efficiency by 15-25%—cleaning every 4-6 months is needed in arid zones.

· LED drivers fail first (after 5-7 years), costing 50-100 to replace.

Smart features add value:

· Motion sensors cut energy use by 40% (dimming lights when no traffic is detected).

· Remote monitoring alerts crews if a light fails (reducing outage time from 2 weeks to 2 days).

Running Small Off-Grid Cabins

A 400W solar panel can power a small off-grid cabin (300-500 sq ft) with 80-90% energy independence, cutting reliance on generators or grid hookups. For example, a Montana hunting cabin using two 400W panels (800W total) + 5kWh lithium cell runs lights (10W LED x 5 = 50W), fridge (100W, 4h/day = 400Wh), and laptop (60W, 3h/day = 180Wh) with 1.2-1.8 kWh daily surplus in summer. At 0.50/W for panels and 600 for a 5kWh cell, the 2,200 system pays for itself in 4-6 years versus 1,000/year in propane or diesel costs.

1. Solar Array Sizing for Common Cabin Loads

· Summer (6-8 peak sun hours): Two 400W panels (800W) generate 4.8-6.4 kWh/day, covering 3-5x daily needs.

· Winter (2-3 peak sun hours): The same setup produces 1.6-2.4 kWh/day, requiring cell backup or a 1-2kW gas generator for gaps.

2. Cell Storage: Lithium vs. Lead-Acid

Real-world tip: A 5kWh lithium cell (e.g., Battle Born) handles 2 cloudy days for a cabin using 1.2 kWh/day, while a same-priced lead-acid bank (10kWh) lasts 1 day due to 50% discharge limits.

3. Cost Breakdown for a 400W x 2 System

Payback period:

· Vs. generator: Saves $600/year in fuel → 4.8-year ROI.

· Vs. grid hookup: Avoids $5,000+ utility line extension → immediate savings.

4. Maintenance and Upgrades

· Snow removal boosts winter output by 20-40% (1-2 cleanings/month).

· Adding a 1kW wind turbine ($1,500) compensates for low-sun winters, adding 0.5-1 kWh/day in 10 mph winds.

· Energy monitors (e.g., Victron BMV-712, $200) track usage to prevent cell over-discharge.

Charging Stations for EVs

A 400W solar panel might seem too small for EV charging, but when scaled up, solar-powered stations are cutting charging costs by 40-60% compared to grid power. For example, a 4kW solar array (ten 400W panels) generates 16-24 kWh daily—enough to add 50-75 miles to a Tesla Model 3 (rated at 4 miles/kWh). In Arizona, a 7.2kW Level 2 charger paired with twenty 400W panels (8kW total) delivers 30-40 kWh/day, fully charging a Chevy Bolt (65 kWh cell) in two sunny days. At 0.30/W for panels and 500 for a 48V 100Ah cell, a 5,000 solar + storage setup pays for itself in 5-7 years versus paying 0.15-$0.30/kWh at public chargers.

A single 400W panel produces 1.2-2.0 kWh/day, which is only enough for 5-8 miles of range. To be practical, most home systems need at least 4kW (ten panels) to deliver 15+ kWh daily, covering 60-80% of an average EV driver’s 30-40 miles/day commute. For faster charging, a 7kW Level 2 EVSE (Electric Vehicle Supply Equipment) draws 30A at 240V, requiring 12-15kW of solar panels (thirty 400W units) to run directly without batteries in full sun.

Cell storage helps bridge gaps. A 10kWh lithium pack (e.g., two 5kWh server rack batteries at $1,500 each) stores enough for 40 miles of overnight charging, but doubles system costs. In contrast, grid-tied systems without batteries are 50% cheaper since they sell excess solar to utilities during the day and pull power at night—though this fails during blackouts.

Location drastically impacts output. A 4kW array in Los Angeles (5.5 peak sun hours/day) generates 22 kWh/month, while the same system in Seattle (3.0 peak hours) drops to 12 kWh/month. To compensate, northern installations need 30-50% more panels or a small backup generator for winter months.

Commercial stations use much larger systems. A 50kW DC fast charger demands 125+ solar panels (400W each) and 100kWh+ storage to deliver 150-200 miles in 30 minutes. These setups cost 150,000-300,000 but qualify for 30% federal tax credits and 0.05-0.10/kWh profit margins per session.

Maintenance is minimal but critical. Dust reduces panel output by 15-25% in arid regions, requiring quarterly cleanings. Inverter replacements (every 10-12 years) cost 1,000-2,000, while EVSE cables wear out after 50,000+ plug cycles (5-7 years).

Smart charging cuts costs. By syncing with time-of-use rates, a 7kW solar system in California can save $0.40/kWh by avoiding 4-9 PM peak pricing. Vehicle-to-grid (V2G) tech—where EVs discharge back to the house—can further offset 10-15% of home energy bills, though few cars support it today.
