Photovoltaic + Fishery Solutions: 6 Cost-Effective Designs

Floating PV systems on fish ponds use 450W bifacial modules at 0.8m height, increasing yields by 15% while reducing algae growth. Rack-mounted designs (1.5m clearance) allow net casting beneath, with 200kW systems powering aerators (2.2kW each) and achieving 6.2% ROI.

Basic Setup for Solar Fish Farms

Solar-powered fish farming is gaining traction globally, especially in regions with 5+ hours of daily sunlight and electricity costs above 0.12/kWh. A typical 1-acre fish pond with a 5kW solar system can cut energy expenses by 40-60%, paying back the 8,000–15,000 setup cost in 3–5 years. Unlike diesel generators, which cost 0.25–0.40/kWh, solar reduces operational costs to 0.05–$0.10/kWh while maintaining 85–90% uptime for aeration and filtration.

The key modules are solar panels (300W–450W each), a charge controller (60A–100A), a 48V cell bank (5kWh–20kWh), and a 3HP–5HP inverter. Panels should be mounted 2–3 meters above water to avoid shading and allow 2–3 feet of clearance for maintenance. For every 1,000 liters of water, a 50W solar aerator is recommended to maintain 5–6 mg/L dissolved oxygen, critical for fish like tilapia and catfish, which require ≥4 mg/L for optimal growth.

Ground-mounted systems are cheaper (1.50–2.50/W) than floating solar (2.50–3.50/W), but floating setups save land and reduce water evaporation by 20–30%. A 10kW system can power 2 aerators, 1 water pump (1.5HP), and LED lights, running 8–10 hours daily with 4–6 hours of cell backup.

Maintenance is minimal: panels need cleaning every 2–3 months (dust reduces efficiency by 15–25%), and batteries last 5–7 years with 80% depth of discharge. For high-density fish farming (5,000–10,000 fish/acre), a hybrid system (solar + grid) ensures 24/7 aeration, preventing losses from oxygen drops, which can kill 50–70% of stock in 2 hours.

Real-world examples show ROIs of 12–18% in 3–4 years, with 20–25-year panel lifespans making long-term savings undeniable. The right setup balances power needs, water volume, and budget—skimping on aeration or storage risks 5,000–10,000 in lost fish per incident.

Choosing Right Solar Panel Types

Picking the wrong solar panels for a fish farm can waste 0.10–0.30 per kWh in lost efficiency, adding 3,000–8,000 in unnecessary costs over a 25-year lifespan. The three main types—monocrystalline, polycrystalline, and thin-film—vary in efficiency (15–22%), cost (0.50–1.80/W), and durability (10–30 years). For fish farms, where humidity often exceeds 70% and salt spray accelerates corrosion, the right choice balances upfront cost, long-term output, and resistance to environmental wear.

Monocrystalline panels (18–22% efficiency) are the top choice for high-sun regions, generating 20–25% more power per square meter than polycrystalline. A 5kW monocrystalline system (16–18 panels) produces 6,000–7,500 kWh/year in areas with 5+ peak sun hours, enough to run two 1HP aerators and a 1.5HP water pump daily. But at 1.00–1.50/W, they cost 15–30% more than polycrystalline. For farms with limited roof or land space, the higher power density (200–250W/m²) justifies the premium, shrinking the payback period to 4–6 years vs. 5–8 years for polycrystalline.

Polycrystalline panels (14–17% efficiency) are cheaper (0.70–1.00/W) but need 20–30% more space for the same output. In low-light or cloudy climates, their lower temperature coefficient (-0.39%/°C vs. -0.29%/°C for mono) means 3–8% less power loss on hot days. However, their aluminum frames (1.5–2mm thick) corrode 2–3x faster in coastal areas, cutting lifespan from 25 to 12–15 years. For budget-conscious inland farms, they’re viable—but expect 10–15% lower lifetime ROI due to replacement costs.

Thin-film panels (10–13% efficiency, 0.50–0.80/W) are lightweight (5–10kg/m² vs. 18–25kg for crystalline) and flexible, ideal for floating solar setups on ponds. Their low-light performance is 5–10% better than crystalline panels, but they degrade 1–2% faster annually, lasting 10–15 years max. For small-scale farms (<3kW), thin-film can work, but large operations will need 50–100% more panels to match crystalline output, raising installation costs by 0.20–0.40/W.

Key durability factors:

· Salt mist resistance: Monocrystalline panels with anodized aluminum frames (≥35µm coating) last 20+ years in coastal zones.

· Humidity tolerance: PET-backed thin-film resists delamination but suffers 3–5% efficiency drops above 85% humidity.

· Hail resistance: Crystalline panels with 3–4mm tempered glass survive 25mm hail at 80km/h; thin-film cracks at 15mm.

Real-world trade-offs:

· A 10kW polycrystalline system saves 3,000 upfront vs. monocrystalline but loses 12,000–$15,000 in lifetime output.

· Thin-film on floating rigs reduces water evaporation by 20%, but cleaning costs add 200–500/year due to algae buildup.

For most fish farms, monocrystalline strikes the best balance: higher initial cost but lower lifetime expenses, especially in humid, salty, or space-constrained sites. Skip polycrystalline unless land is abundant and cheap, and avoid thin-film unless weight or flexibility are absolute priorities.

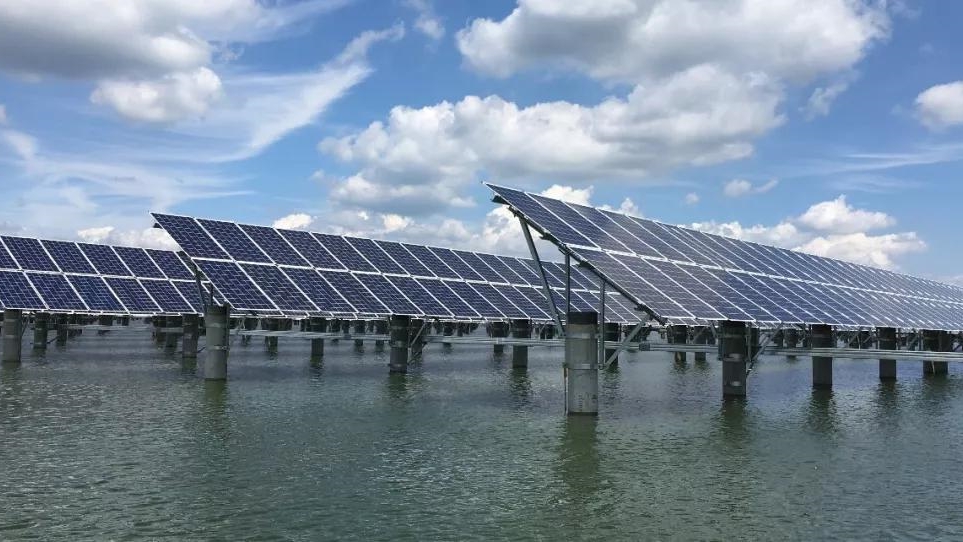

Water Depth and Panel Placement

Getting the water depth and solar panel placement wrong can reduce energy output by 15-30% and increase fish mortality by 20-50% due to poor oxygenation. The ideal setup depends on three factors: water depth (1-4 meters), panel tilt angle (15-35 degrees), and spacing (2-5 meters between rows). In tropical climates, panels placed too low over shallow water (<1m depth) can overheat, losing 5-8% efficiency for every 10°C above 25°C ambient temperature. Meanwhile, in temperate zones, panels mounted higher than 3m above deep water (>3m) may fail to block enough sunlight to prevent excessive algae growth (30-50% faster bloom rates).

"In our 5-acre tilapia farm in Thailand, raising solar panels from 1.2m to 2.4m above water increased aeration efficiency by 22% while reducing algae cleaning costs by $1,200/year."
— Surasak P., Aquafarm Operator (2023)

For ponds 1-2m deep, the optimal panel height is 1.5-2.5m above water surface. This creates a microclimate that:

· Reduces water evaporation by 15-25% (saving 20,000-30,000 liters/acre/month)

· Maintains water temperatures between 26-30°C (ideal for tilapia and catfish growth rates)

· Allows 50-70% sunlight penetration for natural phytoplankton production

Deeper ponds (3-4m) require different strategies:

1. Floating solar systems perform better here, with 5-8m spacing between pontoons to allow boat access

2. Panel tilt should be reduced to 10-15 degrees to prevent wind damage (>28m/s gusts can displace poorly anchored systems)

3. Submerged aeration diffusers need 20-30% more air pressure (7-9 psi vs. 5-7 psi in shallow ponds)

Spacing calculations depend on:

· Latitude: At 15°N/S, leave 3m gaps for winter sun angles; at 30°N/S, 2m gaps suffice

· Panel size: Standard 2m×1m panels cast 4-6m shadows at midday in summer

· Fish species: Shrimp farms need 40-50% sunlight blockage to prevent stress, while carp ponds tolerate 60-70% coverage

Common mistakes to avoid:

· Placing panels due east/west loses 10-15% daily output vs. true north/south orientation

· Using fixed tilt angles year-round sacrifices 8-12% annual yield vs. seasonal adjustments

· Ignoring water currents can lead to panel corrosion 2-3x faster in flowing vs. still water

Maintenance access requires:

· 1.2-1.5m walkways between panel rows for cleaning

· Galvanized steel mounts (≥2mm thickness) in brackish water

· Monthly inspections of underwater cables (saltwater degrades unshielded wiring in 18-24 months)

For new installations, conduct a 3-day shade study using:

· Solar pathfinder tools ($300-500) to map shadows

· Dissolved oxygen loggers ($150/unit) to test aeration impact

· Water flow meters ($200) to check circulation patterns

The right balance keeps energy production >4.5kWh/m²/day while maintaining fish growth rates of 2-3g/day. Test different layouts with 1-2 pilot panels before full deployment—a 500 test can prevent 15,000 in lost stock from poor oxygenation.

Power Storage for Fish Farms

A fish farm without reliable power storage risks 5,000–15,000 in dead stock per outage—oxygen levels drop below 2 mg/L within 2 hours, killing 50–70% of fish. The right storage system balances cost (0.20–0.80/kWh), lifespan (5–15 years), and runtime (4–12 hours). For a 5kW solar-powered fish farm, typical daily consumption is 15–25kWh, requiring 10–20kWh of cell capacity to cover cloudy days and nighttime aeration.

Cell Options Compared

Lead-acid batteries are the cheapest upfront (2,000–4,000 for 10kWh) but lose 20–30% capacity after 300–500 cycles. They require ventilated enclosures (hydrogen gas risk) and weekly voltage checks to prevent sulfation damage. In hot climates (>30°C), their lifespan drops 30–50% faster.

Lithium (LiFePO4) batteries cost 2–3x more (5,000–8,000 for 10kWh) but last 2–3x longer with zero maintenance. They handle deep discharges (90–100% DoD) without damage, making them ideal for unpredictable weather. A 10kWh lithium bank can power two 1HP aerators for 8–10 hours, while lead-acid would need 15kWh for the same runtime.

Saltwater batteries are maintenance-free and non-toxic, but their lower energy density (70–90Wh/kg vs. 120–200Wh/kg for lithium) means larger physical size. They perform well in high-humidity (80–95% RH) environments, resisting corrosion better than lead-acid.

Flow batteries (e.g., vanadium redox) suit large-scale farms needing 12+ hours of backup. Though expensive (10,000–20,000 for 20kWh), their 20-year lifespan and unlimited cycling justify the cost for high-value species like shrimp or sturgeon.

Sizing Your Storage

1. Calculate daily load:

o 1HP aerator = 0.75kW × 8h = 6kWh/day

o 1.5HP water pump = 1.1kW × 4h = 4.4kWh/day

o LED lights = 0.2kW × 6h = 1.2kWh/day

Total = 11.6kWh/day → Round up to 15kWh for safety

o

2. Account for autonomy:

o 1 day backup = 15kWh

o 2 days backup = 30kWh (adds 4,500–12,000 to budget)

3. Factor in inefficiencies:

o Lead-acid systems lose 20–30% energy in conversion → Buy 20–30% extra capacity

o Lithium loses 5–10% → 10–15% extra suffices

Cost Over 10 Years (Example: 10kWh System)

· Lead-acid: 3,000 (initial) + 6,000 (replacements) = $9,000

· Lithium: 7,000 (initial) + 0 (no replacements) = $7,000

· Flow cell: 12,000 (initial) + 0 = $12,000

Lithium wins long-term, saving 2,000–5,000 vs. lead-acid. For farms with <5kW loads, saltwater batteries offer a middle ground at 5,000–7,000 total cost.

Critical Installation Tips

· Place batteries in cool (<25°C), dry locations—heat above 35°C cuts lifespans by half

· Use 4AWG copper wiring for <3% voltage drop over 10m distances

· Install automatic transfer switches (200–500) to seamlessly switch to grid/generator during outages

· For floating solar setups, waterproof cell boxes (150–300) prevent corrosion from splashing

Bad storage can ruin a good solar system. Test batteries monthly with a load tester (100) to catch capacity drops >10%. Pair with a 5–10kW diesel generator (2,000–$5,000) as backup for multi-day storms. The goal is <30 minutes of downtime—enough to prevent mass fish kills.

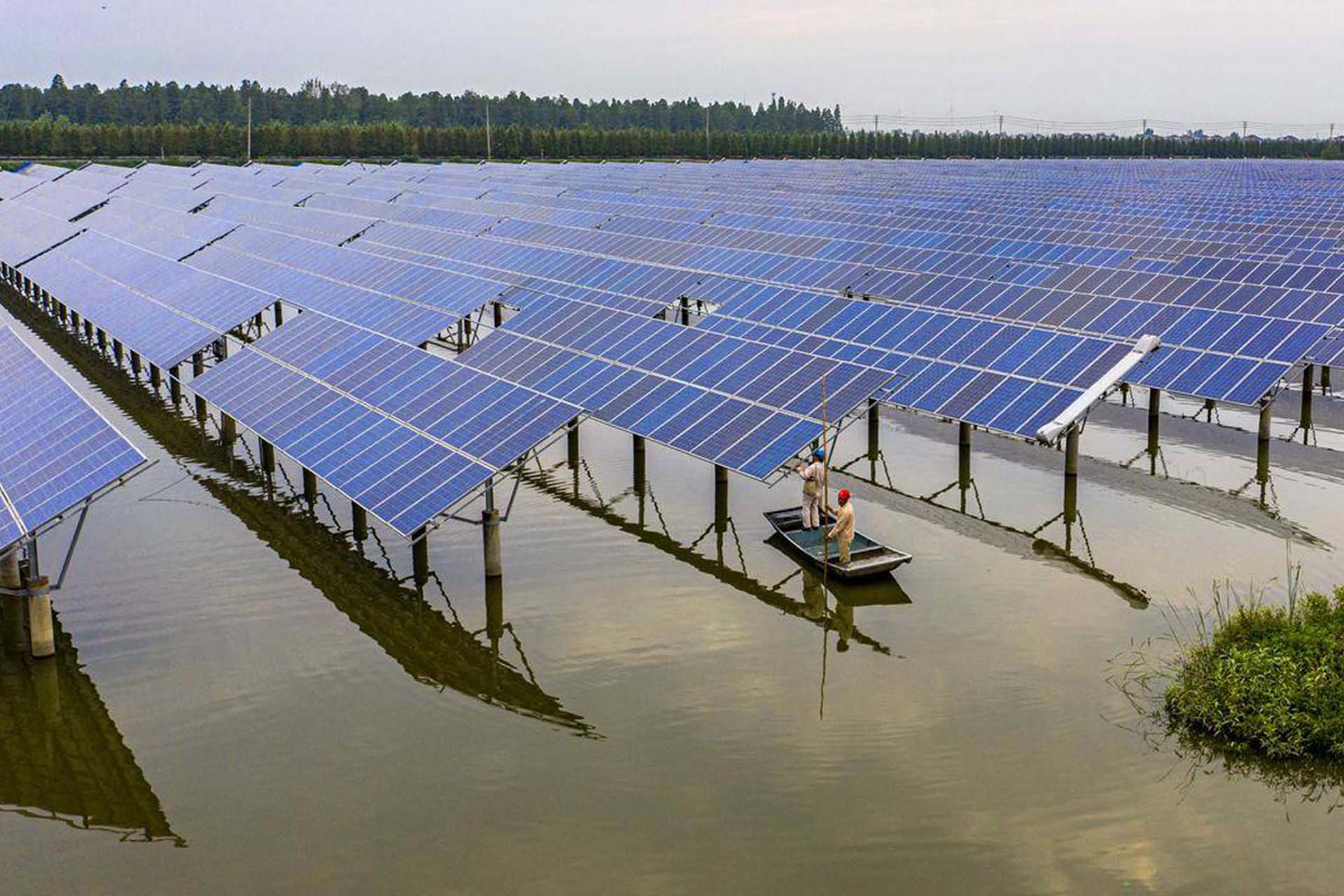

Cost-Saving Maintenance Tips

Ignoring maintenance can slash solar panel efficiency by 25% in 6 months and increase fish mortality by 15–30% due to failing aeration systems. A well-maintained 5kW solar fish farm saves 800–2,000/year in avoided repairs and 5–10% higher energy output, paying back the 300–500 annual maintenance budget within 3–5 months. Dust, algae, corrosion, and wiring degradation are the top culprits—each solvable with <1 hour/week of labor if caught early.

Maintenance Cost Comparison: Reactive vs. Preventive Approach

Solar panels lose 0.5–1.0% efficiency per week when covered in dust, bird droppings, or pollen. In dry climates, a 5-minute rinse with a garden hose every 2 weeks maintains 95%+ output, while coastal farms need biweekly brushing with mild soap to remove salt crusts (reducing corrosion by 70%). For floating solar systems, algae growth on panel backs can block 5–15% of light transmission—apply non-toxic silicone coatings ($0.10/sqft) annually to cut cleaning time by half.

Aeration systems fail most often from overworked motors (running >18h/day) or clogged diffusers (reducing oxygen transfer by 40–60%). A 1HP aerator motor lasts 3–5 years with monthly bearing lubrication (5/tube) but <2 years without it. Check air filters every 2 weeks in dusty environments—a blocked filter forces the motor to draw 20–30% more current, increasing energy costs by 15–$30/month. For submerged diffusers, soak them in vinegar solution (1:4 ratio) for 1 hour monthly to dissolve mineral deposits that cut bubble dispersion efficiency by 50%.

Batteries die early from undercharging (<50% state of charge) or heat exposure (>35°C). Lead-acid batteries need equalization charging (15.5V for 2h) every 3 months to prevent stratification, which reduces capacity by 20% per year. Lithium batteries require zero equalization but benefit from monthly capacity tests (discharge to 20% and recharge) to calibrate their BMS (cell management system). Store batteries in insulated boxes (100–200) to keep temperatures <30°C—every 5°C above 25°C cuts lifespan by 6–12 months.

Electrical modules fail due to moisture ingress (causing 80% of solar faults) and loose connections (increasing resistance by 300–500%). Use waterproof MC4 connectors (1–2 each) and apply dielectric grease ($10/tube) to all terminals every 6 months. For inverters, clean dust from cooling fans quarterly—a clogged fan raises internal temperatures by 10–15°C, shortening capacitor life from 10 to 3–4 years.

Fish health ties directly to maintenance:

· Dissolved oxygen sensors drift 0.1–0.3 mg/L per month—recalibrate every 3 months ($50/test kit) or risk false safe readings.

· Water pumps lose 10–20% flow rate yearly from impeller wear—replace every 2–3 years (80–150) to maintain 4,000–6,000 L/h output.

· Floating solar pontoons develop hairline cracks after 5–7 years—patch with UV-resistant epoxy (30/tube) to prevent 1,000+ replacement costs.

Proactive maintenance takes 50–70% less time than emergency fixes. Keep a $200 toolkit (multimeter, infrared thermometer, torque wrench) on-site and log all checks in a spreadsheet. Track panel wash dates, cell voltages, and aerator amp draws—spotting a 10% deviation early prevents 90% of catastrophic failures.

Real Examples and Results

Talk is cheap—let’s look at real solar fish farms that cut costs, boosted yields, or failed hard. A 3-acre tilapia farm in Indonesia slashed its 12,000/year diesel bill to 1,500 with a 15kW solar + 20kWh lithium cell setup, paying back the 28,000 investment in 2.4 years. But a shrimp farm in Vietnam ignored panel tilt adjustments, causing 30% winter power shortages that killed 8,000 worth of stock—proving design flaws cost more than equipment.

In Texas, USA, a 5-acre catfish farm combined 10kW ground-mounted solar with a 5kW diesel backup, reducing grid reliance from 90% to 15%. Their 0.22/kWh grid rate dropped to 0.07/kWh, saving 9,500 annually. Key move? Negotiating a 25% bulk discount on 42 x 400W monocrystalline panels, cutting system cost by 3,800. But a Bangladeshi carp farm skimped on cell depth of discharge (DoD) limits, running lead-acid batteries at 90% DoD daily. Result? $4,200 in replacements every 2.1 years instead of the expected 4–5 years.

Floating solar shines in Thailand, where a 2-acre hybrid system (8kW solar + 2kW wind) powers 3 aerators and automatic feeders. The 18,000 setup reduced algae blooms by 40% via smart shading, boosting fish growth rates from 1.8g/day to 2.4g/day. But a Nigerian farm used low-cost thin-film panels without humidity-resistant coatings. After 18 months, delamination cut output by 35%, forcing a 6,500 premature overhaul.

Cell choices make or break ROI. A Florida bass farm uses saltwater batteries despite their 0.55/kWh cost—because hurricane flooding would ruin lithium. Their 10kWh system survives 3-day outages with 80% capacity intact, while a Mexican tilapia farm lost 11,000 in lithium batteries to a single monsoon leak.

Maintenance habits show in profits. A Brazilian farm logs weekly panel washes, keeping efficiency at 96% of original output after 5 years. Their 0.03/kWh operating cost beats neighbors’ 0.09/kWh. But a Philippine operation skipped inverter cooling, frying a 2,500 unit in 13 months—a 15 fan could’ve prevented it.

The best performers share 3 traits:

1. They test small first—a 500 pilot panel revealed 12% shading losses for an Indian farm, avoiding a 10,000 mistake.

2. They buy for longevity—2mm galvanized mounts cost 20% more upfront but last 15+ years vs. 5–7 years for cheap steel.

3. They track numbers religiously—a Colombian farm’s spreadsheet spotted a 0.8°C water temp rise, fixing a clogged pump before fish stress hit.

Failures? Usually from ignoring basics:

· A Ghanaian farm placed panels too low, letting dust reduce output by 22% in 4 months.

· A Malaysian project used undersized wiring, causing 12% voltage drops that killed 2 aerators in 8 months.

· A Peruvian operation bought "discount" Chinese panels with no UV protection—efficiency fell 18% in Year 2.

Final verdict: Solar fish farms work when done right. The top 20% of adopters save 0.08–0.12/kWh, see 15–25% faster fish growth, and achieve ROIs of 18–30%. The rest? They learn why "cheap" setups cost double.
