Sizing PV Arrays for Hybrid Industrial Microgrids | Cell Storage Matching, Generator Integration, Peak Load Safety

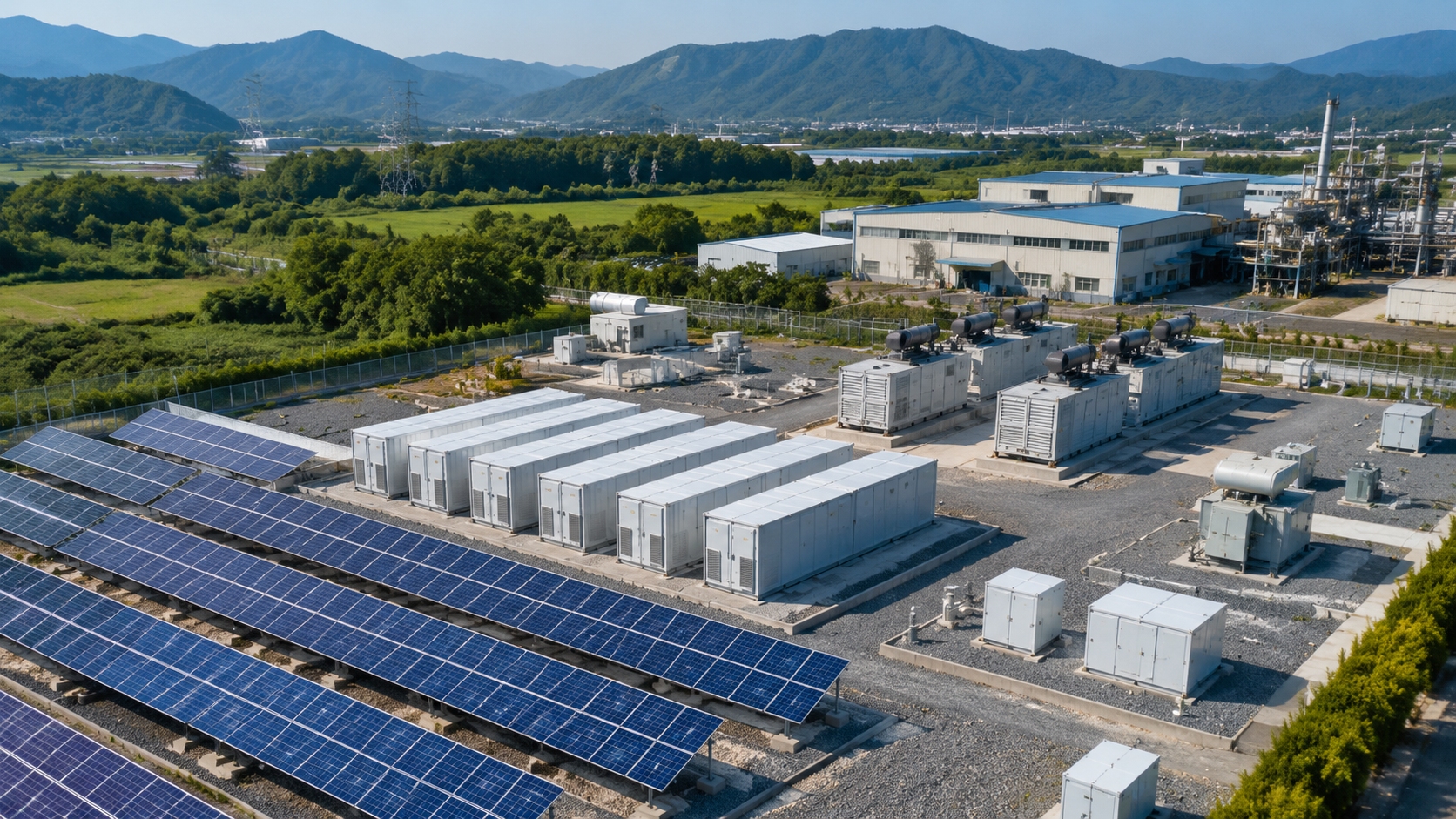

Industrial microgrid PV capacity design cannot be determined simply by summing load demands.

The practical installed capacity of an industrial microgrid PV array is determined by the coupling among cell energy storage, diesel generator integration, load-profile variation, power-conversion limits, and peak-load safety.

PV capacity, cell usable energy, PCS rated power, generator load acceptance, motor-starting current, and low-irradiance resilience must be checked together before the final configuration is selected.

A reliable design should be based on local irradiance data, measured load curves, critical-load classification, diesel fuel curves, cell degradation assumptions, and dynamic simulation rather than a single installed-capacity ratio.

Cell Storage Matching

Cell Capacity

The core design basis for cell capacity is the integral of the net power difference between PV output and load profiles.

For a 2 MW PV array paired with energy storage that must sustain an 800 kW critical load for 6 hours without meaningful PV generation, the required delivered energy is approximately 4.8 MWh.

If the system is designed with 90% usable depth of discharge and an AC-side efficiency allowance close to 92%, the rated cell capacity should be designed above 5.8 MWh.

Engineering design usually adds a reserve factor for forecast uncertainty, auxiliary consumption, PCS losses, cell imbalance, and operational SOC limits. A 1.15–1.25 design reserve places the initial selection range at approximately 6.7–7.3 MWh .

This number should not be interpreted as a universal fixed ratio. It is only valid for the load duration, usable SOC window, conversion efficiency, and autonomy requirement used in this example.

Capacity design must also account for cell aging degradation.

For conservative long-life storage sizing, 80%–85% remaining usable capacity is better treated as a late-life design boundary rather than a guaranteed year-five value, because actual LFP degradation depends on cycle depth, C-rate, temperature, calendar aging, cell balancing, and BMS strategy.

For a 10-year industrial microgrid design life, the initial capacity should be evaluated with degradation-aware modeling. In many practical studies, a 1.15–1.25 degradation compensation factor is reasonable as a preliminary estimate, but the final value should be confirmed through supplier warranty curves, annual cycle counts, thermal conditions, and dispatch strategy .

For a 7 MWh usable design target, the initial installed capacity may need to be increased to approximately 8.1–8.8 MWh if end-of-life usable capacity must still satisfy the same critical-load requirement.

Second-life utilization schemes should also be discussed at the design stage to avoid later retrofitting constraints caused by insufficient installation space, insufficient HVAC capacity, or unsuitable fire-safety separation.

Charge Rate

The charge rate directly determines whether surplus PV power can be absorbed by the cell within the irradiation window.

For a 6 MWh cell bank where the PV system generates 4 MWh of surplus energy in 2 hours, the average charging power is 2 MW, so the minimum average charge rate is approximately 0.33 C.

In practical design, this minimum value should not be used as the PCS nameplate rating without margin. Irradiance fluctuation, cloud-edge effects, EMS control delay, and cell SOC-dependent charge limits can create short-duration charging-power spikes.

A 30% design margin is commonly used as an early-stage engineering allowance, while sites with fast irradiance ramps, weak grids, or strict curtailment limits may require a higher margin after time-series simulation .

Fast-charging scenarios also require monitoring cell temperature rise, rack airflow, coolant capacity, cabinet temperature distribution, and BMS derating thresholds.

At high ambient temperatures, continuous charging above 0.4 C–0.5 C may require active thermal management rather than relying only on natural convection. The allowable charge rate should therefore be verified by the cell supplier's thermal limits and the container-level cooling design, not by cell datasheets alone .

Another important consideration is that charge-rate limits change with SOC. Many LFP systems can accept higher charging power at low or medium SOC, but charging power is normally tapered at high SOC to reduce overpotential, heat generation, and accelerated aging.

For this reason, the practical charge-rate design should be checked against the expected SOC trajectory, not only against the nominal cell capacity.

Discharge Window

The discharge window defines the time period and corresponding power profile within which stored energy can be released each day.

A common industrial microgrid requirement is providing specified power support during peak grid hours, such as 16:00–21:00.

For a 2 MW PV system, when irradiation drops sharply after late afternoon and the load requires 1.2 MW support for 5 hours, the required delivered energy is 6 MWh.

A 6 MWh nominal cell does not automatically provide 6 MWh of AC-side usable discharge energy. If 90% DoD and approximately 95%–97% discharge-side efficiency are considered, the deliverable AC-side energy is closer to 5.1–5.2 MWh.

Therefore, to reliably cover a 1.2 MW × 5 hour discharge window, the rated cell capacity should usually be closer to 7.0–7.3 MWh before long-term degradation compensation .

The 0.4 C discharge rating should not be interpreted as a requirement to discharge the cell fully within 2.5 hours. It represents a power-capability limit.

A 6 MWh cell supporting a 1.2 MW load is discharging at about 0.2 C, not 0.4 C.

Matching the discharge window requires joint optimization of SOC limits, PCS rating, load priority, forecast confidence, diesel generator start threshold, and cell degradation cost.

A practical EMS can split the discharge window into two parts:

• A power-assured window that prioritizes critical-load coverage.

• An economic window that selectively supplies flexible or auxiliary loads when PV forecasts and SOC reserves allow it.

This strategy can reduce diesel runtime and grid import cost, but it should be validated using at least hourly simulation and, for final design, sub-hourly data when fast ramps or large motor loads are present .

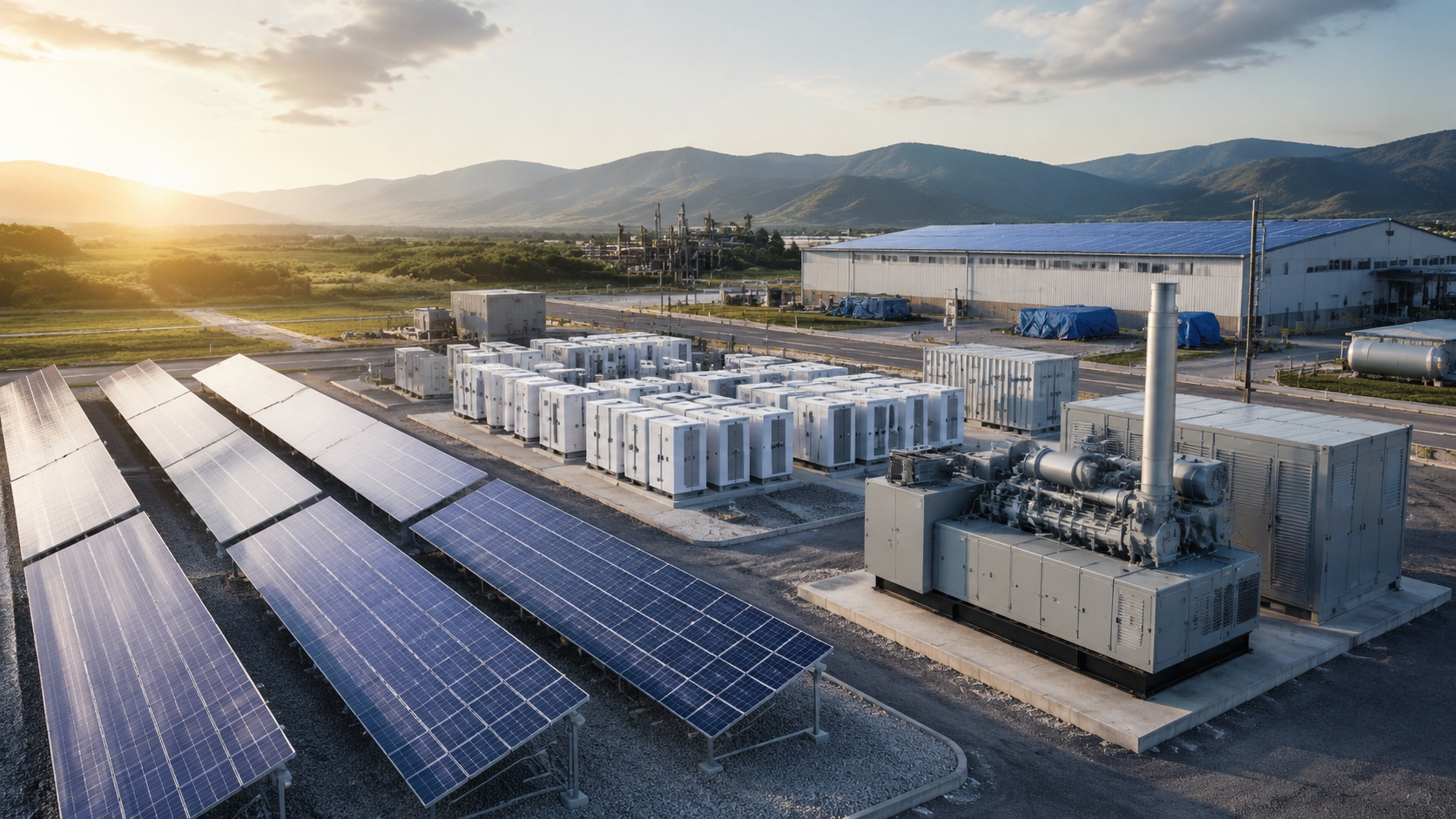

Generator Integration

Diesel Generator Capacity Design

Diesel generator capacity in a microgrid must satisfy the combined demand of concurrent load and cell charging power under the selected worst-case operating scenario.

For a 5 MW peak-load industrial park, assume that the cell SOC falls below the reserve threshold and must be charged at 0.3 C from the diesel generator. A 6 MWh cell then requires 1.8 MW of charging power.

If the concurrent protected load under that scenario is 3.5 MW, the generator must cover at least 5.3 MW before derating and transient reserve. In practice, this may lead to a 6 MW-class selection after considering generator ratings, altitude, temperature, and load-step capability.

If the design requirement is to support the full 5 MW peak load while charging the same cell at 1.8 MW, the generator requirement becomes at least 6.8 MW before derating. This distinction between peak load and concurrent load must be stated clearly in the design basis.

Altitude and ambient temperature can reduce generator output. The correction should follow the specific manufacturer's rating curve, because derating varies by engine model, cooling system, alternator, enclosure ventilation, and site condition .

PV module efficiency can reduce daytime diesel runtime and improve fuel savings, but it should not be used alone to reduce the diesel generator capacity required for night operation, low-irradiance operation, or low-SOC critical-load recovery.

Diesel generator capacity is not a back-of-the-envelope calculation.

It must be determined at the intersection of four extreme conditions:

• Minimum PV output

• Maximum protected or concurrent load

• Minimum cell SOC

• Generator derating and load-step response

A robust design should run an 8,760-hour or higher-resolution simulation using local weather data, measured load profiles, and defined outage scenarios. The output should include diesel operating hours, fuel consumption, SOC trajectory, unmet-load probability, and generator load distribution .

Startup Time

Diesel generator startup time directly affects supply continuity during sudden PV output drops, grid outage events, or islanded-mode transitions.

For emergency power applications, a properly configured generator set may be required to start, reach rated speed, and be ready to accept load within 10 seconds after receiving the start signal. This capability depends on generator configuration, engine condition, cell condition, ambient temperature, preheating, fuel system readiness, and control logic .

In microgrid applications, the cell energy storage system plays a bridging role during generator startup and synchronization.

For a 4 MW load requiring 40 seconds before the generator synchronizes and accepts load, the cell must provide approximately 44.4 kWh of delivered energy:

4 MW × 40 s ÷ 3600 ≈ 44.4 kWh.

This is a small fraction of total cell capacity, but it is a high-power transient requirement. The limiting factor is often PCS response, overload capability, DC-link stability, and protection coordination rather than energy capacity alone.

For a 5 MW microgrid, each 10-second reduction in required cell bridging time saves approximately 13.9 kWh of delivered energy:

5 MW × 10 s ÷ 3600 ≈ 13.9 kWh.

Therefore, an estimate of 60 kWh per 10 seconds would only apply to a much larger load of about 21.6 MW, not to a typical 5 MW microgrid.

Some microgrids require seamless transition because even a short outage may be unacceptable for sensitive industrial processes. In those systems, black-start sequence, inverter grid-forming capability, transfer-switch logic, generator synchronization, and load-shedding hierarchy must be verified together .

Breaker synchronization logic should also define the number of reclosure attempts, lockout conditions, reverse-power protection, and failed-start alarms before commissioning.

Fuel Consumption

The fuel consumption model for diesel generators in microgrids is not simply rated power multiplied by a single specific fuel consumption value.

Generator fuel consumption depends on load percentage, engine model, alternator efficiency, fuel quality, ambient condition, maintenance condition, and whether the unit is operating in standby, prime, or continuous rating mode.

Manufacturer data commonly show that fuel consumption per kWh worsens at low load. For example, a 250 ekW Cat diesel generator data sheet lists fuel consumption of 73.3 L/h at 100% load and 27.4 L/h at 25% load.

Although hourly fuel use is lower at 25% load, the fuel consumed per delivered kWh is much higher at that low-load point .

The practical optimization strategy is to avoid long periods of very low-load operation. Where process conditions allow it, diesel generator operation should be concentrated in an efficient load band, while low-load periods are served by cell storage.

For many industrial projects, a 60%–90% generator loading range is a useful preliminary scheduling target, but the final optimal band should be taken from the manufacturer's fuel curve and minimum-load requirement.

Low-load operation can also increase the risk of wet stacking and poor combustion in some diesel engines. The minimum recommended operating load should therefore be checked against the specific generator manufacturer's operation and maintenance requirements.

A diesel runtime reduction claim should always be tied to a defined baseline. For example, reducing runtime from 12 hours to 5 hours may save fuel only if the remaining 5 hours are operated at a more efficient load point and the cell charging/discharging losses do not offset the savings.

Accurate fuel consumption analysis should be based on measured hourly fuel data, generator load percentage, cell SOC history, and production-load records. Manufacturer fuel tables are useful for early design, but they should not be the only source used for final operational-cost modeling .

Peak Load Safety

Load Spikes

Load spikes in industrial microgrids originate mainly from large motor starting, compressor cycling, transformer energization, welder switching, and arc furnace operation.

For induction motors, direct-on-line starting commonly causes several times the rated current. The 5–7 times range is reasonable for many industrial cases, although the actual value depends on motor type, motor size, locked-rotor code, supply impedance, and starting method.

Microgrid design must verify that dispatchable generation, PCS overload capability, and protection settings can tolerate motor-starting and transformer inrush current without nuisance trips or unacceptable voltage sag .

Cell energy storage can help suppress short-duration spikes, but energy capacity alone is not enough. The key checks are PCS instantaneous overload rating, DC-side current limit, inverter thermal limit, and protection coordination.

Using a VFD or soft starter can significantly reduce motor-starting current. For modern PWM VFD designs, ABB notes that input current during starting can often be considered around 100%–150% of the applied motor full-load amps, although the actual peak depends on load inertia, acceleration time, and firmware current limits .

For a 500 kW motor, the VFD-assisted starting demand should be calculated from the actual drive current limit and acceleration profile rather than assuming a universal 2.5 times rated power.

The stored energy required to support a 2-second power spike may be small, but the power response requirement can be severe. For example, a 1 MW transient lasting 2 seconds contains only about 0.56 kWh of energy, but it still requires the PCS to deliver the instantaneous power safely.

A practical workaround is to stagger the start commands of large motors, block nonessential motor starts during islanded operation, and define a motor-start priority table in the microgrid controller.

Safety Margin

Safety margin in microgrid design spans three dimensions: capacity margin, voltage margin, and frequency margin.

All three must be evaluated together because a deficiency in any one dimension can cascade into system instability.

1. Capacity margin protects critical loads after equipment failure.

2. Voltage margin prevents relay hunting and excessive voltage sag.

3. Frequency margin prevents under-frequency load shedding during transient events.

Capacity margin commonly follows N+1 redundancy. This means that when any single PCS, generator, transformer, or critical feeder fails, the remaining equipment can still carry the defined critical load.

For a 5 MW peak-load site using four 1.5 MW PCS units in parallel, the loss of one PCS leaves 4.5 MW available. If the critical-load requirement is 4 MW, the remaining 0.5 MW is the switching and transient buffer.

This configuration satisfies N+1 for the 4 MW critical-load requirement, but it does not satisfy N+1 for the full 5 MW peak load. If the full 5 MW load must be protected after one PCS failure, additional PCS capacity or load-shedding logic is required.

For continuous-process industries such as chemicals, pharmaceuticals, and semiconductor manufacturing, N+2 or additional process-specific redundancy may be justified if a single failure could cascade into a hazardous or high-cost production interruption .

For voltage safety margin, IEEE 1547-2018 should be treated as an interconnection, interoperability, power-quality, voltage-control, and ride-through framework for distributed energy resources rather than a simple rule requiring a fixed ±5% voltage deviation at the point of common coupling .

In practical industrial microgrid design, a ±5% PCC voltage operating band may still be used as a conservative internal design target, but the detailed setting must follow the local grid code, interconnection agreement, transformer tap range, protection settings, and load sensitivity.

Frequency safety margin should be designed according to the microgrid's islanded inertia, inverter control mode, generator governor response, load-shedding setting, and local grid-code requirements.

For sensitive islanded microgrids, sub-second PCS response is often required, but the exact frequency threshold should be confirmed through dynamic simulation rather than using a universal ±0.1 Hz rule.

As a practical design principle, voltage and frequency regulation should not consume the entire allowable operating range during normal fluctuations. Adequate headroom must remain for motor starts, PV ramps, generator trips, and feeder faults.

Blackout Risk

Blackout risk analysis requires joint probability modeling of PV output intermittency, equipment failure rates, repair time, fuel availability, grid outage probability, and control-system reliability.

Low solar-resource events should be described using daily irradiation or insolation, such as Wh/m²/day or kWh/m²/day. Irradiance, measured in W/m², is an instantaneous value and should not be used for a two-day accumulated solar-resource threshold.

For example, consecutive two-day periods with daily irradiation below 500 Wh/m²/day may be used as an extreme low-solar scenario in some sites, but the frequency of that event must come from local weather data or long-term TMY-based simulation.

Combining a diesel generator failure probability, PCS failure probability, and low-solar-event frequency into a single annual blackout-duration value requires clear assumptions about independence, event duration, repair time, fuel logistics, and standby redundancy.

A more transparent method is to calculate expected energy not served, loss-of-load probability, probability of surviving a defined outage duration, and annual outage hours across a set of defined scenarios.

This method is more defensible than presenting a single blackout-hour number without assumptions .

In a coastal chemical-plant design case, a three-way redundant scheme can be modeled against single-grid supply:

• Three-way redundant scheme: PV + cell storage + diesel generator

• Single-grid supply: grid power only

If simulation shows annual blackout time falling from 12.4 hours to about 0.9 hours, the implied availability is approximately 99.99%. However, this result is project-specific and depends on local outage statistics, maintenance strategy, fuel security, generator availability, and cell reserve policy.

For continuous-process industries, the economic quantification of blackout risk is often the most compelling evidence for microgrid investment decisions. A single multi-hour production interruption can justify redundancy that would appear excessive under a simple energy-cost calculation .

From cell capacity and charge-discharge rates to diesel generator integration and peak-load safety, industrial microgrid PV array capacity design is a systematic engineering challenge.

The core conclusion is that cell storage, diesel generator capacity, and PV array capacity must be sized together under defined operating scenarios.

For the project class discussed here, a preliminary cell-energy-to-diesel-power relationship of roughly 1.2–1.5 hours may produce favorable economics, but it should not be treated as a universal rule.

N+1 safety margin can reduce single-equipment-failure risk, but it does not automatically guarantee annual blackout duration of 1–2 hours. Annual blackout performance must be verified using local outage data, weather data, fuel availability, equipment reliability, repair-time assumptions, and dynamic microgrid simulation.

Any specific capacity configuration should be determined using local irradiance data, measured load profiles, critical-load definitions, diesel fuel curves, cell degradation assumptions, and final dynamic simulation.
