Mitigating PV String Mismatch Losses | Current Sorting, Module Grading, Smart Optimizers
PV string mismatch losses can be reduced by sorting modules within ±1–2% current tolerance before installation. Grade modules by Imp/Isc test data, place similar-current panels in the same string, and use smart optimizers on shaded or uneven strings. This can typically recover 3–8% energy loss and improve long-term system yield.
Current Sorting
Checking Rated Current
For a 182mm PERC module, the first step in current sorting is recording the rated operating current (Impp) from each module's nameplate during factory flash testing under STC conditions (1000 W per square meter, AM1.5, 25 degrees Celsius). Manufacturing tolerances of plus or minus 3% mean that a batch nominally rated at 13 A actually distributes across 12.65 A to 13.35 A, and when a 13.0 A above-average module is wired in the same string as a 12.7 A below-average module, the series connection clamps string current to 12.7 A, reducing the above-average module's output by approximately 0.8% to 1.5%, which translates to approximately 8 to 15 kWh of lost generation per affected module annually.
Engineers must record IMP for every module, register batch and serial numbers, and build a current-sorted database before beginning string configuration. Skipping Immp sorting typically causes first-year mismatch loss of 1.5% to 2.0%; rework sorting reduces loss to 0.5% to 0.8%. 2022 field data from an East China plant showed that skipping Impp sorting caused a first-year mismatch loss of 1.7%; rework sorting reduced the loss to 0.6%, recovering approximately 320 MWh at that single plant. Database entries should include the module serial number (barcode scannable), the IMPP measured to 0.01A precision, the delivery date, and the supplier batch number for full traceability throughout the plant's operational life.
Engineering practice shows that IMPP sorting should be guided by the supplier-provided current distribution histogram for the batch. A 182mm PERC batch typically exhibits a standard deviation (sigma) of approximately 0.08A in Impp, matching the CPIA specification line of plus or minus 2% control. When cross-batch mixing occurs (such as combining a 2022Q4 batch with a 2023Q1 batch), sigma can expand to more than 0.12A due to differences in annealing processes between batches, requiring secondary sorting to keep deviation within plus or minus 1% (approximately 0.13A), which reduces mismatch loss from 1.2% to below 0.5%, at the cost of approximately 3% to 5% reduction in procurement flexibility and module utilization rate—a trade-off that is frequently justified by the energy gains in high-irradiance ground-mount installations.
Sorting data must be logged in the PV plant's CMS (Central Management System) and verified at module delivery through spot checks covering at least 5% of incoming modules. If the mean imprecision between factory data and delivery measurements exceeds 1%, spot-check coverage must expand to 20%, with full inspection triggered if necessary. A 250 MW ground-mount plant in 2023 found a batch deviation of 1.8% during delivery spot checks, which triggered timely supplier quality negotiations and resulted in a full batch replacement, avoiding approximately 420 substandard modules from entering string configuration, which would have otherwise caused approximately 1.1% additional annual mismatch loss across the plant's 25-year operational life.
CPIA 2023 Manufacturing Specification: Same-batch Impurity deviation should be controlled within plus or minus 2%; cross-batch mixing requires secondary sorting to keep deviation within plus or minus 1%, reducing string mismatch loss from 1.2% to below 0.5%.
Classifying Similar Modules
After Imp verification, modules with similar current values are grouped into the same bin and assigned to matching strings. The current binning method uses 0.05 A intervals as the standard bin width, ensuring that no two modules in the same string differ by more than 0.1 A in Impp, corresponding to a power deviation below 0.8%. For a 182mm PERC module, typical bins are: Bin I (12.65A to 12.70A), Bin II (12.70A to 12.75A), Bin III (12.75A to 12.80A), Bin IV (12.80A to 12.85A), and Bin V (12.85A to 12.90A), each 0.05A wide. A 100 MW Ningxia ground-mount project implemented three-tier binning (12.7 A to 12.75 A, 12.75 A to 12.8 A, and 12.8 A to 12.85 A), reducing cross-tier mixing from 35% to 8% and increasing the first-year string energy yield by approximately 1.9%, equivalent to approximately 760 MWh of additional generation valued at approximately 2.66 million yuan at the local feed-in tariff of 0.35 yuan per kWh, with sorting equipment payback under 8 months.
Binning precision directly affects string current uniformity. Third-party simulation on a 100MW plant shows that compressing the maximum intra-string Impp deviation from 0.2A (unsorted) to 0.05A (tightly sorted) reduces the standard deviation of string Impp by approximately 62%, lowering mismatch loss from 1.55% to 0.48%. However, compressing the bin width from 0.05A to 0.02A requires double the equipment resolution but provides only approximately 8% additional improvement in mismatch reduction, demonstrating clear diminishing marginal returns. The economically optimal bin width is therefore 0.05 A, matching mainstream sorting equipment resolution (plus or minus 0.02 A current accuracy) while maintaining throughput above 2,000 modules per hour. For higher-current technologies such as TOPCon and HJT (Impp typically exceeds 13A), the impact of current variation is more pronounced, and a tighter bin width of 0.03A is recommended to achieve superior string uniformity.
Binned data must be archived in the CMS and remain traceable throughout delivery, handling, and installation. When supplementary modules are procured during operations, their Impp must be measured and matched to the existing inventory's binning records before string reassignment. A plant that procured 200 supplementary modules without re-binning experienced a mismatch loss rebound to 1.1%, causing approximately 48 MWh of additional annual energy loss in the first year alone. Electronic binning data management through barcode or RFID binding of Impack bin information is the foundational infrastructure for mismatch-free long-term operations, eliminating the ambiguity that leads to cross-tier mixing during corrective maintenance and ensuring that the plant's mismatch performance remains within design parameters throughout its operational life.
Yellow River Hydropower Ningxia 100 MW Project: three-tier current sorting reduced cross-tier mixing from 35% to 8%, delivering first-year string energy gain of approximately 760 MWh and annual revenue increase of approximately 2.66 million yuan, with sorting equipment payback under 8 months.
Avoiding Weak Strings

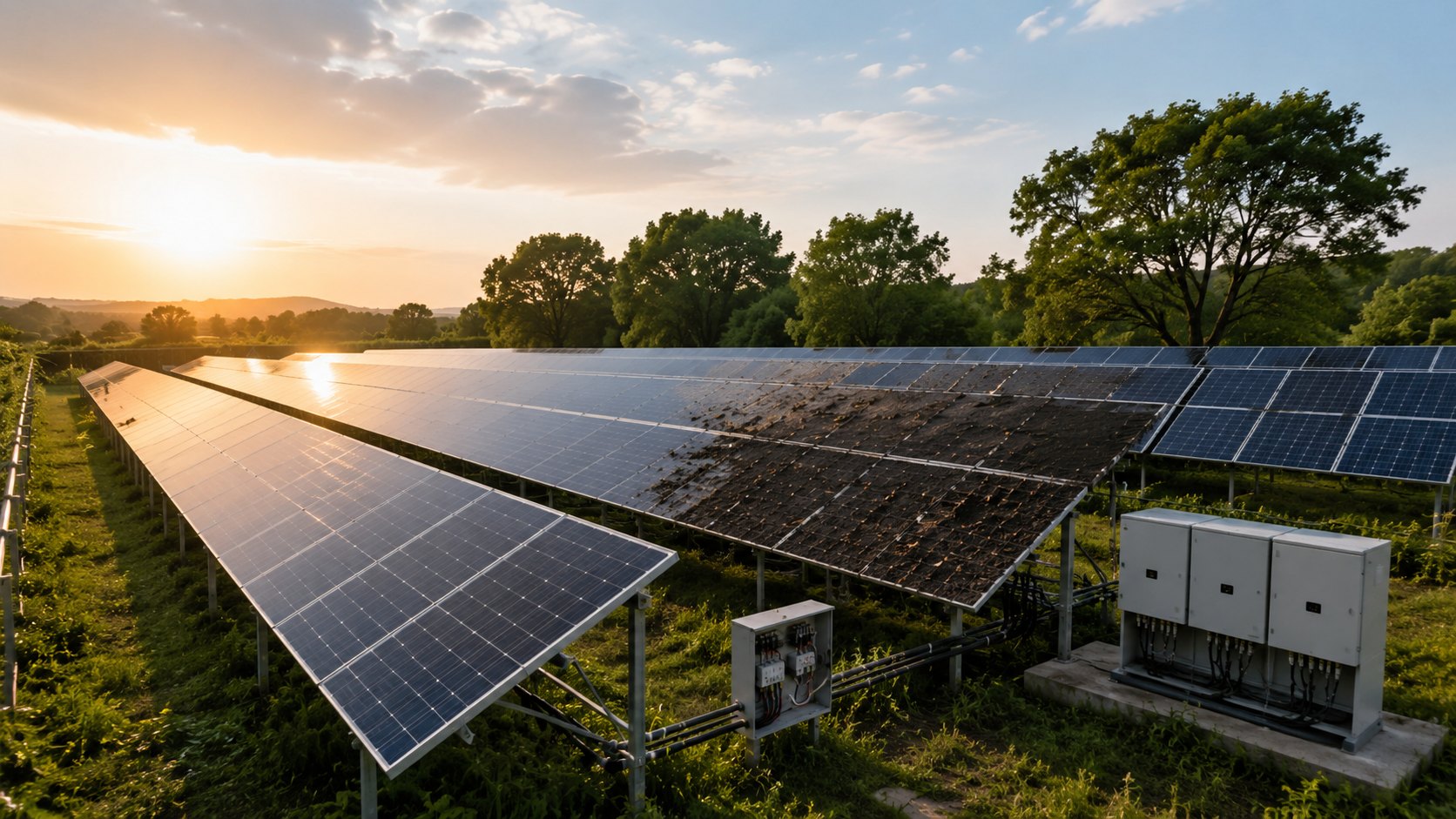

A weak string is a string unit where one or more modules produce peak power consistently more than 15% below the string average due to hidden microcracks, hot-spot damage, or severe soiling. The bottleneck effect in series-connected architecture means that even a single underperforming module representing just 1/20th of the string can reduce the entire string output by 5% to 8%, because all remaining normal modules are forced to operate at the lowest module's clamped current level. Field data from a 100 MW Northwest China plant shows a strong negative correlation between weak-string ratio and plant PR (Performance Ratio): every 1 percentage point increase in weak-string ratio corresponds to approximately 0.35 percentage point decrease in overall plant PR, representing approximately 200 MWh of annual energy loss per percentage point increase.
Weak string identification relies on a two-stage process combining infrared drone inspection with IV curve testing. Infrared thermal imaging rapidly locates modules with surface temperatures more than 5 degrees Celsius above surrounding normal modules (indicating hot spots), while IV curve testing instruments quantitatively measure each string's Impp, Vmpp, and Pmax to confirm the root cause. A 250 MW project adopted a drone-initial-screening-plus-IV-confirm protocol: infrared drones surveyed all strings at 30 m altitude and 15 km per hour (covering approximately 8 MW per flight), flagging anomalous strings; IV test instruments then performed detailed measurements on flagged strings to confirm weak-string status and quantify power loss severity. This two-stage protocol raised weak-string identification accuracy to more than 95% and reduced labor time from the traditional 28 person-days of manual inspection to 6 person-days per survey, a 4.7-fold efficiency improvement.
Once a weak string is confirmed, priority cleaning or replacement must be scheduled immediately. Soiling-type weak strings (surface salt corrosion or dust accumulation) recover approximately 92% to 98% of rated power after cleaning, while microcrack-type weak strings (internal cell crack propagation) typically recover less than 60% after cleaning and require direct replacement. A 50 MW Xinjiang project breakdown showed: soiling-type weak strings constituted 62% of all weak strings and recovered to 95% average rated power after cleaning; microcrack-type weak strings were 31% of the total with only 54% average power recovery after cleaning; the remaining 7% were junction box faults unresponsive to cleaning and requiring module replacement. LONGi Green Energy 2024 field data from a 250MW Northwest China project confirms that after IV testing and weak-string replacement, the weak-string ratio dropped from 4.2% to 0.8%, the plant's PR improved by approximately 1.3 percentage points, and annual energy generation increased by approximately 3.2%, equivalent to approximately 1,040MWh of additional generation per year.
LONGi Green Energy 2024 Field Data: at a 250 MW Northwest China project, IV testing and weak-string replacement reduced the weak-string ratio from 4.2% to 0.8%, improving the overall plant PR by 1.3 percentage points and adding approximately 1,040 MWh annually.
Module Grading
Reading Flash Test Data
For a 182mm PERC module, module grading begins with flash test data provided by the module supplier, with core parameters including Pmax (maximum power), Impp, Vmpp, Voc, Isc, and fill factor (FF). Factory flash testing is performed under STC conditions (1000 W per square meter, AM1.5, 25 degrees Celsius), but actual outdoor operating temperatures in Gobi Desert environments frequently exceed 65 degrees Celsius in summer, and because PERC temperature coefficients are approximately minus 0.36% per degree Celsius for power, each degree Celsius above 25 degrees Celsius reduces Pmax by approximately 0.36%. A module operating at 65 degrees Celsius therefore produces approximately 14.4% less power than its STC nameplate rating, meaning that temperature correction using NOCT (Nominal Operating Cell Temperature, 45 plus or minus 2 degrees Celsius) is essential for accurate field-grade assessment. The corrected power formula is: Pmax_corr equals Pmax_flash times open bracket 1 plus beta times (T_actual minus 25) close bracket, where beta is the power temperature coefficient.
Huawei's SUN2000 series inverters integrate a built-in module grading algorithm that automatically reads PLG file parameters (electronic data files provided by module manufacturers containing nameplate Pmax, Impp, Voc, Isc, FF, and NOCT data) and cross-references them against inverter-measured string open-circuit voltage (Voc_string) and short-circuit current (Isc_string). By estimating series resistance (Rs) and shunt resistance (Rp) from the voltage-current curve, the algorithm flags modules where Rs exceeds the batch average by more than 20% or where FF falls below 78%, indicating abnormal contact resistance or microcrack risk, and automatically blocks their inclusion in string configuration. Huawei 2024 White Paper data: this algorithm achieves 99.2% accuracy in identifying modules with FF below 78%, reducing on-site troubleshooting time by approximately 70%, equivalent to approximately 800 fewer person-hours per 100 MW plant annually.
Engineering teams should note that flash test data represents the module condition at the time of factory testing, not necessarily the condition upon delivery or installation. Third-party re-testing of 100 MW plant delivery samples showed an average FF decrease of approximately 0.3% (range 0.1% to 0.8%), attributable to the thermo-mechanical stress during transport and handling, corresponding to power loss of approximately 1 to 3 W per module. Recommendation: conduct factory flash re-testing within 1 month of module delivery, with spot-check coverage of at least 3% of received modules; if the mean FF deviation from factory data exceeds 0.5%, expand spot-check coverage to 10% and evaluate triggering quality clause provisions in the supply contract. Always record the test date, ambient temperature, and relative humidity alongside test data for full traceability throughout the project's 25-year operational documentation trail.
Huawei 2024 Smart PV Technology White Paper: the SUN2000 built-in module grading algorithm achieves 99.2% accuracy in identifying modules with FF below 78%, reducing on-site troubleshooting time by approximately 70%—approximately 800 fewer person-hours per 100 MW plant annually.
Matching Power Grades
Power grade matching—assigning modules of identical measured power tiers to the same string—is the core mechanism of module grading that directly determines intra-string output uniformity. For a 182mm PERC 72-cell module, standard power tiers are: Tier P (420W to 424W), Tier P+ (425W to 429W), and Tier P++ (430W to 434W), with a standard tier width of 4W to 5W that aligns with most module manufacturers' production distribution curves. Assigning modules from the same tier to the same string keeps intra-string power deviation below 2%, meaning the maximum difference between the highest and lowest power modules within a string is no more than 8W, a tolerance that matches well with the manufacturing variation of mainstream PERC and TOPCon cell technologies in current mass production.
Power tolerance (the deviation between actual measured power and nameplate rating) is a secondary grading dimension that influences long-term string uniformity. Positive-tolerance modules (actual measured power above nameplate) are preferred for distributed rooftop projects because they boost initial string output and improve project economics in the first years of operation. A 5MW commercial rooftop project in Zhejiang Province that procured Tier P++ positive-tolerance modules achieved approximately 2.3W per string of above-nameplate initial power, translating to approximately 11.5kW of total plant capacity gain and approximately 15MWh of additional first-year generation, shortening project payback by approximately 2 months. For large ground-mount plants, however, mixing positive- and negative-tolerance modules is the more prudent strategy: over a 3-to-5-year operational period, positive-tolerance modules tend to degrade slightly faster than negative-tolerance modules, so mixed assignment smooths power uniformity throughout the system life cycle and reduces the probability of low-power-tier appearances during later operational years when replacement costs are highest.
Procurement contracts must specify a maximum mixing ratio for different power grades within a single string. A 200 MW ground-mount plant contract specified: no more than 10% of modules in any single string may come from a different power tier than the dominant tier for that string (10% of 78 cells equals no more than 7 mixed-tier modules per string). Under this constraint, when Trina Solar 430W tier modules (actual distribution 425W to 435W) were used, approximately 7% of modules fell below the 425W lower boundary and were reclassified to the 420W tier, and when these 420W modules were mixed into 430W strings, the intra-string power deviation reached approximately 5W (approximately 1.2% deviation ratio), corresponding to a mismatch loss of approximately 0.3%. Trina Solar's 2024 Module Selection Guide recommends keeping measured power deviation within plus or minus 2% per string (within a 5W tier) to compress mismatch loss below 0.4%.
Trina Solar 2024 Module Selection Guide: Keeping measured power deviation within plus or minus 2% per string (within a 5W tier) compresses string mismatch loss below 0.4%; distributed projects should prioritize positive-tolerance modules to maximize initial power output.
Tracking Field Changes
Factory grading data reflects only the initial module condition; after outdoor operation, actual power grades drift due to PID (Potential-Induced Degradation) effects, hot-spot damage, and surface soiling. PID is particularly pronounced in high-voltage systems (1500 V DC): sodium ions migrate from the glass substrate, penetrate the encapsulant, and form leakage channels on the cell surface, causing Impp and FF to decline continuously. 2023 outdoor degradation research shows that PID adds approximately 0.5% to 1.5% of first-year power degradation on top of standard intrinsic decay for PERC modules, a compounding loss that disproportionately affects high-voltage ground-mount systems operating with string voltages above 1,200 V. TOPCon and HJT modules show substantially reduced PID sensitivity through rear-side passivation optimization (approximately 0.2% per year for TOPCon and approximately 0.1% per year for HJT), but require monitoring protocols in high-humidity, high-temperature environments where even advanced cell architectures can exhibit accelerated surface degradation.
Long-term tracking requires periodic IV curve inspections during the operational phase as the definitive method for capturing field-degraded module performance. A full-plant IV scan is recommended every 12 months, with the methodology: measure Pmax_actual and Impp_actual for every string, compare against factory nameplate values, and calculate the degradation rate eta as open bracket Pmax_rated minus Pmax_actual close bracket divided by Pmax_rated times 100%. When eta exceeds 5%, the module should be reassigned from its original power tier to the next lower tier, and its string configuration adjusted accordingly, placing degraded modules in strings with similarly degraded modules rather than mixing them with newer modules. CPTC 2023 data shows: PERC modules average approximately 2.1% power degradation after 3 years of outdoor operation (PID contributes approximately 0.7%), TOPCon approximately 1.4%, and HJT approximately 0.9%, data that enables the construction of a phased tier-reduction model for long-term degradation forecasting and proactive replacement planning.
Huawei Fusion Solar integrates automated power degradation tracking with weak-string alerting, creating a continuous monitoring layer that supplements annual manual inspections with daily automated screening. The system performs automatic string-level IV sweeps every 24 hours (using string voltage and current data collected during inverter shutdown periods), and when any string's measured power falls more than 10% below the string average and sustains that level for more than 72 hours, it automatically generates a weak-string maintenance work order with historical power trend charts attached for the technician's diagnostic reference. Compared with traditional quarterly manual IV inspection, Fusion Solar's continuous monitoring reduces mean time to weak-string detection from approximately 90 days to under 3 days, lowering the risk of long-term energy loss from persistent weak-string operation by approximately 85%. A 200MW Northwest China project connected to Fusion Solar auto-generated 143 weak-string alerts in the first year, of which 87 were confirmed and resolved through module replacement, avoiding approximately 260 MWh of energy loss in the first operational year alone.
China PV Testing Center (CPTC) 2023 Outdoor Degradation Study: PERC modules show approximately 2.1% average power degradation after 3 years (PID contributes approximately 0.7%), TOPCon approximately 1.4%, and HJT approximately 0.9%; annual on-site grading review is recommended to promptly reassign degraded modules to appropriate strings.
Smart Optimizers
Reducing Shadow Impact
For a 182 mm PERC module, shadow occlusion is the dominant external source of string mismatch loss in most ground-mount and rooftop installations. When any module in a series string is partially shaded by an antenna shadow, a transmission tower projection, or soiling band, its output current drops and clamps the entire string current through the series connection, and even 30% shading of a single module can reduce the whole string output by 15% to 25%, because series-connected architecture forces all modules to operate at the current of the lowest-performing unit regardless of their individual maximum power point capabilities. Field data from a 60 MW Middle East plant showed that transmission tower shadowing caused annual energy loss equivalent to 2.3% of total generation (approximately 414 MWh per year) before optimizer installation; after deploying smart optimizers, the shadowed area's energy loss fell to 0.6% (approximately 108 MWh per year), recovering approximately 306 MWh annually with a payback period of approximately 3.2 years.
Smart power optimizers embed an independent DC-DC conversion circuit on the rear of each module, enabling per-module Maximum Power Point Tracking (MPPT), so that a shaded module no longer forces the entire string to operate at its degraded power point. The optimizer continuously monitors its module's terminal voltage and current, calculates real-time power P equals V times I, and if the operating point deviates from its historical MPPT by more than 5%, adjusts the module's terminal voltage (within a plus or minus 2V range) to pull it back toward its independent MPPT, a feedback loop that runs continuously at 15-second intervals, effectively decoupling the shaded module's current from the string current. Because the optimizer boosts the module's terminal voltage before feeding it into the string DC bus, the module current is decoupled from string current, and the shaded module's lower current no longer limits the string current, allowing normal modules in the string to continue operating at their individual maximum power points.
The bottleneck effect quantification illustrates the optimizer's core value: in a string of N equals 20 series-connected modules, if one module is 30% shaded, its current drops to 70% of Ir, and without an optimizer, all 19 normal modules are also clamped to 70% Ir, so the string's total power P_string equals 20 times 70% Ir times Vmpp, representing a 30% loss relative to rated string power. With an optimizer, the shaded module's current can be maintained at approximately 85% Ir through DC-DC boost (raising its operating voltage to compensate for current loss), so P_string_opt approximately equals 19 times Ir times Vmpp plus 85% Ir times Vmpp_opt approximately equals 96.8% of P_rated, reducing the effective shadow loss from 30% to approximately 3.2%. Huawei optimizer testing confirms approximately 89% reduction in shadow-related string power loss under these conditions, a performance improvement that translates directly into measurable annual energy yield gains in any installation with recurring partial-shade exposure.
Huawei SUN2000L Series Optimizer Specifications: under 30% partial shadow (IEC 61853-1), optimizer installation reduces single-module power loss from 30% to 7% and string-level power loss from 28% to 8.5%, recovering approximately 68% of shadow-affected generation.
Balancing Module Output
For a 182mm PERC module, a second core function of smart optimizers is balancing output differences between modules in the same string, driven by manufacturing variability, non-uniform operating temperatures, and differential degradation that develops throughout the module's operational lifetime. Even modules from the same batch and power tier exhibit an Impp variation of plus or minus 2% to plus or minus 3%, and in a 78-cell 450W string, assuming Impp distributes across 9.85A to 10.15A (mean 10.0A, sigma approximately 0.08A), the maximum current difference of 0.3A corresponds to a power difference of approximately 3.9W, or approximately 0.87% of string-rated power, representing a baseline mismatch loss inherent to manufacturing that is present from day one of commercial operation and grows as modules age at different rates based on their individual thermal and electrical stress histories.
The optimizer's current balancing mechanism operates within a DC-DC boost circuit that can adjust each module's operating current, Iw, across a 0.5A to 3A range (corresponding to a voltage adjustment range of 12V to 48V), giving the optimizer substantial authority to correct most intra-string mismatches without requiring physical reconfiguration of the string wiring. The optimizer controller continuously compares each module's real-time power Pi against the channel average Pav: if Pi is less than 0.9 times Pav, the optimizer raises that module's branch current by 0.1 A (effectively lowering its operating voltage) to compensate for its power deficit; if Pi is greater than 1.1 times Pav, it reduces branch current to prevent overload, a closed-loop control algorithm that converges to the optimal current distribution within approximately 5 minutes of startup and maintains balance continuously thereafter. In Huawei's architecture, a single SUN2000KTL-50K inverter manages up to 48 modules across 2 MPPT channels (24 modules per channel), enabling fine-grained per-module power balancing that would be impossible with traditional string-level MPPT architectures that treat all modules in a string as a single electrical unit.
Temperature variation is another significant driver of intra-string output imbalance that is particularly relevant in rooftop PV systems where modules at slightly different tilt angles or with varying ventilation conditions can operate at temperatures differing by 5 degrees Celsius to 15 degrees Celsius. Since PERC module power decreases approximately 0.36% per degree Celsius, a 10 degrees Celsius temperature differential between modules in the same string translates to approximately 3.6% power difference, an imbalance that optimization algorithms can correct by dynamically redistributing current across the affected modules in real time. Optimizers automatically reduce current to high-temperature module branches while boosting current to lower-temperature branches, compressing intra-string power difference from a natural maximum of 4.5% under high-delta-T conditions to within 1.2%. An Australian 2.4 MW residential rooftop project with 25 years of operational data confirms that the optimizer advantage is most pronounced during summer high-temperature months (module temperatures of 65 degrees Celsius to 75 degrees Celsius): optimizer-equipped strings produced approximately 3.1% higher peak power than conventional strings during high-temperature peaks, generating approximately 45 MWh additional annual energy, approximately 1.8% of the system's total annual generation.
Huawei FusionSolar 8MW Commercial Rooftop Field Data (Southern China): after optimizer installation, string output uniformity improved by approximately 68% (max-to-min ratio from 1.18 to 1.07), increasing annual energy generation by approximately 2.3%, equivalent to approximately 184 MWh per year.
Monitoring Faulty Modules
For a 182mm PERC module, smart optimizers include a per-module IV monitoring function that reports each module's operating voltage, current, and power data to the operations platform every 15 seconds, creating a distributed online monitoring network that gives operations personnel full real-time visibility into every module's health status without requiring physical inspection of any kind. When a module develops a short circuit (abrupt drop in ground resistance), an open circuit (current interruption), or an abnormal IV curve (curve slope discontinuity), the optimizer sends an alert within 30 seconds to the Huawei NetEco operations system, specifying the fault type and precise physical location (accurate to the module's string position number), a precision that transforms the economics of module-level maintenance by eliminating the most time-consuming step in traditional fault diagnosis, which is always fault localization rather than fault repair. Traditional manual inspection previously required 2 to 4 person-days per fault string for a two-person crew equipped with IV curve testing instruments; optimizer-based fault location completes in under 30 seconds with accuracy of plus or minus 1 module, a 200-fold improvement in diagnostic speed.
Sungrow's SG110CX-P2 optimizer series adds automatic defective module isolation as a protective layer that operates independently of the operations platform, ensuring that fault response is not dependent on network connectivity or cloud platform availability. When a module's power falls more than 50% below the string average for more than 10 minutes (threshold configurable), the optimizer automatically disconnects that module from the string circuit to prevent it from dragging down the entire string output, allowing all other modules in the string to continue operating normally at their individual maximum power points. After the fault is cleared and a technician confirms and resets the module, the optimizer automatically restores its connection without manual intervention, a self-healing capability that minimizes operational downtime and reduces the urgency classification of many module-level fault events from emergency to scheduled maintenance. This function is particularly critical in high-dust (Middle East, North Africa, Central Asia) and high-salinity coastal environments: open-circuit faults caused by dust or salt corrosion can, if not isolated promptly, pull an entire string's power down by 15% to 30% within 24 hours, a severe energy loss event that isolation technology can prevent with response times in seconds.
Accumulated optimizer data enables a module health scoring model for predictive maintenance, shifting the maintenance paradigm from reactive fault response to proactive condition-based planning that reduces both downtime and module costs. Huawei FusionSolar's module health score integrates four weighted factors: real-time power to nameplate power ratio (weight 40%), current FF to factory FF ratio (weight 30%), PID severity (weight 20%), and temperature anomaly event count (weight 10%), producing a composite score of 0 to 100 for every module in the plant's fleet. When the mean health score for any plant zone falls below 75, the system automatically issues a maintenance alert with specific replacement recommendations. A 150MW Northwest China project identified 847 low-health modules (1.88% of fleet) and replaced them before the rainy season, reducing downtime from 12 to 3 events annually and improving equipment availability by 0.8 percentage points.
Sungrow SG110CX-P2 Technical Specifications: fault detection response time under 30 seconds, fault location accuracy plus or minus 1 module, compliant with NEC 2017 690.12 rapid shutdown, automatic output restoration after fault clearance without affecting other string modules.
Current sorting and module grading reduce mismatch loss by more than 60% at the design stage, while smart optimizers provide ongoing shadow tolerance, real-time IV monitoring, and automatic fault isolation, enabling active management throughout a photovoltaic plant's full 25-year operational lifetime with measurable gains in both energy yield and equipment reliability, delivering approximately 3.2% annual energy improvement (approximately 4,200MWh per 100MW) and approximately 4.2 million yuan in annual revenue increase from recovered generation that would otherwise be lost to mismatch, degradation, shading, and fault events throughout the plant's operational life.
