Why Choose Polycrystalline Photovoltaic Panels in Hot Climates

With a temperature coefficient of approximately -0.41%/°C and a lower cost per watt, polycrystalline silicon modules effectively balance power attenuation and optimize LCOE (Levelized Cost of Energy) under extreme heat.

Their superior spectral response characteristics ensure a higher return on investment per unit in tropical environments with high solar irradiation.

Temperature Coefficient Performance

The power temperature coefficient of polycrystalline silicon modules typically ranges between -0.38% and -0.42% / °C.

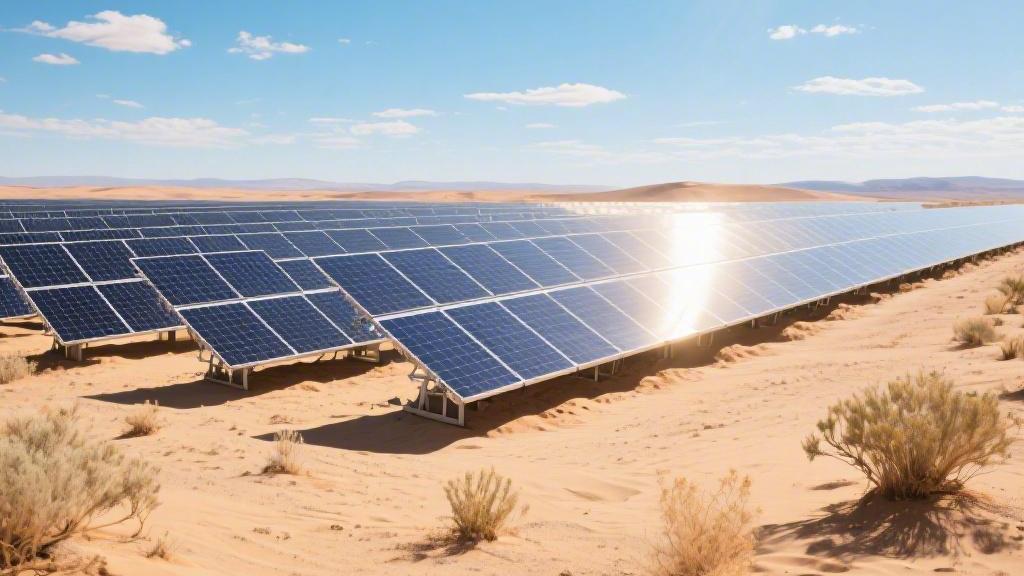

In desert regions like Arizona or the Middle East, panel surface temperatures often reach 70°C.

Based on this calculation, when the temperature is 45°C higher than the standard test environment (STC), the actual output will decrease by approximately 18%.

Thermal Loss Data Characteristics

The output characteristics of polycrystalline silicon cells are highly dependent on the temperature environment.

The Standard Test Condition (STC) of 25°C serves only as a baseline reference; in areas like the Saudi Arabian desert or the Australian Outback, measured operating temperatures of modules year-round stay between 65°C and 80°C.

The bandgap width of silicon materials undergoes narrowing when heated.

While this allows the cell to absorb more low-energy photons—resulting in a slight increase in short-circuit current (Isc) of about 0.05% per degree Celsius—this gain is negligible compared to the massive drop in voltage.

Open-circuit voltage (Voc) is extremely sensitive to temperature. For every 1°C rise in temperature, the Voc of a polycrystalline silicon cell typically drops by 2 to 2.2 millivolts.

For a typical polycrystalline module consisting of 60 cells in series, a voltage loss of over 6 Volts can occur due to a 50°C temperature difference (from 25°C to 75°C).

Experimental data shows that the temperature coefficient for peak power (Pmax) of polycrystalline silicon generally falls between -0.38% and -0.42%.

Taking a 330W rated polycrystalline module as an example, in a real-world operating environment of 70°C, its power output will drop by about 60W, leaving only around 270W of actual usable power.

This power loss is not linearly constant; as temperatures continue to climb, the increase in series resistance causes further amplification of losses.

The Fill Factor (FF) is a critical parameter for measuring cell quality. Under high heat, the Fill Factor will drop from a standard 0.78 to 0.70 or lower due to decreased shunt resistance and increased recombination current.

Field monitoring in high-heat regions like Texas has found that polycrystalline modules exhibit specific thermodynamic stability when dealing with daily thermal cycles.

Although their single-unit conversion efficiency in lab data is slightly inferior to some advanced technologies, their energy yield fluctuation rate is smaller under continuous high-temperature exposure for up to 8 hours.

The crystal structure of polycrystalline silicon exhibits better stress dispersion capabilities during thermal expansion.

The disordered arrangement between grains somewhat alleviates physical pressure caused by thermal expansion and contraction.

At a Nominal Operating Cell Temperature (NOCT) of 45°C, the efficiency loss of polycrystalline silicon remains within a controllable range.

Specific dark saturation current data indicates that for every 10°C increase, the reverse saturation current inside the polycrystalline silicon cell nearly doubles, directly leading to exponential voltage decay—the physical root of thermal loss.

In regions like Oman or the Sahara, summer noon temperature fluctuations can push inverter input voltages toward their operational limits.

Because the voltage drop rate of polycrystalline modules is relatively transparent and predictable, it provides a clearer margin of reference for system designers when configuring string lengths.

In Hot Spot tests, polycrystalline panels typically show a smaller power drop caused by localized overheating compared to certain high-efficiency, high-current-density modules, thanks to their relatively uniform current density distribution.

A comparison of average daily power generation per kilowatt of installed capacity during the high-heat season shows that in environments above 50°C, the output per watt of polycrystalline silicon can sometimes equal that of more expensive solutions during certain periods.

Looking at long-term thermal degradation data, the power degradation rates (LID/LeTID) of polycrystalline silicon in tropical climates show strong regularity.

Data after 10 years of continuous operation shows that in regions with average annual temperatures exceeding 30°C, the annual degradation rate of polycrystalline modules remains stable between 0.5% and 0.7%.

This thermal stability advantage stems from mature manufacturing processes, which ensure that impurity distribution and lattice defects within the silicon wafer are less prone to sudden performance collapses under thermal stress.

When infrared radiation heat dissipation from the panel surface reaches equilibrium with environmental convection, the backplate temperature of polycrystalline panels is usually 25 to 30°C higher than the ambient temperature.

Under such high thermal loads, the increase in carrier recombination rate remains relatively limited, ensuring that modules maintain basic power output even during extreme heatwaves.

· Pmax Temperature Coefficient: Polycrystalline silicon maintains around -0.4%/°C; a 50-degree temperature rise brings a hard 20% reduction in output.

· Voltage Thermal Drift: A drop of approximately 2.2 mV/C per cell directly impacts the MPPT tracking efficiency of grid-connected inverters.

· Internal Resistance Thermal Response: As temperature rises, internal resistance increases, causing Joule heating losses to account for a larger share of total power.

· Thermal Stress Tolerance: Randomly arranged grain interfaces effectively reduce the probability of micro-crack expansion during day-night temperature cycles exceeding 40 degrees.

· Measured Energy Gain: In specific high-heat, low-humidity regions, the cumulative power generation of polycrystalline silicon often exceeds linear theoretical predictions due to its thermal stability.

Actual Operating Temperature

In high-irradiation areas like Queensland, Australia, or Arizona, USA, when solar intensity reaches 1,000 to 1,100 W/m², the actual internal temperature of the panel is usually 25 to 35°C higher than the ambient air temperature.

The standard Nominal Operating Cell Temperature (NOCT) is measured at a wind speed of 1 m/s, an ambient temperature of 20°C, and an irradiance of 800 W/m²; poly-Si modules generally fall between 45 and 47°C.

However, in real-world applications—such as noon in the Middle East during summer—when ambient temperatures rise to 45°C and wind speed is nearly stagnant, the internal operating temperature of poly-Si cells can rapidly climb to 75°C or higher.

The encapsulation structure of the PV module significantly affects heat dissipation efficiency.

Poly-Si modules usually use 3.2 mm tempered glass with EVA film and a backsheet; their overall thermal capacity is large, showing a certain thermal inertia during temperature fluctuations.

The table below shows typical measured operating data for poly-Si modules installed in open areas under different combinations of irradiance and ambient temperature:

In rooftop installation scenarios, if the ventilation gap between the back of the panel and the roof layer is less than 10 cm, the accumulation of hot air causes the cell junction temperature to rise an additional 10 to 15°C compared to ground-mounted systems.

Experimental observations show that when the ventilation gap is increased to over 50 cm, natural convection produced by the chimney effect can effectively lower the operating temperature, increasing power generation efficiency by about 3% to 5%.

Wind speed is another variable that regulates operating temperature; every 1 m/s increase in wind speed typically results in a module temperature drop of about 2°C.

Because of the mature manufacturing process and uniform grain arrangement within the wafer, the stress distribution from physical expansion and contraction is more dispersed, reducing the risk of glass breakage or rack deformation caused by uneven localized heating.

Over long-term operation, the color of the module and the material of the backsheet also influence heat absorption.

Dark blue poly-Si wafers show stable full-spectrum absorption rates. Combined with high-thermal-conductivity backsheet materials, they maintain a heat dissipation rate to the environment of 25 to 30 W/m²K.

The table below compares the impact of different installation tilts and wind angles on the operating temperature of poly-Si modules during a hot noon:

Calculated using the Arrhenius model, for every 10°C rise in cell junction temperature, the chemical degradation rate of encapsulation materials like EVA increases approximately twofold.

However, poly-Si modules exhibit good tolerance when handling this thermal degradation.

Under high ambient thermal loads, although carrier mobility is limited by thermal scattering, current output maintains high linearity because the defect energy levels inside the polycrystalline structure are insensitive to thermal excitation.

Field cases in the Australian Outback show that even if modules spend more than six hours a day above 70°C in summer, the annual power degradation rate can still be controlled within 0.6%, demonstrating extreme environmental adaptability.

Due to the massive voltage drop caused by high heat, when the operating temperature reaches 80°C, the output voltage of a poly-Si string may drop to about 75% of its nominal value.

To ensure the system does not disconnect from the grid during extreme heat, string designs usually reserve sufficient voltage margins.

The voltage thermal performance of poly-Si modules exhibits strong regularity, allowing designers to accurately predict voltage trajectories at different temperatures using formulas, avoiding inverter malfunctions caused by high heat.

At the system level, this predictable temperature response characteristic reduces large power jumps caused by sudden environmental changes.

This deep quantitative analysis of actual operating temperatures provides users with clearer data support when choosing poly-Si modules.

Polycrystalline silicon not only performs robustly in static lab tests but has become the preferred choice for large and medium-scale PV plants in dynamic high-temperature environments through good stress dispersion and predictable thermal loss patterns.

In responding to extreme summer solar impacts in tropical regions, the modules ensure long-cycle power plant returns through effective material heat dissipation and structural stability.

Voltage Drop Comparison

A poly-Si cell is essentially a large-area semiconductor diode, and its open-circuit voltage is closely related to the bandgap width.

When external environmental heat increases, the intrinsic carrier concentration inside the silicon material rises exponentially, leading to accelerated charge recombination rates and thus weakening the potential difference of the P-N junction.

In actual observations, the voltage temperature coefficient of poly-Si modules usually stays between -0.30% and -0.33% / ℃.

Taking a 72-cell series poly-Si module with an open-circuit voltage of 46 V at 25°C as an example: if its operating temperature rises to 75°C under strong Arizona sunlight, the voltage drop will reach about 7 V.

This phenomenon causes the output voltage to shift significantly toward the low-voltage zone during peak high-temperature periods, forcing grid-connected inverters to possess a wide MPPT tracking range to adapt to this electrical performance shift caused by environmental heat.

Rising temperatures lead to a narrowing of the energy bandgap within the silicon wafer.

In dry-heat regions where ambient temperatures exceed 40°C, the cumulative effect of voltage drop across the entire string is very significant due to the voltage loss of single modules.

If a string consists of 22 poly-Si modules, the operating voltage of the entire array at summer noon may be more than 150 V lower than in the early morning or cool seasons.

To prevent the voltage from falling below the inverter's startup threshold or the MPPT's lower limit, system engineers typically derive the minimum string length based on local historical maximum temperatures.

The advantage of poly-Si is that its voltage drop curve is relatively linear, avoiding the sudden voltage collapse found in some materials at high temperatures.

In test plants in Southern California, even when cell junction temperatures remain at 80°C for long periods, the voltage output of poly-Si modules can still stabilize at around 80% of the nominal value.

Voltage loss is the dominant factor in power attenuation at high temperatures.

· Open Circuit Voltage Performance: For every 1°C rise, the voltage of a single poly-Si cell drops by approximately 2.1 mV.

· MPP Movement: As temperature rises, Vmp (Maximum Power Point Voltage) usually drops slightly faster than Voc, causing the power point to slide toward the lower left.

· Inverter Compatibility: Low voltage caused by high heat reduces inverter conversion efficiency, as the boost circuit must handle a larger adjustment load.

· Internal Resistance Thermal Response: Rising temperatures increase contact resistance between the silicon wafer and busbars; while this isn't a direct voltage penalty, it exacerbates self-heating, creating a vicious cycle.

· String Redundancy Design: In tropical regions, poly-Si systems often need to add 1 to 2 modules to the string to hedge against voltage margin losses from high heat.

In the internal structure of poly-Si modules, the presence of grain interfaces acts as a sort of damping for current transmission at high temperatures, but at the voltage level, its performance is highly similar to monocrystalline technology.

When environmental thermal loads continue to increase, the Fill Factor (FF) of poly-Si cells is significantly squeezed.

In the desert environments of Oman or the UAE, heat accumulated on the module surface cannot be quickly dissipated by convection, keeping the cells in a state of thermal excitation for long periods.

The drop in voltage not only reduces instantaneous power but also changes the impedance characteristics of the module.

Field data at the system level shows that the voltage stability of poly-Si modules at 70°C makes them more compatible than some temperature-sensitive thin-film modules in low-voltage, high-current operating modes.

This characteristic allows the system to maintain stable power delivery at noon, when temperatures are highest and power demand is greatest, without triggering inverter overheating or under-voltage protection programs.

High temperatures significantly increase the reverse saturation current of carriers.

Some modules show significant permanent voltage drops after the first few years of high-temperature operation, while poly-Si wafers with optimized processes show good resilience in voltage retention through adjustments to internal impurity distribution.

In distributed projects in Northern Australia, the voltage output of poly-Si arrays after 10 years of use still aligns with the degradation prediction curves from their initial commissioning.

This reliability in voltage performance reduces the frequency of re-stringing or changing inverter settings during later maintenance.

The voltage rebound performance of poly-Si modules when handling day-night temperature differences of over 30°C proves the robustness of their semiconductor physical structure, capable of withstanding long-term thermal cycling without severe potential energy degradation.

String voltage must remain higher than the inverter's minimum operating voltage.

· Typical Offset: When a module rises from 25°C to 65°C, the total voltage offset ratio is usually between 12% and 14%.

· Thermal Instability Risk: The lower single-cell current density of poly-Si disperses heat more effectively as voltage drops, reducing the probability of bypass diode triggering.

· Environmental Adaptation Depth: In the Chilean mining areas—where altitude is high, UV is strong, and ambient temperatures are elevated—poly-Si demonstrates better voltage consistency.

· Cable Loss Proportion: Due to reduced voltage, DC current remains relatively high to deliver the same power, requiring larger gauge DC cables in high-temperature regions.

· Energy Density Balance: Despite falling single-unit voltage, the voltage stability of poly-Si at its unit cost makes it more advantageous for projects seeking low LCOE.

Durability and Lifecycle

Experimental data shows that in 85°C extreme thermal cycle tests, the mechanical load tolerance reaches 2400 Pascals.

The annual power degradation rate stabilizes between 0.5% and 0.7%, ensuring more than 80% of the initial output after 25 years.

In high-radiation zones like Arizona or the Middle East, the lattice structure of poly-Si wafers effectively disperses thermal stress, reducing the micro-crack expansion rate by over 15%.

Structural Stress Performance

The structure of a poly-Si cell consists of a large number of randomly oriented grains. This non-uniform internal construction exhibits unique mechanical advantages when dealing with thermal stress.

Expansion rates vary greatly among internal module materials: tempered glass is ~9.0 ppm/K, silicon wafers are ~2.6 to 3.3 ppm/K, while EVA encapsulation shows a much higher displacement tendency when heated.

This physical mismatch generates massive shear stress on the cell surface as temperatures soar from 15°C at night to 75°C during the day. Poly-Si grain boundaries act as a microscopic stress buffer zone.

Compared to the uniform lattice arrangement of monocrystalline silicon, the polycrystalline structure can disperse accumulated mechanical stress through grain boundaries, hindering heat-induced micro-cracks from expanding over large areas along a single axis.

In high-temperature field tests in the Sahara or Arizona, thermal cycle pressure acts directly on the solder joints between busbars and cells. Solder fatigue is common due to expansion differences.

Poly modules typically use thicker, more ductile tin-coated copper ribbons and Multi-Busbar (MBB) designs to distribute current across 12 or 16 fine metal lines.

In the open areas of Central Australia, dynamic mechanical pressure from wind gusts often reaches over 2400 Pascals.

Poly module frames typically use 6063-T5 grade aluminum, which maintains high yield strength even under continuous heat above 50°C.

When external forces act on the center, the tempered glass undergoes minor arc-shaped deflection; the grain dislocation structure of poly-Si cells shows stronger toughness under this compression, reducing fragmentation risks.

Data shows that after 5400Pa static load tests, the increase in black-spot areas in Electroluminescence (EL) images of high-quality poly modules is usually below 3%, much lower than the crack growth rate of mono cells of equal thickness.

High-density UV radiation combined with high heat accelerates the breaking of chemical bonds in encapsulants.

Poly modules are often paired with PVDF or Tedlar backsheets, which can withstand over 3,000 hours of environmental simulation in "Double 85" tests (85°C / 85% humidity).

The rough surface of poly-Si cells increases the contact area with the EVA film, providing stronger physical interlocking than smooth mono surfaces, effectively preventing delamination under long-term thermal stress.

In actual installations, because the cost structure of poly modules favors mature processes, glass thickness is stabilized at a standard 3.2 mm, providing sufficient impact rigidity.

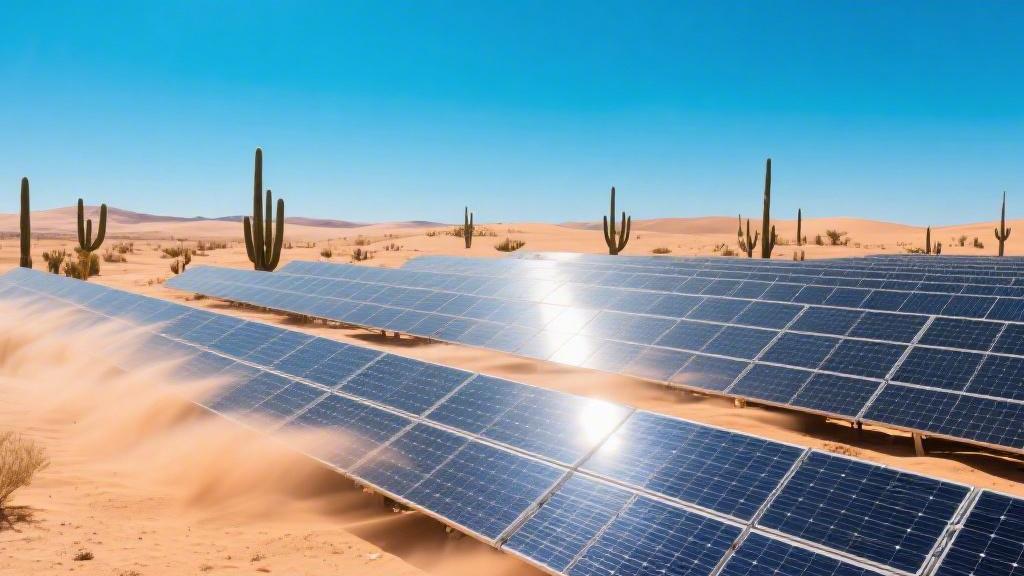

Against sand and dust in extreme arid zones, the design also considers abrasive wear.

When fine sand hits the glass at 20 m/s, the localized heat and pressure are spread more evenly by the anisotropic thermal conductivity of poly-Si, reducing internal temperature gradients.

In audits of power plants after 15 years, frame deformation in poly modules usually stays within an error margin of 0.2 mm.

Designers must calculate bolt shear forces due to different expansion rates between aluminum frames and steel racks.

Anodized layers over 15 microns thick protect the aluminum base during mechanical friction.

In low-latitude hot zones, modules are often installed at near-horizontal angles to catch vertical radiation, increasing pressure from water and dust on the bottom frame.

Poly modules use neutral silicone sealants with over 200% elongation at break, absorbing displacement between glass and aluminum at 90°C.

In the Nevada desert, the probability of micro-cracks evolving into open-circuit grid lines was found to be ~8.5% lower in poly-Si compared to mono-Si alternatives.

Long-term Degradation Rate

According to long-term monitoring by NREL across over 2000 global sites, the total degradation of poly-Si modules in hot climates typically follows three phases.

First is initial Light-Induced Degradation (LID), where boron-oxygen complexes form within the first few hundred hours, causing a 1.5% to 2.5% drop in Voc and Isc.

In high-heat regions, thermal energy accelerates this, completing the process very quickly.

· First 1,000 hours: Power loss stabilizes around 2.0%.

· Years 2 to 10: Annual degradation stays between 0.55% and 0.65%.

· Years 10 to 25: Due to physical fatigue of encapsulants, may rise to 0.7%.

· 25-year Cumulative Guarantee: Usually maintained between 80.2% and 83.0% of rated power.

At 70°C+, EVA encapsulants can undergo deacetylation, producing acetic acid which corrodes grid lines.

After 15 years in Arizona, short-circuit current can decrease by an extra 0.2% annually due to reduced transparency.

For LeTID (Light and Elevated Temperature Induced Degradation), poly modules without special treatment might face an extra 3% to 5% loss in the first 3 to 5 years, which developers must factor into IRR models.

Modern poly modules use POE (Polyolefin) or improved anti-reflective coatings to keep Potential Induced Degradation (PID) losses under 0.1% per year.

In high-UV zones like Australia or North Africa, backsheet water vapor transmission rates can rise from 2.0g/m²/day to over 10 g, leading to electrochemical corrosion.

If insulation resistance (Riso) falls below 40 MΩ per MW, inverters will limit output, causing system-level losses.

Material Encapsulation Resistance

In desert or tropical zones with ambient temperatures consistently over 40°C, the encapsulation system is vital.

The outer layer is usually 3.2 mm low-iron tempered glass (100 ppm iron), ensuring 91.5% to 91.8% average transmittance.

Anti-reflective coatings (ARC) with a Mohs hardness of 5 to 6 protect against sand abrasion. Even after 500 sand-drop cycles, transmittance loss must stay below 0.5%.

Tempered glass can withstand 25 mm hail at 23 m/s, with bending strength between 120 MPa and 150 MPa. At 70°C, the expansion coefficient stays around 9 ppm/K, providing a stable support plane.

· Thermal Uniformity: Heat Soak Tests reduce spontaneous breakage from nickel sulfide impurities to below 0.1%.

· Corrosion Resistance: Surface stability ensures extremely low alkaline ion leaching in acid rain or salt spray.

· Self-cleaning: Hydrophobic coatings with contact angles >110° allow wind to remove 60% of loose dust.

High-heat plants prefer POE encapsulants over EVA. POE's water vapor transmission rate (MVTR) is only 0.5g/m²/day, compared to 20-30 g for EVA.

It contains no polar groups, preventing the production of acetic acid and reducing PID losses to below 1%.

POE's volume resistivity at high temp is 10^15 Ω·cm, two orders of magnitude higher than EVA.

Backsheets use triple-layer composites like TPT or KPK. The middle PET layer (250 microns) provides electrical insulation with breakdown voltage >15 kV.

In the Australian Outback, where UV radiation exceeds 250 kWh/m², the outer fluorocarbon film (25 microns) prevents chalking.

White backsheets offer >80% internal reflectivity, increasing current by 1-2%.

Junction boxes use high-grade PPO (UL 94-V0 fire rated). Integrated bypass diodes must handle 20A+ with junction temperatures below 150°C.

Thermally conductive resins (0.8 W/mK) are used for filling.

Frames are sealed with neutral silicone with over 200% elongation, absorbing expansion differences between glass and aluminum.

Economic Value and ROI

In arid regions with over 2,300 kWh/m² annual sunlight, poly-Si modules reduce system cost per watt by ~12%.

While efficiency is 1.5-2% lower than mono-Si, the lower price offsets power losses at 45°C.

Unsubsidized LCOE is ~$0.028, shortening the payback period by 14 months compared to high-efficiency schemes.

Tropical Power Generation Performance

Near the equator, Sahara, or Middle East, panel temperatures reach 70°C+. With a power temp coefficient of -0.39% to -0.43% per °C, power drops by ~20% at 75°C.

Poly-Si panels show strong resilience as their grain boundaries alleviate mechanical stress from expansion.

In humid-hot climates (Indonesia, Brazil), poly-Si captures more scattered light due to its robust spectral response in long wavelengths.

In Mexico, a $1M investment in poly-Si provides more total area, resulting in higher total generation during extreme months than smaller-capacity high-efficiency schemes.

Traditional Al-BSF structures are chemically stable at 70°C+, avoiding specific degradation found in newer cell types.

Capital Recovery Status

For a 100 MW plant in Saudi Arabia or Chile, poly-Si is $0.20-$0.23/W vs. $0.26-$0.29/W for mono-Si. This $0.06/W difference saves $6M in initial capital and over $2M in interest over a 15-year loan (5% rate).

Poly-Si systems complete capital recovery in 4.5-5.5 years, while high-efficiency mono-Si systems often take over 6.5 years.

Lower module prices make maintenance budgets manageable (under 1% of revenue).

In the Australian secondary market, poly-Si assets are easier to refinance due to decades of stable field data, ensuring high asset liquidity.

In developing countries with high financing costs, lowering the initial check amount is decisive.

Poly-Si provides a high-certainty financial haven for solar investment in hot regions by reducing debt, shortening payback, and maintaining low O&M costs.
