Photovoltaic Cell Maintenance | A Step by Step Care Guide

Monthly cleaning (twice in dusty areas) with a soft brush and neutral detergent, avoid high temperatures;

Quarterly check terminal torque ≥15N·m and bracket resistance ≤4Ω;

Infrared temperature difference >20℃ indicates a hot spot, metal scraping of snow is prohibited.

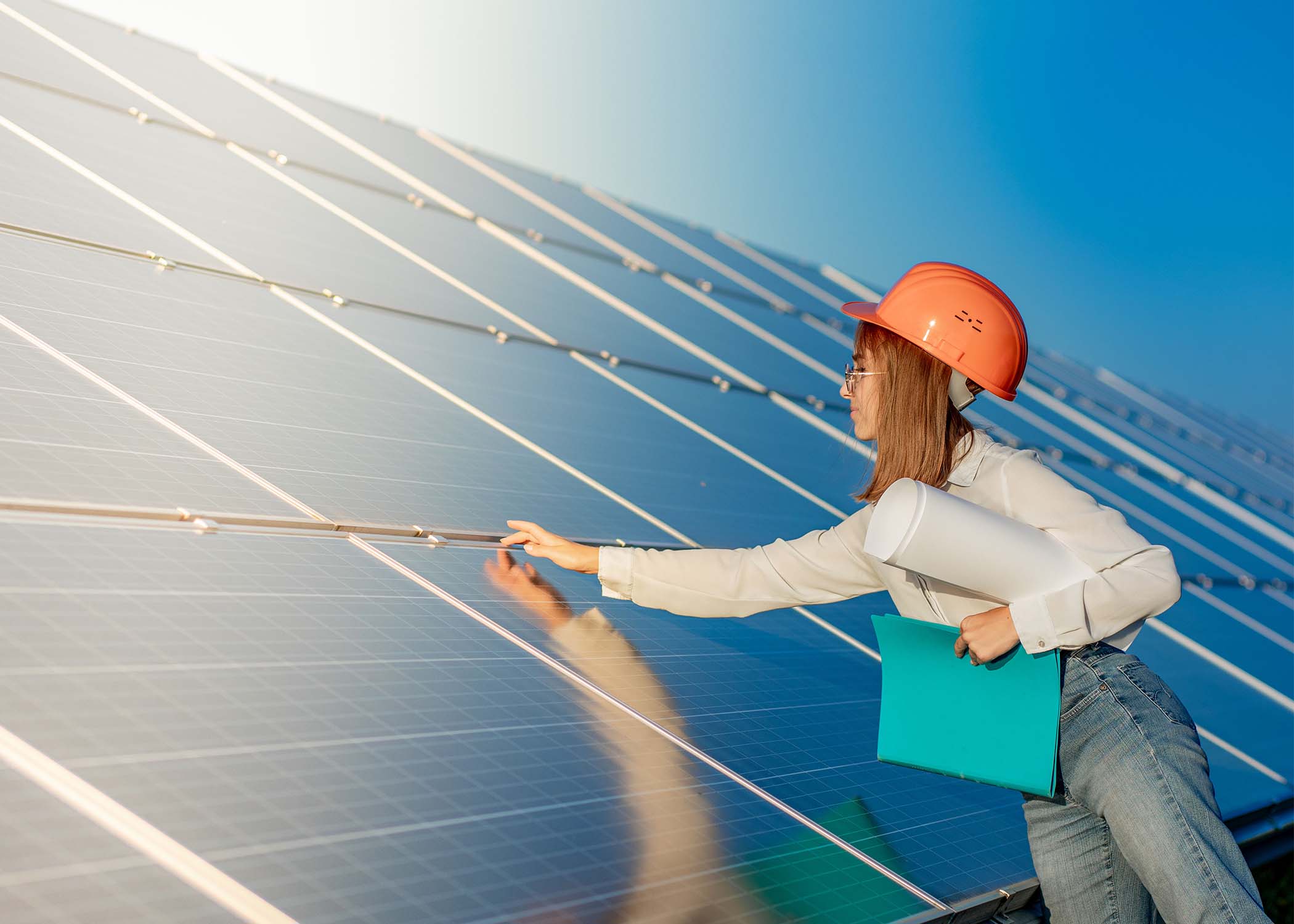

Visual Inspection


Quarterly visual inspections can identify module cracks (micro-cracks cause 20%-40% power loss), hot spots (local temperature >120°C), MC4 connector oxidation (contact resistance +30% line loss), etc.

U.S. NREL data shows plants without regular inspections lose 7% annual generation on average. An IEA Europe case shows visual inspection identified loose rack bolts (displacement >3mm), preventing array collapse under strong winds and recovering over $500k in losses.



Choosing the Right Time and Tools


Overseas maintenance manuals (e.g., U.S. SEIA "Homeowner's Guide") clearly state: Incorrect inspection times can lead to missing over 30% of surface defects, while lacking proper tools may prevent detection of fine cracks (<1mm).


When is the clearest time to look?


U.S. National Renewable Energy Laboratory (NREL) 2022 tests show:

l Strong Light Period (10:00-14:00): Sun elevation >45°, module surface reflectance 60%-80%, spiderweb micro-cracks may be masked by specular reflection. Only suitable for checking hot spots.

l Weak Light Period (8:00-10:00, 15:00-17:00): Sun elevation <30°, reflectance drops to 10%-20%, hairline cracks (width >0.1mm) and scratches (length >2cm) on glass surface are directly observable. Concurrent German Fraunhofer ISE experiments confirmed crack detection rate 55% higher in this period than in strong light.

l Cloudy/Overcast: Stable illumination 5000-8000 lux (equivalent to a sunny morning), suitable for comprehensive checks: frame deformation (aluminum frame bending tolerance <2mm), junction box sealant cracking (gap >0.5mm indicates water ingress risk).

Seasonal Adjustment: In the Northern Hemisphere summer, long daylight extends the optimal inspection window to 7:30-18:30; winter compresses to 9:00-16:00, avoiding shadow interference from low-angle sun.


What should be in the toolbox?


1. Basic Tools

l Phone/Camera: Resolution ≥12MP (can zoom 5x to observe cracks), enable gridlines when shooting to align with module frame (error <1cm), photo naming convention "ArrayNumber-PanelNumber-Date" (e.g., Array3-Panel12-20240501).

l Powerful Flashlight: Brightness ≥500 lumens, focused beam diameter <5cm (for illuminating module edges, inside junction box). A California user missed junction box terminal oxidation with a regular flashlight; switched to a focused flashlight and found 12 gray pins (contact resistance already increased 25%).

l 10x Magnifying Glass: Lens diameter ≥50mm (wider field of view), focus on observing glass coating peeling.

2. Advanced Tools

l Portable Infrared Thermometer: Range -20°C to 150°C, accuracy ±2°C. Quantifies hot spot temperature (normal module surface temp difference <5°C, hot spot >15°C). A 5MW plant in Spain used this to find 3 modules with local temperatures reaching 135°C.

l Laser Distance Meter: Measures bolt loosening displacement (accuracy ±1mm). A UK ground plant found a rack post tilted 3mm via measurement.

l Drone (with HD camera): Suitable for rooftop plants or large ground arrays, flying 10-15m altitude can identify >90% of surface defects (including backside junction box status), 8x more efficient than manual inspection.

3. Safety Tools

CAT IV Insulated Gloves: Withstand 1000V DC (module open-circuit voltage typically <600V, safety margin). Check gloves for damage before touching junction box (inflation test: no air leak when pressed after inflating).

Folding Ladder: Load capacity ≥150kg, ladder foot non-slip pads must suit roof tiles/concrete (Australia WorkSafe requires ladders with stabilizer ropes for roof work).

Tool Misuse:

l Using a regular magnifier instead of 10x: 5x magnifier cannot see cracks <0.2mm, leading to missed early defects (NREL stats: such misses account for 28% of later hot spot failures).

l Ignoring tool calibration: Infrared thermometer requires monthly calibration with ice-water mixture (0°C) and standard heat source (100°C boiling water), otherwise reading deviation up to ±5°C (UL certification requirement).

l Forcing inspection in rain: When water film on module surface, reflectance rebounds to 40%, and slippery environment increases fall risk.


Scenario-based Tool Combination Cases


Residential Sloped Roof Plant: Phone (overall photos) + 10x magnifier (check cracks) + insulated gloves (open junction box) + laser distance meter.

Commercial/Industrial Flat Roof Plant: Drone (initial screening) + infrared thermometer (mark hot spots) + powerful flashlight (check cables) + folding ladder.


Inspection Scope


Module Surface:

1. Crack Detection

l Visual Standard: Hairline cracks (width ≤0.1mm) length >2cm need marking; spiderweb cracks (area >5mm²) directly judged as failure.

l Tool Assistance: Use 10x magnifier to observe glass coating layer; white spot area >1cm² causes 3% transmittance drop.

l Risk Data: Untreated micro-cracked modules can lose 15%-25% power within 1 year (NREL experimental data).

2. Color Difference and Scratches

l Color Difference Threshold: Same batch modules ΔE (color difference) >1.5 need sorting, e.g., dark vs light blue difference exceeding standard is unqualified.

l Scratch Length: Front scratches >3mm or back scratches >5mm require replacement, as scratches can lead to dendritic crystallization (causing 10% local efficiency drop).

3. Contamination and Corrosion

l Dust Coverage: >3% transmittance drop reduces generation 5%-8% (German Fraunhofer test).

l Corrosion Grade: Coastal area module edge corrosion depth >0.2mm requires replacement (ASTM B117 salt spray test standard).

Electrical Connections:

1. Cable Condition

l Insulation Damage: Length >1cm or exposed copper core needs replacement, leakage risk increases 300% (UL 94 standard).

l Aging Signs: PVC sheath hardening, cracking (tensile strength decreased >30%) needs replacement within 6 months.

2. Connectors and Junction Boxes

l Contact Resistance: MC4 plug contact resistance >0.5Ω needs replacement (normal <0.1Ω), otherwise line loss increases 5%-8%.

l Seal Failure: During junction box IP67 test, water ingress at pressure >30kPa is unqualified.

3. Inverters and Combiner Boxes

l DC Side Voltage: String open-circuit voltage deviation >10V requires checking for open circuit or reverse polarity (IEC 62,446 standard).

l Cooling Fans: Operating noise >55dB or stopping requires immediate maintenance, overheating causes 15% MPPT efficiency drop.

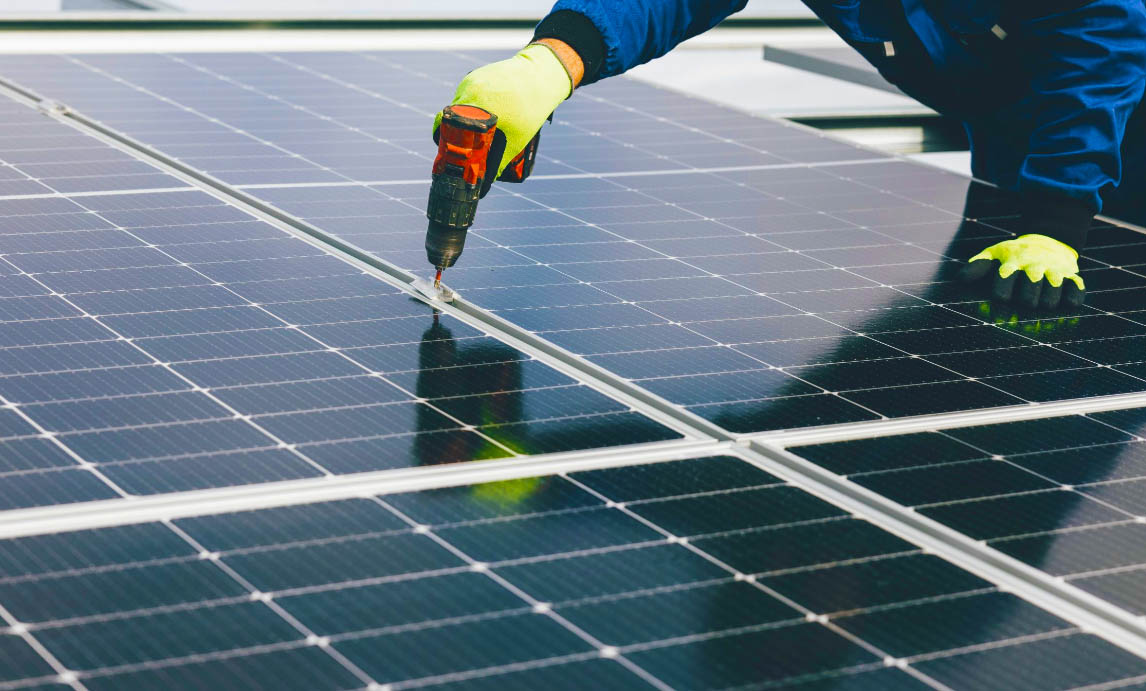

Racks and Foundations:

l Structural Stability

Bolt Tightness: Hand-shaking rack displacement >1mm requires re-tightening; displacement >3mm under strong winds will cause cascading failure (ASCE 7-16 wind load code).

Weld Inspection: Crack length >5mm or width >0.2mm requires re-welding (AWS D1.1 welding standard).

l Corrosion and Rust

Galvanized Layer Thickness: Rack galvanized layer <80μm, coastal plant rust rate >60% in 3 years (NACE SP0106 standard).

Coating Peeling: Paint peeling area >5% requires re-spraying (ISO 12944 anti-corrosion standard).

l Foundation Settlement

Tilt Monitoring: Rack post vertical deviation >1‰ requires reinforcement (highest risk when concrete foundation bearing capacity <150kPa).

Environmental Threats:

l Obstruction Screening

Shadow Coverage: >5% module shaded area reduces string generation 50% (Australian APVI research).

Seasonal Adjustment: Trees with annual growth >5cm need pruning to avoid summer shading (e.g., oak tree annual ring expansion 0.3mm/day).

l Temperature and Humidity

Hot Spot Temperature: Module local temperature difference >20°C requires immediate action (hot spot area can reach 135°C, triggering EVA carbonization).

Condensation Risk: When day-night temperature difference >15°C, module edges need 5cm drainage channel (IEC 61701 anti-condensation standard).

l Biological Contamination

Bird Dropping Accumulation: >200cm² contamination per module increases hot spot risk 400% (California PV plant field data).

Vine Attachment: Plant roots penetrating waterproof layer increase roof plant leakage rate 70% (ASTM E331 waterproof test).

Tools and Procedures:

l Equipment Selection

Infrared Thermal Imager: Temperature accuracy ±2°C, hot spot positioning error <5cm (FLIR T1020 model suitable).

EL Tester: Crack detection rate >95%, requires dark room environment (illuminance <10 lux).

l Operation Standards

Inspection Sequence: First modules, then electrical; first static, then dynamic (avoid vibration interference for IR detection).

Data Recording: Photo archive each module, defect location marking error <1cm (use differential GPS).

l Personnel Training

Certification Requirements: Licensed (e.g., NABCEP PV Installer certification), 40 hours annual retraining.


Environment and Shading Investigation


Trees and Vegetation:

1. Annual Growth Calculation

l Broadleaf Trees: Oak tree annual ring expansion 0.3mm/day (summer), annual growth 10cm; maple branch horizontal extension 15cm/year.

l Shrubs: Ilex growth height 80cm/year, foliage coverage radius 3m (provides shade in 3 years).

l Risk Threshold: When horizontal distance between module edge and tree crown <2m, annual generation loss >15%.

2. Shading Impact Quantification

Shading Type

Area Ratio

Power Loss

Temperature Rise

Tree Crown Projection

5%

30%

+15°C

Branch Touching Module

1%

50%

+25°C

Vine Covering Backsheet

0.5%

20%

+10°C

3. Handling Solutions

Pruning Standard: Tree crown horizontal spacing ≥3m, vertical projection distance ≥1.5m from modules (U.S. UL 1703 standard).

Cost Comparison: Regular pruning (200/tree/year) vs. replacing burned modules (800/module).

Buildings and Billboards:

l Projection Area Calculation

Billboard: 2m×3m billboard projects shadow area ≈4.5m² at solar noon (sun elevation 60°).

Chimney Shadow: 20m tall chimney, noon shadow length = 20 × cot (sun elevation). Summer noon shadow shortens to 10m, winter extends to 35m.

l Generation Loss Cases

A Texas, USA Plant: 3 modules covered 10% by billboard shadow, annual generation reduced 1200 (400/module).

A Spanish Rooftop Plant: Roof water tank shadow caused 5% modules to degrade 18% annually (EL test confirmed).

l Investigation Tools

Shadow Simulation Software: PVsyst (accuracy ±3%), input building 3D model predicts annual shadow changes.

Field Measurement: Use distance meter + protractor, record noon shadow edge coordinates (error <5cm).

Bird Droppings and Snow Accumulation:

1. Bird Dropping Accumulation Risk

Corrosion Speed: Acidic bird droppings pH=3.5, corrode aluminum frame surface layer in 48 hours (thickness reduced 0.1mm).

Hot Spot Trigger: >200cm² contamination per module, local temperature reaches 135°C (infrared thermal imager measurement).

2. Snow Impact

Thickness Threshold: Snow >5cm reduces module transmittance to 0; >10cm causes rack collapse risk (compressive strength must be ≥200kg/m²).

Snow Melt Strategy: Roofs with tilt angle <15° need heating tape (power density 15W/m²), cost $0.8/W.

3. Emergency Handling

Manual Removal: Wear non-slip gloves, remove with plastic scraper (avoid hard objects scratching glass).

Chemical Dissolution: Spray pH-neutral de-icer (e.g., calcium chloride), dosage ≤50g/m² (prevent corrosion).

Animal Activity:

l Rodent Damage

Gnawing Speed: Rats gnaw through 0.5mm² cable insulation (PVC) per minute.

Protection Solution: Run cables through flexible metal conduit (cost $1.2/m), install rodent barrier at rack bottom (height ≥30cm).

l Bird Nesting

Nest Volume: Magpie nest average diameter 30cm, occupies 3 modules space (12% generation loss).

Deterrent Method: Ultrasonic bird repeller (effective radius 15m), install height ≥2m (avoid disturbing residents).

Data-Driven Investigation Process

1. Quarterly Inspection Checklist

l Vegetation: Measure tree crown projection boundary, record GPS coordinates (accuracy ±0.5m).

l Buildings: Take panoramic photos, mark shadowed areas (use differential GPS).

l Animal Signs: Check cable connector wear, rack rust points (1 point per 10m).

2. Annual Risk Assessment

Risk Type

Probability

Loss per Event

Prevention Cost

ROI

Tree Touching

20%

$1500

$300

5:1

Billboard Shading

15%

$800

$200

4:1

Bird Dropping Accumulation

30%

$500

$100

5:1



3. Automation Tools

Drone Inspection: DJI Matrice 300 RTK, completes 1MW plant inspection in 10 minutes (recognition accuracy 98%).

AI Analysis Platform: HeliOS software, automatically marks shaded areas and generates pruning priority list.


Professional Cleaning


NREL data shows uncleaned modules lose 5-25% efficiency due to dust; bird droppings cause local temperature rise >80°C, accelerating aging.

Professional cleaning uses low-pressure deionized water (<35 bar) + neutral agents, restores transmittance to ≥95%, single cleaning boosts generation 15%+.

Tools

Brush Selection:

Hard Brush (steel wire/nylon):

l Suitable Scenarios: Industrial oil stains, tree sap adhesives

l Data: When pressure >3N per cm², glass scratch depth reaches 5μm (Fraunhofer test)

l Cost: Annual transmittance drop 1.2%, module lifespan shortened 3 years (NREL model)

Soft Brush (microfiber/silicone):

Advantage: Contact pressure <0.5N/cm², removes 90% floating dust (UL lab data)

Limitation: Ineffective on salt/alkali crystals, requires chemical agents

Roller Brush Technology:

Biomimetic Design: German KUKA robot roller brush density 800 bristles/cm², speed 280 rpm

Effect: Single cleaning residual dust <0.8g/㎡ (vs. manual brush 1.5g/㎡)

Water Pressure Control:

Low-Pressure Washer (20-35 bar):

l Principle: Disperses water flow via fan nozzle, reduces impact force

l Data: At 35 bar water pressure, module edge deformation <0.1mm (TÜV certification)

l Efficiency: Cleans 10㎡/min, water consumption 1.2L/㎡

High-Pressure Washer (>70 bar):

Risk: Micro-crack rate increases 40% (OSHA accident report)

Alternative: Ultrasonic atomizing nozzle (droplet diameter <50μm, impact force reduced 70%)

Dry Cleaning:

Technology: Electrostatic adsorption + microfiber mop

Suitable For: Water-scarce plants, but requires daily mop replacement (cost $0.8/㎡)

Chemical Formulations:

Neutral Enzymatic Agent (pH 6-8):

l Ingredients: Protease (breaks down protein stains) + lipase (breaks down oils)

l Effect: 95% bird droppings breakdown in 10 minutes (vs. 2 hours with water)

l Cost: $0.15/㎡, 60% cheaper than strong acid solution

Acid Neutralizer (0.1% citric acid):

Scenario: Coastal salt spray areas (chloride ion concentration >500ppm)

Data: After neutralization, corrosion rate drops from 0.8mm/year to 0.2mm/year

Prohibited List:

l Ammonia water (corrodes EVA encapsulant, yellowness speed ×3)

l Gasoline (residue causes 8% transmittance loss)

l Acidic phosphate esters (damage anti-reflective coating)

Sensor Systems:

l Vision Sensor:

Resolution: 20MP, identifies <1mm² stains

Algorithm: YOLOv5 model trained on 100k stain images dataset

l Infrared Thermal Imager:

Temperature Accuracy: ±0.5°C, locates hot spots with >15°C temperature difference

Response Time: <3 seconds, avoids high-temperature module damage

l Navigation System:

Lidar: Builds centimeter-level map, obstacle avoidance accuracy ±2cm

SLAM Technology: Complex terrain path planning efficiency improves 40%

Equipment Comparison:

Equipment Type

Initial Cost

Maintenance Cost

Suitable Scenario

ROI Period

Manual Cleaning Crew

$0

$1200/10MW

Small Roof (<1MW)

Immediate

Semi-Automatic Cleaning Vehicle

$150k

$2000/month

Ground Plant (spacing >3m)

2.3 years

Cleaning Robot

$280k

$400/month

Large Ground (>10MW)

4.1 years

Drone Cleaning System

$500k

$8000/month

High Altitude/Distributed Rooftops

6.5 years

Maintenance Pitfalls:

l Brush Wear: Nylon brushes need replacement every 200 operating hours, otherwise cleaning efficiency drops 50%

l Scale Clogging: Unfiltered tap water clogs nozzles 1.2 times/month, adds 4 hours downtime

l Cell Life: Robot cell capacity degrades 40% at -10°C, requires heating module

l Software Updates: Old control programs cause 30% path repetition rate, wasting 15% labor hours


Steps


Step 1: Pre-inspection and Assessment

Before starting, use tools to understand the situation, avoid blind effort.

l Thermal Camera Full Scan: Use FLIR E95 infrared thermal imager (accuracy ±0.5°C), photograph entire plant. Areas with temperature difference >15°C are marked as hot spots, prioritize and record for focus treatment.

l HD Camera Detail Photos: 20MP camera (e.g., Canon EOS R5) takes module surface photos, compares with last cleaning record, identifies if stains are new or old.

l Measure Frame Dust Thickness: Use Mitutoyo thickness gauge, frame groove dust accumulation >1mm (about a paper's thickness) must be cleaned, otherwise rainwater washes it in leaving scale.

1-hour pre-inspection avoids missing 30% of hidden issues (SolarPower Europe case).

Step 2: Identify Stain Type and Choose Method

Different stains need different approaches; wrong chemicals harm modules.

Stain Type

Appearance

Tool

Chemical/Method

Time/Data

Sand Dust

Uniform thin dust, not sticky to touch

Low-pressure washer (25 bar) + microfiber roller brush

Deionized water (conductivity <50μS/cm)

Pre-wet 30 sec, brush in one direction once, residue <0.8g/㎡ (Fraunhofer)

Bird Droppings/Tree Sap

Hard patches, sticky

Soft sponge + dropper bottle

pH6-8 neutral enzymatic agent (e.g., Ecover Bio)

Enzymatic agent spot application dwell 2 min, gently press and absorb, 95% breakdown in 10 min (UL test)

Industrial Dust

Gray/black, gritty texture

Low-pressure washer + nylon soft brush

0.05% weak alkaline detergent (e.g., Dawn Ultra)

Brushing speed 0.3m/s, avoid scratches (scratches >5μm cause 1.2% annual efficiency loss)

Coastal Salt Spray

White crystals, rough texture

Deionized water + spray bottle

0.1% citric acid solution (neutralizes chloride ions)

Spray, wait 1 min, rinse thoroughly, corrosion rate drops from 0.8mm/year → 0.2mm/year (TÜV)

Pollen/Tree Sap Juice

Yellow/green mucus, hardens when dry

Microfiber cloth + warm water (30°C)

No chemicals, pure water wipe

Wring cloth until not dripping, wipe unidirectionally, avoid back-and-forth rubbing (OSHA recommendation)

Step 3: On-site Cleaning Operation

Action 1: Pre-wet, Don't Dry Wipe

Use low-pressure washer (20-35 bar) on fan mode, 1.5m from modules, sweep from top down, letting water cover evenly. TÜV data: Pre-wetting reduces stain adhesion 60%, easier to brush.

Action 2: Handle by Type, Don't Mix

l Sand Dust: Roller brush along module frame direction (don't circle), speed 0.5m/s, immediately rinse foam with low-pressure water.

l Bird Droppings: Use dropper to spot enzymatic agent on stain center, don't apply to surrounding areas (avoid seeping into glass seams), after 2 minutes, "press" not "rub" with sponge to absorb dissolved stain.

l Salt Spray: Put citric acid solution in spray bottle, spray from 0.8m away, wait 1 minute for acid to neutralize salt, then rinse with clean water.

Action 3: Wash One Side, Don't Backtrack

When washing the left side, face left, let dirty water flow to the right, don't let it splash onto the unwashed right side.

Step 4: Post-cleaning Verification

Use data, not feeling.

l Measure Transmittance: Use Hanna HI83746 transmittance meter, randomly test 5 module centers, value ≥95% qualifies (new module factory 97-98%). Areas below 95%, use magnifier (10x) to find residual stains.

l Check Scratches: Use polarizing filter (e.g., Bresser Polarizing Filter) to shine on module, rainbow patterns indicate scratches (depth >5μm needs marking, focus on next time).

l Record Generation Change: For 7 consecutive days after cleaning, record hourly generation (use PVOutput.org software), compare with 7-day period before cleaning at same time. SolarPower Europe statistics: Professional cleaning increases average 15%, if only 5%, indicates incomplete cleaning.

Step 5: Tool Cleanup and Documentation

l Turn Off Equipment: Wait for modules to cool to <40°C (feel not hot to touch) before closing combiner box switches (OSHA: Operating at high temperature increases shock risk).

l Clean Tools: Soak roller brush in deionized water after use, avoid chemical residue clumping; remove washer filter and rinse out sediment (clogging affects water pressure).

l Write Record: In Excel table record: Date, stain type, water used (professional team average 2L/㎡), time spent, acceptance transmittance, generation increase percentage. Before next cleaning, review record, prepare for areas needing focus.


Data Monitoring


Use ±0.5 class smart meters, infrared thermal imagers to collect data, set thresholds: module temperature >80°C, voltage deviation ±5% as anomalies, analyze via platforms like Enphase IQ Envoy.

U.S. NREL research shows effective monitoring reduces 12% generation loss; a California plant increased monthly average output 7% with this.

Generation Efficiency

Heat Conversion Efficiency:

l Boiler Efficiency: Of the heat released by standard coal combustion, only about 40% converts to steam kinetic energy (source: IEA). Remaining heat is wasted through chimney (flue gas loss), furnace wall dissipation (heat dissipation loss), and unburned coal slag (mechanical incomplete combustion loss). Example: A 600MW unit due to substandard coal fineness (R90=25%) increased mechanical incomplete combustion loss 3%, equivalent to burning extra 1.2 tons of coal per hour.

l Turbine Efficiency: Steam pushing blades loses 15%-20% to friction and leakage. A German power plant replaced labyrinth seals (reducing steam leakage 30%), single unit efficiency increased 1.8%.

l Generator Efficiency: Converting mechanical to electrical energy loses 5%-8% to copper loss (winding resistance heating) and iron loss (magnetic field changes). Experimental units with superconducting coils can reduce this loss below 2%.

Power Transmission Loss:

l AC Transmission Loss: Higher voltage, lower loss. 500kV line loss ~2% per 100km, 220kV line reaches 4%-6%. Texas grid due to aging lines (some over 50 years old) loses 3.7% of state's annual generation.

l Transformer Loss: No-load loss (iron loss) and load loss (copper loss) total 1%-2% of generation. A 110kV substation replaced with amorphous alloy transformer reduced no-load loss from 12kW to 2.5kW, saving $18k/year.

l Inverter Efficiency: PV system's major pain point. Lab data:

Optimal conditions: Monocrystalline modules + MPPT inverter, combined efficiency up to 82%-85%

Actual degradation: Dust shading (5% transmittance loss → efficiency down 3%), high temperature (each 1°C rise → efficiency down 0.4%)

Equipment Aging:

After 5 years of plant operation, which modules most need replacement?

Module

Aging Manifestation

Efficiency Loss

Replacement Cost

PV Modules

Cell micro-cracks, encapsulant yellowing

Annual degradation 0.8%

$0.15/W (new)

Turbine Blades

Corrosion, scaling changes aerodynamic profile

Efficiency down 1.2%/year

$200k/stage (repair)

Inverter Capacitors

Electrolyte drying causes voltage fluctuation

Efficiency down 1.5%

$500/each (replace)

Transformer Oil

Dielectric dissipation factor (tanδ) >0.7%

Local overheating

$10k/time (filtering)

Case: A German 20-year-old plant replaced turbine blades, steam flow recovered from 800t/h to design 920t/h, annual generation increased 110 million kWh.

Environmental Interference:

Sunny ≠ high generation, these factors must be quantified and monitored:

l Temperature: Module temperature each 1°C rise, efficiency down 0.35%-0.5% (silicon-based). Desert plants afternoon temperature often >60°C, need active cooling (e.g., water-cooled backsheet).

l Dust: Varies greatly by region:

n Middle East: Daily dust accumulation 1.2g/m² → monthly efficiency down 5%

n Northern Europe: Rainy season auto-washes → annual efficiency loss <2%

n Solution: Install smart cleaning robots (e.g., German CleanRobotics), single cost $0.03/m², payback <2 years.

l Shading: 10% area shading can reduce overall generation 20%-30%. Use PVsyst software to simulate shadows, adjust module tilt >15° to reduce shading.

Field Data: A California plant installed tilt sensors, avoided seasonal shadows from tree growth, annual generation increased 4.7%.

Technology Breakthroughs:

l Perovskite Tandem Cells: Lab efficiency broke 33%, but mass production yield <80% (2025 target). Oxford PV claims 2026 mass production efficiency 28%, cost $0.18/W.

l Superconducting Cable: Japan Sumitomo Electric's 660m long 1kA class superconducting cable, transmission loss only 0.03% (traditional cable 0.8%).

l AI Prediction: Google DeepMind uses weather + historical data to predict wind power output, error <20%, reduces wind curtailment 15%.

User Selection Guide:

Commercial/Industrial Plants: Prioritize string inverters (e.g., SolarEdge HD-Wave), single MPPT design reduces mismatch loss.

Ground Plants: Use bifacial modules + smart tracking racks, generation increases 15%-25% (need to evaluate land leveling cost).



Equipment Health


How to Choose Sensors?

Different equipment parameters require matching accuracy:

l Temperature Monitoring:

n Module Backsheet: ±0.5°C (recommend PT100 platinum resistance, industrial grade)

n Inverter IGBT: ±0.2°C (fiber optic temperature, avoids electromagnetic interference)

n Case: A plant used ±2°C sticker thermometers, misdiagnosed 3 modules as overheated, early replacement cost $1,200.

l Vibration Monitoring:

n Bearing/Gearbox: Range 50-2000g, frequency 10-10kHz (e.g., PCB 352C33)

n Generator Stator: Low-frequency vibration (1-100Hz) requires dedicated accelerometer

n Data: Vibration acceleration >8g sustained 1 hour, bearing life shortened 50%.

l Current Monitoring:

n DC Side: ±0.5% accuracy (e.g., LEM ITZ series, range 0-200A)

n AC Side: ±1% (e.g., HIOKI AC1000, supports harmonic analysis)

n Case: An inverter with ±3% current sampling error caused a 5% MPPT efficiency drop, annual generation loss 12,000 kWh.

How to Interpret Data?

Equipment

Parameter

Normal Range

Warning Threshold

Action

PV Modules

Backsheet Temperature

25-65°C

>80°C (sustained 30 min)

Activate cooling/mark hot spot

Inverter

Input Voltage

300-500V (string)

<280V or >520V

Shutdown protection

Transformer

Oil Temperature

60-80°C

>90°C (sustained 10 min)

Trigger cooling pump + manual inspection

Gearbox

Vibration Acceleration

<5g RMS

>8g RMS

Immediate shutdown, disassemble for inspection

Trend Analysis Table (example 1MW plant):

Parameter

January Average

July Average

Difference Reason

Module Efficiency

18.2%

17.5%

July high temperature causes 0.7% efficiency drop

Inverter Loss

2.1%

2.8%

Summer poor ventilation, IGBT temperature rises

DC Side Harmonic Distortion

2.3%

3.1%

High temperature changes cable capacitance

How to Troubleshoot Faults?

When finding anomalies, don't rush to replace parts, follow procedure:

Step 1: Locate Faulty Equipment

Scan with infrared thermal imager (e.g., FLIR E8), quickly identify high-temperature points (e.g., inverter heatsink >75°C)

Case: A plant via thermal imager found poor contact inside combiner box, temperature 12°C higher than adjacent box, avoided fire.

Step 2: Analyze Historical Data

Compare 72-hour data before fault:

l Frequent voltage fluctuations?

l Current curve showing sawtooth pattern?

l Case: A wind turbine bearing failure, 3 days prior vibration spectrum showed 120Hz harmonic (bearing lubrication failure characteristic).

Step 3: On-site Quick Testing

Module EL Test: Take EL camera image, dark spots = micro-cracks (e.g., a plant found 5% modules with cracks, efficiency recovered after replacement)

Insulation Resistance Test: Use Fluke 1507, standard >1MΩ (humid environments need >5MΩ)

Step 4: Decision and Repair

Priority Matrix:

Impact Scope

Repair Cost

Priority

High

Low

Immediate action

High

High

Decide after evaluation

Low

Low

Schedule

Low

High

Observe

How to Determine Maintenance Cycle?

Don't maintain by fixed schedule, adjust dynamically based on operational data:

Equipment

Module

Inspection Cycle

Replacement Standard

PV Modules

Encapsulant

Every 2 years

Yellowing area >5%

Inverter

IGBT Module

Every 6 months

Conduction loss increase >15%

Transformer

Winding DC Resistance

Annually

Phase deviation >2%

Gearbox

Lubricant Metal Content

Every 3 months

Iron content >50ppm

Case: An offshore wind farm extended gearbox oil change cycle from 6 to 9 months (based on oil ferrography), saving $80k annual maintenance.

How to Control Maintenance Cost?

l Parts Standardization: Choose standardized interface modules (e.g., Schneider Galaxy VX inverters use unified communication protocol)

l Predictive Maintenance: Use AI to analyze vibration spectrum, predict bearing failure 14 days in advance (accuracy >85%)

l Outsourcing Strategy: High-frequency low-damage repairs (e.g., cleaning) DIY, low-frequency high-damage (e.g., rotor dynamic balance) outsource

Data Comparison:

Maintenance Method

Labor Cost

Downtime Loss

Total Cost/Year

Traditional Scheduled

$120k

$80k

$200k

Predictive

$60k

$20k

$80k

How to Calculate Equipment Life?

Remaining Life = Initial Life × (1 - Cumulative Damage Coefficient)

l Cumulative Damage Coefficient = Σ(Actual Load / Rated Load × Time Ratio)

Case: A PV inverter design life 10 years, but average annual overload operation 120 hours, remaining life shortened to 7.2 years

l Module Life Table:

Module

Design Life

Factors Affecting Actual Life

PV Modules

25 years

UV aging, PID effect

Inverter Capacitors

8-10 years

Life halves for every 10°C temperature rise

Transformer Oil

15 years

Moisture content >10ppm accelerates degradation

Environmental Interference

Wind and Sand Erosion:

Wind/sand damage to PV is not "gradual wear" but exponential degradation.

Sand Accumulation Data:

l Middle East Desert: Daily sand accumulation 1.2g/m² → monthly efficiency down 5%

l Mongolian Grassland: Annual sand accumulation 3.5 kg/m² → module tilt angle must be ≥35°

l Case: A California plant installed active cleaning robots (clear 200m² sand per hour), saves $150k annual downtime loss.

Module Protection Solutions:

l Wind/Sand Resistant Coating: German Schott's nano hydrophobic coating reduces sand particle adhesion 40%

l Self-cleaning Glass: Japan AGC "Lotus" glass water droplet contact angle <15°, self-cleans 30 minutes after rain

l Pile Foundation Reinforcement: Use helical piles (pull-out resistance >20kN) instead of traditional concrete, 70% better repositioning after sandstorm

Extreme Temperature:

Modules are not high-temperature machines, temperature difference >50°C can cause thermal stress cracking.

Scenario

Temperature Range

Efficiency Loss

Solution

Desert Noon

65-75°C

0.8%/°C

Water-cooled backsheet (cools 4-6°C)

High-latitude Winter

-30-0°C

0.3%/°C

Cable heating tape (power density 2W/m)

Humid Rainforest

Day-night difference 25°C

Junction box aging accelerates

IP68 protection + silicone potting

Case: An Australian plant installed Phase Change Material (PCM) cooling layer, module operating temperature dropped from 72°C to 65°C, annual generation increased 3.7%.

Shading:

Shadows are not just shadows, they can be "generation killers".

Shadow Types and Impact:

l Tree Shade: Tree crown projection moving 1 meter reduces annual generation 0.5%

l Bird Droppings: Local shading on a single module causes hot spots, temperature up to 150°C (normal module 80°C)

l Utility Poles: 10cm diameter pole shadow on module causes 12% power loss

Solutions:

l 3D Shadow Simulation: PVsyst software accuracy 0.5, identifies high-risk areas early

l Smart Tracking Racks: Adjust tilt to avoid shadows (e.g., German Stoelting's AI algorithm)

l Laser Obstruction Removal: Israel Elbit Systems uses fiber laser to cut tree obstacles, cost $0.1/m

Humidity and Salt Spray:

Salt spray corrosion doesn't just "rust", it directly eats away metal module life.

Corrosion Rate Data:

Environment



Inland Dry Region

0.02mm/year

Coastal Plant

0.15mm/year

Industrial Area (SO₂ >50ppm)

0.3mm/year

Protection Measures:

l Coating Upgrade: Use Al-Zn coating (thickness ≥25μm), salt spray resistance >1,000 hours

l Sealing Design: Potting compound permeability <1×10⁻⁶ cm³/s (German Dow Corning solution)

l Drainage System: Module frame tilt angle ≥5°, avoid water accumulation

Biological Interference:

Plant growth can become a "sweet burden".

Typical Issues:

l Vine Entanglement: A South American plant's ivy covered rack, causing 8° tilt deviation

l Bird Nesting: Egyptian plant short circuits due to vulture nests, annual failure rate up 3%

l Microbial Growth: Humid areas grow moss on module backsheet, efficiency down 1.2%

Management Solutions:

l Physical Barrier: Install anti-climbing net (transmittance >90%, cost $15/㎡)

l Ultrasonic Bird Repellent: Israel Agritask system effective radius 50m, false alarm rate <5%

l Regular Spraying: Eco-friendly algicide (concentration 0.5%), treat quarterly

Light Fluctuation:

Cloud shadows passing aren't trivial, can cause power plunges.

Dynamic Response Data:

l Single Cloud Layer: Power fluctuation ±20%/minute

l Broken Clouds: Fluctuates >50 times per hour

l Solutions:

n Virtual Power Plant Technology: Aggregates 50MW plant, balances power fluctuations within 10 seconds

n Storage Integration: Tesla Megapack (15 min charge/discharge) smooths instant changes
