How to Choose the Best Mono Silicon Solar Panels | Parameters, Rate of Return, Cost

Challenging high-efficiency crystal silicon construction, the conversion efficiency rate (mainstream>22%) and the decline rate (first year ≤1.5%, annual average ≤0.4%).

Previously, the completed book was 1.5-2 yuan / tiles, high quality products located in good lighting areas, about 5-8 years old.

Parameters

Currently, the photoelectric conversion efficiency of monocrystalline silicon solar panels is increasing at an average annual rate of 0.5%.

The efficiency of mainstream PERC technology has exceeded 21.5%, while N-type technologies (such as TOPCon, HJT) have pushed laboratory records to over 26%. Meanwhile, the cost per watt has dropped by over 80% in the past decade.

Faced with a complex market offering efficiencies from 21% to 23%+, power outputs from 550W to 700W+, and warranties from 10 to 30 years, selection is more important than effort.

A seemingly small parameter difference, such as a temperature coefficient of -0.29%/°C vs. -0.35%/°C, could result in a difference of thousands of kilowatt-hours in electricity generation over a 25-year lifespan.

Conversion Efficiency

Why Efficiency is the Ceiling for Power Generation

Currently, the laboratory efficiency record for commercial monocrystalline silicon solar panels has exceeded 26%, but the efficiency of mass-produced products depends on the technology route and manufacturing level.

In 2024, the mass production efficiency ceiling for mainstream P-type PERC technology is approximately 22.3%-22.5%, while panels using N-type technology (e.g., TOPCon, HJT) easily achieve over 23%, with high-end series from leading manufacturers even reaching 23.5%-23.8% efficiency.

Under the exact same one square meter area, a panel with 23.8% efficiency can generate about 8% more electricity than a panel with 22.0% efficiency.

For a 10 kW residential system, this efficiency gap could translate to a total generation difference exceeding 20,000 kWh over a 25-year lifespan.

How Efficiency is Improved Step by Step

Efficiency improvement is not achieved overnight; it comes from the accumulation of minor optimizations at every stage of the industrial chain:

l Silicon Material and Wafer Quality: Higher purity silicon material and more perfect crystal growth techniques (like the Czochralski CZ method) reduce internal defects. Simultaneously, wafers are rapidly becoming thinner, decreasing from the previous 180 microns to the current 150-160 microns, which reduces absorption losses in the silicon material and places extremely high demands on cutting technology.

l Surface Optical Management: Forming micron-level pyramid structures on the silicon wafer surface through acid texturing or advanced nanoimprint lithography can reduce the reflectivity of incident light from over 30% to below 2%.

l Passivation Technology: TOPCon's tunnel oxide passivated contact and HJT's intrinsic amorphous silicon passivation layer are peak applications of passivation technology, raising the open-circuit voltage (Voc) to new highs.

l Electrode Technology: Traditional screen-printed bus bars block sunlight. SMBB (Super Multi-Bus bar, typically 12-16 bars) technology reduces shading area through finer grid lines.

Efficiency Competition Among Different Technology Routes

The table below clearly shows the efficiency stratification of different technology routes.

It is important to note that laboratory records are achieved under ideal conditions using very small area cells, whereas mass production efficiency is the average for large-size panels exceeding 2.5 square meters on mass production lines. There is an inevitable gap between the two.

The Practical Trade-off Between Efficiency and Cost

HJT panels, due to their complex manufacturing process and more expensive low-temperature silver paste, typically cost 5%-10% more per watt than TOPCon panels of similar power class, and may be 15%-20% more expensive than PERC panels.

Therefore, the choice should be based on calculating the levelized cost of energy per unit area, not just the panel's price.

For users with limited roof space, installing high-efficiency panels maximizes system capacity within the limited area, thereby amortizing "soft costs" like inverters, mounting systems, cables, and labor. Even if the panel's unit price is slightly higher, the overall system's return on investment might be higher.

The calculation can be simplified as:

Total System Cost per Watt = (Solar Panel Cost + All Other Costs) / Total System Wattage

Conversely, if installation space is ample (e.g., ground-mounted power plants), using more cost-effective PERC or mainstream TOPCon panels and increasing the number of panels to achieve the same capacity might be a more economical choice.

Power Tolerance

Power Tolerance is the Touchstone of Manufacturing Quality

A panel rated at 550W with a tolerance of -0/+3% will have an actual power output between 550W and 566.5W.

Negative tolerance means you might not get the power you paid for, while positive tolerance guarantees that the actual performance you receive meets or even exceeds the rated value.

For a 100 MW project, if all panels have a +5W positive tolerance, it is equivalent to gaining nearly 1.4 MW of additional capacity for free, which could be worth over $1 million.

Conversely, even a -1% negative tolerance would directly cause the project to fail to reach its designed capacity, resulting in a permanent loss of expected revenue.

Grades of Power Tolerance and Industry Standards

According to International Electrotechnical Commission (IEC) standards and industry practice, power tolerance is typically divided into several grades:

Currently, tier-1 brands (such as Jinko, LONGi, First Solar, etc.) generally promise positive tolerance in their product data sheets.

Many manufacturers even specify "0 to +5W" as standard, which is more advantageous for high-efficiency, high-power panels than a percentage form.

When selecting products, any form of negative tolerance should be explicitly rejected.

Where Does Power Tolerance Come From?

Tolerance arises from the inevitable variability in the manufacturing process, mainly reflected in the following aspects:

l Silicon Wafer Performance Variation: Even wafers from the same ingot have minor differences in resistivity, minority carrier lifetime, etc., which affect the final cell efficiency.

l Texture Structure and Coating Uniformity: During texturing and anti-reflection coating deposition, microscopic structure and film thickness vary slightly across the panel surface, leading to inconsistencies in light absorption and reflectivity.

l Metallization Printing Precision: The uniformity of paste volume and grid line height during screen printing directly affects series resistance and shading area, thus impacting cell output.

l Sorting and Matching: After production, cells are precisely tested and sorted into bins based on parameters like current and voltage. When assembling panels, grouping cells with similar performance minimizes the "bucket effect," ensuring the panel's power is close to the theoretical maximum. Higher sorting accuracy results in a more concentrated power distribution and stricter tolerance control.

How to Verify Power Tolerance

The tolerance declared by the manufacturer requires reliable verification. This relies on standard test conditions.

l STC Standard Test Conditions: All solar panels are tested under uniform laboratory conditions: light source irradiance of 1000 W/m², cell temperature of 25°C, and sunlight spectrum AM1.5G.

l Third-Party Testing and Certification: Authoritative bodies like TÜV Rheinland or UL test factory samples independently to verify if their power output matches the data sheet claims.

l Factory Test Data: Responsible manufacturers provide a test report for each panel, showing its measured power under STC. You can check if the value on the report falls within the promised tolerance range.

The Link Between Power Tolerance and System Performance

The impact of power tolerance extends throughout the project's entire life cycle.

1. Initial System Capacity: Positive tolerance directly increases the system's actual initial capacity, boosting grid-fed electricity generation.

2. System Loss Matching: In a series circuit, the current is determined by the least efficient panel. A good positive tolerance indicates highly consistent performance between panels, reducing overall system losses caused by mismatch.

3. Long-term Degradation Baseline: The performance warranty promises a degradation rate "starting from the initial power." A panel with an initial power of 555W, maintaining 84.8% after 25 years, will have a remaining power of 470.8W. A panel starting exactly at 550W will only have 466.4W remaining over the same period.

Temperature Coefficient

How Temperature Affects Solar Panel Output

When solar panels operate in sunlight, most of the solar energy is converted into electricity, but a portion is converted into heat, causing the cell temperature to rise.

As temperature increases, the movement of charge carriers within the semiconductor material changes, affecting the panel's output voltage and power.

The actual operating temperature of the cell is typically 25°C to 35°C higher than the ambient temperature.

On a sunny day with an ambient temperature of 20°C, the cell temperature can reach over 50°C.

During hot summers, with an ambient temperature of 35°C, the cell temperature can easily exceed 70°C.

Specific Meanings of the Three Temperature Coefficients

The temperature coefficient includes three sub-indicators, corresponding to different electrical parameters:

1. Peak Power Temperature Coefficient:

This is the most important coefficient, indicating the percentage decrease in solar panel output power for every 1°C increase in temperature. For example, for a panel rated at 550W with a peak power temperature coefficient of -0.34%/°C, when the cell temperature rises from the standard test condition of 25°C to 50°C, the power decreases by: -0.34%/°C × (50-25)°C = -8.5%. Its actual output power is about 503W. If another panel of the same power has a coefficient of -0.25%/°C, under the same conditions, the power decreases only 6.25%, resulting in an actual output power of about 515W. The output difference between the two under high temperatures exceeds 12W.

2. Open-Circuit Voltage Temperature Coefficient:

The rate at which voltage decreases as temperature rises. This coefficient is usually negative and has a relatively large absolute value (about -0.3%/°C). Voltage drop affects the system's voltage level; in systems with long series strings, it's necessary to ensure that the system voltage remains above the inverter's minimum startup voltage even at high temperatures.

3. Short-Circuit Current Temperature Coefficient:

The current has a slight increasing trend as temperature rises, usually a small positive value (about +0.05%/°C). But its impact is much smaller than the decrease in power and voltage.

Significant Differences in Temperature Coefficients Among Technologies

The cell technology route is the primary factor determining the temperature coefficient.

In regions with high average annual temperatures (e.g., Arizona, USA; Middle East; Australia), choosing N-type technology with a better temperature coefficient, especially HJT, can bring significant generation gains throughout the year.

Calculations show that in hot climates, panels with -0.25%/°C can generate 4% to 6% more annual energy on average than panels with -0.35%/°C.

Practical Application of Temperature Coefficient in System Design

The temperature coefficient not only affects energy generation but is also directly related to electrical safety design. System designers must perform voltage checks based on the project location's extreme high and low temperatures.

l Voltage Check at Maximum Temperature: Calculate the maximum system voltage after connecting panels in series at the historical highest ambient temperature.

l Voltage Check at Minimum Temperature: Calculate the maximum open-circuit voltage after series connection at the historical lowest ambient temperature.

Rate of Return

A typical 5kW system for an American household, with a total investment of about $15,000 (after federal tax credit), under conditions of 1400 annual sunshine hours, an electricity price of $0.22/kWh, and an 80% self-consumption rate, yields an annual savings of about $1,400, resulting in a payback period of approximately 10.7 years.

The annualized return on investment over the system's lifespan can reach 8-12%.

Calculation Model

Four Core Variables Determining LCOE and Their Impact

1. Initial Investment and Subsidies

The total system cost includes not only the price of modules and inverters but also mounting structures, cables, installation labor, and permitting fees. The initial investment for residential PV in the US typically ranges from $2.8 to $3.5 per watt. The federal Investment Tax Credit (ITC) currently allows a direct deduction of 30% of the system cost from federal income tax, and states may offer additional incentives.

2. O&M and Equipment Replacement Costs

PV panels themselves require very little maintenance, but the following should be considered:

l Annual O&M Costs: Typically 0.5%-1% of the initial investment, used for cleaning and inspection.

l Inverter Replacement: The lifespan of string inverters is typically 10-15 years. Replacing an inverter for an 8kW system costs about $1500-$2000. This cost must be included in the 25-year LCOE calculation, accounting for at least one replacement.

3. System Degradation and Total Energy Generation

This is the most easily underestimated variable. Total energy generation is not simply "Initial power × annual hours × 25 years". The degradation rate determines the generation curve.

l Assume System A (High-quality N-type TOPCon): First-year degradation 1%, thereafter annual degradation 0.25%.

l Assume System B (Standard P-type): First-year degradation 2%, thereafter annual degradation 0.45%.

l Over a 25-year period, System A's total energy generation will be about 8% higher than System B's.

4. Financing Cost

If the system is financed through a loan, the interest is a mandatory expense that must be included in the total cost. The loan interest rate directly affects the LCOE.

A Detailed LCOE Calculation Case Study

Let's compare two 8kW systems, both located in California (1800 annual sunshine hours, electricity price $0.28/kWh).

Calculate 25-Year Total Energy Generation (including degradation):

l Option 1: First-year generation 14,976 kWh, 25-year cumulative generation approx. 339,000 kWh.

l Option 2: First-year generation 14,400 kWh, 25-year cumulative generation approx. 312,000 kWh.

Calculate LCOE:

l Option 1 Total Cost: 18,200 + (200 * 25) + 1,800 = $24,800

l LCOE = 24,800 / 339,000 ≈ $0.073/kWh

l Option 2 Total Cost: 15,400 + (180 * 25) + 1,600 = $21,350

l LCOE = 21,350 / 312,000 ≈ $0.068/kWh

Factors Determining the Rate of Return

Your Local Electricity Price Policy

Electricity rate structures and government policies are the most direct external factors affecting returns.

l Net Metering (NEM) Rules: It determines how much compensation you receive for feeding excess electricity back into the grid. Ideal 1:1 net metering means for every kilowatt-hour you send back, you can take one back from the grid for free. But many regions have implemented new compensation standards, for example:

l Based on Avoided Cost: The compensation rate might be as low as $0.03-$0.06 per kWh, much lower than the retail rate.

l Time-of-Use Value: Electricity fed back during peak hours (e.g., afternoon) might receive higher compensation.

l Initial Subsidies and Tax Incentives:

l Federal Investment Tax Credit (ITC): Currently in the US, the ITC allows you to deduct 30% of the system installation cost from your federal income tax. This is a direct price reduction.

l State-Level Incentives: Include one-time rebates (e.g., 10% of system cost), property tax exemptions, and Renewable Energy Credits (SRECs). An SREC is a tradable certificate; you earn one for every MWh of green electricity generated, which can be sold on the market for $10-$300 each, providing system owners with an additional revenue stream for many years.

The Performance of the PV System Itself

Differences in equipment performance directly translate into differences in energy generation, thus affecting returns.

Module Efficiency and Temperature Coefficient:

l Efficiency: With a fixed roof area, modules with 23% efficiency can install about 15% more power than modules with 20% efficiency, directly increasing total generation.

l Temperature Coefficient: Measures how much a module's performance declines at high temperatures. A module with a power temperature coefficient of -0.30%/°C will see its output power drop about 6% from standard conditions (25°C) when the module temperature reaches 45°C; a module with a coefficient of -0.40%/°C will see an 8% drop. In hot regions, this 2% difference becomes significant over the long term.

Degradation Rate: The module's power generation capability slowly decreases over time.

l High-quality N-type monocrystalline modules (like TOPCon or HJT) typically have a first-year degradation controlled within 1%, with an annual degradation rate as low as 0.25%-0.30% thereafter.

l Standard P-type PERC modules might have a first-year degradation of 2% and an annual degradation rate of about 0.45%.

l This over 6% difference in energy generation translates to thousands of dollars in electricity bill savings over a 25-year lifespan.

Inverter Efficiency and Lifespan:

l Efficiency: The peak efficiency of modern string or micro inverters generally exceeds 98%, but their efficiency under different loads (weighted efficiency) is more important.

l Lifespan: String inverters typically need replacement once every 10-15 years, costing about $0.15-$0.25 per watt. Micro inverters, installed behind each module, usually have a lifespan synchronized with the modules (25 years), avoiding mid-term replacement costs.

Specific Conditions of the Installation Environment

The same system, placed in different locations and on different roofs, will have significantly different energy generation.

l Geographic Location and Sunlight Hours: This is the most basic natural factor. Annual peak sun hours in the southwestern US (e.g., Arizona) can exceed 1800 hours, while in the northeast (e.g., Washington State) it might be only around 1300 hours. The same system generates about 38% more energy annually in the Southwest on average.

l Roof Orientation, Tilt Angle, and Shading:

l Orientation: In the Northern Hemisphere, true south is the gold standard. Deviating east or west by 15-20 degrees might limit generation loss to within 5%; deviations over 40 degrees might cause losses exceeding 10%.

l Tilt Angle: The ideal roof tilt angle is roughly equal to the local latitude, allowing modules to receive the most sunlight annually.

l Shading: Even small areas of shade (e.g., from chimneys, poles, trees) can significantly reduce the output of an entire string due to the series circuit nature of modules.

Your Electricity Usage Habits and Financing Method

The rate of return ultimately depends on how the system's generation matches your electricity usage behavior.

l Self-Consumption Ratio: The portion of electricity generated that you consume yourself saves you the full retail electricity rate (e.g., $0.28/kWh). The portion fed back to the grid is compensated only at the feed-in tariff rate (e.g., $0.06/kWh). Therefore, maximizing daytime electricity usage (e.g., charging an EV during the day, running the washer/dishwasher) can greatly enhance returns. A system with an 80% self-consumption ratio has a much higher return than one with only 30%.

l Financing Method:

l Full Cash Purchase: Highest rate of return, as you fully enjoy all generation savings without paying interest.

l Loan Purchase: The loan interest rate must be calculated. If the solar loan interest rate is 6% and the project's annualized return is 10%, you still have a positive 4% return, but the rate of return is diluted by the interest.

l Lease or Power Purchase Agreement (PPA): You avoid the investment but only enjoy an electricity bill discount; the return is far lower than owning the system.

Cost

Currently, the conversion efficiency of mainstream high-efficiency monocrystalline modules has generally exceeded 22.5%, with power ratings concentrated between 550W and 580W.

A fluctuation of just 0.02 RMB per watt in the cost per watt per module can result in a difference of 200,000 RMB in the initial equipment investment for a 10MW power plant project.

The module's annual degradation rate is a hidden lever determining the total electricity generation over a 25-year lifespan.

Premium brands promise a first-year degradation not exceeding 1% and a linear degradation controlled below 0.4%, while standard products might reach 0.55%, leading to a cumulative generation gap of over 6% over thirty years.

Initial Investment Composition

How much do the solar panels themselves cost?

The current factory price for mainstream high-efficiency monocrystalline silicon modules in the European market is approximately €0.28-€0.38 per watt. This price difference mainly comes from the following aspects:

l Technology Type: Modules using PERC technology cost around €0.30/W, while more advanced TOPCon or HJT modules are 8%-15% more expensive.

l Power Rating: The per-watt price of a 550W module is typically €0.02-€0.03 lower than a 450W module.

l Brand Difference: Tier-1 brands like Solarwatt, Viessmann have a 10%-20% premium compared to standard brands.

What else do you need to buy besides the panels?

Balance of System costs are often underestimated; this part can account for over 40% of the total investment:

l Inverter: String inverter prices range from €0.08-€0.12/W, while micro inverters cost €0.20-€0.28/W.

l Mounting Structure: Costs vary between €0.12-€0.25/W depending on the roof type.

l Cables & Monitoring System: Account for about 5%-8% of the total equipment cost.

How much does installation and commissioning cost?

Costs for professional installation teams depend on system complexity:

l Standard Pitched Roof Installation: €0.35-€0.50/W

l Flat Roof Commercial System: €0.45-€0.65/W

l Special Structure Installation (e.g., carport, facade): May exceed €0.70/W

Government Permits and Grid Connection Fees

In EU countries, grid connection applications involve several fixed costs:

l Grid Connection Review Fee: €300-€800

l Metering Device Upgrade: €500-€1,500

l Building Permit Application: €200-€600 (varies by country)

Transportation and Logistics Costs

Sea freight for a 40-foot container of modules from Asia costs about €3,000-€5,000.

Adding local land transport and insurance, logistics costs account for about 3%-5% of the module's value.

System Design Fees

Professional design services charge in the following ways:

l Fixed Fee: €1,000-€2,000 (for residential systems below 10kW)

l Percentage of Project: 2%-3% of total investment (commercial projects)

Tax Impact

VAT rates vary significantly across European countries:

l Germany: 19% standard rate, can be reduced to 7% for residential systems.

l France: 20% standard rate, some renovation projects qualify for 5.5%.

l UK: 20% standard rate.

Cost Breakdown Table for an Example 8kW Residential System

Cost Differences for Different Installation Scenarios

l New Construction: Can save €0.15-€0.20/W in retrofit costs.

l Historic Preservation Areas: Additional compliance costs of 10%-15%.

l Large Commercial Projects (over 100kW): Economies of scale can reduce per-watt cost by 15%-25%.

Low Maintenance Costs

What does routine maintenance involve?

The system only needs to keep the panel surface relatively clean to maintain over 90% generation efficiency.

In ordinary environments, natural rainfall can remove most dust.

Data shows that in regions with annual rainfall exceeding 800 mm, even without manual cleaning, generation loss is usually controlled within 5%.

However, in arid, dusty, or industrial areas, 1-2 professional cleanings per year might be necessary.

The market rate for a standard residential system cleaning is between €100-€300, depending on roof accessibility and system size.

The Role of Monitoring Systems

Modern inverters come with monitoring software that displays real-time generation data.

This service is usually included in the equipment price, but some premium brands charge an annual platform service fee of €50-€150 for more detailed data analysis, fault alerts, and historical reports.

When system generation suddenly drops more than 10% below expected values, the monitoring app immediately sends a notification, helping owners quickly identify issues and avoid long-term generation loss.

Inverter Maintenance Cycle

String inverters have a design lifespan of typically 10-12 years, potentially requiring one replacement over the system's 25-year life.

Replacing an 8kW inverter (including labor) costs approximately €1,200-€1,800.

Micro inverters, being distributed, mean a single failure doesn't affect the whole system, and they often have a 25-year warranty, but their unit price is higher; replacing a single micro inverter costs about €200-€400.

Inspecting Mounts and Wiring

Aluminum alloy mounting structures themselves require no special maintenance. Professionals recommend checking fastener tightness and for signs of corrosion on rails during routine roof inspections (typically every 2-3 years).

Cable connectors and junction boxes can generally operate stably for over 15 years, but insulation resistance tests are recommended after extreme weather (e.g., lightning). A standard electrical safety inspection costs about €200-€500.

Maintenance Differences in Various Environments

l Rural Environment: Mainly faces issues like bird droppings, pollen, and leaves, possibly requiring seasonal cleaning.

l Urban Environment: Dust may contain oily particles, not easily washed away by rain.

l Coastal Environment: Salt spray corrosion is the main challenge, requiring corrosion-resistant modules and regular connector checks.

l Agricultural Areas: May be affected by fertilizer dust, which can accelerate surface soiling.

Maintenance Cost Comparison Table

Factors Affecting Maintenance Costs

l Installation Quality: Professional installation (proper tilt, secure fastening, standard wiring) is the foundation for reducing long-term maintenance needs.

l Equipment Selection: Using inverters with higher IP ratings (e.g., IP68) better resists weather, reducing failures.

l Data Monitoring: Investing in a high-quality monitoring system enables preventive maintenance, using a small investment to avoid major losses.

Cost Evaluation

Calculating the Payback Period

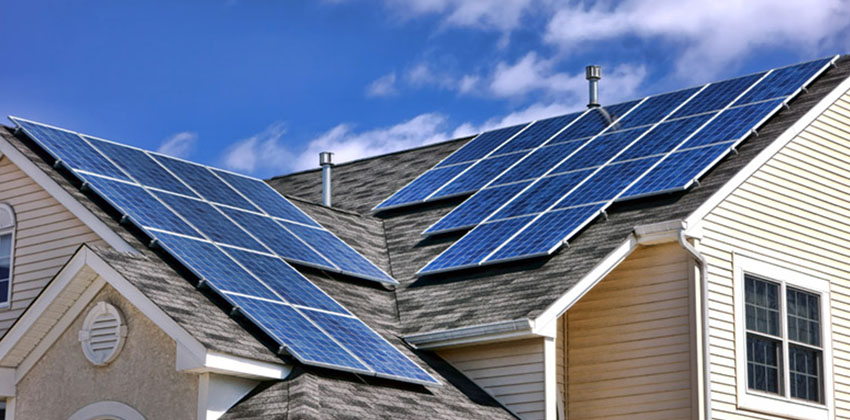

Assume an 8 kW system installed on a German household roof, total installation cost €16,000. Local electricity price is €0.32/kWh, the system is expected to generate 8000 kWh annually.

l Annual Savings = 8000 kWh × €0.32/kWh = €2,560

l Simple Payback Period = €16,000 / €2,560/year ≈ 6.3 years

If we assume a 3% annual electricity price increase and 0.5% annual system degradation, the payback period might shorten to around 5.5 years.

Understanding "Levelized Cost of Energy"

Levelized Cost of Energy (LCOE) is the "gold standard" for measuring the cost of a solar project.

It calculates the average cost per kWh of electricity generated over the entire system lifespan. The formula considers all inputs and total generation:

LCOE = (Total Cost of Ownership - System Residual Value) / (Total Energy Generated over System Lifespan)

Total Cost of Ownership includes the initial investment, 25 years of maintenance, and potential inverter replacement costs.

Total energy generation is the sum of 25 years of generation, accounting for annual degradation of about 0.5%.

Evaluation Focus for Different User Scenarios

l Household Users: Most concerned with "payback time." Their expectation of future electricity prices greatly influences their decision; if they expect prices to rise quickly, they are more willing to accept a higher initial investment.

l Commercial Users: More focused on "Internal Rate of Return" (IRR). They compare the solar project with other company investment opportunities, typically requiring an IRR above 8%.

l Power Plant Investors: Heavily rely on LCOE. They compare the project's LCOE with grid electricity purchase costs or the LCOE of other energy projects to assess the project's market competitiveness and investment value.

How to Quantify the Impact of Risk on Cost

Cost evaluation must consider uncertainty. Main risks include:

1. Generation Lower Than Expected: Could be due to inaccurate local meteorological data or poor module quality. The solution is to purchase "Generation Guarantee Insurance," with a premium of about 1%-2% of annual generation revenue.

2. Premature Equipment Failure: Modules have 25-30 year linear performance warranties, but inverter warranties are shorter. It's advisable to reserve a contingency fund of about 3%-5% of the initial investment in the financial model for mid-term repairs.

3. Policy Change Risk: For example, subsidies ending prematurely. This is difficult to hedge financially, but can be addressed by using more conservative assumptions in the return calculation, e.g., applying a 20% discount to expected subsidies.
