Why are Modular Solar Panels Easier to Repair

Modular designs enable swapping single damaged panels via quick-connect interfaces (e.g., MC4), taking 15-20 minutes—70% faster than replacing integrated systems—cutting downtime and simplifying repairs without overhauling the whole array.

Independent Unit Design

Once a crack appears on a tabletop, even just a small chip in the corner, the structure and aesthetics of the entire table are affected, often resulting in a costly overall replacement costing thousands of yuan.

It "splits" a traditional large panel into 8 to 12 or even more small, independent power generation units (e.g., each unit size about 40cm x 30cm, power between 50W-80W), connected via parallel circuits. According to industry data, this design can reduce system downtime caused by localized faults by up to 70% and lower repair material costs to less than 20% of traditional methods.

Design Principles

Physical Isolation: Drawing "Responsibility Plots" for Each Module

1. Each Module is an Independent "Fortress"

A traditional 550W solar panel typically measures 2176mm × 1098mm, with an area close to 2.4 square meters. It has only a peripheral frame, with a complete, integrated laminated structure inside. The modular design decomposes this. For example, a 600W panel composed of 12 sub-modules has each sub-module precisely designed to dimensions of 350mm × 500mm, with an area of only 0.175 square meters.

Each sub-module has its own complete, enclosed aluminum alloy frame (typically using high-strength 6005-T5 aluminum alloy, wall thickness 1.5mm) and an independent tempered glass cover (thickness 2.5mm). They are fixed side-by-side on rails during installation, but there is a physical gap of 1.5mm to 2mm width between modules.

When external stress, such as a hailstone with a diameter of 30mm hitting at 25 meters per second (equivalent to 90 km/h), strikes the glass of one module, the impact energy is independently absorbed by that module's frame and support structure. Even if it causes radial cracks in the glass, the cracks are stopped at the frame due to its barrier and the gap, making it physically impossible for the crack to cross the 1.5mm gap and damage the adjacent module. In contrast, with a traditional large panel, micro-cracks from a single impact can extend unimpeded across the over 2-meter-long cell, causing power degradation exceeding 30%.

2. Distributed Bearing of Mechanical Loads

Under wind pressure (e.g., 2400 Pa) or snow load (e.g., 5400 Pa), traditional large panels, due to their large area, transmit deformation as a whole when force is applied, easily forming stress concentration points in the center, leading to microcracks. Small-sized modules, with their individual area reduced by about 85%, have greater structural rigidity and minimal deformation under load. In simulation tests, a single sub-module under 2400 Pa wind pressure typically has its maximum deformation deflection controlled within 2mm, whereas under the same conditions, the center deformation of a traditional large panel might exceed 15mm, significantly increasing the probability of internal cell breakage.

Electrical Isolation: Installing an "Independent Circuit Breaker" for Each Module

Electrical isolation is a more subtle design than physical isolation, ensuring that "if one module gets sick, the others don't have to take medicine." Traditional series circuits are like a string of Christmas lights: one goes out, the whole string goes dark. Modular electrical isolation turns it into power outlets in your house, each with its own switch.

1. Parallel Circuit: Each Walks Its Own "Sunny Path"

Traditional solar panels typically consist of 60 or 72 cells connected in series to form a single high-voltage circuit (operating voltage approx. 30V-40V). Modular design is completely different. Each sub-module internally may have 15 or 20 cells in series, forming a low-voltage unit (operating voltage approx. 5V-8V). Then, the outputs of these 12 sub-modules are connected to the total output terminal via an onboard bus-bar in a parallel configuration.

In parallel, voltage remains essentially constant, while currents add up. The current output of each module is independent. In a system composed of 12 modules each with a peak current of 10A, if one module is completely shaded by leaves, its current output drops to 0A, but the other 11 modules can still output current normally. The total system current drops from 120A to 110A, a power loss of only 8.3%, and the system voltage remains unchanged, allowing the inverter to continue operating normally.

2. Revolutionary Application of Bypass Diodes: Building a "Fault Bypass"

Although parallel connection is the foundation, the bypass diode is the soul module that achieves true electrical isolation. Traditional large panels also usually install 3 bypass diodes to protect shaded cell strings, but the protection scope is one-third of the entire panel, which is coarse.

Modular design takes this technology to the extreme. Each sub-module is independently equipped with a high-performance bypass diode (typically rated 15A, 45V). When a sub-module is operating normally (generating power), the diode is in a reverse-biased, cut-off state, and current flows from the module itself. Once that module becomes a high-resistance state (can be seen as a "faulty valve") due to damage, shading, or hot spot effect, the current flowing through it generates immense heat and voltage drop at this "valve". At this point, the bypass diode is instantly forward-biased and conducts (forward voltage drop only about 0.7V), automatically building a "temporary bridge" for the total current, allowing it to bypass the faulty module.

Quantitative Advantages

Calculate the Total Cost of One Repair: 1500 RMB vs. 280 RMB

Assume a standard 550W traditional monocrystalline panel on a coastal commercial rooftop power station is shattered by debris lifted by a typhoon and needs replacement. Simultaneously, a 60W sub-module in an array using modular design is also shattered.

Scenario One: Traditional Large Panel Repair Work Order (Total Expenditure: approx. 1540 RMB)

1. Material Procurement Cost (860 RMB): Procure a new panel of the same brand and power, current market price about 800 RMB. Plus logistics cost 60 RMB, total 860 RMB. This panel has an area over 2.3 square meters and weighs 28.5 kg, requiring specialized vehicle transport.

2. Labor and Construction Cost (480 RMB): Dispatch two certified electricians to the site. Man-hour calculation is as follows:

(1) Safety briefing, cutting off the DC switch, voltage verification, hanging warning signs: 10 minutes.

(2) Dismantling the faulty panel: Loosen 16 clamp screws, carefully disconnect the MC4 connectors, two people cooperate to remove the 28.5 kg old panel from the rack and transport it to the ground: 35 minutes.

(3) Installing the new panel: Carry the new panel onto the roof, position it, preliminary fixation, wiring, final tightening of all clamps: 40 minutes.

(4) Restoring the system, testing voltage and current, filling out the repair record: 15 minutes.

(5) Total time consumed: 100 minutes (nearly 2 man-hours). Charging at 150 RMB per hour per industrial electrician, for two people working 100 minutes, the labor cost is (150 RMB/hour * 2 people * 100/60 hours) = 500 RMB. A routine discount is applied here, actual charge 480 RMB.

3. Power Generation Loss Cost (200 RMB): This fault caused a complete string of 20 panels (11kW) to shut down. The process from reporting the fault to completing the repair took two days. Actual downtime was about 8 hours (from the moment maintenance personnel disconnected the switch until reconnection). This station generates about 11 kWh per hour under average sunlight, with revenue from the desulfurized coal price plus subsidies about 1 RMB/kWh. Power generation loss: 11kW * 8 hours * 1 RMB/kWh = 88 RMB. To simplify calculations, considering scheduling, weather and other uncertainties, the operator typically budgets 200 RMB for power generation loss for such a repair.

4. Hidden Costs: Risks of damage during loading/unloading and hoisting of large panels, personal safety risks for two electricians working at height, etc.

Scenario Two: Modular Sub-module Repair Work Order (Total Expenditure: approx. 280 RMB)

1. Material Procurement Cost (180 RMB): Procure a replacement 60W sub-module, price 180 RMB including shipping. Its size is only one-tenth of a traditional panel, weight 2.2 kg, can be carried personally.

2. Labor and Construction Cost (50 RMB): One ordinary maintenance personnel (no advanced electrician certificate required) can handle it. Man-hour calculation:

(1) No need to cut off the main DC circuit, operate directly after voltage verification: 2 minutes.

(2) Unscrew the 4 dedicated fixing screws of the faulty module, unplug the quick-connect plug: 3 minutes.

(3) Plug in the new module's plug, align the position, tighten the 4 screws: 5 minutes.

(4) Total time consumed: 10 minutes. Labor cost calculated at 50 RMB.

3. Power Generation Loss Cost (≈0 RMB): The system only loses the power generation of one module (approx. 60W) during repair. The power loss over 8 hours of downtime is 0.06kW * 8h * 1 RMB/kWh = 0.48 RMB, negligible. No need to budget for power generation loss.

4. Hidden Costs: The operation is simple and safe, with very low risk.

Breakdown of Cost Elements: See Where the Money is Saved

1. Material Cost: From "Replacing the Entire Car Window" to "Replacing a Corner of the Window"

Traditional repair material cost has a "minimum consumption" attribute. Because the glass or cells cannot be replaced individually, any minor damage leads to the entire panel being scrapped. The material cost of modular repair follows the principle of "use how much, buy how much", with very low marginal cost. For large power stations at the megawatt scale, the spare parts inventory strategy is also completely different: stocking 10 traditional large panels requires over 3 cubic meters of warehouse space, tying up nearly 10,000 RMB; stocking 20 sub-modules requires only a small cardboard box, capital occupation not exceeding 4000 RMB, improving capital utilization by 60%.

2. Labor Cost: From "Expert Consultation" to "Quick Band-Aid"

Traditional repair requires highly qualified, experienced, and collaborative personnel, belonging to "high-skill man-hours", hence the high rate. Modular repair downgrades it to a "standard operation", which ordinary maintenance personnel can perform after half an hour of training. This "de-skilling" greatly reduces dependence on human resources and scheduling difficulties. A maintenance team can handle multiple module faults during one inspection, significantly improving labor efficiency.

3. Time Cost: From "Planned Downtime" to "Online Hot-Swapping"

Time cost is the biggest difference. Traditional repair requires planned downtime, coordinating personnel, equipment, and power outage windows, a complex process. Modular repair is akin to "online hot-swapping", can be performed at any time while most modules of the system are generating power normally, achieving "zero-downtime maintenance". For power stations where generation revenue is the lifeline, maximizing Availability directly improves the project's Internal Rate of Return (IRR).

Huge Gap Under Economies of Scale

Zooming out from a single work order to the annual maintenance budget of a 100MW photovoltaic power station. Assume an annual failure rate of 0.5%.

l Traditional Solution: Has about 181,800 units of 550W panels. Annual faulty panels approx. 909 units. Annual total repair cost is 909 units * 1540 RMB/unit ≈ 1,399,860 RMB (nearly 1.4 million RMB).

l Modular Solution: Has about 1,666,666 units of 60W sub-modules. Annual faulty modules approx. 8,333 units. Annual total repair cost is 8,333 units * 280 RMB/unit ≈ 2,333,240 RMB (about 2.33 million RMB).

Repair Process

Repairing a traditional solar panel is comparable to a small outdoor electrical engineering project: it requires at least two certified electricians, a set of insulated tools, a complete power outage plan, and safety supervision, potentially taking over 100 minutes, accompanied by the risk of high-voltage electric shock. Repairing a modular sub-module is more like replacing a router: one ordinary employee, a screwdriver, completed online within ten minutes, with the rest of the system operating normally.

Fault Localization: From "Finding a Needle in a Haystack" to "GPS Pinpointing"

l Traditional Process (Finding a Needle in a Haystack): The monitoring system can usually only alarm "String No. 3 current abnormally decreased by 30%", which is a vast area containing 20 panels, nearly 50 square meters. Maintenance staff arriving on site first need to scan the entire string of modules using a thermal image or IV curve scanner. Under the scorching sun, scanning with a handheld thermal image from 10 meters away, identifying a faulty panel with a hot spot temperature of 65°C takes 5-10 minutes. If the fault is microcracks or glass breakage without obvious hot spots, diagnosis becomes more difficult, possibly requiring measuring the open-circuit voltage of each panel one by one. The whole process may take over 30 minutes, with limited localization accuracy.

l Modular Process (GPS Pinpointing): The intelligent monitoring system can analyze based on the independent operating data of each module. The alarm information would be: "Module ID-0308, Row C, Column 08, output current consistently 92% below the average of adjacent modules, probability of being a faulty module is 99.5%". Maintenance personnel navigate to the corresponding location with a handheld terminal, and the interface directly highlights the faulty module. Localization time is compressed from 30 minutes to within 10 seconds, accuracy reaches centimeter level, achieving "point and shoot".

Repair Preparation: From "Pres-Battle Deployment" to "Ready to Hand"

l Traditional Process (Pres-Battle Deployment):

1. Issue a Power Outage Work Permit: Requires approval from the operations manager, specifying the outage scope, time, and safety measures.

2. Assemble Personnel: Schedule two electricians, ensuring their certifications are valid.

3. Prepare Tools and Materials: Check insulated tools (1000V insulated gloves, voltage tester), safety barriers, warning signs, and the 28.5 kg spare panel.

4. On-site Safety Setup: At the inverter's DC switch for the maintenance string, hang a "Do Not Close, Men Working" sign, set up a warning area. The entire preparation process takes 30-60 minutes.

l Modular Process (Ready to Hand):

1. Prepare Tools: Take a No. 5 hex key and a test pen from the toolbox.

2. Collect Spare Part: Take a 2.2 kg spare sub-module from the warehouse shelf.

3. Go directly to the site. No power outage application needed, no complex safety setup. Preparation time less than 5 minutes.

Operation: From "Precision Surgery" to "Plug and Play"

l Traditional Process (Precision Surgery):

1. Power Off and Voltage Verification: One electrician operates the DC switch to cut power, the other verifies with a voltage tester that the string voltage has dropped from 600V to 0V at the equipment end.

2. Dismantle Old Panel: One person steadies the panel, the other uses a wrench to loosen the 16 clamp fixing screws sequentially. Then, carefully separate the male and female MC4 connectors (requires special tools and care to prevent water ingress).

3. Install New Panel: Two people lift the new panel, align it with the rails, preliminary fixation of clamps. Then, connect the new panel's MC4 connectors (hear a "click" to ensure tight connection), finally tighten all screws to the specified torque (usually 15-20N·m).

4. Cleanup and Power On: Clean the site, remove signs, close the DC switch. The entire operation requires close coordination between two people; any mistake in any step may bring risks.

l Modular Process (Plug and Play):

1. Safety Confirmation: Quickly test the faulty module's connector with a test pen to confirm no dangerous voltage (system voltage below 120V, within Safety Extra Low Voltage SELV range).

2. Disassembly: Use a hex key to counterclockwise unscrew 4 stainless steel screws, unplug the waterproof quick-connect plugs at both ends of the module by hand.

3. Installation: Align and insert the new module's quick-connect plugs into the interfaces, then place the module into the slot, clockwise tighten the 4 screws (torque only needs 3-4N·m, tighten by feel).

4. Visual Confirmation: Observe the new module's working indicator light or monitor the system status update. The entire process is operated by a single person, with simple, repetitive actions, no need to worry about high-voltage risks.

Final Verification: From "System Reboot" to "Status Update"

l Traditional Process (System Reboot): After closing the switch, maintenance personnel need to wait in front of the inverter for at least 5 minutes, observe if it starts and connects to the grid normally, read the real-time generation power of that string, compare it with adjacent normal strings, ensuring it has regained 100% generation capacity.

l Modular Process (Status Update): After the maintenance personnel complete the installation, they can leave. The system monitoring interface will automatically show that the generation data of "Module ID-0308" has returned to normal after 1-2 data refresh cycles (about 5-10 minutes), and the current difference compared to adjacent modules returns to the normal range of ±3%.

Rapid Fault Localization

A 50-kilowatt commercial and industrial rooftop PV power station: one day the monitoring backend suddenly shows a 15% drop in generation efficiency compared to the previous day, losing nearly a hundred kWh of electricity. In a traditional, non-modular system, an engineer might need to spend several hours, or even a full day, carrying equipment up and down, measuring sections of wiring and inspecting panels one by one, like finding a needle in a haystack.

In a system using modular design, through the intelligent monitoring functions built into each panel or each power optimizer, maintenance personnel can precisely locate within 15 minutes from the backend management system that it is the module in Row 3, Column 7 that is outputting abnormally (voltage only 2V, far below the normal 35V), thereby narrowing the fault troubleshooting scope from the entire power station down to a single minimum unit, improving repair efficiency by over 80%.

Module-Level Intelligent Monitoring

An array's generation is 30 kWh less, but you are facing 24 panels connected in series. You only know "this string is not working", but you cannot determine if one panel is broken, a connector is burnt, or it's just bird droppings coverage. Maintenance personnel must bring equipment, climb onto the roof, and measure panel by panel. This process takes on average 45 minutes to 2 hours.

Module-level monitoring fundamentally changes this game rule: it installs a "smart brain" (power optimizer or microinverter) behind each solar panel, enabling the system to "see" the working status of every single panel every second.

1. Equip Each Panel with a "Personal Coach" that Reports its Condition in Real Time

Data Dimensions Collected: An advanced power optimizer (like Tigo TS4-A-O) continuously monitors DC power (accuracy ±1%), operating voltage (0.1V accuracy), output current (0.1A accuracy), panel temperature (±2°C accuracy), and can even detect potential arc fault risks. Microinverters (like Enphase IQ8) go further; because they directly convert DC to AC, they can also report AC power factor, output frequency (accurate to 0.01Hz), and the operating efficiency of each inverter itself (typically as high as 97.5% or above).

Data Reporting and Threshold Alarms: This data is transmitted to the gateway via Power Line Communication (PLC) or wireless Zigbee every 15 seconds to 5 minutes, then uploaded to the cloud platform. The system establishes a health record for each panel. Once a parameter deviation exceeding the average of the peer group by 5% (customizable) is detected, it is marked as "Attention"; deviation over 15% immediately pushes a Level 3 alarm to the maintenance personnel's mobile app; if a panel's output power plummets to below 10% of its rated value (e.g., a 400W panel outputs only 30W) under sufficient sunlight, the system triggers a Level 1 emergency alarm within 1 minute, precisely marked on the virtual power plant map.

2. Understand Data Curves, Hear the "Premonitions" of Fever and Cough in Advance

l Identify Microcracks and Hot Spots: A normal panel's power output curve on a sunny day should be a smooth, near-parabolic arc. If the monitoring backend finds a panel's curve showing regular, sawtooth-like tiny fluctuations (power fluctuation amplitude between 3%-5%) around the peak sun hours at noon, this is typically a sign of internal microcracks forming a hot spot effect. The temperature in the hot spot area may be 20°C to 40°C higher than the normal area, leading to accelerated aging of the EVA encapsulant in the long term, causing an additional annual power degradation of 0.5% to 1%, far above the normal 0.5% annual degradation rate. The system can provide an early warning when the power loss reaches 5%, allowing for planned maintenance to avoid greater losses.

l Identify Dust Accumulation and Shading: If most panels in a power station have normal generation curves, but a few show significantly slower power rise speeds than others around 9-10 AM (e.g., others reach 300W, it's still at 250W), and drop particularly fast in the afternoon, combined with their installation location (near chimneys or trees), it can be basically determined as slight shading or uneven dust.

3. Remote Diagnosis and Configuration: Some Problems Don't Require Climbing the Roof

l Remote Shutdown for Safety: When the system alarms a fault in a string requiring repair, the traditional method requires going to the site to pull the DC switch, posing a high-voltage electric shock risk. Now, maintenance personnel can click "Disable" for the entire string or the single optimizer where the faulty panel is located in the backend software, causing its output voltage to drop to a safe level below 1V within 2 seconds, ensuring the safety of repair personnel.

l Remote Parameter Debugging: For example, for panels with reduced generation due to slight shading, the working algorithm of their optimizer can be adjusted remotely via software, switching from "Global Maximum Power Point Tracking (MPPT)" mode to "Rapid Shutdown" or "Generation Optimization" mode, potentially reducing the generation loss caused by shading from 15% to 8%. This kind of "soft maintenance" is impossible in traditional systems.

Visual Backend and Heatmap Analysis

The task of the visual backend is to translate these abstract data streams into intuitive "Power Plant Health Maps". When the power station scale reaches the megawatt level, covering thousands of panels, a well-designed visualization system can compress the average fault localization time from hours to minutes.

1. Color is the Most Efficient Alarm Language: From Digits to Intuition

l Color Coding Standards: This color system has strict logic. Green (color value usually #00FF00 or similar) represents health, indicating the module's current output power fluctuates within ±5% of the group average. Yellow (#FFFF00) indicates "Attention", deviation between 5% and 15%, possibly due to slight shadowing or initial soiling. Orange (#FFA500) represents "Warning", deviation expanded to 15% to 30%, often indicating microcracks or obvious hot spots. Red (#FF0000) is a "Severe Fault", deviation exceeding 30%, or complete power loss, pointing to a shattered, burnt-out, or completely disconnected module. Gray usually indicates no data, the device might be offline.

l Pattern Recognition: Maintenance personnel can form an overall judgment at a glance without reading any numbers. If the map is mostly green with scattered yellow dots, this is usually normal. If there is a clear "red broken line", it's highly likely a fault in a junction box or cable along that branch. If an area shows an irregular "orange patch", it likely corresponds to uniform dust accumulation or vegetation shading. This visual pattern recognition ability allows the human brain to complete the initial "physical examination" of a large power station in under 3 seconds, far more efficient than parsing data tables.

2. Heat map: Sticking the Performance "Temperature" on Each Panel

l Generation Logic: A heat map is not simply pasting color blocks on modules. Behind it is a complex normalization algorithm. The system takes, every 5 minutes, the ratio of the actual output power of each panel to its theoretical maximum output power under current light and temperature conditions (i.e., Performance Ratio PR) as the vertical axis. The higher the PR value, the more it leans towards cool colors (blue, green) on the color spectrum; the lower the PR value, the more it leans towards warm colors (yellow, red). A panel with a PR of 98% is dark green, while a panel whose PR plummets to 65% will be displayed as bright red.

l Three-Dimensional Value: This presentation reveals three-dimensional information beyond the status of a single panel. First, it can expose string-level mismatch. Within a string, if all panels are uniformly green, the matching is good.If a clear red or orange appears in the string, this "short board" is dragging down the performance of the entire string. Second, it can identify systematic differences caused by azimuth and tilt angle.

3. Click to Drill Down: From "Regional Anomaly" to "Root Cause Localization"

l Operation Flow: An engineer sees a red panel on the heat map; the first reaction is not to record its number, but to click on it directly with the mouse. The interface immediately pops up a data panel showing the panel's current parameters: voltage, current, power, panel temperature. Simultaneously, the panel provides comparison data: 1. Comparison with the average values of other panels in the same group; 2. Comparison with its own historical data at the same time yesterday and the same time last week.

l Data Interpretation: If clicking a red panel reveals its voltage is 0V, current is 0A, and panel temperature matches ambient temperature, it can be basically judge as complete open circuit (possibly cable cut or connector burnt out). If the voltage is only 20% of the normal value (e.g., 7V),current is weak., but the panel temperature is as high as 70°C, this strongly points to a severe internal hot spot, possibly caused by microcracks. If the voltage is normal, but the current is only 50% of the peer group's, power halved, it might be that 50% of the cell strings are shaded or failed. This depth of drilling down refines the troubleshooting action from "replace this red panel" to "prepare the corresponding spare parts and tools (replace the wire? the connector? or the entire panel?)", greatly improving the success rate of the first on-site repair from less than 60% to over 90%.

4. Historical Review: Shooting a "Time-Lapse" of the Fault

l Timeline Dragging: Engineers can easily switch the view from "Real-time" to "History", dragging the slider on the timeline. For example, go back to last Wednesday at 2: 15 PM to see the power station's heat map status at that time. This is extremely effective for diagnosing faults that are "intermittent". For instance, a user reports reduced generation at a specific time daily; by reviewing, it's found that a group of panels in the northwest corner of the station consistently turn yellow from 1 PM to 3 PM every day.

l Performance Degradation Report: The system can automatically generate monthly, quarterly, annual performance trend reports for a single panel or the entire station. Select a panel, view its PR value curve over the past 12 months. If the curve is a smooth, slowly declining straight line (annual degradation rate about 0.5%), this is normal aging. If the curve shows a step-like drop greater than 3% after a certain point in time and remains low, it indicates the panel may have suffered irreversible damage (e.g., hail impact), providing solid evidence for claims or replacement decisions.

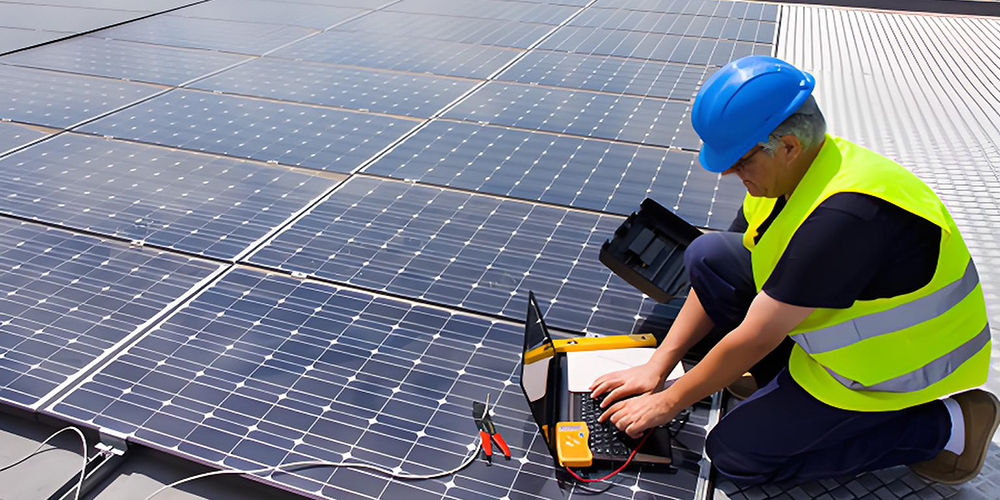

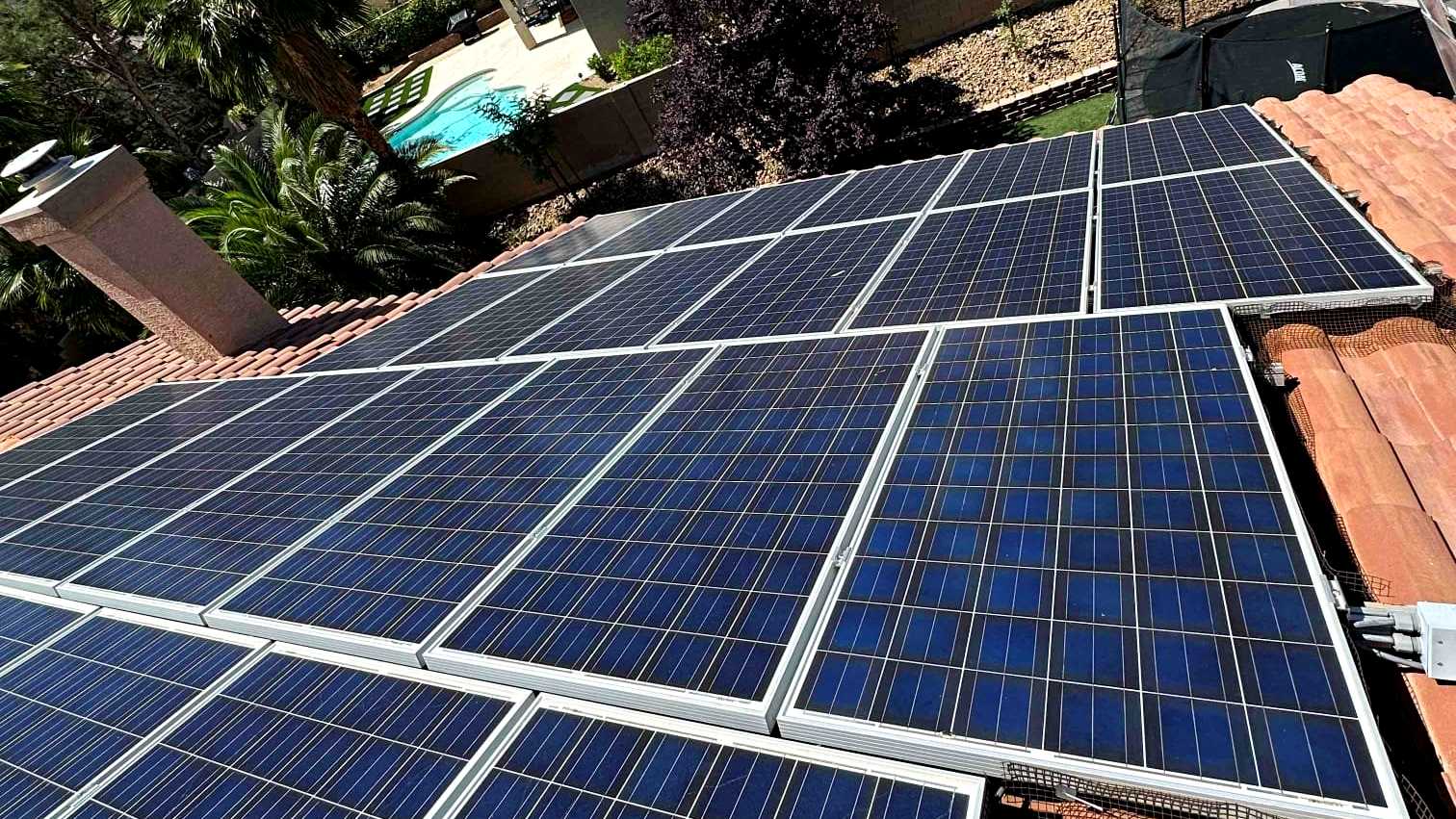

Portable On-Site PV Checks

The role of portable testing tools is to transform the backend's "data suspicion" into on-site "physical hard evidence". This process determines the accuracy of the repair plan, avoiding misdiagnosis leading to spare part waste and secondary visits. For example, an incorrect "replace entire panel" judgment would incur an unnecessary cost of over 1500 RMB, while accurately locating a burnt MC4 connector worth 20 RMB can reduce the repair cost by over 98%.

1. Infrared Thermal Imager: Making Heat Distribution "Visible"

Operation and Interpretation: Maintenance personnel scan the string reported by the backend alarm with the thermal image from a position at a 30 to 45-degree angle to the string, 5 to 10 meters away. A normally working panel appears in the thermal image as a uniform color scheme slightly above ambient temperature by 10-20°C (e.g., ambient 30°C, panel surface 45°C). Once a significantly brighter white or red spot appears in the image, with a temperature difference exceeding 10-15°C, It can be determinedas a hot spot. If it's a loose connection in a junction box, the thermal image will show a distinct high-temperature bright spot at the junction box location, potentially 30-50°C higher than normal, reaching over 80°C.

2. IV Curve Tester: Taking an "Electrocardiogram" of the String

l Testing Process: Connect the tester's positive and negative clips to the positive and negative terminals of the string to be tested (needs to be disconnected from other circuits). The instrument applies a scanning voltage from 0 to Voc (open-circuit voltage) and draws the I-V (current-voltage) curve and P-V (power-voltage) curve.

l Curve Analysis: A healthy curve is smooth and full. If the curve shows multiple steps or "humps" near the maximum power point, it usually indicates severe mismatch within the string, e.g., multiple panels shaded to varying degrees. If the curve's fill factor is significantly reduced, and the overall shape is "collapsed", it indicates high series resistance in the string, possibly due to connector corrosion or cable damage. The instrument directly calculates the deviation between the peak power and the rated power. For example, a panel rated at 415W with a measured peak power of only 320W has a degradation rate of 23%, providing solid data support for the replacement decision.

3. Insulation Resistance Tester: Troubleshooting Deadly "Leakage" Risks

l Testing Standard: The instrument applies a 1000V DC high voltage between the module cables and the ground terminal for 60 seconds, measuring the insulation resistance between them. According to safety standards, the insulation resistance value must be greater than 1MΩ. If the measured value is between 0.5MΩ and 1MΩ, it indicates poor insulation, requiring a warning and close monitoring.

l Fault Localization: Insulation faults are usually localized. To locate them, maintenance personnel use the "segmental exclusion method": first test the insulation resistance of the entire string; if not qualified, disconnect half the panels and test again, gradually narrowing the scope until finding the fault point causing the sharp drop in insulation resistance, which could be a panel with internal water ingress or a junction box soaked by rain.

Reducing Repair Costs and Time

A traditional, integrated solar power station, even if only one panel is cracked by a falling branch or one junction box is flooded and burnt out, faces what? Maintenance personnel need at least half a day to diagnose and locate the fault, and then may need to dismantle and reassemble an entire row (e.g., 10-12) of series-connected panels to replace that single faulty panel.

The entire string being shut down for over a day is common, with direct power generation loss potentially amounting to tens of kilowatt-hours (kWh), plus high labor and material costs, making a small repair bill easily exceed a thousand yuan. Modular design is born to precisely target these cost and time pain points.

Shortening Repair Time

Maintenance personnel with a multimeter spend 2-3 hours measuring voltage and current panel by panel among dozens or even hundreds seemingly identical PV panels, like "searching for a needle in a haystack". Finally finding the problematic panel is just the beginning of trouble: they need to loosen the rack bolts of an entire row (typically 10-12 panels), carefully lift the entire string of wiring to replace the bad panel. This process requires at least 2 skilled electricians collaborating for over 4 hours.

For a simple repair, system downtime of 24 to 48 hours is the norm, with power generation loss potentially as high as hundreds of kWh. Modular design uses a standardized, procedural approach to turn this "battle" into a "blitzkrieg".

1. The Old Way to Find Faults is Like Groping in the Dark in a Maze

l Diagnosis Relies on "Guessing" and "Measuring": In traditional systems without intelligent monitoring, fault alarms are usually just "generation dropped significantly". The electrician arriving on site first uses a multimeter to measure the open-circuit voltage and operating current of each string. A 10kW system has about 3 to 4 strings, each with 10 to 12 panels in series. He needs to go up and down, measuring data at the junction box of each panel. Assuming measuring one panel takes 2 minutes, just measuring all panels takes nearly 1.5 hours.

l Hidden Faults are Harder to Detect: Some issues, like the "hot spot effect" (local overheating of the panel) or slight microcracks, are not visible on a common multimeter and require professional equipment like an IV curve tester. Bringing the instrument to the site, connecting wires, testing, analyzing data – a full set of procedures takes most of the day. Data shows that in traditional maintenance, fault localization alone accounts for over 40% of the total repair cycle on average.

2. Modular Systems Equip Each Panel with a "Real-time ECG"

l Backend Locks the "Culprit" at a Glance: Many modern modular PV systems integrate power optimizers or micro inverters for each panel or small unit. These devices are the panel's "personal fitness tracker", monitoring each panel's voltage, current, power, and operating temperature in real-time. Data is uploaded to the cloud monitoring platform via PLC or wireless communication every 5 to 15 seconds.

l From Alarm to Localization, Under 15 Minutes: When a panel fails, e.g., severely shaded by bird droppings, its output power might drop instantly from the normal 450 watts to below 50 watts. The monitoring platform issues an alarm within 1 minute and precisely highlights the abnormal panel, e.g., "Panel C7", on the map in red. Simultaneously, the system automatically generates a preliminary diagnosis report, e.g., "Power drop 90%, suspected severe shading or internal fault". Maintenance personnel can know the fault location and possible cause via mobile app even before arriving on site, compressing diagnosis time from the original 1-2 hours to near real-time, improving localization efficiency by over 90%.

3. Replacing a Panel is Like Changing a Light bulb: Physical Operation Greatly Simplified

l "Building Block" Installation Structure: Traditional panels are firmly fixed to the rack rails with 4 to 6 bolts; replacing one requires loosening bolts for the entire row before and after. Modular panels often use bolt-less clamps or quick-press locks. A common "four-claw clamp" can be locked or unlocked by rotating a dedicated wrench 90 degrees. For disassembly, the worker only needs to rotate 4 clamps counterclockwise with the wrench, and the entire panel detaches from the rail.

l "Plug and Play" Electrical Connection: Electrically, standardized MC4 connectors are used, male and female plugs connect with a distinct "click" sound indicating secure locking. For replacement, the worker presses the unlock latch on the plug, pulls with both hands, and the old panel's circuit is disconnected. Hang the new panel on the rail, press the clamps tight, then "snap" the new panel's MC4 connector into the circuit, completing the entire electrical connection. For a skilled worker, this purely mechanical process, from setting up the ladder to finishing the replacement, can be controlled within 25 minutes. Compared to the traditional method requiring 2 people for 4 hours of collaboration, single-person efficiency improves by nearly 10 times.

4. Practical Comparison: A Real Repair Work Order

l Traditional Solution Work Order (Record No.: T-2023-087):

l 09: 00: Receive owner's alarm, abnormal generation.

l 10: 30: Electricians A and B arrive on site.

l 10: 30-12: 00: Use multimeter to measure 3 strings, total 36 panels, finally determine the 8th panel in String 2 has 0 voltage,judge as damaged.

l 13: 30-16: 00: Loosen fixing bolts for the entire String 2 (10 panels), carefully lift the entire string, replace the faulty panel, rewire and fix.

l 16: 00-16: 30: Recheck system, restore generation.

l Total time consumed: 7.5 hours (of which pure downtime about 6.5 hours).

l Modular Solution Work Order (Record No.: M-2024-015):

l 08: 15: Monitoring platform automatically pushes alarm: Panel C07 power abnormal.

l 08: 20: Electrician A receives work order on phone, information includes fault panel location and number.

l 09: 00: Electrician A arrives on site alone, goes directly to Row C.

l 09: 00-09: 20: Confirm faulty panel, retrieve spare panel from warehouse.

l 09: 20-09: 45: Dismantle old panel, install new panel, connect wiring.

l 09: 45-09: 50: Confirm monitoring data returns to normal.

l Total time consumed: 1.5 hours (of which on-site operation time only 45 minutes).

This comparison clearly shows that modular repair reduces total man-hours from 7.5 hours to 1.5 hours, an 80% efficiency improvement; reduces required personnel from 2 to 1, cutting labor costs by over 50%.

Reduced Repair Costs

A 50kW traditional commercial/industrial PV array, fault downtime for one day, direct loss exceeds 40 kWh per kW installed capacity × 0.8 RMB/kWh commercial/industrial electricity price ≈ 1600 RMB in electricity revenue. This doesn't include the labor cost of two electricians exceeding 1200 RMB per day. Modular design acts like a scalpel, precisely cutting out these two largest "cost tumors", bringing the total cost of a single repair down from the 3000-5000 RMB level to just over 1000 RMB.

1. Breaking it Down: How Labor Costs are Saved by 75%

A standard-sized (approx. 2m×1m) PV panel weighs around 25 kg. On a roof meters above the ground, one person handling and positioning such a large item is both dangerous and inefficient. Therefore, work orders often state "Electricians A and B, collaborate to replace faulty panel". According to industry standards, such work requires 6-8 man-hours total, from on-site inspection to completion. Calculating at a comprehensive rate of 120 RMB/hour for an electrician in a first-tier city, the labor cost for one repair is 2 people × 7 hours × 120 RMB/hour = 1680 RMB.

With panel weight reduced to 18-20 kg, and designed with quick-lock clamps and foolproof connectors, a skilled electrician can completely independently and safely perform the replacement. He only needs to bring a dedicated wrench and a spare panel. The work order process becomes: receive work order → go to fault point → dismantle old panel (10 min) → install new panel (10 min) → system verification (5 min). Total man-hours controlled within 1.5 hours, labor cost plummets to 1 person × 1.5 hours × 120 RMB/hour = 180 RMB. Labor alone saves 1500 RMB, a reduction of nearly 90%.

2. Power Generation Loss: From "Losing a Barrel of Oil" to "Spilling a Few Cups of Water"

The calculation for power generation loss is straightforward: Downtime × System Power × Local Electricity Price. Take a 30kW residential system as an example, assume local average effective sunshine hours are 4 hours/day, residential electricity price 0.6 RMB/kWh.

l Traditional Repair Solution: Diagnosis & localization 2 hours + Physical replacement 4 hours = Downtime 6 hours. Generation loss = 6h × 30kW × 0.6 RMB/kWh = 108 RMB.

l Modular Repair Solution: Diagnosis & localization 0 hours (done remotely) + Physical replacement 0.75 hours = Downtime 0.75 hours. Generation loss = 0.75h × 30kW × 0.6 RMB/kWh = 13.5 RMB.

This gap is drastically magnified in commercial/industrial scenarios. A 500kW warehouse rooftop project, with commercial/industrial electricity price of 1.0 RMB/kWh, generates 2000 kWh daily on average. Traditional repair downtime of 1 day means a loss of 2000 RMB; modular repair downtime of 2 hours means a loss of about 167 RMB. A single repair can avoid over 1800 RMB in generation revenue loss. For project owners sensitive to ROI, the generation reliability improvement brought by modular design directly affects the investment payback period.

3. Hidden Costs: Transportation, Insurance, and Risk Premium

Traditional repair, being time-consuming and uncertain, might allow an electrician to handle only one work order per day. His transportation cost (vehicle, fuel) needs to be allocated to this repair, averaging perhaps 200 RMB. Modular repair is efficient; one electrician can handle 3-4 similar issues per day, reducing the allocated transportation cost per work order to 50 RMB.

Regarding insurance, insurance companies often offer a premium discount of about 5%-10% for PV projects adopting modular, intelligent monitoring systems. Their actuarial models consider that systems capable of rapid fault localization and repair significantly reduce long-term risks like fire and leakage. For a PV power station with an annual premium of 10,000 RMB, this is a direct saving of 500-1000 RMB.

Adding up all these items, the real cost comparison for one repair becomes clear:

l Traditional Repair Total Cost: Labor (1680 RMB) + Generation Loss (108 RMB for 30kW system / 2000 RMB for 500kW system) + Transportation Allocation (200 RMB) = 1988 RMB - 3880 RMB.

l Modular Repair Total Cost: Labor (180 RMB) + Generation Loss (13.5 RMB - 167 RMB) + Transportation Allocation (50 RMB) = 243.5 RMB - 397 RMB.
