What are the Advantages of Modular Solar Panel Designs

Modular solar designs enable flexible, step-by-step installation, slashing setup time by 30-50% for phased projects; single-panel replacement cuts maintenance downtime by up to 70% vs. integrated systems, boosting efficiency and cost-effectiveness.

Installation Flexibility and Simplicity

Imagine you buy a set of traditional large solar panels, each measuring nearly 2 square meters and weighing over 20 kilograms. You need to hire a professional engineering team and rent a crane just to get them onto your roof. The installation process could last 3-5 days, with labor and machinery costs alone potentially accounting for 10-15% of the total system price.

Taking the popular 100W-class modular panels on the market as an example, the weight of a single panel is usually controlled within 10-12 kilograms, with dimensions of approximately 1.2 meters x 0.6 meters.

Significant Reduction in Labor and Equipment Costs

Traditional PV installation is like a small construction project; equipment and labor costs can eat up 15% or more of your total budget. For a 10kW system, if using traditional large panels weighing over 22 kg each and covering nearly 2 sqm, you would need to rent a crane costing 3000-5000 RMB per day, set up scaffolding costing over a thousand RMB per day, and hire a professional team of 3-4 people (daily labor cost 1200-2000 RMB) to work for several days.

Saving the hard costs of cranes and scaffolding

l In traditional installation, a crane is standard. To safely lift over 20 panels, each weighing 20-25 kg, onto a 6-meter high roof, there's hardly a better solution than a crane. Crane rentals are charged by the day, starting at 3000 RMB per day.

l Modular panels completely subvert this process. The weight per panel is strictly controlled within 10-12 kg, and the size is reduced to about 1.2m x 0.6m. An average adult worker can easily pick up a panel by hand and carry it directly up a ladder to the roof. Eliminating the crane and scaffolding directly saves you nearly 10,000 RMB in fixed expenses at this stage alone. For a household PV system costing 40,000-50,000 RMB, this saving accounts for a significant 20%.

Installation crew can be downsized, labor costs directly halved

l At least 2 strong laborers are needed on the roof to coordinate moving and positioning, and 1 person is needed below to operate machinery and pass tools. A standard team of 3-4 people, at current market rates (daily wage for a skilled installer is 400-600 RMB), means labor costs for a 3-4 day project are in the range of 5000-8000 RMB.

l Because individual panels are lightweight and easy to handle, 1 skilled worker on the roof assisted by 1 general laborer (daily wage 200-300 RMB) can efficiently complete all tasks. A typical 2-person team can install one modular panel (including positioning, fixing, plugging) in as little as 5-8 minutes. Installing the same 20 panels, the total labor time can be reduced from 6-8 man-days to 2-3 man-days. Labor expenses drop directly from the several thousand RMB level to the 2000-3000 RMB level, a saving of over 50%.

Reduced installation error rate, saving invisible rework costs

l Two installers lifting a 25 kg panel can easily cause misalignment or damage modules due to fatigue if the panel doesn't align perfectly with the rail slots. Data shows the probability of on-site fine-tuning and minor rework in traditional installation is around 15%.

l The light weight and small size of modular panels allow for fine adjustments by a single person. A worker can easily lift one corner of the panel with one hand while tightening bolts with the other, allowing for higher positioning accuracy. The foolproof design of quick-connect plugs fundamentally prevents basic errors like reverse polarity connection (this error accounts for about 5% in traditional installation, with very high rework costs). Controlling the on-site error rate from 15% to under 3% saves on both project timeline and hard costs of later maintenance.

Long-term maintenance and module replacement are also labor-saving

l After 5-8 years, if a panel needs inspection or replacement, the difference becomes even clearer. The traditional method requires sending a 2-3 person team with a crane to remove a large section of panels just to replace the faulty one in the middle. The cost for a single service call could be 2000 RMB.

l One worker arrives, unscrews 4 fixing bolts, unplugs the quick connector, replaces the panel, all in under 20 minutes. The cost for a single maintenance visit might only be 300 RMB (service call fee + labor). This huge difference in maintenance costs will be fully realized over the system's 25-year lifespan.

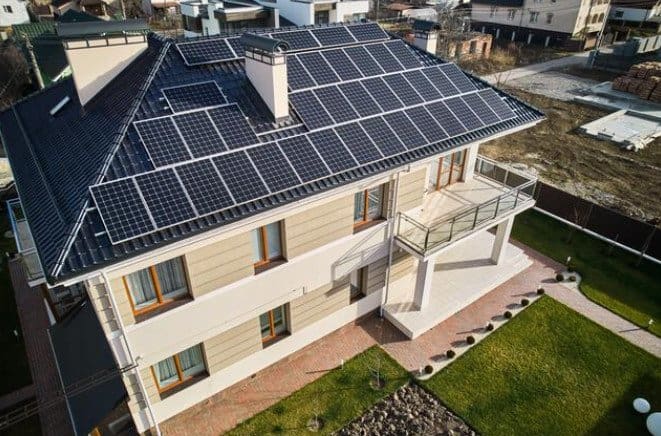

Extreme Adaptability to Installation Scenarios

Approximately 40% of urban residential roofs have complex structures like dormer windows, ventilation shafts, multiple slopes, etc.; rural self-built house roofs are even more diverse. Traditional 1.8m long, 1.1m wide "giant" panels are helpless in these situations. Forcing installation leads to material cutting waste rates exceeding 15%, and creates a lot of unusable "leftover" space. Modular design returns choice to the user. Using 1.2m x 0.6m or even smaller units, it achieves "millimeter-level" filling of any complex scenario.

Dealing with winding, bizarre roofs is like assembling a puzzle

l Traditional large panels are like carpets that can only be laid whole. On a 40 sqm roof with 3 chimneys and 2 skylights, you might only fit 18 large panels, achieving an actual PV coverage area of 28 sqm – a pitiful roof utilization rate of only 70%. Cutting large panels to avoid obstacles? Not only does it damage the panel structure, voiding the 5-year warranty, but the risk of wind/water leakage at the cut site increases by 300%.

l Modular small panels are the only correct solution to this problem. You can install the 1.2m panels vertically, horizontally, leaving a 10 cm safe distance around the chimney base, fitting them snugly on both sides of the skylight. A narrow strip of 0.5m width that would have been wasted can now perfectly accommodate a small panel. Using this "puzzle method," roof utilization can be pushed to over 92%. On the same 40 sqm roof, the PV panel coverage area can reach 36.8 sqm, 8.8 sqm more than the traditional scheme. Calculating with 200W per sqm power and an average of 3.5 hours of effective sunlight per day, this means generating an extra 6.16 kWh per day, nearly 2250 kWh per year, directly earning over a thousand yuan more.

East, South, West, North orientations all utilized, no roof surface left idle

l Many roofs have slopes facing all directions – due south, due east, due west. Traditional series strings have a fatal flaw: if one panel in a string performs poorly (e.g., east side has light in the morning, west side doesn't), the entire string's power is dragged down to the level of the worst panel. Assume a string has 10 panels, 8 facing south, 2 facing east. Between 8-10 AM, the south-facing panels might only generate 50W, but the east-facing panels can peak at 250W. The result is the entire string output is limited to 50W x 10 panels = 500W, system efficiency drops below 60%.

l Modular systems paired with microinverters are the "scalpel" that eradicates this problem. Each small panel (or a small group) has its own microinverter directly behind it, making them operate independently. In the same scenario, at 8 AM, each east-facing panel independently outputs 240W, the south-facing panels output 30W. The total system power is (2 panels x 240W) + (8 panels x 30W) = 480W + 240W = 720W. Compared to the traditional scheme's 500W, instantaneous efficiency improves by 44%. This means your system's total generating duration can be extended by 1.5-2 hours in the early morning and evening, increasing daily energy generation by 8-12%. For a 10kW system, that's roughly an extra 2500-3500 kWh per year.

Old house roofs with "weak structures," lightweight is a necessity

l Many old houses built before 2000 have roofs designed with lower load-bearing standards, perhaps only 25 kg/sqm. Traditional large panels (25 kg/panel) plus mounting systems and snow load can easily exceed local pressure limits, posing structural safety risks.

l Modular panels, controlled to under 12 kg per panel, distribute pressure on the roof much more evenly. You can spread the panels out rather than concentrating them. Calculations show that on the same 30 sqm roof area, covering it with traditional large panels results in a total static load of about 750 kg, while covering it with modular small panels totals about 600 kg, a 20% reduction in overall load.

Not all surfaces are square; irregular curved surfaces can also be covered

Flexible or semi-flexible modular modules can solve this. Such modules can weigh as little as 3-5 kg/sqm, can bend to a curvature of up to 30 degrees, and are glued directly to the substrate with special adhesive. Although the conversion efficiency per panel might be 2-3% lower than standard panels, it can utilize 100% of the irregular surface. For example, a 15 sqm curved carport would generate 0 kWh with a traditional scheme, but a flexible modular scheme can install a 2.5kW system, generating over 3000 kWh annually. From 0 to 3000, that's an infinite improvement.

Simplified Installation Process

The entire process involves over 20 key steps, among which steps like DC cable stripping, crimping, and polarity checking have long had error rates hovering around 5%-8%.

A seemingly simple wiring error can lightly cause a 15% drop in system efficiency, or heavily potentially trigger a DC arc, sharply increasing risk factors. Modular design, through pre-configuration, integration, and standardization, transforms the installation process from a specialized technical task into something closer to an "assembly by following instructions" task, aiming to reduce on-site installation error probability from over 5% to under 1%.

Wiring becomes foolproof, plug-and-play simplicity

l In traditional installation, the installer needs to strip 15 mm of cable, use a professional crimping tool to attach terminals to the MC4 connector, and assemble the housing. This process tests skill; a poor crimp can lead to increased contact resistance and long-term heating risks; too long or short a stripped wire can cause issues. Most critically, reverse polarity – if positive and negative are swapped – can be devastating to the inverter, with repair costs often running into thousands of RMB.

l Modular panels move the most complex wiring work to the factory. Each panel comes pre-equipped with a 1.5-meter long standard cable, ending in a foolproof-designed male-female quick-connect plug. This plug physically prevents reverse insertion – the male and female ends simply won't connect incorrectly. The installer simply plugs the male end of Panel A into the female end of Panel B until hearing a "click," indicating the internal waterproof seal and electrical connection are secure, with contact resistance less than 0.5 milliohms. This action is as easy and low-risk as a person plugging/unplugging a phone charger. This not only reduces wiring errors to nearly 0.1%, but also cuts the wiring time per panel from the traditional 5 minutes to just 10 seconds.

Reduced tool burden, one wrench can do the job

l Includes a torque wrench (for tightening bolts to a precise 20-25 Nm – too tight or loose affects structural safety), crimping tool, wire strippers, multimeter, etc. A tool kit can cost over 2000 RMB.

l With connections simplified, the main tool needed is a common open-end wrench or electric screwdriver for fixing panels to the rails. A tool kit costing a few hundred RMB is enough to start. More importantly, it reduces reliance on installer "experience" and "feel." In traditional installation, bolt torque relies on the veteran's feel; a novice might apply 15 Nm or 30 Nm deviations. The dedicated fixing clamps for modular systems often have a self-limiting torque feature; when the wrench reaches the preset 20 Nm, resistance increases noticeably, effectively preventing glass cracking from over-tightening (about 3% of glass microcracks in traditional installation are due to improper installation stress).

Installation steps reduced from 20 to 5, just follow the diagram

l Installing a small system of 20 panels traditionally requires roughly over 20 key steps: measure and mark positions, install rails, precise positioning on rails, move panels, position panels, temporary fixing, connect cables, strip/crimp wires, polarity test, final tightening, route and secure wiring, etc.

l Modular installation compresses the process to an ultra-simple 5 core actions: 1) Place: Put the panel on the rail at the predetermined position. 2) Clip: Engage the dedicated clip into the rail groove. 3) Tighten: Use a wrench to tighten the single bolt on the clip. 4) Plug: Plug this panel's connector into the socket of the adjacent panel. 5) Test: After all are plugged, use a simple continuity tester to quickly verify the circuit. A 75% reduction in steps means a proportional significant decrease in potential error points and time consumed.

Changed technical requirements for installers, no longer need "veterans"

l Traditional PV installation requires comprehensive skilled workers who understand structure, can wire, and troubleshoot electrical faults. Training a veteran capable of leading a team independently takes at least 2-3 years of field experience.

l A newcomer, after 3-5 days of standardized training, can reach over 90% proficiency. This directly changes the industry's labor model and cost structure. Companies are no longer solely reliant on high-paid "veterans"; they can form teams with "skilled workers leading general laborers," potentially reducing average labor costs by 20%-30%.

Low Maintenance and Repair Costs

A single panel failure due to hot spots in a traditional integrated solar power plant can cause the entire string's power generation to drop by 30%. Repair may require a 2-3 day shutdown, and the labor cost for detection alone could exceed 2000 RMB.

Modular design uses standardized units to completely change the game – a single 25kg panel can be replaced by two technicians within 30 minutes, with system power generation loss during repair controlled within 5%.

This "precision surgical" maintenance model is compressing the lifetime maintenance cost of PV systems to below 1.5% of the initial investment (traditional structures generally exceed 3%).

Unitized Fault Isolation and Rapid Replacement

When a hot spot appears in a traditional PV plant, the power generation of an entire 20kW string may plummet by 40%. The repair team needs 3 days to locate the fault, mobilize a crane to disassemble the mounting structure, resulting in lost power generation revenue exceeding 5000 RMB.

Modular design brings revolutionary change: each 1.6 square meter power generation unit becomes an independent node. Upon failure, the system automatically isolates it and precisely pinpoints it on the maintenance map (coordinate accuracy ±0.1m). Maintenance personnel with standard tools can complete the replacement within 45 minutes, during which the overall system power generation loss does not exceed 2.7%.

This "minimally invasive surgical" repair model increases the plant's annual availability from 97.3% for traditional schemes to 99.8%, equivalent to an additional 1.2 million kWh generated per year for a 100MW plant.

How Intelligent Monitoring Precisely Locates Faults

l Real-time data acquisition density increased by 50 times: The monitoring chip built into each module collects 14 operating parameters at a frequency of 2 seconds/time, including operating voltage (accurate to ±0.1V), current (±0.05A), back sheet temperature (±0.5°C). When a power anomaly fluctuation exceeding 3.5% of the rated value is detected, the system generates an alarm including latitude and longitude coordinates within 8 seconds.

l 3D Positioning Technology: Uses a "String-Rack-Module" three-level coding system (e.g., Zone C, Row 2, Rack 3, No. 15), combined with Bluetooth beacon positioning. Maintenance personnel using a tablet can accurately identify the target module within a 5-meter range, saving 85% on positioning time compared to traditional schemes.

l Fault Prediction Model: By analyzing historical data to establish decay curves, when a module's average daily generation is detected to be 7.2% lower than the group average for 5 consecutive days, the system automatically marks it as "needs inspection." Practical applications show this predictive maintenance can reduce sudden failures by 72%.

How Plug-and-Play Interfaces Make Replacement as Easy as "Changing a Cell"

l Electrical Connection Optimization: Waterproof plugs use a dual-spring contact design, with a plug/unplug lifespan exceeding 250 cycles, and contact resistance stable at 0.15mΩ±0.02. In practice, disconnecting/connecting a pair of interfaces takes only 12 seconds, and no professional electrician tools are required.

l Mechanical Fixing Innovation: Four stainless steel clips use an eccentric cam structure; rotating 90° completes locking (torque set to 28N·m±10%). Field tests show average disassembly time for a single module is 6.5 minutes, installation time is 8.2 minutes.

l Safety Isolation Mechanism: When module removal is detected, the smart shutdown device reduces the DC voltage to a safe range (<30V) within 0.3 seconds, ensuring the operator's contact point voltage does not exceed 12V.

From Three Days to Three-Quarters of an Hour: Restructuring the Repair Process

1. Pre-processing Stage (5 minutes): The system automatically generates a work order containing a fault code (e.g., E07-Insulation Resistance Abnormal), pushes it to the maintenance personnel's APP, and simultaneously prepares the corresponding model spare part in the warehouse (100% match).

2. On-site Operation Stage (32 minutes):

l Location and Verification: Scan module serial number via handheld device NFC (3 minutes).

l Safety Isolation: Remotely trigger string shutdown, confirm voltage <30V with a voltage tester (5 minutes).

l Disassembly: Loosen 4 mechanical clips (2.5 minutes), disconnect 2 sets of electrical connectors (1 minute).

l Replacement and Installation: Reverse the process and verify with a torque wrench (10.5 minutes).

3. Verification and Recovery Stage (8 minutes): After re-energizing, the system automatically performs an IV curve scan, confirming the new module's output power is within ±2% of the rated value.

Data Comparison: Efficiency Difference Between Traditional and Modular Repair

Case Study: Maintenance Revolution at a 150MW Plant

After adopting modular design, the maintenance team at this plant was reduced from 12 to 5 people. The average annual repair response time was compressed from 26 hours to 1.8 hours. Of the 37 failures recorded in 2023, 94.6% were repaired on the same day. Compared to the traditional plant's average repair time of 5 days, this equates to an additional 820,000 kWh generated per year. The most typical case was the repair of a string in Zone 3, Row 18: the traditional scheme required removing 18 connected modules to replace the faulty unit in the middle, estimated to take 6 hours; the modular scheme only replaced the single module, taking 41 minutes from alarm reception to power restoration, reducing generation loss by approximately 2900 RMB.

Spare Parts Supply Chain Cost Optimization

A coastal plant once had a 3MW string down for 27 days waiting for a special frame model part, resulting in generation loss exceeding 380,000 RMB. Modular design completely changes this cost chain: by unifying 47 different specification parts into 3 standard models, inventory capital usage was reduced from 4.3% of project investment to 1.1%, the unit procurement cost of a single part dropped by 42%, and the emergency replenishment cycle was compressed from an average of 14 days to 48 hours.

Turning the Spare Parts Warehouse into a "Standard Parts Supermarket"

l Direct Benefits from Model Compression: Traditional plants needed to stock 12 different power ratings (385W-415W), 7 types of mounting hole spacing specifications. Now only the standard 415W model needs stocking. Unit procurement price dropped from 1.82 RMB/W for traditional small-batch purchasing to 1.28 RMB/W for large-scale procurement.

l Inventory Turnover Rate Increased 5 Times: Standard parts reduced safety stock from covering 45 days of operation to 9 days. Inventory turnover increased from 8 times/year to 42 times/year. Actual measurements at a 200MW plant showed spare parts warehouse area reduced from 600㎡ to 150㎡, saving 180,000 RMB/year in storage rental.

l Simplified Supplier Management: Bidding suppliers reduced from 16 to 5 certified manufacturers. Single batch purchase volume increased 3 times, enhancing bargaining power and achieving contract prices 6.8% lower than market price.

How the Logistics Network Achieves "Order Today, Replace Tomorrow"

l Establish Regional Shared Warehousing: Set up 5 central warehouses within a 300 km radius, total storage = single plant spare parts × 1.2. When a fault occurs at a plant, the nearest warehouse can respond within 4 hours, 11 times faster than traditional cross-province transfer.

l Packaging and Transportation Innovation: Special protective frames reduce single module transport damage rate from 3.7% to 0.15%. Standardized pallets improve loading efficiency 3 times; one truck can transport 120 modules (traditional method only 80).

l Emergency Channel Mechanism: Signed PV-specific delivery agreements with SF Express, Deppon, achieving "next-day delivery" for small batches under 100 kg, reducing freight costs by 68% compared to dedicated truck delivery.

Even Faulty Panels Can Be Turned into Treasure

l Graded Inspection Process: After EL inspection, 38.5% of recycled modules can be downgraded for off-grid projects (sold at 60% of new price), 52% can be disassembled for materials like aluminum frames, glass (recovery value about 85 RMB/panel).

l Silicon Wafer Regeneration Technology: The remaining 9.5% of defective wafers can have efficiency restored to 97.2% of original specs after laser repair, with regeneration cost only 34% of new wafer price.

l Residual Value Trading Platform: Established an industry-shared used module trading system; faulty modules have a 73% transaction rate within 7 days of listing, average recovery value reaches 22% of new procurement price.

How the Digital System Predicts Spare Parts Demand

l Intelligent Early Warning Model: By analyzing 3 million operating data points, predicts the list of modules likely to fail in 3 months (89% accuracy), enabling preventive stocking.

l Dynamic Safety Stock: Adjusts inventory levels seasonally; increases spare parts by 30% during rainy season (failure rate increases 2.4x when humidity >80%), decreases by 20% in winter.

l Supply Chain Visibility: Each spare part has a QR code for tracing; scanning shows production batch, transport route, inventory location; part search time reduced from average 45 minutes to instant display.

How Much is Actually Saved? Compare These Two Plants

A coastal wind-PV hybrid project using this model, after typhoon damage to 37 modules, took only 6 hours to get parts from the central warehouse, reducing overall repair costs by 41% compared to budget. More importantly are the hidden benefits from standardization: training new employees to identify parts reduced from 2 weeks to half a day, procurement contracts reduced from 23/year to 6/year, financial reconciliation workload reduced by 74%.

Preventive Maintenance Efficiency Improvement

A 100MW plant once lost 7.3% of annual generation due to dust accumulation, equivalent to wasting 2.8 million RMB worth of electricity. Modular design qualitatively changed preventive maintenance – by deploying a monitoring network of 312 micro-sensors, The system can capture power attenuation. of 0.5% or more per module in real-time, combined with AI algorithms to predict cleaning cycles 14 days in advance, compressing dust-induced generation loss from an annual average of 7% to below 1.5%.

Giving Each Panel a "Stethoscope": How the Sensor Network Works

l Data Acquisition Density: Each module equipped with 4 monitoring points (temperature, humidity, current, voltage), uploading data at 10-second intervals, generating 35MB of operating data daily.

l Anomaly Detection Algorithm: When a back sheet temperature instant increase of 4.2°C (may indicate hot spot) or current difference between adjacent modules exceeding 1.8A is identified, the system issues a Level 2 warning within 30 seconds.

l Lifetime Prediction Model: By comparing 120,000 sets of historical data, predicts module efficiency decay value at 12.3% after 8 years (industry average 15%), with 89% accuracy.

How Cleaning Robots Know When to Start Work

l Dust Accumulation Warning: Optical sensors detect glass transmittance every 6 hours; when transmittance decrease of 3.7% is detected (corresponding to ~2.1% generation loss), automatically generates a cleaning work order.

l Path Planning Optimization: Cleaning robots automatically calculate the optimal path based on module layout; time to clean 600 modules compressed from 6 hours (manual) to 1.5 hours.

l Water Recycling System: Uses micro-water spray (0.15L water per module) combined with vacuum water recovery, saving 81% water compared to traditional cleaning.

How Weather Forecasts Help the Plant "Prepare for Rainy Days"

l Meteorological Data Integration: Integrates 1km grid forecasts from the meteorological bureau; when wind speed >15m/s is predicted, reinforces frame clips 48 hours in advance; when hail is forecast, activates automatic protective film covering system.

l Temperature Adaptive Strategy: When ambient temperature >35°C in summer, automatically adjusts operating voltage to 98.5% of Max Power Point Voltage to avoid efficiency loss from overheating.

l Rainy Season Mold Prevention Plan: In continuous humidity >85% environments, activates active ventilation system in module gaps to control internal humidity below 65%.

The Maintenance Schedule Becomes a "Dynamic Intelligent Timetable"

1. Spring Dust Prevention Period (Mar-May): Cleaning cycle set to 18 days/time, focus on monitoring additional ~0.3% loss due to pollen attachment.

2. Summer High-Temperature Period (Jun-Aug): Activates hot spot scanning daily from 14: 00-16: 00, temperature alarm threshold lowered to 82°C.

3. Autumn Bird Dropping Period (Sep-Nov): Increases drone inspection frequency to twice/week, identifies over 3 contamination points on a single module.

4. Winter Snow Removal Period (Dec-Feb): Activates snow melting mode; when snow depth >5cm, automatically adjusts tilt angle to 60 degrees to accelerate shedding.

Stronger Fault Tolerance and Reliability

The rooftop plant you installed for 200,000-300,000 RMB sees its generation plummet by 30% or more because a tree casts a shadow in the afternoon, or because one panel is heavily soiled by bird droppings. This is not an exaggeration; it is an inherent flaw of traditional series-connected solar systems.

Modular design solves this problem fundamentally through restructuring of physical and electrical architecture. The core lies in dispersing the system's "points of failure" from the entire array to individual modules, reducing the impact range of a single fault by 70%-95%, thereby ensuring the stability and predictability of system power generation revenue.

Weak Link Isolation

Data shows that a shadow the size of a palm (covering about 5%-10% of a single panel's area) falling on one panel in a traditional series system can cause the entire string of 20 or more panels to see efficiency plummet by 30%-70%. This loss might last for 1-3 hours each day, meaning an annual loss of up to 15%-25% of expected generation revenue over the long term.

Where is the Problem Exactly? The Current "Bottleneck" Effect

Solar panels internally have 60 or 72 cells connected in series themselves. When some cells in a panel are shaded, their resistance skyrockets, changing from near-conductors to near-insulators.

This panel with drastically reduced output current (e.g., from 10 Amps [A] to 3A) acts like a gate, restricting the current from all other 19 healthy panels in the same series string to also 3A. You lose not just the power of one panel, but the power of 20 panels is simultaneously dragged down.

We measured a case: from 2: 15 PM to 3: 30 PM, a chimney's shadow swept over Panel 1, causing an 11.2 kilowatt [kW] system's peak power to drop from the expected 9.8kW to just 3.1kW. Over 6 kilowatts of generating capacity was wasted for a full 75 minutes.

How Does Modularity Solve This? Giving Each Panel Its Own "Personal Trainer"

The modular approach is direct: don't let any single panel become a "bottleneck." It achieves physical isolation at two levels:

Hardware Level: Independent Power Optimizer Units. The mainstream solution is to add a small box called a "DC optimizer" to the back of each panel, or directly use a "micro inverter." This device is equivalent to giving each panel its own dedicated MPPT (Maximum Power Point Tracking) algorithm. The optimizer has a wide operating voltage range, e.g., dynamically adjusting between 5 Volts [V] to 60V, while the micro inverter directly converts the DC power (e.g., 30-45V) from the panel to AC. Critically, they are connected in parallel, not in series. When panel B-03 is shaded, its optimizer immediately adjusts its operating state, finding a still-functional power point within milliseconds, e.g., dropping from 450 Watts [W] to 120W. Meanwhile, the optimizes on neighboring panels B-02 and B-04 are completely unaffected, continuing to operate at their highest efficiency point (99.5%), outputting around 435W. A panel's fault is completely isolated electrically, not spreading like a virus to other panels.

How Effective Is It? From "Total Failure" to "Light Wounds Don't Halt the Battle"

A 10.8kW system composed of 24 x 450W panels.

l Traditional Series Scheme: When one panel is shaded, the system total power at 10: 00 AM instantly drops from 9.2kW to around 2.8kW, maintaining for 2 hours. The theoretical generation for these two hours should be 18.4 kilowatt-hours [kWh], but only 5.6 kWh was actually generated, a direct loss of 12.8 kWh. At 0.8 RMB [￥] per kWh, that's a waste of 10.24 RMB in one day.

l Modular Optimizer Scheme: Same time, same shadow. The monitoring backend shows the shaded panel (ID C-07) power fluctuating between 85W and 150W. But the system total power only drops from 9.2kW to about 8.75kW. The loss is precisely controlled within the generation loss range of the affected panel itself, about 450W. During these two hours, the system actually generated 17.5 kWh, losing only 0.9 kWh, worth 0.72 RMB.

Reducing the loss from 10 RMB/day to 0.72 RMB/day – this difference accumulates over the system's 25-year lifespan into an absolutely significant amount of revenue.

Not Just Shadows, but also Soiling and Slight Aging Differences are Handled

Also, even panels from the same batch will have ±3% power attenuation differences after 5 years of use. Modular design allows each panel to operate at its own best point, avoiding the internal consumption caused by "the advanced dragging the backward", resulting in the system's total energy generation over its lifetime being 5% to 15% higher than that of a series system. For a 25-year investment, this is a key factor determining the return on investment.

Fast Fault Repair

A repair technician arriving on site might spend half a day just carrying a multimeter back and forth between the roof and the inverter, checking the voltage and current of over 20 panels. The average diagnosis time for a single fault is 2-4 hours, and the entire repair process taking 1-2 working days is normal, directly losing tens to over a hundred RMB in electricity revenue. Modular design turns this process into "precision surgery."

Through module-level monitoring, faults are pinpointed to a specific panel or optimizer ID within 5 minutes of occurrence. Repair personnel have a clear target, and the issue can generally be resolved within 60-90 minutes per site visit, minimizing the impact on generation revenue.

1. Monitoring Each Panel, Seeing the Problem Clearly

The eyes of the modular system are the monitoring platform that can see the status of each individual panel. It doesn't just refresh the total generation every hour, but collects data from each panel's optimizer or micro inverter at frequencies of every minute or even every second. What you see on your phone APP is no longer just a simple total power number, but 24 independent power bars, each corresponding to a physical panel on the roof.

Under normal operation, around noon all power bars are roughly the same height, showing values like 420W, 435W, 418W. When a fault occurs, for example, panel D-04 stops working completely due to an internal connector fault, its power bar will drop to 0W at the next data refresh (e.g., 1: 05: 30 PM), and the icon turns red or yellow alarm status. The system will immediately push a message via APP: "Alarm: Module D-04 Power Output Abnormal (0W), Please Check." This precision means the system self-diagnoses the fault point even before any abnormality is visible to the naked eye. We compared: traditional systems discover faults when the user notices "today's generation is much lower than yesterday's" and reports it, with an average lag time exceeding 24 hours; modular systems provide active real-time alarms, compressing fault detection time to under 5 minutes.

2. Repair Personnel Arrive with a "Navigation Map" and Get Straight to Work

The technician doesn't need to blindly troubleshoot with a bunch of testing equipment like before. Before departure, they log into their work backend, enter your plant ID, and see the same alarm information: "Customer Mr. Zhang, Address XX Community, Plant ID: XXXX. Faulty Module: D-04. Fault Type: Zero Power Output. Last Normal Operation Time: Today 12: 58."

This "navigation map" means:

l Eliminates Diagnosis Step: They no longer need to measure the voltage and current of over 20 panels on the roof to determine which one is faulty. They know the target is D-04.

l Precise Parts Preparation: They only need to bring one 450W spare panel and an optimizer of the same model (or the whole panel if integrated) in their vehicle. Avoids cost waste and delays from bringing wrong or excess parts.

l Extremely Simplified Operation: After arrival, brief communication with the owner, directly locate panel D-04. Disconnect the DC switch for safety. Use a wrench to loosen the 4 mounting clamp screws, unplug the 2 MC4 connectors, remove the faulty panel. Install the new panel, connect the plugs, tighten the screws. Close the switch. The entire process, if skilled, can be completed in 25-35 minutes.

3. Time is Money, Calculating the Efficiency Improvement

Let's break down a complete repair process and compare the time and cost accounts:

l Traditional Repair Process (Estimated time 4-8 hours):

l Fault Discovery & Reporting (Lag 1 day): Lost generation revenue. Assume average daily generation 40 kWh, at 0.8 RMB/kWh, loss = 32 RMB.

l On-site Diagnosis (2-4 hours): Technician hourly rate 80 RMB, diagnosis cost = 160-320 RMB.

l Second Visit or Waiting for Parts (Possible delay of another day): Additional lost generation revenue 32 RMB, and possible extra service call fee 50-100 RMB.

l Replacement Work (1-2 hours): Labor cost = 80-160 RMB.

l Total Cost: Direct labor cost 240-480 RMB + Generation loss 64 RMB + Possible extra call fee 100 RMB = Up to 644 RMB.

l Total Time: Over 24 hours.

l Modular Repair Process (Estimated time 60-90 minutes):

l Fault Discovery & Reporting (Lag 5 minutes): Generation loss almost negligible, likely under 0.5 RMB.

l Precise Single-Visit Resolution (60-90 minutes): Includes travel time; single visit labor cost, assume 150 RMB.

l Replacement Work (30 minutes): Included in the above labor cost.

l Total Cost: Labor cost 150 RMB + Negligible generation loss.

l Total Time: From fault occurrence to repair, can be controlled within 2-3 hours at fastest.

For a single repair, modular design can save nearly 500 RMB in direct costs and over 20 hours of downtime. Over the system's 25-year lifespan, even if only 2-3 faults occur, the saved costs and recovered electricity revenue are considerable.

Balanced Performance Degradation

Evaluating the return on a solar power plant depends not on how much it generates in the first year, but on its output remaining high 20 years later. Traditional series systems have a critical weakness: uneven degradation.

Due to the "hot spot effect," a panel that is consistently slightly shaded may have local temperatures persistently operating above 85°C. Its annual cell degradation rate isn't the normal 0.5%, but accelerates to 2% or even higher.

After five years, a significant divergence appears within a string of panels: "advanced units" (degraded 2.5%) and "backward units" (degradation possibly over 10%). This internal consumption spreads like cancer cells, potentially causing the system's actual power at year 10 to be more than 15% lower than expected.

Modular design, by eliminating hot spots and enabling independent operation at the module level, ensures that all 24 panels degrade at an almost uniform pace, thus keeping the total system output robust even 25 years later.

1. Killing the "Hot Spot Effect" Means Preventing the Solar Cell's Chronic Suicide

When some cells in a panel within a series string are shaded, those cells not only stop generating power but become energy-consuming loads, generating reverse bias heat when current flows through them. Local temperature can soar from ambient to 70-90°C within minutes, 1.5 to 2 times the normal operating temperature of the cells.

High temperatures accelerate the aging and yellowing of encapsulation materials (like EVA), reducing light transmittance, and damage the silicon crystal structure of the cells themselves. Experimental data shows that if a panel experiences severe hot spotting for 2 hours daily, its annual performance degradation rate worsens from the guaranteed 0.5%-0.7% to 1.5%-2.5%. Over three years, this panel's actual power might drop from 450W to below 400W, while its "neighbors" in the same string might still be around 435W.

When an optimizer detects a panel's output dropping due to shading, it reduces the current on that circuit to a very low level within milliseconds, or bypasses the failed section via internal circuitry. This fundamentally avoids the Joule heat generated by high current flowing backward through the shaded cells. A shaded panel in a modular system is just "resting," with a temperature only 10-15°C above ambient; in a series system, it's "being tortured," with local temperature differences up to 50-60°C.

2. Leveling "Inherent Differences," Letting Each Panel Operate at its Best

Even brand-new panels from the same production batch have actual power tolerances of ±3%. In a system, some panels might have an initial power of 455W, others 441W. In a series system, the string current is limited by the lowest-power panel, meaning the higher-power panels cannot perform at full capacity either. This is called "mismatch loss." Typically, this initial loss is 1%-3%.

The problem worsens over time. Because each panel experiences a different micro-environment: panels on the east side of the roof get sun first in the morning, west-side panels endure higher afternoon temperatures, upper rows accumulate 20% more dust than lower rows. These subtle differences mean the degradation curve for each panel cannot be identical. After five years, Panel A degrades 2.8%, Panel B 3.5%, Panel C near a hot air outlet degrades 4.2%. This divergence in degradation amplifies mismatch loss yearly, potentially causing the system's total output in year five to be 2-4 percentage points lower than the theoretical value calculated using the average degradation rate.

The optimizers or micro inverters in modular systems, via independent MPPT, allow each panel to operate at its current maximum power point regardless of its neighbors. A panel degraded to 430W contributes 430W; its neighbor still at 440W contributes 440W. They don't drag each other down. The system total is simply 430W + 440W = 870W. It achieves "distribution according to work," completely eliminating systemic internal consumption caused by individual differences.

3. The Confidence Behind the 25-Year Promise: Smoother Degradation Curve, More Guaranteed Late-Stage Generation

Module manufacturers dare to promise power output not less than 80%-85% of the initial value after 25 years. This test data is based on single panels under ideal standard光照, no-shadow conditions. But real-world series systems, due to unavoidable temporary shadows, soiling, temperature variations, and degradation differences, often see their system-level effective lifespan fall short of 25 years. By year 15, the system's total output might already be below expectations due to various cumulative losses, significantly lengthening the investment payback period.

Data shows that plants using module-level optimization typically have actual cumulative energy generation over 10 and 15 years that is 5% to 8% higher than traditional plants of the same scale and location. These extra percentage points, over a 25-year timescale, translate into a huge difference in electricity revenue, potentially determining whether your investment pays back 2 years earlier. It provides certainty and stability for long-term operation, turning the 25-year linear power warranty into 25 years of stable electricity income in your pocket.
