How to wire multiple monocrystalline pv modules: 5 safe methods

Wire monocrystalline panels in series (max 1000V for inverters) or parallel (match inverter current, e.g., ≤20A); use MC4 connectors, add 25A fuses per string, seal junction boxes to prevent moisture ingress.

Series Connection for Higher Voltage

Connecting ten 400W panels, each with an open-circuit voltage (Voc) of 40V, creates a string with a total Voc of 400V. This higher voltage allows the use of thinner, more cost-effective 10 or 12 AWG copper wiring for runs over 30 meters, cutting cable costs by up to 25% compared to low-voltage parallel systems. Most grid-tie inverters require a DC input voltage between 300V and 600V to start operating efficiently, making series strings the standard for residential and commercial installations. However, this method demands careful attention to the temperature coefficient of voltage, as Voc increases by about 0.3% per degree Celsius drop, potentially exceeding inverter maximum voltage limits in cold climates.

To build a safe and efficient series string, follow these critical steps:

· Module Matching: Use identical modules, ideally from the same production batch. Mismatching specifications, even by a 5% difference in Voc or Isc, can lead to a performance loss of over 10% in the entire string due to the "Christmas light effect" where the current is limited by the weakest panel.

· Voltage Calculation: Always calculate the maximum system voltage (Vmax) using the module's lowest expected temperature. For example, if your panels have a Voc of 40V at 25°C and the temperature can drop to -10°C, the adjusted Voc per module becomes approximately 40V + (35°C drop × 0.3%/°C × 40V) = 44.2V. A 10-panel string would then have a Vmax of 442V, which must be under your inverter's 600V maximum input limit.

· Fusing: While individual strings often don't require overcurrent protection at the module level, the National Electrical Code (NEC) mandates a series fuse for each module if more than two strings are combined in parallel later. Use a DC fuse rated for at least 1.56 times the module's short-circuit current (Isc). For a panel with a 10A Isc, a 15A or 20A fuse is standard.

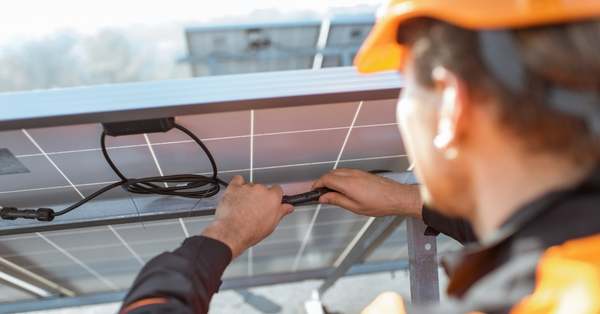

· Connectors: Use UL-rated MC4 connectors and ensure they are fully snapped together. A poor connection creates resistance, leading to localized heating that can exceed 80°C and pose a fire risk. Pull on the connectors after mating to verify a secure lock.

· String Size: The number of modules in a string is determined by your inverter's voltage window. Divide the inverter's minimum MPPT voltage by the module's Vmpp (voltage at maximum power) for the lower limit, and its maximum voltage by the module's Voc (adjusted for cold) for the upper limit. A typical 600V inverter with a 250V-550V operating range might support a string of 9 to 12 modules with a Vmpp of 35V and a cold Voc of 44V.

The primary risk in series connections is a high DC voltage that can sustain an arc if a connection is broken, which is why all disconnections must be done with a properly rated DC disconnect switch. Never break a connection under load.

Parallel Connection for More Current

Connecting four 400W panels in parallel, each with a maximum power current (Imp) of 10A and an open-circuit voltage (Voc) of 40V, results in a combined current output of nearly 40A at roughly 40V. This high-current, low-voltage setup minimizes the risk of sustained DC arcing but introduces new challenges in managing ampacity and heat generation across wiring and connectors.

To implement a safe and efficient parallel connection, focus on these critical aspects:

l Overcurrent Protection: This is the most critical safety rule. Each module branch must have a fuse or circuit breaker. The NEC requires this to protect against reverse current flow. If a module short-circuits, the full current from all other parallel panels can backfeed into it, exceeding the module's 15A fuse rating and causing the internal wiring to overheat, potentially starting a fire. Use a DC fuse rated for 1.56 times the module's Isc. For a panel with an Isc of 10.5A, a 15A or 20A fuse is standard.

l Wire Sizing: Ampacity is the top priority. The main combined positive and negative cables must be heavily oversized to handle the total cumulative current. For a four-panel array with a combined Imp of 40A, you need a minimum wire gauge that can handle at least 56A (40A x 1.25 NEC factor). 6 AWG copper cable, rated for about 65A at 75°C, is a common and safe choice for this run to prevent resistive heating. Undersizing wire to 10 AWG (rated for 30A) would cause a voltage drop exceeding 3% and create a severe fire hazard.

l Combiner Box: A weatherproof combiner box with individual fuse holders for each branch is non-negotiable for professional installations. It provides a single, organized point for merging circuits. For a 4-panel array, a 4-input combiner box with a 100A bus bar rating is typical. The main output breaker should be sized to protect the downstream cable; a 60A DC breaker is common for a 40A combined load.

l Connector Integrity: Use only UL-listed MC4 connectors and branch connectors (Y-connectors) rated for the full combined current. A cheap, non-UL-listed Y-connector rated for 30A will fail and overheat when asked to carry 40A continuously.

The following table summarizes key design parameters for a parallel system using four 400W panels (Imp: 10A, Isc: 10.5A, Voc: 40V):

The most significant risk in parallel systems is the immense fault current available from multiple modules. A short circuit in the main combined cable can draw over 200A before the fuse blows, enough to violently vaporize metal and ignite surrounding materials. Proper fusing and correctly sized modules rated for the calculated fault currents are essential to mitigate this danger.

Series-Parallel for Balanced Output

A series-parallel configuration combines multiple strings of series-connected modules wired in parallel to achieve both higher system voltage and increased current output. This hybrid approach is the workhorse for most residential and commercial installations exceeding 4 kW, as it optimally matches the voltage and current input windows of modern string inverters. For instance, using twenty-four 415W monocrystalline panels (Vmp: 35.2V, Imp: 11.8A, Voc: 41.8V), you can create two strings of twelve modules each. Each series string delivers approximately 422V (35.2V x 12) at maximum power and 11.8A. When these two strings are combined in parallel, the resulting output to the inverter is 422V at 23.6A, yielding a theoretical 9.96 kW. This balances the need for high voltage to minimize wire cost and loss over a 15-meter run while staying within the 600V DC limit and the inverter's 25A maximum input current rating.

Mismatched strings, such as one with twelve 40V Voc panels and another with eleven 40V Voc panels, create a voltage imbalance of over 40V. This forces the strings to operate at different points on the I-V curve, reducing total energy harvest by up to 15% and potentially triggering inverter fault codes. Each parallel string must be protected by a dedicated fuse or breaker placed in the combiner box. The fuse rating is calculated by multiplying the module's short-circuit current (Isc) by 1.56. For a panel with an Isc of 12.5A, this requires an 18A or 20A DC fuse per string to safely interrupt potential back feed current from all other strings in the event of a fault.

The individual series strings, carrying around 12.5A, can typically use 10 AWG copper wire. However, the main output conductors from the combiner box, carrying the combined current of all strings, must be significantly larger. For two strings with a combined current of 25A, the NEC requires sizing for a minimum of 31.25A (25A x 1.25), necessitating 8 AWG copper wire as a minimum, though many installers opt for 6 AWG for longer runs to keep voltage drop below 2%.

If a single module in a string fails or becomes heavily shaded, it can reduce the current output of that entire 12-panel string by up to 80%, effectively cutting the system's total power generation nearly in half. Regular monitoring of individual string performance through the inverter's data is crucial for identifying and troubleshooting such issues promptly.

Independent Strings with Separate MPPTs

A typical 10 kW residential system might have one string of ten 400W panels facing south and another string of ten facing west. A single-MPPT inverter would force both strings to operate at a compromised voltage, losing up to 15-20% of the potential energy harvest from the non-optimal string. A dual-MPPT inverter, however, allows each string to operate at its own ideal voltage and current, such as 380V/10.5A for the south array and 320V/12.5A for the west array, maximizing energy production by independently optimizing each input.

The core advantage of independent MPPTs is the mitigation of mismatch losses between strings. Each MPPT channel continuously scans its connected string to find and lock onto the precise voltage that extracts the absolute maximum power, a process that occurs hundreds of times per second. For a string experiencing intermittent shading from a chimney, its MPPT might rapidly adjust between 300V and 350V to find the best operating point, while the other unshaded string's MPPT remains steady at 400V. This independent operation prevents the performance of the entire array from being dragged down by a single under performing section.

A standard 10 kW string inverter with a single MPPT might cost 2,500,whileacomparableunitwithtwoindependentMPPTchannelstypicallycarriesapricepremiumof15−20375-$500. This investment protects against design constraints and shading losses.

Implementation requires careful attention to the specific parameters of each MPPT channel. Installers must configure each string according to the inverter's manual, ensuring the number of modules per string aligns with the voltage window for that particular channel. A common design uses two strings of equal length, but multi-MPPT inverters can also accommodate strings of different sizes.

For instance, one channel could support a string of twelve modules (Voc 495V) while the other supports a string of ten modules (Voc 412V), as long as each remains within its channel's minimum and maximum operating limits. Wiring is straightforward: each independent string is routed directly to its designated terminals on the inverter, often within a dedicated combiner box that provides separate fusing for each circuit. The key to maximizing the benefit of this technology is to group modules with similar operating environments on the same MPPT. All south-facing modules should be on one tracker, all west-facing on another, and any permanently shaded strings should be isolated onto their own channel to prevent them from impacting the performance of unshaded arrays.

Using a Combiner Box Safely

A combiner box is the central hub for parallel PV string connections, providing critical over current protection, consolidation points, and a main DC disconnect. For a typical 12 kW system with three parallel strings of 415W modules (Isc: 12.8A each), the combiner box houses the fuses for each string and a main breaker for the output to the inverter. This setup is non-negotiable for code compliance and safety, as it prevents a fault in one string from being fed by the others—a scenario that could push over 38A of reverse current into a failed circuit, far exceeding the 15A rating of module cables and causing insulation to melt in under 10 seconds. A properly rated NEMA 3R or 4X enclosure rated for outdoor use with a minimum IP65 waterproof rating protects the internal modules from moisture and dust, which can cause ground faults and corrosion over time. The internal bus bar must be rated for the system's maximum current; for a 12 kW array, a 100A bus bar is standard to handle the combined load with a safety margin.

To ensure safe and reliable operation, follow these critical installation steps:

· Fuse Sizing: Calculate the fuse rating for each string by multiplying the module's short-circuit current (Isc) by 1.56. For a panel with an Isc of 12.8A, this requires a 20A DC fuse (12.8A × 1.56 = 19.96A). This specific sizing ensures the fuse will blow only during a true fault, not during normal operation surges like cloud-edge effects.

· Wire Management: Use copper wiring exclusively. The individual string inputs, carrying around 13A, require 10 AWG wire. The main output cable, carrying the combined current of all strings, must be sized for at least 1.56 times the total Isc. For three strings (38.4A combined Isc), the minimum capacity is 60A, requiring 6 AWG copper wire for runs under 20 feet to prevent resistive heating and keep voltage drop below 2%.

· Grounding: The combiner box enclosure itself must be grounded with a dedicated 10 AWG or larger copper grounding conductor connected to an equipment grounding bus bar inside. All module negative leads should be isolated unless specifically using a bonded system, following the inverter manufacturer's instructions to prevent ground fault alarms.

· Disconnect Rating: The main DC disconnect breaker must be rated for the system's maximum voltage and current. For a system with a 550V DC maximum, use a breaker rated for at least 600V DC and a current rating matching the calculated load. For a 60A circuit, a 60A, 600V DC disconnect breaker is required to safely interrupt the full current under load.

Installation time for a qualified electrician is typically 1.5 to 2 hours for a 4-string combiner box, including mounting, wiring, and torque checks. The cost for a quality 4-input combiner kit with fuses and a main breaker ranges from 250to400. Always perform a final torque check on all lug connections with a calibrated torque wrench—typically 25-30 in-lbs for 10 AWG terminations—to prevent hot spots caused by loose connections. After energizing, use a thermal imaging camera or infrared thermometer to scan the box under full load; any terminal showing a temperature rise more than 20°C above ambient indicates a loose connection requiring immediate Power outage and repair.
