What Signs Indicate Your Solar Panels Need Attention | Performance Drop, Physical Damage Alerts
Power generation amount dropping > 10% needs troubleshooting; appearing crack, hot spot or PID phenomenon should immediately be inspected. Suggest using IV curve and infrared thermal imaging every half year to inspect once, timely locate fault module and replace.
Performance Drop
Just beginning
Photovoltaic system at installation finished put into running's front 1,000 hours inside, monocrystalline silicon module will appear 1% to 3% light-induced degradation ratio. A piece nominal peak value being 400 watts' panel, experiencing initial 30 days' sunshine after, actual output power lowers to 388 watts to 396 watts' range inside. Panel back face's label on recorded's test data sample, is at environment temperature 25 degrees Celsius, per square meter 1000 watts' illumination intensity under measured's baseline.
When the summer roof temperature reaches 65 degrees Celsius, the photovoltaic glass surface's actual working temperature climbs to 50 degrees Celsius above. According to a negative 0.35% per degree Celsius temperature coefficient, to calculate variance, the environment temperature exceeds 25 degrees Celsius baseline 25 degrees, a single piece module loses about 8.75% of its output power. Monitoring equipment recorded the single day total power generation amount at an air temperature of 35 degrees Celsius' time period, compared to the average air temperature of 20 degrees Celsius' climate condition, reduces 2.5 degrees electricity.
System rated capacity being 6 kilowatts' equipment matches output power being 5 kilowatts' inverter, realizes 1.2 to 1's direct current to alternating current capacity allocation ratio. Every day from 11 o'clock in the morning to 2 o'clock in the afternoon, 3 hours inside, the direct current side produces 5.8 kilowatts' electric energy, and the inverter puts exceeding 5 kilowatts' upper limit's 0.8 kilowatts power cut away.
· Inverter's daily running log recorded's conversion efficiency continuously 14 days from standard's 97.5% drops to 92% below, system internal increases about 5.5% heat loss proportion.
· Internal capacitor aging leads to alternating current voltage output deviating from 240 volts' standard median value, voltage reading lower than 216 volts or higher than 264 volts, equipment cuts off grid-connected connection as long as 300 seconds.
· Every experience 1 time as long as 5 minutes' disconnection restarting process extra consumes 0.05 degrees electricity, every day restarts 5 times loses 0.25 degrees electricity's electricity fee revenue.
Fear being blocked light
Roof surrounding growing tree canopy at every day morning 9 o'clock blocks panel region's 5%, whole string module's output current from standard's 10.5 amperes suddenly drops to 6 amperes' trough. A piece by 144 pieces half cells formed's panel internal standard matched 3 pieces bypass diodes. Single piece cell being bird dropping covering area exceeding 30%'s critical point time, corresponding's diode at 0.6 volts' voltage drop parameter under starts conducting mechanism. Starting 1 piece diode immediately let that piece panel lose 33.3% of its power generation ability, power output from 400 watts lowers to 266 watts.
Shading object continuously 180 days not cleaned, being shaded region's local temperature exceeds 85 degrees Celsius, local cell's conversion efficiency shrinks 40% to 50%. Inverter's internal maximum power point tracking controller conducts 100 times above's voltage sampling calculation, looks for exceeding 98% peak power output point. Module surface covering thickness reaching 0.2 millimeters' raised dust, glass light transmittance lowers about 8.5%, optimal working voltage from standard's 35 volts deviates to 31 volts' lowest value.
· As long as there are 60 days' rainless season inside, dust accumulation leads to an overall power generation amount present linear downward sliding trend, 1st week drops 2%, to 8th week drops up to 15%.
· Hiring cleaning team single time labor fee at 100 US dollars to 150 US dollars' budget range inside, using water pressure controlled at 3 megapascals below's pure water equipment cleaning 15 pieces of panels consumes time about 45 minutes.
· Cleaned after the initial 7-day cycle inside, panel toward every day receiving's 5 kilowatt-hours per square meter's solar radiation absorption rate recovers to factory parameter's 99%.
Check wire
Connecting the roof module and inverter's direct current cable length exceeds 30 meters, using cross-sectional area being 5.3 square millimeters' 10 number specification copper wire produces about 1.5% voltage drop deviation. Line terminal place because rain water erosion increases 0.5 ohms' contact resistance, at 15 amperes' load produces 112.5 watts' transmission power loss. The system running full five years after, grounding end and cell between exists as high as 600 volts' direct current potential difference, leakage current increases 0.1 milliamperes' tiny numerical value.
Tiny leakage current accumulates 12 months' time cycle, let the whole string panel's total power generation amount extra evaporate 2% to 4% of the percentage. Every 12 months, the system does one time 1500 volts level's insulation withstand voltage test, reading lower than 50 megohms' standard deviation, needs to spend about 120 US dollars' cost to replace a 15-meter-long damaged cable. Put every day's actual measured power generation degree number divided by system installed kilowatts number, unit kilowatt daily power generation amount maintains at 3.5 degrees to 4.5 degrees' reasonable range inside.
· Calculate out performance ratio continuously 3 months lower than 75%'s warning line, 25%'s theoretical solar radiation energy in conversion process inside loses.
· According to the power grid per degree electricity 0.15 US dollars' recycling price calculation, 6 kilowatts' system performance ratio from 80% drops to 70%, every day less generates 2.5 degrees electricity, one year 365 days reduces 912 degrees electricity's quantity.
· Every year, Bill earns 136.8 US dollars' electricity fee return, every interval 2 years inputs 80 US dollars use drone at 50 meters high altitude scan, 20 minutes inside measure out temperature difference greater than 5 degrees Celsius' fault module, exchange back every year 150 US dollars' revenue.
Frequency and bracket
Alternating current end output's electric energy frequency must strictly maintain at 60 hertz's fixed numerical value, and up and down fluctuation amplitude cannot exceed 0.5 hertz's tiny interval. When the power grid ends, the input frequency instantly soars to 60.6 hertz, the inverter's internal frequency protection circuit in 0.16 seconds' time cuts off as high as 24 amperes' alternating current output.
Equipment every day at sunrise, after illumination intensity reaches per square meter 50 watts, time automatically turns on the machine, at dusk illumination drops to per square meter 20 watts' threshold time enters standby state. Morning and evening, each experience 1 time, lasting about 15 minutes, weak light starting and stopping stage, conversion efficiency at this time is only at the normal 70%'s level, every day wastes about 0.15 degrees' potential power generation amount.
System back face installed's aluminum alloy bracket needs to bear per second 45 meters wind speed brought's physical pressure, panel tilt angle deviating from optimal latitude coordinate 10 degrees' situation under, whole year received's sunshine total amount reduces about 4.8%. Every piece of equipment weighs 22 kilograms, and the panel backplane long term bears 60% above's environment humidity, water vapor transmission rate exceeds every day per square meter 2 grams' upper limit, cell's metal grid line oxidation speed speeds up 3 times.
· Every 48 months, toward fixing bolts, apply 25 newton meters' torque, re-tighten, spend about 40 US dollars' hardware budget, prevent panel shaking leading to a hidden crack probability increase of 20%.
· Inverter heat dissipation fan at using 25,000 hours after, rotation speed from per minute 3000 revolutions drops to 1800 revolutions, machine chassis internal temperature rises 8 degrees Celsius, dragging down overall system efficiency lowers 1.2%.
· Replace 1 piece size being 12 centimeters' industrial level heat dissipation fan cost about 25 US dollars, spend 30 minutes' replacing time, let daily 50 degrees electricity's full load output recover to 99%'s accuracy.
Physical Damage Alerts

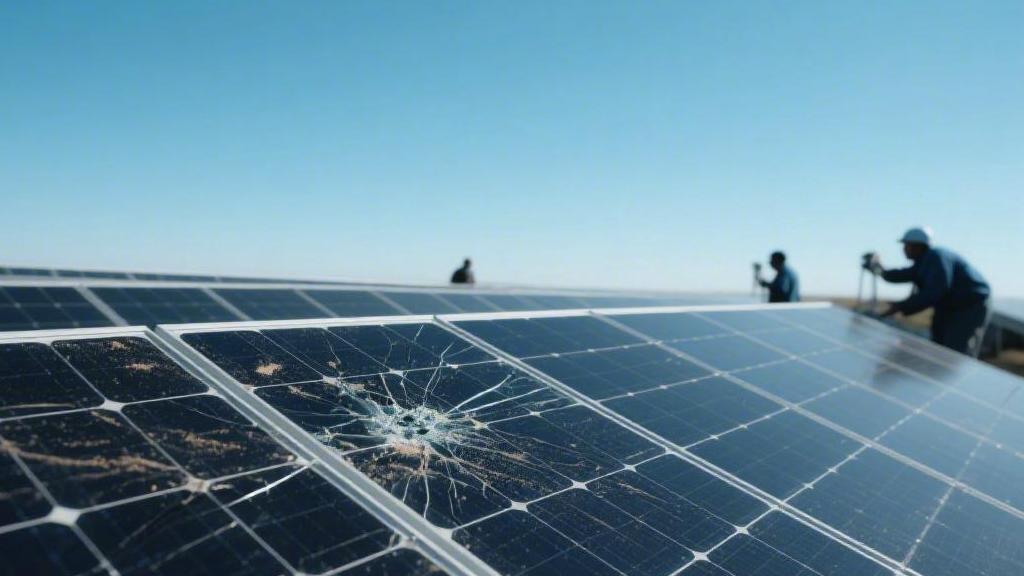

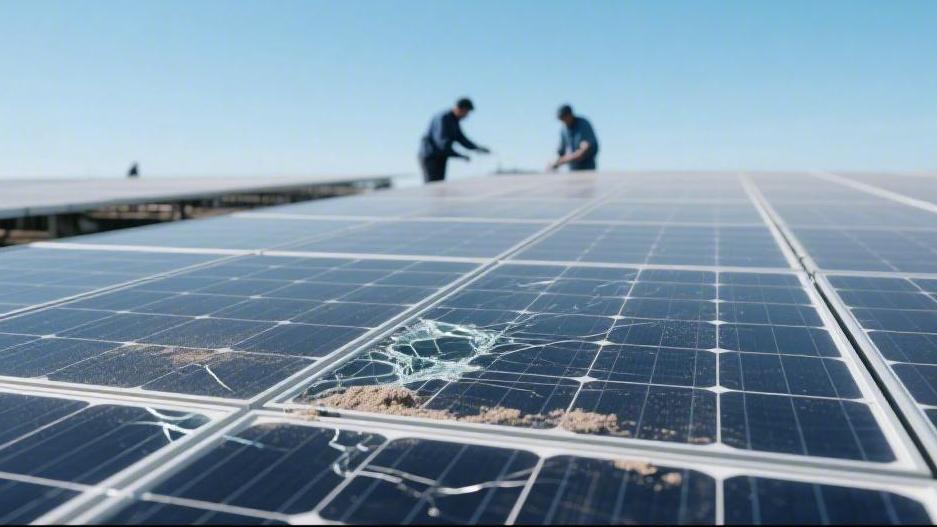

Glass broken slag
Photovoltaic panel front face covered's low iron high transmittance tempered glass standard thickness is divided into 3.2 millimeters single glass and 2.0 millimeters double glass two kinds of conventional specifications. Meteorological observation data records show, when the diameter reaches 25 millimeters, hail with a falling speed of 23 meters per second impacts the panel surface, producing physical shattering probability is 12%. Once diameter exceeding 45 millimeters' hail falls, glass happens network shape breaking's probability climbs to 85% above.
The whole piece panel happens to shatter after, originally's 91.5% light transmittance instantly slides down to not enough 65% extremely low level. Even if the glass surface has no naked eye visible physical damage, the impact produced's mechanical shock wave will leave behind a width not enough 50 micrometers' tiny internal crack in the monocrystalline silicon cell. Experiencing as long as 90 days' daytime and deep night severe temperature difference alternation, highest reaching 35 degrees Celsius' thermal expansion cold contraction effect let internal crack's length average per month extend 1.5 millimeters.
Damaged region's local resistance value increases 0.8 ohms, at sunlight continuous irradiation under forms exceeding 95 degrees Celsius' abnormal high temperature point. Spend about 250 US dollars' single time budget hire inspection personnel use professional infrared video camera conduct airborne scanning, is able to accurately locate out temperature difference standard deviation greater than 12 degrees Celsius' heating region. Single piece panel physical shattering leads to whole string 12 pieces modules' series current suffered wooden barrel effect's physical restriction, total output power at noon time from standard's 4.8 kilowatts suddenly drops to 3.2 kilowatts below, daily about loses 8 degrees electricity's full load output.
Frame bent
Panel four surroundings wrapped's anodized aluminum alloy frame thickness normally is 30 millimeters or 35 millimeters, bearing panel overall 22 kilograms' absolute mass. At altitudes exceeding 1500 meters' high latitude snowy region, the panel front face needs to bear as high as 5400 pascals' static snow load pressure, equivalent to per square meter load-bearing 550 kilograms' physical gravity distribution.
When winter accumulated snow thickness exceeds 40 centimeters and continuously 120 hours above, aluminum alloy frame's center point happens exceeding 15 millimeters' physical deformation deviation. Bolt installation hole position's metal yield strength at bearing exceeding per second 35 meters' gust load time, faces 2400 pascals' upward wind pressure pulling. Fixed at installation guide rail's 4 pieces stainless steel pressing blocks, bearing's wind force vibration frequency reaches per second 5 hertz, as long as 6 months' cold winter cycle passes, nut's tightening torque from standard's 15 newton meters irreversibly attenuates to 8 newton meters. Frame serious bending leads to glass and metal frame gap places silicone sealing ring appearing width exceeding 2 millimeters' physical crack.
Every time the rainfall amount reaches per hour 15 millimeters, the medium rain level, rain water following 0.5 millimeters' gap seeps into the internal EVA film layer. Moisture concentration exceeds ten thousandths five's critical point, cell surface's silver grid line happens serious electrochemical corrosion, module overall's photoelectric conversion efficiency with every year 2.5% rate accelerates dropping.
Backplane peeling
Module back face's insulation protection layer normally by thickness being 0.3 millimeters' fluoropolymer material made and formed, undertaking blocking water vapor and ultraviolet ray intruding's physical barrier heavy task. Experiencing accumulated exceeding 15000 hours' outdoor strong ultraviolet ray continuous irradiation, polymer material's molecular chain happens physical breaking, backplane material's tensile strength from initial's 50 megapascals cliff style drops to 20 megapascals below.
At relative humidity long term maintaining at 85% above's coastal humid climate zone, water vapor transmission rate exceeds every day per square meter 1.5 grams' safe upper limit. Penetrating into internal moisture and encapsulating EVA material happens through a slow chemical reaction, releasing out a concentration of 0.05 moles per liter's acetic acid substance. Internal produced's acidic liquid pH value lowers to 4.5 around, fast corrodes thickness only being 0.15 millimeters' copper internal busbar.
Backplane surface appears area exceeding 5 square centimeters' yellow or brown dense bubbles, internal laminated structure's physical adhesion force lost 60%'s proportion. Insulation resistance parameter from factory standard's 1,000 megohms drops to not enough 40 megohms' median value. System inverter at every day morning humidity highest's time period detects grounding leakage current exceeding 300 milliamperes' abnormal alarm value, equipment forcedly cuts off grid-connected program, leading to whole set system stop machine as long as 4 hours. Replace a piece because the backplane is seriously aging, leaking electricity's panel, equipment hardware procurement adding on 75 US dollars' single time door-to-door labor installation fee, overall spending about maintains at 280 US dollars to 320 US dollars' budget interval.
Wire being bitten rotten
Installed at roof tile and panel back part between physical gap height normally at 10 centimeters to 15 centimeters between, for squirrels or birds provides sheltering wind blocking rain's natural nesting space. Exposed to the outside's direct current cable outer layer wrapped thickness being 1.2 millimeters' cross-linked polyethylene insulation sleeve. Small animals frequent physical gnawing let the internal copper core completely exposed to oxygen in 21% air inside, oxidation reaction let line's electrical conductivity in short 30 days inside lowers 4%. When damaged cables' positive and negative two poles distance is smaller than 5 millimeters, encountering relative humidity reaching 90% early morning heavy dew water environment, 30 amperes' high voltage direct current breaks through air forming a temperature as high as 3,000 degrees Celsius' dangerous electric arc.
Inverter built-in arc fault circuit breaker in 0.2 seconds' extremely short time inside recognizes abnormal frequency's current waveform and forcibly cuts off physical circuit. In order to prevent small animals gnawing leading to physical insulation damage, spend 150 US dollars' budget to purchase a roll length being 30 meters, mesh hole physical size being 12.5 millimeters' PVC coating galvanized steel wire mesh, along panel four surroundings edge conduct full enclosed physical interception. Add install protective net to let expensive cable physical damage probability from originally's 15% large amplitude lowers to not enough 1%'s tiny numerical value.
