5 Main Energy Losses In Solar Cells
Solar cells lose energy through reflection (~4%), thermalization (~30% from excess photon energy), recombination (5–20%), resistive losses (2–5% in contacts/wiring), and spectral mismatch (15–20% from unused infrared/UV light). Advanced anti-reflective coatings and PERC cells mitigate these losses.
Light Absorption Limits
Solar cells can only convert a portion of sunlight into electricity because not all light is absorbed efficiently. Silicon-based solar cells, which dominate 95% of the market, typically absorb light best between 400 nm and 1100 nm wavelengths, missing about 20% of the sun’s energy due to insufficient absorption in the infrared and ultraviolet ranges. Even high-efficiency cells like monocrystalline silicon max out at around 22-24% lab efficiency, with commercial panels averaging 18-20%. Thin-film technologies like cadmium telluride (CdTe) and CIGS perform slightly better in low-light conditions but still lose 10-15% of potential energy due to limited spectral response.
A key issue is the bandgap mismatch—silicon’s 1.1 eV bandgap means photons with energy below this threshold (like far-infrared) pass through unused, while high-energy photons (UV) lose excess energy as heat. Multijunction cells stack materials with different bandgaps to capture more of the spectrum, but their complexity raises costs to 3-5 per watt compared to 0.20-0.30 for standard silicon panels. Another factor is material thickness—while silicon wafers are usually 160-180 µm thick, research shows that 90% of light absorption happens in the first 40 µm, meaning 60-70% of the material adds cost without significantly improving output.
Factor | Impact on Efficiency | Typical Loss Range | Possible Improvements |
Bandgap mismatch | Wasted IR/UV light | 15-20% | Multijunction cells (+5-10% efficiency) |
Reflection at surface | Lost incoming photons | 3-5% | Anti-reflective coatings (reduces loss to <1%) |
Material thickness | Excess silicon cost | 10-15% cost penalty | Thin-film or textured surfaces |
Low-light conditions | Reduced current output | 10-30% lower yield | Perovskite-silicon tandem cells |
One promising solution is light trapping—texturing the cell surface or using nanostructures to bounce light back into the material, increasing absorption by 10-15%. Some experimental designs achieve near-100% absorption for specific wavelengths, but scaling these remains costly. Another approach is spectral shifting, where materials like quantum dots convert UV light into usable wavelengths, though this adds 0.10-0.50 per watt in production costs.
Heat Loss in Materials
When sunlight hits a solar panel, only about 15-20% gets converted into electricity—the rest turns into heat, which directly reduces efficiency. For every 1°C increase in panel temperature, silicon solar cells lose 0.3-0.5% efficiency, meaning a rooftop panel at 60°C (common in summer) can be 10-15% less efficient than at 25°C (standard test conditions). Thin-film technologies like CdTe handle heat slightly better, with efficiency drops of 0.2-0.3% per °C, but they still suffer from thermal degradation over time.
Heat doesn’t just hurt performance—it also shortens panel lifespan. Most solar warranties guarantee 80% output after 25 years, but if operating temperatures regularly exceed 85°C, degradation rates can accelerate by 0.8-1.2% per year instead of the typical 0.5%. This means a panel expected to last 30 years might only deliver 70% efficiency by year 20 in hot climates.
Factor | Impact on Solar Cells | Typical Loss Range | Mitigation Strategies |
Temperature coefficient | Efficiency drop per °C | 0.3-0.5% (Si), 0.2-0.3% (CdTe) | Active cooling, better ventilation |
Hot climate degradation | Faster efficiency loss | 0.8-1.2%/year vs. 0.5%/year | Heat-resistant materials (e.g., backsheet upgrades) |
Thermal runaway risk | Cell damage at >85°C | 5-10% permanent loss per incident | Smart inverters with temp cutoffs |
Heat-induced resistance | Higher internal power loss | 3-8% reduced output | Wider busbars, low-resistance contacts |
One major issue is thermal resistance in wiring and connections. Standard copper busbars lose 2-5% of power as heat under full sun, and cheap solder joints can increase resistance by 10-15% over 10 years, further raising temperatures. Some manufacturers now use multi-wire designs or conductive adhesives, cutting resistive losses to under 1%.
Another problem is heat retention in mounting systems. Dark-colored rooftop racks can reach 70-80°C, heating panels from below. Switching to reflective or ventilated mounts can lower operating temps by 5-10°C, recovering 2-4% efficiency. In large solar farms, spacing panels 0.5-1 meter apart instead of tight rows reduces ambient heat buildup, improving yield by 3-5% in hot regions.
Active cooling is rare but effective—water-cooled panels in desert installations have shown 8-12% efficiency boosts, though the added pumps and piping raise costs by 0.15-0.30 per watt. A cheaper alternative is phase-change materials (PCMs) like paraffin wax behind panels, absorbing heat to keep cells below 50°C for 4-6 extra hours per day, adding 1-3% annual energy output.
Electron Recombination
In a working solar cell, 5-20% of generated electrons never make it to the circuit—they recombine with holes instead of contributing to current. This silent thief of efficiency occurs in three main ways: bulk recombination (3-8% loss), surface recombination (2-5% loss), and Auger recombination (1-3% loss in high-efficiency cells). Silicon solar cells with minority carrier lifetimes below 100 microseconds can suffer 15%+ efficiency drops compared to premium-grade silicon where carriers survive 500+ microseconds.
The problem worsens with higher doping concentrations. While heavily doped silicon (10¹⁹ cm⁻³) improves conductivity, it also triples Auger recombination rates, causing a net 2-4% efficiency penalty. Thin-film technologies like perovskites face even bigger challenges, with surface recombination velocities exceeding 10⁵ cm/s (10x worse than silicon), often wiping out 10-15% of potential output unless carefully passivated.
Recombination Type | Typical Loss Range | Worst-Affected Cells | Effective Countermeasures |
Bulk (Shockley-Read-Hall) | 3-8% | Low-purity silicon, polycrystalline | Higher bulk lifetime (>500 µs), gettering impurities |
Surface | 2-5% | Perovskites, thin-film Si | ALD passivation (SiO₂/Al₂O₃), reduces velocity to <10³ cm/s |
Auger | 1-3% | Heavily doped (>10¹⁹ cm⁻³) cells | Lower doping (10¹⁷-10¹⁸ cm⁻³), light-harvesting structures |
Bulk recombination dominates in cheaper panels—commercial multicrystalline silicon often has lifetimes of just 30-50 µs due to metallic impurities, causing 6-9% absolute efficiency loss versus high-purity monocrystalline. Iron contamination at 10¹⁴ cm⁻³ can slash carrier lifetime by 80%, which is why premium manufacturers use phosphorus gettering to reduce iron below 10¹² cm⁻³, regaining 2-3% efficiency.
Surface recombination hits hardest at the nanoscale—a single unpassivated silicon surface with 10⁵ cm/s recombination velocity can lose 5 mA/cm² of current density, equivalent to 1.5% absolute efficiency. Atomic layer deposition (ALD) of Al₂O₃ passivation layers cuts this to <100 cm/s, but adds 0.02-0.05/watt to production costs. For perovskites, 2D/3D heterostructures with phenethylammonium iodide (PEAI) have reduced surface losses from 25% to <5% in lab cells.
Auger recombination becomes critical at high sunlight intensities—while typically minor at 1 sun (1000 W/m²), it causes 5-8% relative losses at 10 suns in concentrator photovoltaics. Some designs use asymmetric doping profiles (e.g., 10¹⁷ cm⁻³ emitter / 10¹⁵ cm⁻³ base) to suppress Auger effects, improving concentrator cell efficiency by 1.5-2 absolute percentage points.
Reflection at Surface
When sunlight first hits a solar panel, 4-8% bounces right off the surface before it can be converted to electricity. This isn't just minor loss—for a standard 400W panel, that's 16-32W gone immediately, equivalent to 4-8 per year in lost revenue per panel at commercial electricity rates. Bare silicon reflects 30-35% of incoming light without treatment, which is why every modern solar cell uses some form of anti-reflective coating.
The physics behind this is straightforward: when light moves from air (refractive index 1.0) to silicon (index 3.5), over 30% reflects at the interface due to impedance mismatch. Standard silicon nitride (SiNx) coatings cut this to 5-7% by creating an intermediate index (2.0-2.3), while advanced multi-layer coatings using TiO₂ and SiO₂ can achieve <2% reflection across the 300-1100nm spectrum. The catch? These premium coatings add 0.03-0.08 per watt to manufacturing costs, making them uneconomical for commodity panels where $0.01/watt separates profitable from marginal products.
Surface texture matters just as much as coatings. Pyramid texturing (standard on monocrystalline cells) reduces reflection to 11-13% even without coatings by scattering light into multiple bounces. When combined with SiNx, reflection drops to 3-4%—but this only works for single-crystal silicon. Multicrystalline panels use isotropic etching instead, achieving 13-15% reflection that requires thicker (and more expensive) anti-reflective layers to compensate.

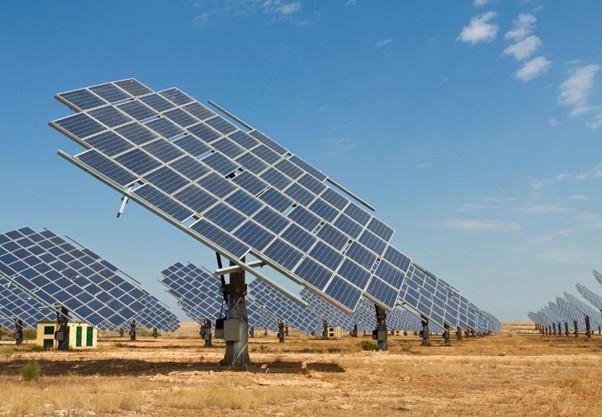

Angle of incidence plays a huge role too. At midday when sunlight hits panels perpendicularly, reflection losses stay at 3-5%. But during morning/evening hours when light strikes at 45° angles, losses jump to 8-12% even with good coatings. Some utility-scale plants now use single-axis trackers with anti-reflective glass to keep incidence angles below 30°, recovering 1.5-2 hours of equivalent full-power production daily.
Dust and weathering degrade anti-reflective performance over time. After 5 years in desert environments, dust accumulation can increase reflection to 9-11% even on coated panels, while acid rain in industrial areas etches coatings at 0.5-1µm per year. Modern hydrophobic coatings help—they slow soiling rates by 40-60% compared to untreated surfaces, but add 2-4 per square meter to module costs.
The most promising new approach is black silicon—nanotextured surfaces created via reactive ion etching that achieve <1% reflection without coatings. While lab versions show promise, mass-produced black silicon still suffers from 15-20% higher surface recombination that cancels out optical gains. Recent advances in plasma-less dry etching have cut this penalty to 5-8%, making it viable for premium panels where the 2-3% net efficiency gain justifies the 0.05-0.07/watt price premium.
For residential installations where aesthetics matter, some manufacturers now offer all-black modules with 6-8% reflection (versus 3-4% for standard blue panels). The darker appearance comes from backside reflectors that bounce escaping light back into the cell—a tradeoff that sacrifices 0.5-1% absolute efficiency for visual appeal while still outperforming uncoated panels.
The reflection battle never truly ends—every 1% reduction in reflectance translates to 0.6-0.8% more energy output annually. With panel prices now below $0.30/watt, the economics favor simple solutions: standard SiNx coatings for budget panels, textured surfaces with dual-layer coatings for mainstream products, and black silicon or multi-layer interference filters only for specialized applications where every watt counts. The next breakthrough may come from self-cleaning metamaterials that maintain <2% reflection for decades without maintenance—but for now, keeping panels clean remains the most cost-effective way to minimize reflection losses.
Resistance in Circuits
The hidden enemy in every solar panel isn't just sunlight reflection or heat—it's electrical resistance stealing 3-8% of your potential power output. A typical 60-cell silicon module pushing 10A of current will lose 15-25W purely to resistive losses in busbars, ribbons, and cell interconnections. That's equivalent to 3-5 per panel per year in wasted energy at commercial electricity rates.
"The cruel irony of solar resistance? It increases as panels age—copper interconnects oxidize, solder joints degrade, and what started as a 4% power loss grows to 7-9% after 10-12 years of operation."
Metallization accounts for most resistance losses. Standard 5-busbar designs using 100µm-wide silver paste fingers create 0.8-1.2Ω·cm² of series resistance, while newer 12-busbar or multi-wire approaches cut this to 0.4-0.6Ω·cm². The difference seems small until you realize every 0.1Ω·cm² reduction boosts fill factor by 0.5-0.8%—that's 2-3W more output per standard panel. But there's a cost: moving from 5BB to 12BB increases silver paste consumption from 130mg/cell to 180mg/cell, adding 0.08-0.12 per panel when silver prices hover around $0.80/gram.
Cell-to-module resistance is another silent killer. Conventional soldering of tabbing ribbons creates 0.002-0.003Ω per connection, which seems negligible until you multiply it by 120 interconnects in a 60-cell panel. New conductive adhesives achieve 0.001Ω/connection with better thermal cycling tolerance, but require $250,000+ stringer upgrades that only pay back for manufacturers producing 50MW+/year. For smaller shops, sticking with soldering means accepting 1.5-2% annual resistance increase as intermetallic compounds form in joints.
Backsheet conduction often gets overlooked. Standard PET-based backsheets have surface resistances of 10¹²Ω/sq, forcing current to travel through the entire cell thickness. Switching to conductive backsheets (10⁸Ω/sq) with direct metal contacts to the rear emitter shaves 0.3-0.5Ω·cm² off total resistance, but adds 1.50-2.00 per panel—a tough sell when module ASPs hover around $0.30/W.
Temperature makes everything worse. Copper's resistivity increases by 0.4% per °C, meaning a panel operating at 65°C suffers 16% higher resistive losses than at the standard 25°C test condition. Some utility-scale operators now cool junction boxes with aluminum heat sinks to keep connection temperatures below 50°C, recovering 0.5-0.7% system efficiency in hot climates.
The biggest gains come from system-level design. Using 4mm² copper cabling instead of 2.5mm² cuts string losses from 1.8% to 0.9% in typical 20-panel residential strings. At the inverter end, optimizing MPPT voltage windows to keep strings operating at 400-600V instead of 300V reduces current (and I²R losses) by 25-30%. These fixes cost pennies per watt but often get ignored in budget installations chasing the lowest upfront cost.
Emerging solutions like copper-plated contacts promise 0.2Ω·cm² resistances at half the silver cost, while shingled cell designs eliminate ribbon resistance entirely. But for now, the most cost-effective resistance reduction remains proper installation practices—torquing connections to 0.5-0.6 N·m, using antioxidant gels on terminals, and ensuring no single panel in a string operates more than 5°C hotter than its neighbors. Because in solar, the difference between 18% and 20% efficiency often comes down to fighting milliohms.
