6 Ways To Reduce Losses In Silicon Solar Cells

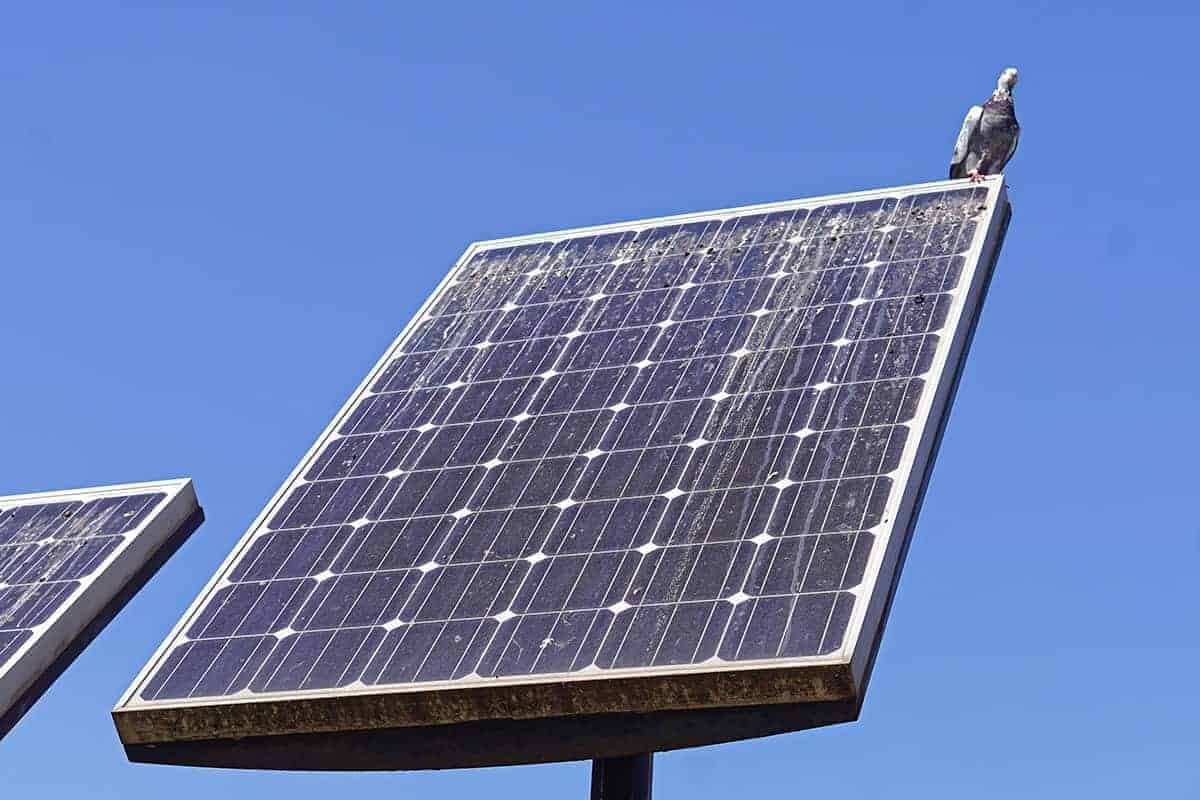

Cool <45°C (-0.4%/°C gain), thin metal paste to lower series resistance (1-2% boost), PERC passivation for 1.5% higher Voc, monthly dust cleaning (5-10% output lift), match cell currents (<5% variance), and use 91%+ transmittance glass to minimize optical/thermal/recombination losses.

Adding an Anti-Reflection Coating

When sunlight hits a bare silicon wafer, about 30-35% of it is simply reflected away like a mirror. For a solar cell, that's a huge amount of wasted energy. Imagine a panel rated for 400 watts losing over 120 watts before it even starts working. Anti-reflection coatings (ARCs) are a foundational technology designed to trap this light. By depositing a thin layer of a material with a specific refractive index onto the silicon, we can trick the light into entering the cell rather than bouncing off. The most common and effective material is silicon nitride (SiNx), applied through a process called Plasma-Enhanced Chemical Vapor Deposition (PECVD). This isn't just a theoretical improvement; it's a standard industrial practice that boosts a cell's absolute efficiency by at least 0.8% to 1.2%, which translates to a relative gain of over 5% in power output. For a typical 20% efficient cell, the ARC is responsible for roughly one-fifth of that final efficiency number.

Silicon has a very high refractive index of around 3.8 to 4.0 at visible wavelengths, while air is about 1.0. This drastic jump causes strong reflection. The ARC acts as an intermediary. The ideal refractive index (n_ARC) is the geometric mean of the two adjacent materials: √(n_air * n_Si) ≈ √(1.0 * 3.9) ≈ 1.97. Silicon nitride is perfect because we can tune its nvalue during deposition to between 1.9 and 2.1 by adjusting the silicon-to-nitrogen ratio. The other critical parameter is thickness. The coating works by creating destructive interference for reflected light. The optimal thickness is one-quarter of the light's wavelength in the material. Since sunlight peaks in intensity around 550-600 nanometers (green light), the target physical thickness (d) is calculated as λ/(4n), which for λ=600 nm and n=2.0, gives a thickness of 75 nanometers.

The PECVD process, which runs at temperatures between 350°C to 450°C, does more than just cut reflection. The plasma conditions introduce hydrogen atoms that passivate defects in the silicon bulk, neutralizing electronic traps that can reduce current. This dual function makes SiNx incredibly cost-effective. The capital cost for a PECVD system is significant, but when amortized over the 20-30 year lifespan of the panels and the millions of wafers processed, the cost per watt added is less than $0.005 per watt.

Texturing the Silicon Surface

A flat, mirror-like surface can reflect over 30% of incoming sunlight, a massive inefficiency that no anti-reflection coating can fully fix. Texturing, the process of creating microscopic pyramids on the silicon surface, is a powerful and now universal method to trap light. By etching a random pattern of pyramids typically 3 to 8 micrometers tall, we can force light rays to bounce around at shallow angles inside the cell, dramatically increasing the path length and the probability of absorption. This isn't a minor tweak; it's a fundamental geometric upgrade that can boost a cell's current output by at least 1.5 milliamps per square centimeter (mA/cm²), translating to an absolute efficiency gain of over 0.5%. For a standard p-type multicrystalline silicon wafer, texturing alone can reduce its surface reflectance from over 25% to below 15% even before an anti-reflection coating is applied.

You submerge the wafer in a hot solution, typically sodium hydroxide (NaOH) or potassium hydroxide (KOH) at a concentration of 1-2%, heated to between 70°C and 85°C. The (100) crystal plane, which is the standard wafer surface, etches hundreds of times faster than the (111) planes. This differential etching rate naturally exposes the slow-etching (111) planes, which form the facets of the random pyramids. A key additive is Isopropyl Alcohol (IPA), usually at 5-10% by volume. The IPA reduces the solution's surface tension, allowing hydrogen bubbles (a byproduct of the reaction) to escape. Without adequate IPA, these bubbles stick to the surface, creating untextured patches and killing performance. A good texture process achieves over 95% pyramid coverage across the wafer.

The ideal pyramid has a base width of 5-10 micrometers and a slope angle around 54.74 degrees, which is the natural angle between the (100) and (111) planes. This specific angle is optimal for a phenomenon called double or even triple bounce. When a light ray hits one pyramid facet, it reflects onto the opposite facet of the same pyramid or an adjacent one, effectively giving the light a second or third chance to enter the cell. This can increase the effective optical path length by a factor of 10 to 20 times compared to a single pass through a flat wafer.

Applying Passivation Layers

The impact is profound; effective passivation can boost a cell's open-circuit voltage (Voc) by 20-40 mV and increase its absolute efficiency by 0.5% to over 1.0%, making it one of the most critical advancements in modern cell design, especially for high-efficiency architectures like PERC (Passivated Emitter and Rear Cell).

l Chemical Passivation: This directly silences the dangling bonds. A material like silicon dioxide (SiO₂) does this beautifully but grows very slowly in a high-temperature furnace (>800°C). For the negatively charged rear side of a p-type silicon wafer, aluminum oxide (Al₂O₃) is the industry standard. Its secret is a fixed negative charge density of approximately 10¹² to 10¹³ cm⁻². This high negative charge creates a "field effect" that repels electrons away from the lossy rear surface, effectively pushing them back into the bulk of the cell where they can be collected. A layer of Al₂O₃ only 5-20 nanometers thick, deposited by Atomic Layer Deposition (ALD) or PECVD, can reduce the rear surface recombination velocity from a catastrophic >100,000 cm/s to an excellent < 100 cm/s.

l Field-Effect Passivation: This is where materials like silicon nitride (SiNx) shine on the front side. While SiNx provides some chemical passivation, its primary role is its positive fixed charge, which helps to repel holes and prevent them from recombining at the front surface. This is why a standard industrial cell uses a stack: the silicon wafer itself, followed by a thin ~10 nm layer of SiO₂ for chemical passivation (grown during the SiNx PECVD process at ~400°C), and then the 75 nm SiNx layer for field-effect passivation and anti-reflection. This combination tackles both types of carriers simultaneously.

The advent of rear-side passivation, specifically with Al₂O₃, was the key innovation that enabled the mass production of PERC cells. Before PERC, the entire rear side of the cell was covered with a solid aluminum layer that, while forming a good electrical contact, had very poor surface passivation with recombination velocities in the tens of thousands of cm/s. By applying a 10 nm Al₂O₃ layer over >90% of the rear surface and only opening tiny laser-contact holes (about 50-100 micrometers in diameter) for the current to flow out, manufacturers were able to drastically cut rear-side losses.

This single change pushed standard p-type multi-crystalline cell efficiencies from around 17.5% to over 19.5% when it was first widely adopted. The cost of adding the Al₂O₃ deposition and laser-contact steps was initially a barrier, but it was quickly reduced to an incremental cost of 0.005 to 0.015 per watt, a price easily justified by the >8% relative gain in power output. The move to advanced passivation schemes like TOPCon takes this further by adding a thin, tunnel-oxide layer to also passivate the frontmetal contacts, pushing efficiencies for n-type cells well above 24% in production.

Improving Metal Contact Design

Poor contact design can easily lose you 3-5% in absolute efficiency. The front-side silver busbars and fingers, which are typically screen-printed, block about 3-7% of the cell's active area from light. If these contacts are too narrow, their electrical resistance causes losses; if they are too wide, they create excessive shading. The key metrics here are series resistance (Rs) and shading loss. For a well-designed industrial cell, the Rs should be below 0.5 mΩ·cm², and the shading loss kept under 5%. The evolution from 3-busbar to 5-busbar, and now to Multi-Busbar (MBB, 9-16 busbars) and shingled modules, is a direct response to this challenge, aiming to reduce the current per busbar and enable the use of narrower, less-shading fingers.

· Silver Paste Composition: Modern pastes are complex mixtures. They contain 80-90% silver particles by weight, glass frit for etching through the silicon nitride layer, and organic binders. The cost of silver paste is a major driver of cell price, accounting for up to 30% of the cell's manufacturing cost. Advanced pastes contain additives that allow for "fire-through" contact formation during a rapid co-firing process at 700-800°C.

· Finger Width and Height: The industry standard for finger width has shrunk from over 60 μm to 30-40 μm for mainstream production, with laboratory techniques achieving widths below 20 μm. The aspect ratio (height/width) is critical. A taller, narrower finger has lower resistance. A standard screen-printed finger might have a height of 10-15 μm.

· Multi-Busbar (MBB) Design: Moving from 5 busbars to, for example, 12 busbars (M12) reduces the distance electrons need to travel along the narrow fingers before reaching a busbar. This cut the power loss in the fingers by over 50%, allowing for a reduction in finger width from, say, 50 μm to 35 μm. This narrower width reduces shading, which typically leads to a 0.3-0.5% absolute efficiency gain for a net gain of about 2 watts in a standard module.

The shift to Multi-Busbar (MBB) technology wasn't just about efficiency; it was about cost-saving and reliability. Thinner busbars use up to 30% less silver, a significant saving given silver's price volatility. Furthermore, the higher number of wires distributes mechanical stress more evenly, making the module more resistant to microcracking.

A poor contact can have a ρc of 10-3 Ω·cm² or higher, severely limiting the fill factor (FF). A high-performance contact achieved with advanced pastes and optimized firing profiles should have a ρc below 1.0 x 10-5 Ω·cm². The firing process in a belt-line furnace is a delicate balance; the peak temperature must be controlled within a window of about 20°C.

Using Higher Quality Silicon Material

Low-quality, heavily contaminated multicrystalline silicon might have a bulk lifetime of less than 5 µs, limiting cell efficiency to around 17-18%. In contrast, high-quality monocrystalline float-zone (FZ) silicon can achieve bulk lifetimes exceeding 10,000 µs, enabling laboratory cells to surpass 26% efficiency.

LID is caused by a complex involving boron (the p-type dopant) and oxygen (an unavoidable contaminant from the quartz crucible during growth). This Boron-Oxygen (B-O) complex can cause a 1-3% relative power loss within the first 48 hours of sun exposure. n-type silicon uses phosphorus as the dopant, which does not form this damaging complex, resulting in significantly better power stability over the 25-30 year module lifespan. Furthermore, n-type silicon has a much higher tolerance for common metallic impurities like iron. In p-type silicon, iron acts as a strong recombination site, but in n-type material, its impact is orders of magnitude less severe. This means that n-type wafers can maintain a high carrier lifetime of 1000-3000 µs even with impurity levels that would cripple a p-type wafer.

The concentration of interstitial oxygen is a critical quality parameter, typically sitting between 5 x 10¹⁷ to 8 x 10¹⁷ atoms/cm³ in standard Czochralski silicon. During cell processing and subsequent field exposure, this oxygen can precipitate, forming defects that further reduce lifetime. High-quality silicon aims for the lower end of this range. Another key element is carbon content; high carbon (above 2 x 10¹⁶ atoms/cm³) can enhance oxygen precipitation, so it is kept as low as possible.

For the ultimate performance, float-zone (FZ) silicon is used. The FZ process avoids contact with a quartz crucible entirely, resulting in oxygen levels below 1 x 10¹⁶ atoms/cm³ and virtually no carbon. This ultra-high purity is why FZ silicon holds all the laboratory efficiency records, but its high cost—3 to 5 times that of Czochralski silicon—and wafer size limitations make it unsuitable for mass production.

Creating a Selective Emitter Structure

A uniform emitter is a compromise, typically with a sheet resistance of around 70-90 ohms per square (Ω/□), which is neither an excellent contact nor a high-quality light-collecting surface. A selective emitter structure solves this by creating a sophisticated, two-zone design: a low-sheet-resistance zone (e.g., 50-60 Ω/□) precisely under the metal fingers for good contact, and a high-sheet-resistance zone (e.g., 100-150 Ω/□) everywhere else for superior electronic quality. This targeted approach can yield an absolute efficiency gain of 0.3% to 0.5% by simultaneously boosting the open-circuit voltage (Voc) by 5-10 mV and the fill factor (FF) by 0.2-0.5%.

Another prevalent technique is laser doping. Here, the process is reversed. The wafer first receives a light, uniform diffusion to create a high-sheet-resistance emitter of around 100-120 Ω/□. Then, a laser is scanned over the paths where the metal fingers will be printed. The laser's energy, delivered in pulses with a duration of 10-100 nanoseconds and a spot size of 20-40 μm, locally melts the silicon surface.

The primary advantage of laser doping is its precision and self-alignment; the laser-defined doped regions have a width of only 25-40 μm, and the subsequent screen-printing process naturally aligns the silver paste over these optimized tracks. The quantifiable benefit of the selective emitter is most evident in the improvement of the short-wavelength response (blue light). The lightly doped regions between the fingers have a much lower saturation current density (J0e), often below 100 fA/cm² compared to over 200 fA/cm² for a standard emitter. This directly translates to a higher Voc. Furthermore, the low-resistance contact areas reduce the contact resistivity (ρc) to well below 1 mΩ·cm², improving the FF.

While adding a laser doping or etch-back step increases process complexity and cost by approximately 3-5%, the efficiency gain of 0.4% absolute typically delivers a positive return on investment by increasing the power output of each module by 2-3 watts.
