How to Solar Energy Enhances Disaster Resilience | 3 Ways

Solar energy ensures continuous power supply when traditional grids fail by building distributed microgrids. Combined with high-performance lithium cell storage systems, it can support the independent operation of critical facilities such as hospitals or shelters for more than 72 hours.

Energy Independence via Microgrids

Off-grid Self-sufficiency

Microgrid systems can operate independently when the external grid fails by deploying distributed solar arrays ranging from 10 kW to 50 kW, paired with storage capacities exceeding 20 kWh.

When the main grid voltage fluctuates by more than 10% of the nominal value or the frequency deviation reaches ±0.5 Hz, the automatic transfer switch completes a physical disconnection within 20 milliseconds, ensuring an uninterrupted 220 V power supply indoors.

For a residential microgrid with an installed capacity of 10 kW using 25 monocrystalline silicon modules of 400 W each, the photoelectric conversion efficiency remains stable above 21.3%.

Under standard conditions with a solar intensity of 1,000 W/㎡, the system can produce approximately 9.5 kWh of effective electrical energy per hour.

This electricity is transmitted through 6 mm² DC cables with line loss rates controlled within 1.5%, directly entering high-voltage DC buses of 48 V or 400 V for distribution.

Batteries That Hold

The energy storage phase utilizes Lithium Iron Phosphate (LiFePO4) cell packs, with individual cell capacities typically at 100Ah or 280Ah, reaching a rated voltage of 51.2V through 16 series connections.

The system supports a Depth of Discharge (DoD) of 80% to 95%. With one full charge-discharge cycle per day, the cycle life can reach 6000 times, equivalent to a service life of over 15 years.

When the cell pack detects an internal temperature rise to 45℃, the passive cooling system or active liquid cooling device starts automatically, controlling the temperature error within a range of ±2℃ to avoid capacity decay.

Taking a 15kWh storage configuration as an example, its self-discharge rate is lower than 3% per month.

Even if left idle for 30 days in extreme environments without sunlight, the remaining power can still stay above 14.5 kWh, guaranteeing a 500 W load runs continuously for 29 hours.

High Inverter Efficiency

As the regulation center of the microgrid, hybrid inverters cover mainstream specifications of 5 kW, 8 kW, and 12 kW.

Their full-load conversion efficiency typically reaches 97.6%, and even in 10% light-load mode, efficiency remains above 92%.

The built-in MPPT (Maximum Power Point Tracking) controller has a tracking accuracy of 99.9%. In cases of rapid sunlight changes due to cloud cover, it can re-lock the maximum power output point within 2 seconds.

The pure sine wave output of the system has a Total Harmonic Distortion (THD) of less than 3%, which is higher than the 5% standard of ordinary civil grids, protecting sensitive equipment like 1.5 HP variable-frequency air conditioners and high-precision medical oxygen concentrators from electromagnetic interference.

The inverter's standby power consumption is below 50W, accounting for only 0.5% of the total power generation of a 10 kW system.

Calculate How Much You Save

The initial investment cost for establishing a microgrid is currently approximately $1.2 to $1.8 per watt (including installation).

For a 5 kW system, the total budget ranges between $6,000 and $9,000.

By reducing the cost of purchasing electricity from the public grid (averaging $0.15/kWh), annual savings can reach $1,200 to $1,500, shortening the investment payback period to 5 to 7 years.

Over a 25-year lifecycle, the Levelized Cost of Energy (LCOE) of this system is approximately $0.04/kWh, far lower than any commercial electricity rate.

Furthermore, the operation and maintenance costs of a microgrid are extremely low.

A 15-minute cleaning of module surfaces and a torque check of terminals (typically 4Nm to 6Nm) every 12 months is sufficient to maintain a system health level above 98%.

Stable Operation

In non-condensing environments below an altitude of 2000 meters with humidity ranging from 0% to 95%, the microgrid system can maintain 8,760 hours of uninterrupted operation.

The system monitoring software updates power generation data every 5 seconds, keeping errors within 0.5%.

When facing Level 12 winds (wind pressure approx. 2400Pa), the 3.2mm thick tempered glass panels can withstand the impact of 25mm diameter hail at a speed of 23 m/s without breaking.

The Level II surge protector equipped on the DC side can discharge overvoltage caused by lightning within 25 nanoseconds, controlling residual voltage below 1.5 kV to ensure the safety of precision circuits.

The total annual downtime for the system is less than 5 minutes, achieving an energy reliability index of 99.999%.

Resource Autonomy without Logistics

No More Running for Fuel

In traditional emergency energy systems, a 5 kW rated diesel generator consumes approximately 1.2 to 1.5 liters of fuel per hour at 50% load.

To maintain basic post-disaster power for seven days (running 12 hours a day), one needs to stockpile at least 100 to 126 liters of flammable fuel, which occupies nearly two standard oil drums and weighs about 110 kg.

In extreme environments where roads have collapsed, water depth exceeds 50 cm, or traffic is paralyzed, this logistics chain dependent on external supply is easily broken.

In contrast, a 5 kW solar PV system with an installation area of about 25 to 30 square meters can produce 20 kWh of electricity in four hours of effective sunlight per day.

Its "fuel" collection process occurs entirely on the surface of the physical carrier, with a logistics volume of zero.

Solar systems completely sever the path dependency on external gas stations, tankers, and storage containers through 100% on-site energy capture. Even on the 30th day after a logistics disruption, as long as the solar radiation intensity reaches 200 W/㎡, the system can still maintain an output efficiency of over 15%.

Through 4mm² or 6mm² dual-core DC cables, the electricity generated by the panels is transmitted to the inverter at the speed of light, eliminating complex mechanical transmission modules such as fuel pumps, filters, and oil pipelines.

For a 10kWh LiFePO4 energy storage system, its energy density is typically above 125Wh/kg. Once the equipment is in place, its operation for the next 20 years requires no external chemical fuel, making the affected area an independent energy island.

No Parts to Break

Internal combustion engine generator sets have over 50 high-frequency moving parts, including crankshafts, pistons, and valves. They require oil, spark plug, and air filter changes every 250 to 500 hours of operation.

During a logistics disruption, the failure of even a small sealing ring can shut down the entire machine.

Solar modules are encapsulated in 3.2 mm high-transparency tempered glass, generating power through the physical photoelectric effect of monocrystalline silicon wafers without any mechanical friction or rotational wear.

This solid-state power generation characteristic reduces maintenance frequency from the "hundred-hour level" to the "half-year level."

Typically, users only need to check the locking status of MC4 connectors (torque maintained at approx. 2.5Nm) every 180 days and ensure the IP67 waterproof sealing ring of the junction box has no aging cracks.

The Mean Time Between Failures (MTBF) for solar panels exceeds 100,000 hours, while the engine life of a portable gasoline generator is usually only 2,000 to 5,000 hours. This means that over a 25-year lifecycle, the logistics demand for replacement parts for a solar system is near zero.

The inverter utilizes Silicon Carbide (SiC) or Gallium Nitride (GaN) power devices to achieve current conversion through solid-state electronic switches.

When the external ambient temperature is 40℃, internal temperature rise can be controlled within 25℃ using large aluminum alloy heat sinks and speed-controlled fans with a 40,000-hour lifespan.

Even in coastal high-salt mist areas, bracket systems (typically using an 80 μm thick hot-dip galvanized layer) that have passed 1,000 hours of neutral salt spray testing can guarantee no structural corrosion for 20 years.

Just Watch the Screen

Modern solar microgrids integrate intelligent monitoring systems based on ARM architecture processors, with sampling frequencies typically as high as 10 Hz (10 times per second).

Users can view real-time input voltage (usually between 120V and 450V) and current data for each MPPT via a 4.3-inch LCD touchscreen or Low Energy Bluetooth (BLE 5.0) connection.

This digital management method replaces the heavy reliance on traditional energy on manual inspections, oil level readings, and frequency tuning.

When the system detects a cell voltage difference exceeding 30 mV, the BMS (Cell Management System) automatically starts the active balancing circuit, performing endogenous adjustment with a current of 50 mA to 200 mA without the need for on-site repairs by technicians.

The system's built-in Over-The-Air (OTA) firmware update function operates via satellite links or residual 4G signals, with a logic-level fault repair success rate exceeding 85%, further reducing the role of physical logistics in after-sales service.

In disaster environments, the priority allocation of electricity is achieved through software definitions.

Users can set an "Emergency Mode" in the system backend to lock 20% of the remaining power for essential 60W satellite communication terminals and 10W medical alarms, rather than consuming it on a 1500W electric kettle.

This logic-algorithm-based resource allocation responds in milliseconds with an error range within 1% current sensing accuracy, ensuring precise distribution of limited energy without external support.

Real Savings

From a 25-year long-term economic model, the LCOE of a 5 kW off-grid solar system is around $0.05/kWh.

In comparison, if you calculate the purchase cost of a diesel generator, fuel at $1.2/liter, maintenance every 250 hours, and shipping fees, the comprehensive power cost often exceeds $0.45/kWh.

Over 10 years of complete independence from the public grid, a solar system can save users over $18,000 in operating expenses due to zero logistics costs.

For a family budget, the initial installation investment of $7,000 to $10,000 can be fully recovered by the 6th year, with the electricity generated in the remaining 19 years being almost pure profit.

This economic autonomy stems from the extreme simplification of the physical structure. Since there is no need to pay the 30% to 50% logistics and distribution commissions included in every liter of fuel, users complete a decentralized game of energy production and consumption directly on their own roofs.

In long-term operation, the power degradation rate of PV modules is only 0.45% to 0.55% per year. After 20 years, the system can still provide more than 89% of its initial rated power.

Stabilizing Critical Infrastructure

Lifesaving Machines Don't Stop

A typical oxygen concentrator consumes 350W to 600W, while a home ventilator operates at approximately 60W to 90W.

When the public grid suffers a 0V blackout due to disaster, a solar system equipped with a 10kWh LiFePO4 cell and a 5kW off-grid inverter can take over the load immediately.

The inverter's Static Transfer Switch (STS) completes the action within 10 milliseconds.

This speed is much faster than the 20-millisecond power-off tolerance limit of precision medical equipment, ensuring devices do not restart due to voltage drops.

Under continuous cloudy days, if the system is connected to four 550W monocrystalline panels, it can still produce about 0.4 kWh of electricity per hour even in weak light conditions of 200 W/㎡, which is enough to keep a basic ventilator running 24/7.

· Intensive Care Unit (ICU) equipment power consumption: typically stays within 150W to 300W.

· Vaccine refrigerator operating parameters: maintains constant 2℃ to 8℃, with daily consumption of approx. 1.2kWh.

· Cell discharge rate requirement: supports 1C continuous discharge (e.g., a 200Ah cell pack can provide 10.24 kW instantaneous power).

· Inverter Total Harmonic Distortion (THD): must be controlled below 2.5% to prevent interference with ECG monitor sampling accuracy.

· System redundancy design: suggests storage configuration at 1.5x peak load to maintain 100% life support for 72 hours without sunlight.

For larger community clinics, a 20 kW solar microgrid can support more than 10 precision devices.

Through DC-Coupling technology, the DC power from the panels enters the cell directly via the MPPT controller, reducing energy loss from AC conversion by 5% to 8%.

The BMS monitors the voltage and internal resistance of cells at a frequency of 100 times per second.

When a potential difference exceeding 0.05 V is detected, the active balancing circuit repairs the voltage with a 2 A current.

This refined energy management provides power security with a design life of over 15 years for post-disaster temporary medical points even when roads are blocked and fuel is exhausted.

Signals Always Full

A standard 4G/5G macro station's power consumption typically fluctuates between 2.5 kW and 4.5 kW.

Traditional lead-acid cell backups last only 3 to 8 hours. Once external lines are damaged for more than 10 hours, the entire area falls into an information vacuum.

Using a solar array with 15 kW peak power (kWp) combined with a 60 kWh storage set can increase base station self-sufficiency indefinitely.

Under standard conditions at 25℃, the Open Circuit Voltage (Voc) of monocrystalline modules is approx. 49V.

Forming high-voltage DC inputs above 400 V through series connection significantly reduces ohmic losses on long cables, maintaining transmission efficiency above 98.5%.

· Base station DC power system specs: nominal 48V DC bus, fluctuation controlled between 42V and 58V.

· Solar module layout efficiency: approx. 210 W per square meter, conversion efficiency 21.3%.

· Cell cycle performance: cycle count should exceed 3,500 at 80% Depth of Discharge.

· Remote monitoring latency: status information transmitted via SNMP protocol with latency below 500 ms.

· Environmental adaptability: module frames can withstand 2400 Pa wind load, suitable for deployment below 4,000 meters altitude.

When cloud cover causes PV output to drop from 10 kW to 2 kW, the power point tracking algorithm in the inverter can re-lock within 1.5 seconds, ensuring output voltage fluctuations remain under 1%.

By implementing a smart load-shedding strategy, when the State of Charge (SOC) drops below 20%, the system automatically cuts non-essential lighting and cooling, sending 100% of remaining power to core transceivers consuming only 150W, extending emergency signal coverage by over 48 hours.

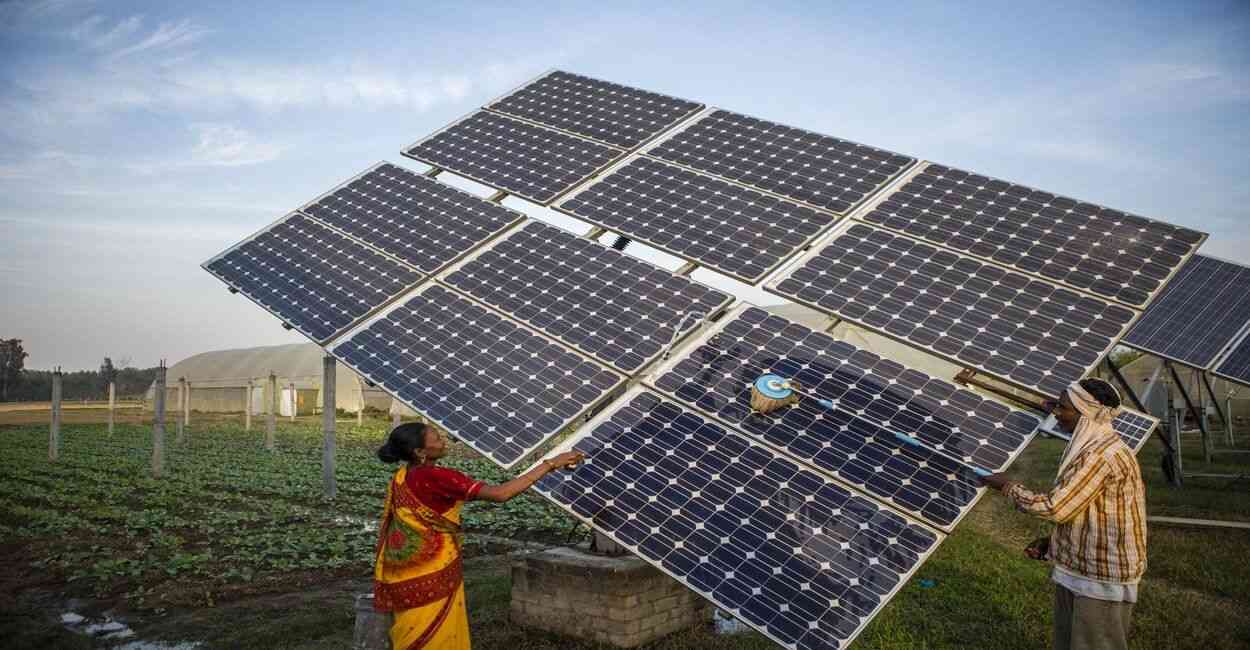

Big Pumps Can Turn

A 2HP (approx. 1.5 kW) submersible pump generates 3 to 5 times its rated current at startup, with instantaneous power demand exceeding 7 kW.

Ordinary residential inverters often trigger overload protection and shut down due to this impact.

Professional solar inverters with 300% surge capacity can carry this high-current impact within 50 ms, smoothly driving the motor.

For a community with a daily water consumption of 5,000 liters, a 4 kW solar pumping system with a Variable Frequency Drive (VFD) can pump water directly using sunlight without batteries, converting solar energy into water potential energy to supply residents via gravity.

· Pump inverter output frequency: auto-adjusts between 0 Hz and 60 Hz based on light intensity.

· Water yield per kWh: approx. 8 to 10 tons of water at a 30-meter head per 1 kWh.

· PV array oversizing ratio: 1.2:1 recommended (e.g., a 1.5kW pump with 1.8kW of panels).

· System dynamic response speed: speed adjustment latency due to light changes controlled within 200 ms.

· Equipment maintenance cycle: brushless DC motor design life of 20,000 hours, requiring only annual seal checks.

In water purification, UV sterilizers (30W) and ultrafiltration systems (100W) ensure water quality meets drinking standards.

These low-power devices can be connected in parallel to the 24V DC side of the storage system, utilizing DC-DC converters to maintain 96% regulation efficiency.

When ambient humidity reaches 95%, the circuit will not suffer from leakage or insulation resistance drops thanks to IP65-rated sealed junction boxes and UV-resistant cables.
