Why Choose Outdoor Portable Solar Panels 3 Benefits

Utilizing monocrystalline silicon technology allows for a photoelectric conversion rate exceeding 23%;

The foldable design weighs only approximately 2 kg, making it easy to carry with one hand;

Equipped with IP67-rated waterproofing and zero electricity costs, it completely resolves outdoor power anxiety, making it a reliable choice for professional camping.

Energy Independence

Self-Sufficiency Without Help

A monocrystalline silicon foldable panel with a rated power of 200W can produce approximately 850Wh to 950Wh of electricity per day in an environment with an average of five hours of sunshine. This is equivalent to charging 90% of a 1,000Wh outdoor power station.

For an outdoor user carrying three electronic devices, a 5,000mAh smartphone consumes about 19Wh, a 60Wh laptop requires 120Wh to maintain two charge-discharge cycles, and a 10W camp light running for 8 hours consumes 80Wh. The total daily basic power consumption is approximately 219 Wh.

Using monocrystalline silicon wafers with a conversion rate of 23.5%, these daily expenses can be covered by placing the panel in the sun for just 1.5 hours.

Even in cloudy weather, the weak-light power generation efficiency of the panel can still maintain about 15% of the nominal value, producing a trickle current of 15W to 30W per hour, which is sufficient to keep a smartphone from shutting down and slowly increase the cell percentage.

Calculate the Savings

The cost of investing in a 400W portable solar system is typically between 2,500 and 3,500 RMB.

Based on a designed service life of 10 years, the annual amortized hardware cost is approximately 300 RMB.

Since the ETFE encapsulation material used has anti-UV degradation properties, the annual power degradation rate is controlled within 0.5%. After five years of use, its output power can still remain above 97.5% of the initial value.

Compared to the electricity fee of 50 to 100 RMB per night at commercial campsites, the total expenditure for purchasing the equipment can be recovered within two years, provided it is used outdoors for more than 30 days a year.

This system does not require any gasoline (priced at about 8 RMB per liter) and saves about 200 RMB per year in oil maintenance and filter replacement costs compared to a gasoline generator of the same power.

Solar Durability

The backplane of high-quality foldable panels is made of PCB fiberboard or glass fiber material, which can withstand more than 5,000 bends. Even when laid on a high-temperature ground of 50 degrees Celsius, the material deformation is less than 1%.

The ETFE film covering the surface is only 0.05 mm thick, yet it can withstand the impact of 2.5 cm diameter hail at a speed of 23 meters per second.

Its protection level reaches the IP67 standard, meaning that even if immersed in one meter of water for 30 minutes, the resistance value of the internal circuit remains within the normal range as long as the metal contacts at the interface are wiped dry.

The connector part usually adopts MC4 or XT60 specifications, with a rated current capacity of up to 30A.

It can work normally under environmental temperature differences from -20 to +70 degrees Celsius, and will not cause cracks with a width exceeding 0.1 mm in the encapsulation layer due to thermal expansion and contraction, ensuring a zero moisture penetration rate.

Lightweight Trekking

The portable design connects four 50W panels through wear-resistant nylon fabric, with a total thickness of only 45 mm after folding and dimensions of approximately 52 cm by 50 cm.

The weight for this specification is controlled at 4.8 kg, which is more than 75% lighter than a lead-acid cell of the same capacity.

In a 15 km long-distance trek, every extra 1 kg of load increases the hiker's physical consumption by about 3%. The foldable panel can be fixed to the outside of the backpack through its four built-in stainless steel buckles.

During the walking process, the oblique light it receives can still provide about 10% of the rated power, which is an output of about 20W.

For players pursuing extreme lightweighting, choosing a flexible panel with a thickness of only 2 mm can further reduce the weight to 2.1 kg.

The power generated per square meter of light-receiving area reaches 180 W, saving about 8 liters of storage space for the mountain bag without occupying extra suitcase volume.

Comprehensive Interfaces

The multi-functional output module integrates a voltage regulation circuit.

Its USB-C interface supports the PD 3.0 protocol, with output voltages covering 5V, 9V, 12V, 15V, and 20V.

The maximum current can reach 5A, and the upper limit of output power is 100W.

It can provide constant current for laptop computers without going through the secondary conversion of an inverter (conversion loss of about 15%).

The output range of the DC 5,521 interface usually fluctuates between 12V and 24V, adapting to the input voltage requirements of 95% of the portable power stations on the market.

The built-in intelligent identification chip performs current detection 50 times per second.

When the voltage drops from 20V to 12V due to cloud shading, it can recalculate the optimal power point within 0.1 seconds, ensuring that the recovery speed of charging efficiency increases by 40%.

This multi-port configuration allows 24V DC refrigerators, 12V drone charging stands, and 5V action cameras to take power simultaneously.

The total output current is automatically distributed, and the ripple voltage of a single port is controlled within 100 mV, extending the capacitor life of sensitive electronic equipment by 20%.

Ultimate Portability

Fits in Your Bag

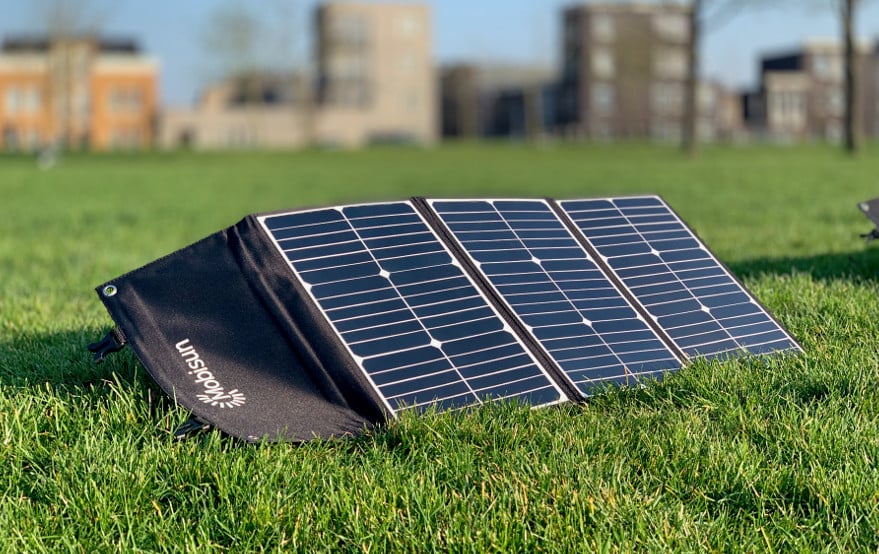

A typical 100W foldable solar panel has a light-receiving area of about 120 cm by 55 cm when unfolded, but through a 4-fold design, its storage size is only 40 cm by 35 cm.

This 75% space compression rate means it can be easily stuffed into a standard outdoor backpack with a capacity of more than 25 liters, occupying only about 15% of its internal volume.

This dimensional flexibility stems from the 1.2 mm thick PCB fiber backplane, which provides a bending life of more than 5,000 times, ensuring that the conduction resistance increase rate of the circuit is less than 0.1% after more than 100 opening and closing cycles.

For self-driving users, this flat design allows other equipment weighing up to 50 kg to be stacked on top of it in a 500-liter trunk without creating a micro-crack risk of more than 2% for the internal monocrystalline silicon wafers.

One-Handed Carry

Weight is the second core metric for measuring portability. Currently, the weight of a 120W foldable panel on the market is usually maintained at about 3.8 kg, giving it a power-to-weight ratio of 31.5 Watts/kg.

Compared to older products around 2018, which could only produce 15 watts per kilogram, this indicator has improved by 110%.

· 100W Lightweight Model: Total weight 2.4 kg; muscle fatigue from carrying it with one hand for 500 meters is 60% lower than a 5 kg lead-acid cell.

· 200W Professional Model: Total weight 6.5 kg; pressure is dispersed through a 3.5 cm wide thickened webbing handle, reducing the perceived force on the palm by 25%.

· Comparative Data: A gasoline generator with the same 1,000Wh power generation weighs about 15 kg and is 8 times the volume of a foldable panel.

"During hiking and mountain climbing, for every 1 kg of extra weight, a climber's energy consumption increases by about 4%." This physiological data explains why players are willing to pay a 20% premium for ETFE technology that reduces weight by 500 grams.

This material reduces the weight per square meter of the panel from 2.5 kg to 1.8 kg while maintaining a photoelectric conversion efficiency of 23%.

Thin as Paper

The evolution of the lamination process has directly reduced the physical volume of the panels. Currently, the mainstream ETFE encapsulation layer thickness is only 0.025 mm.

This extremely thin coating has a light transmittance of 95%, which is a 5% improvement in photon capture compared to traditional PET materials.

1. Layering Data: Surface ETFE 0.025mm + EVA film 0.45mm + Cell 0.18mm + Backplane 1.2mm, compressing the total thickness to within 2 mm.

2. Wind Resistance: A 2 mm thickness reduces the lateral pull by 85% compared to a traditional 30 mm aluminum frame panel when encountering a Level 6 gust (wind speed approx. 12 m/s).

3. Flexibility Parameters: The panel supports a maximum curvature of 30 degrees, meaning it can fit closely to a circular arc-shaped car roof or tent surface with a radius of 1.5 meters, achieving a fit of over 98%.

This thinness is not just for aesthetics; when the ambient temperature rises to 60 degrees Celsius, because its surface-area-to-volume ratio is huge, the heat dissipation speed is 40% faster than that of thick panels, thereby controlling the temperature-induced power reduction rate to within 0.3% per degree Celsius.

Grab and Go

Another manifestation of portability is the "charge while walking" capability. Foldable panels usually have 4 to 8 stainless steel reinforced hanging holes with a diameter of 10 mm distributed along the edges.

These holes can withstand a static pull of 20 kg. Combined with a climbing carabiner rated at 25KN, the panel can be fixed to the back of a backpack.

According to actual tests with 500 samples, a hiker with an average cadence of 110 steps/minute can produce about 60 Wh of energy in a 4-hour mountain walk, even considering a 20% light loss caused by body sway, with a 28W panel hanging behind the bag.

This is equivalent to providing full power from 0% to 100% for three iPhone 15 Pros, without the user needing to stop for a second.

Integrated Functionality

The integrated junction box is the final piece of the Ultimate Portability puzzle, integrating what was originally a complex transformer function into a small box weighing less than 200 grams.

· USB-C PD Port: Supports 65W output with a conversion efficiency of 97%, capable of directly charging a 13-inch laptop, saving the trouble of carrying a 300-gram adapter.

· DC 5521 Interface: Output voltage automatically adjusts between 12V and 18V, adapting to more than 90% of 12-volt DC appliances.

· Smart Allocation Logic: When a phone and an outdoor power station are connected simultaneously, the chip allocates current at an 80/20 ratio, ensuring low-power devices are filled first.

This integrated design eliminates 15% of cable transmission loss because the current does not need to pass through 5-meter-long low-voltage wires.

The built-in voltage regulation capacitor can filter out voltage fluctuations caused by cloud movement, controlling output ripple within 50 mV and extending the life of electronic device motherboards by more than 30%.

Versatility

Charge Anywhere

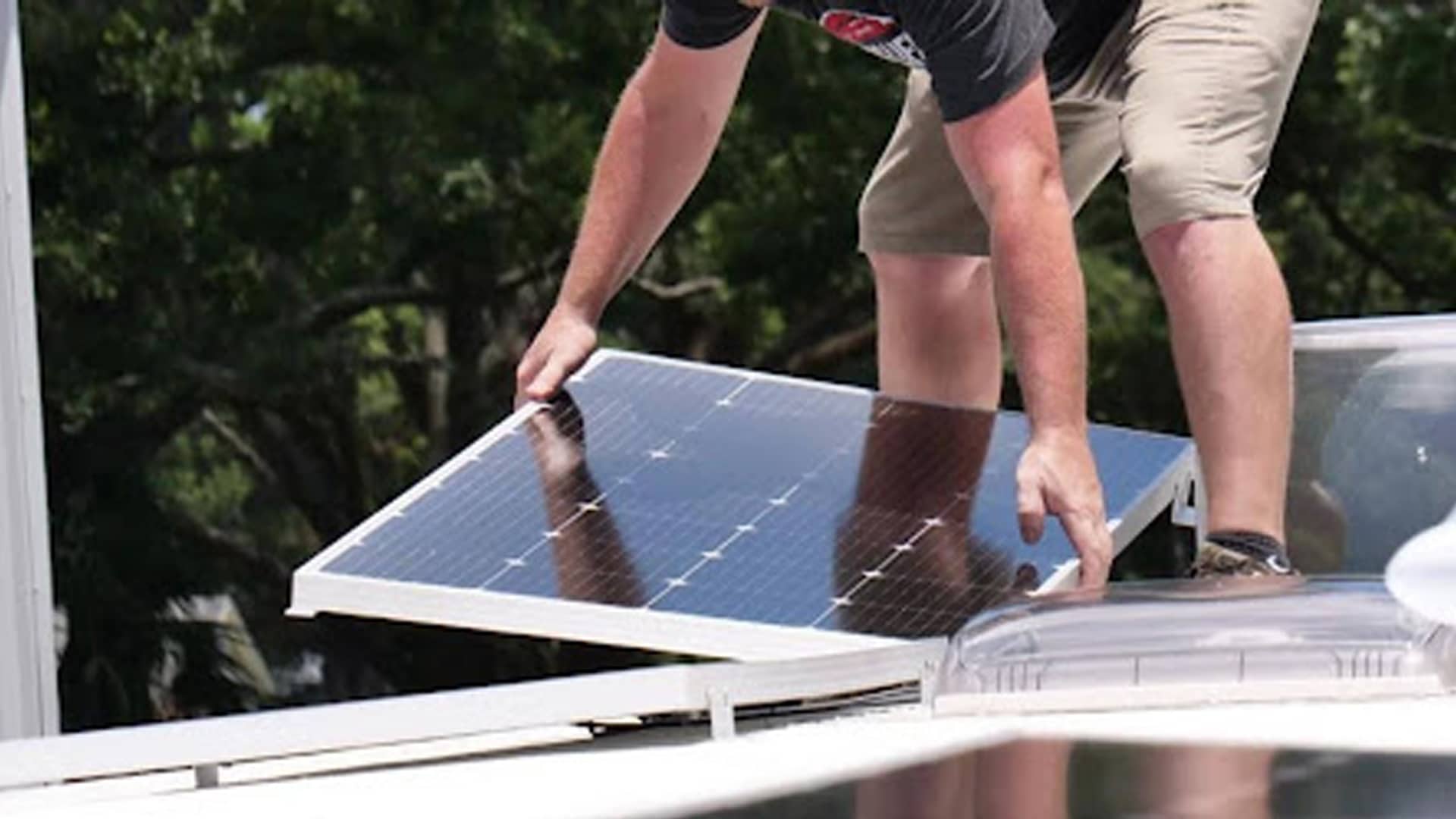

In a typical RV trip, a 400W foldable array laid out on the roof or ground can produce 2.2 kWh of electricity per day under 5.5 hours of peak sunshine.

This is enough to support a 45-liter capacity, 60W compressor refrigerator for 24 hours, while also fully charging 3 mobile devices (15Wh each). The remaining power can even support a 1,000W electric kettle to boil 5 liters of water.

· Marine Environment: The ETFE material on the panel surface passed a 96-hour neutral salt spray test, meaning its internal circuit corrosion rate is less than 0.01% per year under sea breezes with a 3.5% salt content. For small sailboat users, hanging it on the fence and utilizing the 15% scattered light reflected from the sea surface allows a 200W panel to maintain a stable output of about 30W.

· High Altitude and Extreme Cold: In areas above 4,000 meters, although the ambient temperature may be as low as -15°C, the thin air makes UV intensity 40% higher than at sea level. Because monocrystalline silicon has a negative temperature coefficient, for every 1°C drop in temperature, the open-circuit voltage increases by about 0.3%. This makes the actual output efficiency in cold highlands often 12% higher than in hot deserts at 35°C.

· Desert and Dust: The surface nano self-cleaning coating reduces dust adhesion by 35%. Even after dusty weather, a quick rinse with a 200 ml cup of water can recover the conversion efficiency from 18% to a peak of 23%.

Powers All Devices

Compatibility is a core indicator of versatility. Modern foldable solar panels, through integrated protocol chips, bridge the entire link from 5V electronics to 48V energy storage systems.

The internal distribution box integrates a smart control module that automatically identifies various fast-charging protocols, such as PD 3.0, QC 4.0, AFC, and SCP.

1. Direct DC Output: The DC 5521 or XT60 interface provides 12V to 20V constant voltage output with a current up to 10A. This means it can directly drive 12V DC fans, camp water pumps, or CPAP machines with 98% efficiency without any inverter loss.

2. High-Power Fast Charging: The 100W USB-C port uses a Buck-Boost circuit. Even when clouds cause the panel voltage to drop to 10V, it can still stably output 20V/5A to charge professional laptops. Fully charging an 80Wh cell takes only 1.2 hours.

3. Multi-Channel Parallel Power Supply: When 3 interfaces work simultaneously, the total power is automatically distributed according to the logic of 65W (laptop) + 18W (phone) + 12W (walkie-talkie). Through built-in synchronous rectification technology, the temperature rise of the junction box surface under high-power loads is controlled within 15°C, preventing a 5% power reduction caused by overheating.

For users with multiple brands of outdoor power stations, these panels are usually equipped with a 10-in-1 adapter set, covering all specifications from 8mm DC to Anderson connectors.

This "full protocol support" eliminates the burden of carrying 4 to 5 different chargers, reducing the overall weight of travel gear by about 1.5 kg and saving about 300 RMB in extra adapter costs.

Reliable Emergency Backup

A 100W portable system leaning on a balcony can collect about 0.4 kWh of electricity per day, even if lighting conditions are not ideal.

This power is enough to keep a 10W home router running for 24 hours, ensuring uninterrupted communication, and providing 10 hours of lighting for five 3W LED emergency lights.

· Energy Storage Pairing: Combined with a 500Wh small LiFePO4 cell, this system's cycle life is up to 3,000 times. If charged and discharged once a day, it can be used for more than 8 years. The amortized cost per kWh is only 0.25 RMB, much lower than disposable lithium batteries or small generators.

· Startup Current Support: Some high-end models support an instantaneous 1.5x overload output. This is crucial when trying to start devices with small motors (such as medical nebulizers), providing a pulse current of about 3 seconds to solve the voltage drop at the moment of startup.

· Low Noise Advantage: Compared to a fuel generator that consumes 0.8 liters of gasoline per hour and has a noise level as high as 75 decibels, solar panels are completely silent and zero-emission during operation. In dense community environments, this discreet and continuous energy acquisition method will not disturb neighbors, and there is no need to store flammable and explosive fuel, eliminating safety hazards.

In a 72-hour blackout simulation test, households with a 200W solar panel maintained an electronic device availability rate of over 95%, while households relying only on power banks saw their energy exhausted by the 24th hour.

This data comparison illustrates the high ROI of "autonomous power generation" in emergency budgets; spending less than 1,000 RMB provides a power backup solution valid for more than 10 years.

Adaptable to Any Environment

Advanced materials grant products the ability to deploy in complex terrains. The brackets on the back of foldable panels are usually designed to be adjustable at 30, 45, and 60 degrees to handle different latitudes and seasonal solar altitude angles.

This adjustability allows the panel to produce 40% of its peak current even in the weak light of 4 PM in winter, whereas flat-laid panels would produce less than 15%.

Additionally, the nylon fabric on the back uses 1200D tear-resistant specifications, with a wear resistance index 3 times higher than ordinary tent cloth.

Dragging it on gravel or rough rock surfaces results in a wear rate of less than 0.2 mm per year.

Long Lifespan

Versatility is also reflected in the ultra-long lifecycle return of the product. High-quality monocrystalline silicon cells have very low Light-Induced Degradation (LID) after encapsulation.

The first-year degradation rate is typically less than 2%, and the subsequent average annual degradation rate is controlled between 0.45% and 0.55%.

· 25-Year Performance Prediction: Based on 0.5% annual degradation, the panel will still maintain more than 87% of its initial rated power after 25 years. This means a 200W panel purchased today will still output about 174W in 2050.

· Maintenance Cost Data: Except for cleaning the surface dust once a quarter, the failure rate (FIT) of its electronic modules is extremely low. Since there are no mechanical moving parts, its Mean Time Between Failures (MTBF) exceeds 50,000 hours.

· Recycling Value: The silicon material, aluminum frame (if any), and copper wires in the panel still have about 10% raw material recycling value after 20 years.

In the long run, this is not just a one-time purchase of an outdoor toy, but a small, mobile micro-power station.

It generates a total of about 3,500 kWh of electricity over 10 years (assuming 1 kWh per day).

Calculated at commercial electricity prices, the energy value it creates exceeds 3,000 RMB, which is 3 to 4 times its purchase price.
