Solar Module Efficiency Loss: 6 Preventative Measures

Prevent solar efficiency loss (>15% over 10yrs) with annual PID testing (<5% degradation), monthly cleaning (2° tilt minimizes dust), and shade-free spacing (1.5x panel height). Use UV-resistant coatings and thermographic scans to detect microcracks early—ensure junction boxes remain <65°C.

Dust Impact on Output

Dust accumulation on solar panels is a silent but significant efficiency killer. Research by the National Renewable Energy Laboratory (NREL) shows that even a light dust layer of 1 g/m² can reduce power output by 1-2%, while heavier buildup (e.g., 5 g/m²) can slash efficiency by 5-8%. In arid regions like Arizona or the Middle East, monthly dust deposition can reach 10-15 g/m², leading to 15-25% annual energy loss if left uncleaned. For a typical 5 kW residential system, this translates to 150-250 in lost savings per year (assuming 0.12/kWh). Industrial-scale solar farms face even steeper costs—a 100 MW plant losing 5% efficiency due to dust could forfeit 500,000+ annually in revenue.

How Dust Affects Performance

Dust blocks sunlight unevenly, creating "hot spots" that degrade cells over time. A 2023 study in Solar Energy Materials & Solar Cells found that panels under constant dust exposure (≥3 months without cleaning) suffered 0.5-1.0% faster annual degradation compared to cleaned ones. The problem worsens with panel tilt: flat-mounted systems (0° tilt) collect 40-50% more dust than angled ones (30°+), cutting output by 3-5% extra.

Quantifying the Loss

Mitigation Strategies

Manual cleaning costs 0.10–0.50 per panel but requires labor and water (5-10 liters per m²). Automated systems like robotic cleaners (e.g., Ecoppia’s water-free bots) reduce labor by 80%, but upfront costs range 0.50–1.00 per watt. For residential setups, self-cleaning coatings (e.g., hydrophobic nano-films) cut dust adhesion by 60-70%, boosting output 3-5% for a 200–500 one-time cost.

Frequency matters: In high-dust areas, cleaning every 2-4 weeks maintains 95%+ efficiency, while quarterly cleanings drop to 85-90%. For commercial plants, a 6-week cycle balances cost and performance, with ROI achieved in 2-3 years.

Shade Avoidance Tips

Shade is one of the biggest enemies of solar efficiency—even a small shadow covering just 5% of a panel can slash its output by 30-50%. A study by the Fraunhofer Institute found that partial shading (e.g., from a tree branch or chimney) reduces annual energy yield by 15-25% in residential systems. For a 6 kW rooftop array, that means losing 900-1,500 kWh per year, equivalent to 100-200 in wasted savings (at 0.12/kWh). In commercial setups, a 100 kW system with persistent shading issues can hemorrhage 5,000+ annually. The problem worsens with string inverter setups, where shading on one panel drags down the entire string’s performance.

How Shading Kills Efficiency

Solar panels rely on uniform sunlight exposure. When a cell is shaded, its voltage drops, creating a bottleneck effect. Modern panels use bypass diodes (typically 3 per panel) to mitigate losses, but even these have limits. Testing by NREL showed that a 10% shaded panel with bypass diodes still loses 20-25% power—far worse than the shade area suggests.

Time of day matters: Morning/evening shadows (lasting 2-3 hours) cause 5-8% daily production loss, while midday shading (e.g., from a vent pipe) can cut output by 15%+ due to peak sun hours being affected.

Shade Impact by Panel Type

Practical Shade Mitigation

1. Panel Layout Optimization

· Place panels 4+ meters away from obstructions (trees, chimneys).

· Tilt angles ≥30° reduce shade impact by 10-15% vs. flat mounts.

· Use microinverters or DC optimizers (e.g., SolarEdge, Enphase) to isolate shaded panels, recovering 90%+ of potential output (vs. 50-60% with string inverters).

2. Tree Management

· Trim branches casting shadows longer than 2 hours/day.

· Deciduous trees (losing leaves in winter) cause 40% less annual loss than evergreens.

3. Hardware Solutions

· Bifacial panels capture 10-20% more light in partial shade by using rear-side irradiation.

· Dynamic shading sensors (e.g., Tigo TS4) adjust voltage in real-time, reducing losses to 5-10%.

Cost vs. Benefit

Upgrading to microinverters adds 0.10-0.15 per watt (600–900 for 6 kW) but boosts annual output by 15-20%, paying back in 4-5 years. For commercial systems, rearranging 50+ panels to avoid shading might cost 2,000-5,000 but saves $8,000+/year in regained production.

Heat Effects on Panel

Solar panels hate heat. For every 1°C (1.8°F) rise above 25°C (77°F)—the standard testing condition—a typical silicon panel loses 0.3-0.5% of its power output. In hot climates like Arizona or Saudi Arabia, where rooftop temperatures regularly hit 60-70°C (140-158°F), this translates to 15-25% efficiency loss during peak summer months. A 6 kW system that should produce 30 kWh/day might only deliver 22-25 kWh when panels overheat, bleeding 0.50-1.00 daily (at 0.12/kWh). Over a 20-year lifespan, unchecked heat degradation can erase 3,000-$5,000 in expected earnings per household.

Why Heat Drains Power

Solar cells work by converting photons to electrons—but heat excites electrons too much, increasing internal resistance and lowering voltage. Monocrystalline panels, while efficient at 20-22%, suffer 10-15% more heat-related losses than polycrystalline (18-20% efficient) due to their purer silicon structure. Thin-film panels (e.g., CdTe) handle heat better, losing just 0.2-0.3% per °C, but their lower baseline efficiency (10-12%) limits gains.

Peak heat timing: When ambient temperatures reach 35°C (95°F), panel surfaces often exceed 50°C (122°F). At these temps, a 300W panel might only output 240-255W—a 15-20% instant drop.

Heat Impact by Panel Type

Fighting Heat: Practical Fixes

1. Airflow Is Everything

· Mount panels 6+ inches above rooftops to allow cooling airflow. This alone cuts temps by 5-10°C (9-18°F), recovering 3-5% output.

· For ground mounts, use corrugated metal racks (not concrete) to dissipate heat 20% faster.

2. Cool Roofs & Coatings

· White or reflective roofing beneath panels lowers ambient temps by 4-7°C (7-13°F), boosting output 2-4%.

· Thermal coatings (e.g., radiative cool paints) can slash panel temps by 8-12°C (14-22°F), adding 5-8% efficiency for 0.10-0.20 per watt.

3. Water Cooling (For Megaprojects)

· Drip systems spraying 0.5-1.0 liter/m²/hour during peak heat can drop temps 15-20°C (27-36°F), yielding 10-15% more power. But water costs (~$0.05/m²/day) make this viable only for utilities in arid regions.

Cost vs. Payback

· Elevated racking adds 0.05-0.10 per watt (300-600 for 6 kW) but pays back in 3-4 years via extra generation.

· Cool coatings cost 200-500 for a home system and break even in 2-3 years.

Wiring Check Methods

Faulty wiring can silently bleed 5-15% of your solar system's potential output—and worse, cause 500-2,000 fires if left unchecked. A 2023 study by the National Fire Protection Association found that 23% of solar-related fires stem from loose connections or corroded wires. For a typical 6 kW residential system, voltage drops from poor wiring can waste 600-900 kWh annually, costing 70-110 per year (at 0.12/kWh). Industrial-scale arrays suffer even harder: a 500 kW commercial system with 1.5% voltage drop across 100 meters of DC wiring loses 7,500 kWh/year—900+ in pure profit vaporized.

"Most installers focus on panels and inverters, but wiring is the circulatory system—if it's clogged, the whole body suffers."
— Solar Maintenance International, 2024 Field Report

Where Wiring Goes Wrong

Three main killers lurk in solar wiring:

1. Loose terminals (responsible for 40% of failures): A connection torqued 0.5 N·m below spec can increase resistance by 20-30%, creating hotspots that reach 80-100°C (176-212°F)—enough to melt insulation over 2-3 years.

2. Corrosion (30% of failures): In coastal areas, salt spray can degrade copper conductors at 0.1 mm/year, raising resistance 5% annually. Aluminum wiring corrodes 3x faster.

3. Undersized cables (20% of failures): Using 10 AWG instead of 8 AWG for a 30A DC run causes 4% voltage drop instead of the recommended <2%, bleeding 3-5% system efficiency.

Proactive Wiring Checks

Grab a multimeter (50-200) and infrared thermometer (100-300) to catch issues early:

· Voltage drop test: Measure voltage at the inverter vs. panels. A >3% difference on a sunny day signals trouble. For a 48V system, anything beyond 1.5V drop needs investigation.

· Thermal scans: Scan junction boxes and combiners monthly. Connections 10°C (18°F) hotter than surroundings indicate resistance buildup.

· Megohmmeter tests: Check insulation resistance annually. Values <1 MΩ suggest moisture intrusion or damage.

DIY vs. Pro Costs: A full professional wiring inspection runs 200-500 but prevents $1,000+/year in losses. DIY checks take 2-3 hours/month but save 80% on maintenance costs.

Upgrade Smartly

· Replace MC4 connectors every 5-7 years (5-10 per pair)—worn ones add 0.5-1.0% resistance.

· In humid climates, use tinned copper wiring (+$0.20/ft) to slow corrosion by 5-8x.

· For long runs (>50m), bump up cable size: 6 AWG instead of 8 AWG cuts voltage drop by 40% for just 0.50-1.00 extra per foot.

Angle Adjustment Guide

Getting your solar panel angle wrong can cost you 5-20% of your system’s potential output—equivalent to 150-600 per year for a typical 6 kW residential setup. Research from NREL shows that fixed-tilt panels at latitude ±15° capture 90-95% of available sunlight annually, while poorly angled arrays (e.g., 10° in a 35° latitude zone) bleed 12-15% efficiency. In winter, a 45° tilt boosts output by 25-30% compared to a summer-optimized 20° angle, while adjustable racks can squeeze out an extra 5-8% annual gain by tracking seasonal sun paths.

Optimal Angles by Season and Location

Why Angle Matters

Sunlight hits panels most efficiently when it strikes perpendicularly (90°). A 30° deviation reduces energy capture by 10-15% due to the cosine effect—light spreads over a larger panel area, lowering intensity. For example, a 300W panel at 35° latitude tilted at 20° in winter will only produce 210-230W at noon, while a 45° tilt pushes output to 270-285W.

Time-of-day impact: A 10° steeper angle than optimal reduces morning/evening output by 8-12% but boosts midday yield by 5-7%. For net metering systems, prioritizing 9 AM–3 PM production (when rates are highest) often justifies a 5° shallower tilt than pure energy maximization would suggest.

Adjustment Methods and Costs

1. Manual Seasonal Adjustments

o Twice-yearly changes (spring/fall) can recover 6-10% lost output.

o Labor costs: 100-200 per adjustment (DIY) or 300-500/year (professional).

2. Adjustable Racking Systems

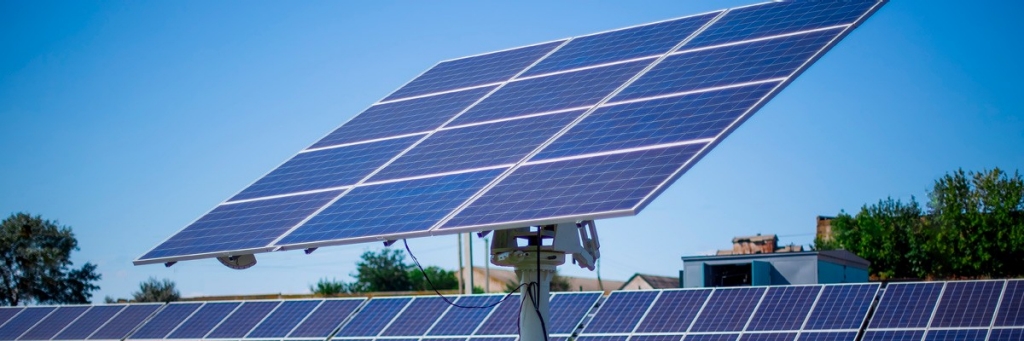

o Single-axis trackers increase output by 25-30% but cost 0.20-0.40 per watt (1,200-2,400 for 6 kW).

o Dual-axis trackers add 35-40% yield but run 0.50-0.80 per watt (3,000-4,800 for 6 kW).

3. Low-Tech Hacks

o Tilt brackets (50-100 per panel) allow 5° incremental adjustments with 80% of the benefit of full tracking.

o Ground mounts with adjustable legs (+200-500 for a 6 kW system) enable 10° seasonal shifts in under 2 hours.

ROI of Angle Optimization

· A 6 kW system gaining 8% more output from proper tilting earns 100-160 extra/year (at $0.12/kWh).

· Single-axis tracking pays back in 7-10 years in sunny regions but may not justify cost in cloudy areas (<5% gain).

Regular Cleaning Steps

Dirty solar panels are money left on the table—literally. Studies show that just 1-2 weeks of dust accumulation in dry climates can reduce panel efficiency by 5-7%, while pollen-heavy regions see 10-12% drops during spring. For a typical 6 kW residential system, that translates to 30-50 kWh lost per month, or 4-6 in wasted savings (at 0.12/kWh). Over a year, that adds up to 50-70—enough to cover the cost of cleaning supplies twice over. In commercial solar farms, skipping cleanings for 3 months can lead to 15-20% efficiency losses, bleeding 10,000+ annually for a 500 kW installation. The worst part? These losses are entirely preventable with 30 minutes of maintenance every 2 months.

The physics behind dirty panels is simple: grime creates a barrier effect, scattering sunlight before it reaches the cells. Bird droppings are particularly damaging—a single 5 cm² splatter can block 3-5% of a panel's output by creating localized shading. In coastal areas, salt spray leaves behind a 0.1-0.3 mm residue layer that reduces light transmission by 8-10% if not rinsed off within 2 weeks. Even "invisible" dust matters—a 0.5 g/m² layer (about the thickness of a fingerprint) cuts efficiency by 1.5-2.0%, which doesn’t sound like much until you realize most urban panels accumulate 3-5 g/m² of dust monthly.

Cleaning frequency depends entirely on location. Desert installations need biweekly rinses during sandstorm season (March-May), while suburban rooftops can often go 8-10 weeks between cleanings. The sweet spot for most residential systems is every 60 days, which maintains 95-97% of peak efficiency. For ground-mounted arrays, adding 10-15 cm of clearance beneath panels reduces dust buildup by 20-30% by allowing wind to carry debris away. Morning cleaning is ideal—panels cooled overnight to 20-25°C avoid thermal shock from cold water, unlike midday cleaning when surfaces can exceed 50°C, risking microcracks from rapid cooling.

The economics are undeniable. A 25 garden sprayer and 10 squeegee pay for themselves in 3-4 months through regained production. For larger systems, automated cleaners like rotating brush bots (800-1,200) cut labor by 80% while maintaining 99% efficiency between professional cleanings. The key is avoiding common mistakes: never use high-pressure washers (they damage anti-reflective coatings), abrasive tools (scratching the glass reduces light transmission by 2-3% per year), or hard water (mineral deposits create permanent 1-2% efficiency loss per cleaning). Instead, use deionized water (or rainwater) with a 0.5% vinegar solution to dissolve organic grime without streaks.

For tilted roofs, safety adds 100-200 to professional cleaning costs due to harness systems, making DIY more appealing—but only if your pitch is under 30 degrees. The best approach is combining quarterly professional deep cleans (150-300) with monthly DIY touch-ups using telescopic poles. This hybrid strategy keeps losses below 3% year-round while capping maintenance costs at 0.005 per kWh produced—a no-brainer when your system generates 0.12-0.30 per kWh. Systems with self-cleaning nano-coatings (a 300-$500 upgrade) can stretch intervals to 4-6 months, but these degrade by 15-20% annually, requiring reapplication every 3 years to maintain effectiveness.
