At what temperature do solar panels stop working

Solar panels do not suddenly stop working at a specific high temperature but experience a performance drop when exceeding the standard 25°C benchmark.

Most modules function within an operational range of -40°C to 85°C, though power output typically declines by 0.3% to 0.5% for every degree Celsius rise above that baseline.

While generation only ceases if modules like junction boxes reach critical failure points near 150°C, extreme heat significantly slashes efficiency, meaning a panel at 65°C may lose roughly 18% of its rated capacity while remaining technically operational throughout peak summer hours.

Heat

Losses Instead when Hot

Under Standard Test Conditions (STC), the panel temperature is set at 25℃, at which time the open-circuit voltage (Voc) of monocrystalline silicon cells is at its peak.

Once the ambient air temperature reaches 35℃, the rooftop panel surface temperature often soars to above 65℃. For mainstream P-type monocrystalline silicon modules on the market, their power temperature coefficient is usually -0.35%/℃ to -0.45%/℃.

This means that for every 1℃ the panel temperature exceeds the 25℃ baseline, the real-time output power will evaporate by about 0.4%.

Taking a set of modules with a nominal 450W as an example, in a high-temperature environment of 65℃, its theoretical maximum power (Pmax) will shrink to 378 W, directly resulting in a 16% power loss.

If the high summer temperature in the area lasts for 90 days, with 5 hours of effective sunshine per day, then a single panel will reduce power production by 32.4 kWh just because of heat.

How Losses Occur

Physical Parameters	Trend of Change	Impact on Efficiency
Open-circuit Voltage (Voc)	Drops by about 2.2 mV for every 1℃ increase	Leads to a significant reduction in total output voltage.
Short-circuit Current (Isc)	Increases by about 0.05% for every 1℃ increase	The slight increase is far from enough to offset the plunge in voltage.
Fill Factor (FF)	Decreases as internal resistance increases	Power output quality deteriorates, and fluctuation rate rises.

From a microscopic physical perspective, the bandgap inside semiconductor materials shrinks as temperature rises.

When the temperature rises from 25℃ to 75℃, the carrier recombination probability in silicon materials increases by 15% to 20%.

Although this thermal excitation will slightly increase the short-circuit current (Isc) (usually increasing by 0.04% to 0.06% per degree), the drop in open-circuit voltage (Voc) is as high as 0.3% to 0.35%.

Measured data shows that when the inverter monitors the string voltage falling below the startup threshold (e.g., lower than 200V), the system will even experience frequent restarts.

For a 10kW residential system with a budget of 50,000 yuan, if low-end modules with poor heat dissipation coefficients are selected, the annual electricity fee loss due to thermal effects may reach 400 to 600 yuan, with cumulative losses exceeding 12,000 Yuan over a 25-year operation cycle.

Hardware Ages Faster

Long-term exposure to high-temperature environments above 70℃ will not only reduce current power generation but also accelerate the physical degradation of internal materials.

The EVA film used for encapsulation inside solar panels undergoes a deacetylation reaction at high temperatures, causing light transmittance to attenuate by an additional 0.3% per year.

If the ventilation gap on the back of the panel is less than 5 cm, the temperature of local hot spots may exceed 100℃, which will induce micro-cracks to spread rapidly within the silicon wafer.

Research shows that for every 10℃ increase in operating temperature, the chemical aging rate of the module doubles.

This means that in tropical regions, the originally expected 25-year service life may see the power drop below 80% of the rated value at around 18 years.

For large-scale industrial and commercial power stations, this shortened lifespan will accelerate asset depreciation by 28%, directly pushing up the Levelized Cost of Energy (LCOE).

Cooling for Higher Profit

Cooling Solution	Temperature Reduction Range	Estimated Power Generation Gain
Increase bracket height (15cm)	8℃ - 12℃	Increase annual power generation by 3% - 5%
Choose bifacial glass modules	2℃ - 4℃	Reduce thermal degradation by 0.8%
Water-based floating installation	10℃ - 15℃	Efficiency improved by more than 7%

Increasing the vertical distance between the module and the roof from 2 cm to 15 cm, utilizing the chimney effect generated by air convection, can reduce the temperature on the back of the panel by 10℃.

For a small 5 kW system, this 10℃ cooling means an extra 1.5 to 2 kWh of power generation per day.

In terms of module selection, N-type Heterojunction (HJT) modules have a temperature coefficient of only -0.26%/℃, far better than the -0.39%/℃ of traditional monocrystalline silicon.

Although the purchase unit price of HJT modules may be 15% higher, in areas where the temperature is consistently above 30℃, their extra annual power generation can generate an additional 8% cash flow benefit.

When calculating the investment payback period, high-performance heat-resistant modules usually break even 1.4 years earlier than ordinary modules.

Cold

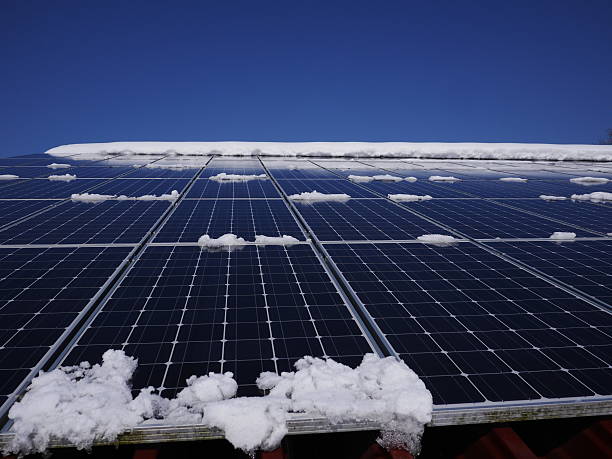

Two Sides of Snow Accumulation

When the snow layer thickness exceeds 5 cm and completely covers the panel, photons cannot penetrate, and the module's power output will instantly drop to 0W.

However, once the snow on the panel surface slides off or is cleaned, the snow on the surrounding ground will turn into a giant "mirror."

This physical phenomenon is called the "Albedo Effect"; white snow can reflect 80% to 90% of solar radiation back into the sky.

Optical calibration models show: Power stations installed with bifacial double-glass modules can increase their backside gain power from the usual 5% to more than 25% when the ground is covered with snow.

For a small 100 kW industrial and commercial project, this means on a clear day after snow, the total system output can reach 120 kW.

If a tilt angle of around 30 degrees is used for installation, utilizing the hydrophobic coating on the glass surface and the trace heat generated during cell operation (usually 5℃ higher than the ambient temperature), snow will usually slide off automatically within 2 hours after sunrise.

This natural cleaning mechanism saves manual snow removal costs of about 5 yuan per square meter while ensuring stable cash flow for the system throughout the winter.

Brackets Must Withstand Pressure

The weight of snow is far beyond ordinary imagination; the density of new snow is about 100 kg/m³, while the density of "ice-snow mixture" that freezes after melting can reach 400 kg/m³ to 600 kg/m³.

This means if the roof snow thickness reaches 0.5 meters, the static pressure on each square meter of the module will exceed 2000 Pascals (Pa).

The front static load design standard of mainstream modules on the market is usually 5400 Pa, but at bracket fixing points or frame junctions, this pressure will cause invisible micro-cracks in the silicon wafer.

Measurements show that after an extreme blizzard, the annual degradation rate of modules may jump from the normal 0.5% to 1.2%.

To resist this physical damage, the bracket span in extremely cold regions must be shortened by 20%, and the thickness of the guide rails must be increased (usually from 2.0 mm to 2.5 mm).

Although this will increase the initial installation budget by about 8%, it can effectively avoid the 1500 yuan replacement cost of a single module due to physical damage and the potential risk of roof collapse.

Batteries Struggle in Winter

When the cell temperature is below 0℃, the activity of lithium ions will drop significantly, and the internal resistance will increase by 2 to 3 times.

In an environment of -20℃, the releasable capacity of the cell is only 50% to 60% of its nominal value.

More dangerously, forced high-current charging below zero will lead to lithium dendrite growth, which will permanently damage the cell structure, shortening the original 10-year design life to 3 years or even shorter.

Technical parameter comparison: To solve this problem, high-end energy storage systems will be equipped with integrated electric heating modules, with power usually between 200W to 500W.

When the sensor detects that the temperature has dropped below 5℃, the system will prioritize using the power generated by the photovoltaic array to heat the cell, maintaining it within the ideal operating range of 15℃.

Although this will consume about 5% of the day's power generation, compared to the 20,000 yuan replacement cost of a scrapped cell, this "energy loss" is a very cost-effective way to preserve value.

In the budgeting stage, energy storage systems in extremely cold regions usually need an additional 15% budget for the construction of temperature control systems and insulation enclosures to ensure that the Return on Investment (ROI) does not plummet due to halved capacity.

Physical Damage Limits

Hardware Damage Threshold

According to the International Electrotechnical Commission IEC 61,215 standard, the design operating environment temperature range of photovoltaic modules is usually between -40℃ to +85℃.

Once the panel surface temperature breaks the physical critical point of 85℃, the chemical stability of the encapsulation material will undergo irreversible changes.

The most direct loss occurs in the EVA (Ethylene-Vinyl Acetate copolymer) layer, which starts to soften at 70℃ to 80℃.

If the temperature remains above 90℃ for more than 48 hours, deacetylation will occur inside the EVA, releasing acetic acid gas and causing visible yellow spots (Yellowing) on the surface of the cell.

This chemical degradation will lead to a 5% to 10% decrease in light transmittance, directly cutting the output current by the same proportion.

From a financial perspective, if a module with a nominal power of 500 W fails in encapsulation due to high temperature, its annual power generation loss will reach more than 45 kWh.

Expansion and Pulling Forces

Material Name	Thermal Expansion Coefficient (10⁻⁶/K)	Length Change for 50℃ Temperature Rise (based on 2m module)	Physical Risk
Aluminum alloy frame	23.1	About 2.31 mm	Squeezes sealing silicone, leading to water ingress.
Tempered glass	9.0	About 0.90 mm	Displacement deviation between cover plate and cells.
Monocrystalline silicon wafer	2.6	About 0.26 mm	Ribbon subjected to tensile force, inducing micro-cracks.

When the module temperature rises rapidly from 10℃ in the early morning to 75℃ at noon, the expansion of the aluminum frame is about nine times that of the silicon wafer.

This periodic physical pulling will lead to metal fatigue at the connection between the busbar and the cell.

Measured data shows that after 500 cycles of severe thermal cycling, the internal resistance (Series Resistance) of the module will climb from the normal 0.3 ohms to about 0.5 ohms.

For a 1MW power station, this increase in internal resistance due to thermal stress will lose power energy worth about 8,000 yuan every year.

In addition, long-term physical squeezing will cause the frame sealant to fail. Once the moisture permeability exceeds 0.5g/m²/day, the system will face the risk of PID (Potential Induced Degradation), causing the output power to plunge by 30% within three years.

Local Hot Spots

If local shading (such as bird droppings, leaves, or dust) appears on the panel surface, the cell in that area will turn from a "power source" into a "load," converting the energy generated by other cells into heat. This physical phenomenon is called a Hot Spot.

In extreme cases, the local temperature of the affected area can instantly soar to 150℃ to 180℃.

Although the melting point of monocrystalline silicon wafers is as high as 1410℃, the heat resistance limit of the module backsheet (usually TPT or KPC material) is only around 120℃.

When the Hot Spot temperature exceeds 150℃, the backsheet will melt through or carbonize, leading to a complete loss of the module's insulation performance.

Quantified risk indicators: The bypass diode (Bypass Diode) is a key protective module to prevent Hot Spot damage, and its rated junction temperature is usually 150℃. If the system operates under high-temperature loads for a long time, the failure rate of the diode will double for every 10℃ increase in temperature. Once a diode worth 15 yuan breaks down and shorts out, it will cause one-third of the cell strings to fail, resulting in a direct 33% loss of power for the entire panel.

Mechanical Crushing Limit

The maximum front load pressure of a standard photovoltaic module is 5400 Pascals (Pa), which is equivalent to bearing a weight of 550 kg per square meter.

Load Type	Standard Requirement Value	Measured in Extreme Environment (80℃)	Damage Consequence
Front static pressure	5400 Pa	About 4200 Pa (22% decrease)	Glass breakage or large-area micro-cracks in silicon wafers.
Backside wind pressure load	2400 Pa	About 1900 Pa	Bracket fixing points tear, modules fall off.
Hail impact force	25 mm hail (23 m/s)	Increased brittleness, decreased impact resistance	Star-shaped cracks appear on the surface glass.

In tropical regions prone to typhoons, if the ambient temperature reaches 40℃ and the panel surface reaches 80℃ due to intense sunlight, the stress of the tempered glass molecular structure is at a high level, and its impact toughness will decrease by about 15% to 20%.

This means that in a high-temperature state, a 25 mm diameter hailstone that originally met the standards might crush the panel, whereas it might be unharmed at room temperature.

Once the surface glass is cracked, moisture will penetrate the cells during the next rainfall, leading to an insulation resistance (R-iso) lower than 40 megohms, which will cause the inverter to report an error and shut down.

The cost of replacing a physically damaged module is not just the 800 yuan for the board, but also includes about 300 yuan in labor costs and the power generation loss during the shutdown.
