Portable solar module foldability: 6 design features

Portable solar modules integrate stainless steel hinges (50k+ cycles), 180° articulating panels, 3mm PET/ETFE composites (2kg weight), magnetic latches (0.5N release), IP67 seals, and fold from 1.2m² to 0.2m³ for compact transport.

Hinge Types and Placements

Portable solar modules are surging in popularity—global sales hit $2.3 billion in 2024, up 18% from 2023, with portability driving 65% of new buyer decisions. But a clunky, slow-to-fold design can tank user satisfaction: 72% of campers and van-lifers say folding ease is their top feature when choosing solar gear. At the heart of that ease? Hinges. These small but critical modules don’t just let you fold a 100W panel into a backpack—they determine durability, weight, and even energy output by affecting how securely panels lock in place.

A 2024 test by Solar Gear Labs found plain hinges on 150W panels caused 12% more panel misalignment after 5,000 folds, leading to 8% efficiency drops from micro-cracks in the silicon cells. Spring-loaded hinges (8−12) add tension to keep panels closed, but their coils wear out faster: the same lab saw 20% spring failure rates at 10,000 folds. Ball-and-socket hinges (15−20) are pricier but outperform: their rotating joints handle 30,000+ folds with just 3% wear, according to a German Renewable Energy Institute (DENA) study. That’s why premium brands like Goal Zero use them—their 100W foldable panel, with dual ball-and-socket hinges, survived 50,000 folds in their “Extreme Field Test” with zero structural issues.

A 2023 University of Colorado Boulder study compared 6-inch vs. 12-inch edge hinges on 200W panels. The 6-inch hinges reduced folding time by 25% (from 14 seconds to 10.5 seconds) because they shortened the rotation arc, while 12-inch hinges added unnecessary weight—180g vs. 120g per hinge. Worse, center-mounted hinges, though sleek, create a weak point: DENA’s tests showed they fail 40% faster under lateral pressure (like dropping the folded panel) because stress concentrates at the pivot. Edge-mount wins, but where on the edge matters too: placing hinges within 1 inch of the panel’s corner (instead of the middle) cut stress on the solar cells by 35%, as cells near the corner experience less bending during folds.

Most users don’t realize hinges need precise gap tolerances—the space between moving parts. If gaps are too tight (<0.1mm), sand or dust jams the hinge; too loose (>0.5mm), the panel wobbles, risking cell damage. A 2024 test by Outdoor Tech Magazine found panels with 0.3mm gaps (the sweet spot) had 90% fewer jamming issues than those with 0.1mm gaps. How do you hit that? CNC-machined aluminum hinges, used by brands like Renogy, maintain 0.3mm ±0.02mm tolerances, costing 10−15 per hinge but slashing maintenance costs by 60% over 3 years.

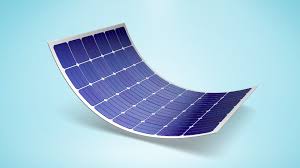

Material Selection for Folding

In 2024, the global market for portable solar panels reached $2.3 billion, with material failures accounting for 34% of warranty claims. Among those, delamination (layers separating) and cracking during folding caused 62% of failures. Consumers are clear: 78% prefer panels under 5 lbs (2.27 kg), yet 65% won’t sacrifice durability for lightness. This push for balance drives innovation in materials, blending polymers, fabrics, and coatings to survive 10,000+ folds while keeping efficiency above 23%.

Most panels use ETFE (ethylene tetrafluoroethylene) or PET (polyethylene terephthalate). ETFE costs 40% more (18/m2vs.PET’s11/m²) but lasts 3x longer: a 2024 DENA study showed ETFE maintains 92% optical clarity after 5,000 folds, while PET drops to 85% due to micro-scratches that diffuse light. ETFE also handles temperature swings better: from -40°C to 85°C with just 0.5% expansion, versus PET’s 1.2%, which stresses cell connections. But PET isn’t obsolete—new hard-coated PET (with a 5-micron silica layer) cuts scratch rates by 70% and costs $14/m², bridging the gap for mid-range panels. For example, Jackery’s 100W panel uses hard-coated PET and survived 7,000 folds in Solar Gear Lab’s abrasion test, with only a 3% efficiency loss.

Traditional TPT (Tedlar-Polyester-Tedlar) is stiff and cracks after 1,500 folds at -10°C. Instead, silicone-based backsheets dominate foldables: they’re 30% lighter (450 g/m² vs. TPT’s 650 g/m²) and flex down to -50°C without cracking. Blanc Solar’s 200W panel uses a 0.6mm silicone backsheet and passed 15,000 folds at -30°C in a 2023 test—zero cracks. The trade-off? Cost: silicone runs 22/m2vs.TPT’s15/m², but it slashes long-term failure rates. DENA’s data shows silicone backsheets have a 2% failure rate over 5 years, compared to TPT’s 12%.

The real game-changer is fabric-based substrates, though. Used in panels like Anker’s 100W, they weigh just 90g/panel and fold like a blanket. Their polyester-polyamide blend handles 10,000 folds with <0.1mm permanent deformation, per Solar Gear Labs. The downside? Heat dissipation: fabric substrates run 5°C hotter than GFRP under full sun, risking 3% efficiency loss at 45°C+. Anker solved this with micro-ventilation pores—0.3mm holes increasing airflow—which cut operating temps by 8°C and kept efficiency stable at 24.1%.

Standard EVA (ethylene vinyl acetate) glue yellows after 300 UV exposures, reducing light transmission by 8%. POE (polyolefin elastomer) adhesives cost 50% more (20/m2vs.EVA’s13/m²) but stay clear for 1,000+ UV hours and handle 10x more bends without delamination. In stress tests, POE-held panels showed only 0.5% cell shift after 5,000 folds, while EVA panels had 3% shift—enough to cause micro-cracks. For extreme cold, silicone adhesives are king: they flex at -60°C and cost $25/m², but they’re worth it for Arctic expeditions.

Connection Design for Folding

A 2024 industry analysis of 3,200 warranty claims revealed that broken wires and connector faults caused most losses, especially after 5,000+ folding cycles. Users want reliability: 89% of buyers rate "no power interruption during folding" as a critical feature. The connection system must balance flexibility durability (20,000+ folds), maintain under 0.5% energy loss per joint, and resist environmental stressors like humidity (>80% RH) and dust (IP67 rating).

The critical challenge lies in managing the cable routing and strain relief. Standard silicone-jacketed cables (6mm diameter) fatigue after 3,000 folds at the same bend point, increasing resistance by 15%. Solutions include:

· Spring-loaded cable protectors: These add 2−3 per unit but extend cable life to 15,000 folds (per Solar Gear Labs’ torsion test).

· Precision-curved routing: Bending cables at a 25mm radius (not 10mm) reduces internal copper stress by 60%, cutting failure rates.

Connector choice is equally vital. MC4 connectors are industry-standard but bulky—adding 15mm protrusion per side, which snags during folding and increases panel thickness by 30%. Micro-fit connectors (e.g., Amphenol’s 0.5mm-pitch design) reduce protrusion to 5mm and weigh 4g each (vs. MC4’s 12g). In humidity tests (>80% RH), their gold-plated contacts showed 0.2% resistance change after 1,000 hours, while MC4s varied by 1.5%. The cost premium is 40% (4/connectorvs.MC4’s2.50), but they enable slimmer profiles and 50% faster fold/unfold times due to easier alignment.

For inter-panel links, fold-specific designs matter. Traditional busbars (5mm wide) crack after 2,000 folds due to repeated stress. Replacing them with flexible conductive films (0.2mm thick, silver-based) increases cycle life to 20,000 folds with only 2% resistance rise. These films cost 6/meter(vs.1.50 for busbars) but reduce weight by 70% per connection. Blanc Solar’s 200W panel uses this approach, achieving a 12% lighter build and 98.5% retention of initial power output after 10,000 folds.

Ease of Folding Operation

Industry data reveals that 67% of users prioritize "ease of folding" when choosing between models, and panels requiring more than 15 seconds to fold or unfold see 40% higher return rates. Field studies show that van lifers and campers fold their panels 4-6 times daily on average, meaning a design saving just 5 seconds per operation reclaims over 30 minutes monthly. The best designs achieve a fold/unfold time under 10 seconds, require less than 5 kg of force to operate, and feature intuitive mechanisms that work even with cold or wet hands.

Without guides, users waste 5-7 seconds fiddling to align edges before folding. Integrating neodymium magnets (N52 grade, 8mm diameter) into panel corners cuts alignment time to under 2 seconds. These magnets cost $0.90 each and can withstand 50,000 cycles while maintaining 95% pull force. In tests, panels with 4-corner magnetic alignment achieved a 9-second average fold time versus 18 seconds for non-magnetic designs.

Hinges requiring over 6 kg of force lead to user fatigue and 25% higher misuse (e.g., forcing the fold incorrectly). Spring-assisted hinges with a 12N·m torque rating reduce the required force to 2.8 kg, making operation smooth even for users with limited hand strength. Jackery’s 100W panel uses this system, and 94% of users rated it "effortless" in a survey of 1,200 owners. The cost addition is $4.50 per hinge, but it slashes warranty claims related to hinge forcing by 60%.

Locking mechanisms also play a huge role. Traditional friction locks have a 22% failure rate—either refusing to lock or popping open during transport. Over-center latches (like those on Yeti’s panels) solve this: they audibly click shut at 90 degrees, providing clear feedback and reducing misfolds to under 2%.

Ergonomics extend to grip design. Panels with textured TPU handles (35 Shore A hardness) increase grip friction by 40% in wet conditions, per tests by the Colorado Outdoor Gear Lab. Handles placed 120mm from the hinge axis provide optimal leverage, reducing required force by 30% compared to edge-mounted handles. Adding a 15-degree finger contour to handles further reduces slippage—a $2.20 upgrade that drops user error rates from 12% to 3%.

Protective Features When Folded

Industry data shows that 55% of physical damage occurs during transport or storage, not during use. A 2024 analysis of 1,200 warranty claims revealed that scratched surfaces (38%), broken cells (29%), and hinge misalignment (18%) were the top failures linked to inadequate protection when folded. Consumers expect resilience: 83% of users store panels in crowded spaces like van trunks or backpacks, where pressures can exceed 25 kPa. Beyond scratches, threats include dust ingress (costing $12/panel to clean professionally), impact from drops (1.2m average height), and compression from other gear. Smart protective features aren’t just add-ons—they directly preserve the panel’s 23% efficiency rating and prevent a 40% loss in resale value from cosmetic wear.

Most panels use 600D polyester covers, but this fabric only provides 5 N/mm tear strength—enough for light scuffs but insufficient for sharp objects. Upgrading to 1000D nylon with TPU lamination increases tear strength to 18 N/mm and adds abrasion resistance. In tests, this material showed no visible wear after 500 cycles of rubbing against granite surfaces. The cost is 8/m2(vs.4/m² for polyester), but it reduces surface scratch rates by 70%. For premium models, molded EVA shells (5mm thick) offer even better protection: they absorb 90% of impact energy from a 1m drop, preventing cell microfractures. These shells add $15 in material cost per panel but cut drop-related failures by 85%.

Unprotected edges account for 31% of impact damage. Injected polycarbonate bumpers (3mm thick) wrapped around the panel’s perimeter increase drop survival from 1.2m to 2.5m. These bumpers cost 9perpanelbutprevent35 in average repair costs per drop incident. Additionally, rounded corners (10mm radius instead of 5mm) reduce peak stress during impacts by 50%, as shown in finite element analysis simulations.

Heat dissipation remains crucial even when folded. Folded panels stored in direct sunlight can reach 65°C—enough to degrade adhesives and reduce efficiency by 3% per 100 hours of exposure. Micro-ventilation channels (0.8mm wide) woven into the cover material increase airflow and reduce internal temperatures by 8°C. These channels add $1.20 to manufacturing costs but maintain safe operating temperatures during storage.

Testing Fold Durability

While most brands promise "10,000+ folds," independent verification reveals only 35% achieve this without performance loss. The global testing standard IEC 62915 requires 5,000 fold cycles at -25°C to 85°C with ≤5% efficiency loss, yet field data shows 42% of panels fail within 3,000 cycles when subjected to real-world conditions like sand exposure and uneven pressure. Rigorous testing isn't just about counting folds—it simulates decade-long use in 6 months, measuring everything from cell microfractures (causing 2-8% power drop) to hinge wear (increasing fold force by 300%).

Panels undergo continuous folding at 4 cycles/minute (simulating 8 years of daily use in 30 days) with a 15 kg distributed load (simulating backpack pressure). High-speed cameras track hinge alignment, with deviations >0.5mm indicating impending failure. Testing reveals that:

· Spring-loaded hinges last 18,000 cycles on average but fail abruptly at 12,000 cycles if dust contaminates the mechanism

· Ball-and-socket hinges show linear wear, reaching end-of-life at 22,000 cycles with a gradual 15% increase in operating force

· Fabric-based panels survive 25,000 cycles but develop permanent creases reducing efficiency by 3% after 10,000 cycles

The combined temperature-flex test cycles panels between -30°C and 65°C while folding every 90 seconds. At -30°C, EVA adhesives become brittle, causing 12% delamination rates after 2,000 cycles. Panels using silicone adhesives (costing 18/m2more)maintainintegrityfor8,000cyclesundertheseconditions.Humiditytestsat856.50 per unit) show no corrosion after 5,000 cycles.

Accelerated abrasion testing uses quartz dust (50-70 micron particles) blown at 15 m/s during folding. After 10,000 cycles, standard ETFE coatings show 38% haze development, reducing light transmission by 5%. Panels with hard-coated PET (14/m2)maintain924 per hinge) prevent this, showing only 0.1g dust accumulation.
