Monocrystalline Silicon PV: 5 Advantages Over Alternatives

Monocrystalline silicon panels provide a superior conversion efficiency of 19% to 22%, outperforming the 15% to 17% average of polycrystalline alternatives.

This increased power density allows for the generation of identical electricity yields while occupying 15% to 20% less installation space, making them ideal for residential rooftops.

Furthermore, they maintain better performance in high temperatures due to a low temperature coefficient of -0.3%/°C.

With a proven operational lifespan of 25 to 30 years and a minimal annual power degradation rate of under 0.55%, these panels ensure consistent energy production and long-term hardware reliability across various environmental conditions.

Higher Energy Yield

High Conversion Rate

Currently, the average mass production conversion efficiency of commercial N-type monocrystalline silicon cells has reached between 25.5% and 26.0%, which is about 7.5 percentage points higher than the 18.5% efficiency limit of traditional polycrystalline silicon.

Under Standard Test Conditions (STC, 1000 W/㎡ light intensity, 25℃), a 210 mm specification monocrystalline module with an area of 2.58 square meters can easily reach a rated power of more than 670 W.

The atomic arrangement inside monocrystalline silicon presents a highly ordered lattice structure. This structure extends the mean free path of charge carriers by more than 15%, directly reducing internal resistance loss to below 0.5%.

For a 1 megawatt (MW) scale distributed power station, using monocrystalline modules with a 3% efficiency increase can reduce the usage of about 120 sets of brackets and 1500 meters of DC cables, lowering the initial Balance of System (BOS) cost by about $0.05/W.

Less Heat Sensitivity

When rooftop temperatures reach 65℃ in summer, the power generation of photovoltaic modules will drop linearly as the temperature rises.

The power temperature coefficient of monocrystalline silicon modules is usually between -0.29%/℃ and -0.34%/℃, while the coefficient for ordinary polycrystalline or older modules is as high as -0.39%/℃ to -0.45%/℃.

Taking an air temperature of 35℃ and a module backsheet temperature of 60℃ as an example, the power loss of monocrystalline modules due to temperature rise is about 10.15% (35℃ difference × 0.29%), while the loss for polycrystalline modules reaches more than 13.65%.

This means that under the same 1,000 W/㎡ irradiance, monocrystalline systems can output 3.5% more actual electricity per hour than comparison systems.

In tropical regions where the annual average temperature exceeds 28℃, this temperature rise control advantage can increase the system's cumulative annual power generation (Yield) by an additional 4% to 6%.

Performs on Cloudy Days

The light-trapping structure on the surface of monocrystalline silicon cells uses pyramid-shaped textures with a height of 3 to 5 microns, reducing light reflectivity to below 1.5% through more than 2 internal reflections.

In low-angle lighting scenarios such as 7 AM or 6 PM, the absorption response rate of monocrystalline modules to the 300 nm to 1100 nm spectral band is more than 8% higher than other materials.

When cloud cover causes light intensity to drop to a low-light environment of 200 W/㎡, the relative conversion efficiency of monocrystalline systems can still be maintained at more than 95% of the rated value.

In contrast, the efficiency of polycrystalline silicon under the same low light will drop significantly to 85% or even lower.

According to measured data in regions at 31 degrees latitude, the effective power generation duration of monocrystalline modules per day is on average 35 to 50 minutes longer than ordinary modules, which directly contributes to a daily power generation increase of about 5.5%.

Better Performance in Heat

Generate More Heat

When the ambient air temperature rises from 25 degrees Celsius to 45 degrees Celsius, the internal operating temperature of photovoltaic panels usually soars to 60 degrees Celsius to 70 degrees Celsius.

The power temperature coefficient of monocrystalline silicon modules is usually maintained between -0.29%/℃ and -0.35%/℃, which means that for every 1 degree Celsius increase in cell temperature, the output power only decreases by about 0.3%.

In comparison, this value for old polycrystalline silicon technology usually exceeds -0.42%/℃. Under the same extreme high temperature environment of 75 degrees Celsius, the power generation efficiency loss of monocrystalline silicon is reduced by about 18% to 22% compared with polycrystalline silicon.

During the high temperature period from 12:00 to 14:00 at summer noon, if the measured temperature of rooftop modules reaches 65 degrees Celsius, monocrystalline silicon systems can still maintain more than 85% of the rated power output.

If the attenuation rate of a 10 kW system under high temperature is reduced from 0.4% to 0.3%, 6 hours of sunshine per day can result in about 1.2 to 2.5 kWh more power generation.

Calculated at an electricity fee of 0.8 yuan per kWh, a single device can create an additional 150 to 300 yuan in electricity fee revenue during the 4-month summer high temperature period, which improves the annual total power generation yield by about 5%.

High Temperature Resistant Structure

Current N-type monocrystalline cells use passivation contact technology, which keeps the open-circuit voltage offset at high temperatures within 2 millivolts per degree Celsius.

This means that under an ambient temperature of 50 degrees Celsius in desert areas, the operating voltage of monocrystalline modules can still stabilize at more than 90% of the rated voltage, ensuring that the inverter operates within the efficient MPPT tracking range of 500V to 800V.

If the voltage fluctuation range exceeds 15%, the conversion efficiency of the inverter will drop from 98.5% to about 96%, while monocrystalline silicon modules reduce this systematic power loss by about 2.5%.

The thickness of monocrystalline silicon wafers is usually precisely controlled between 130 microns and 150 microns. The thinner size not only saves 10% of material but also shortens the path for heat conduction from the inside of the cell to the glass surface.

Using 2.0 mm or 3.2 mm high-transmittance tempered glass encapsulation can increase the reflectivity of infrared rays by 5% to 8%, thereby reducing the heat accumulation inside the module by about 3 degrees Celsius to 5 degrees Celsius.

This thermal management optimization keeps the total proportion of Light Induced Degradation (LID) caused by high temperatures within 2% over the 25-year life cycle of the module.

More Stable Generation

In areas with an altitude of more than 1500 meters, high UV intensity, and a day-night temperature difference of more than 30 degrees Celsius, the mechanical load fatigue of monocrystalline silicon modules is 12% lower than that of ordinary materials.

The consistency of the thermal expansion coefficient allows the connection point between the silicon wafer and the busbar to have an increase in contact resistance of less than 0.1 milliohms after 2000 thermal cycle tests.

This microscopic stability ensures that even in continuous high temperature weather above 40 degrees Celsius, the heat loss of electrical energy transmitted by the line is maintained at an extremely low level of 0.5%.

If observing a 1MW industrial and commercial rooftop project, using monocrystalline modules with excellent heat resistance performance can produce a peak output per hour that is 40kW to 60kW higher than inferior modules during the peak generation period in August.

This 5% output difference can accumulate to more than 1.5 million to 2.0 million kWh of clean electricity during the 25-year contract period.

Calculated at 0.35 kg per ton of standard coal, this is equivalent to an additional reduction of 500 to 700 tons of carbon dioxide, saving about 100,000 to 200,000 yuan in carbon emission allowance purchase costs for the enterprise.

Leave Gaps for Installation

In order to give full play to the performance of monocrystalline silicon at high temperatures, it is recommended that the vertical distance between the module and the roof plane be maintained between 10 cm and 15 cm during installation.

This physical space can induce natural convection with wind speeds between 1 meter per second and 3 meters per second, quickly reducing the temperature on the back of the module by 5 degrees Celsius to 8 degrees Celsius.

According to thermodynamic simulation data, this installation method can increase the instantaneous power generation by about 3% and keep the operating temperature of the combiner box below the safety line of 50 degrees Celsius.

Choosing 4 square millimeter or 6 square millimeter specifications of DC photovoltaic special cables can match the high current output of monocrystalline modules and control the voltage drop loss of long-distance transmission within 1%.

When the ambient temperature reaches 40 degrees Celsius, the current-carrying capacity of the cable will drop by about 20%, so reserving 25% current redundancy is an important standard to ensure the system does not trip.

Through these precise data configurations, the overall system performance ratio (PR value) of monocrystalline silicon power stations still remains stable at a high level between 80% and 82% in summer.

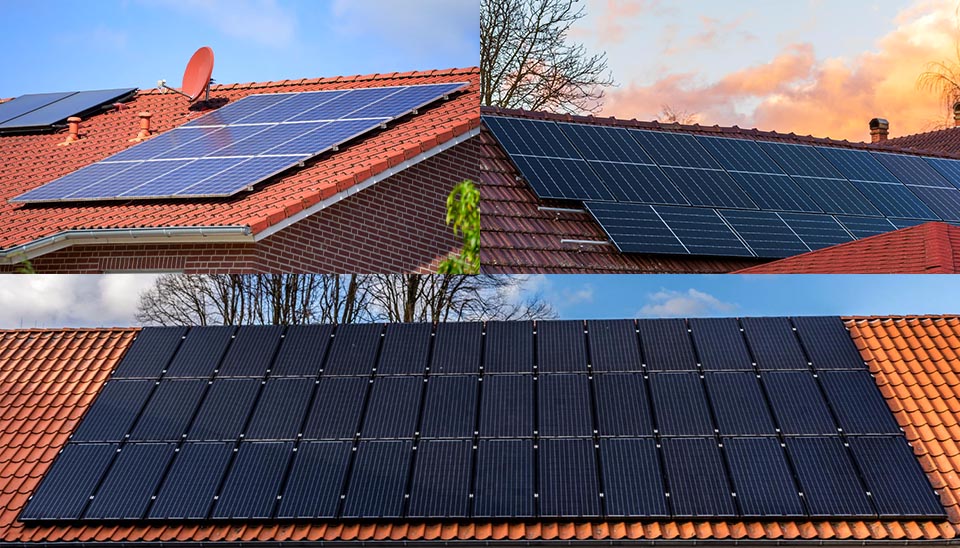

Superior Esthetics

Superior Esthetics

In the 2025 global high-end residential photovoltaic market, the market share of all-black monocrystalline silicon modules has rapidly increased from 15% in 2020 to more than 65%.

Because of its single-crystal arrangement structure, monocrystalline silicon wafers have a light absorption rate as high as 95% to 98%, which makes the cells appear deep and uniform black in vision, rather than the blue fragmented crystal appearance of polycrystalline silicon with a reflectivity as high as 10% to 15%.

When light shines on 3.2 mm low-iron textured glass that has undergone 180 degrees Celsius high-temperature tempering, the light-trapping structure on its surface can reduce the reflected light intensity by 2% to 3%, ensuring that when observed from a 45-degree angle below the roof, the color difference level (Delta E) of the entire panel is controlled at an extremely low level within 1.5.

This highly consistent visual performance allows houses installed with monocrystalline modules to have an average price premium of 4% to 6% higher in real estate appraisals than houses installed with ordinary blue modules.

A set of 450W all-black monocrystalline modules uses 6005-T5 aluminum alloy material with 30 mm to 35 mm specifications for the frame, and has undergone 15-micron thickness anodic oxidation black treatment on the surface. The integration of this deep carbon black metal frame with dark roof tiles reaches more than 90%.

According to data research from the North American Real Estate Agents Association, a uniform monocrystalline photovoltaic system can shorten the listing and sale period of a house by 10% to 15%, saving homeowners about $20,000 to $50,000 in time costs and premium losses during resale.

Standards Met

Monocrystalline silicon cells undergo 100% automated optical inspection (AOI) during the production process to ensure that the coordinate deviation of each 182 mm or 210 mm wafer in the chromaticity space is less than 0.05 units.

On the module surface, where 60 to 72 cells are distributed per square meter, this strict control of production tolerances eliminates local spots or streaks that may appear under 1000 lux standard lighting.

For projects using BIPV (Building Integrated Photovoltaic) design, monocrystalline silicon modules can be customized with 10% to 40% light transmittance specifications. By adjusting the layout spacing between cells, it provides uniform light and shadow effects for the interior while ensuring an output power of 150W to 180W per square meter.

In the application of commercial office buildings, this design can reduce the summer air conditioning cooling load by about 15% to 20%, because the modules themselves absorb more than 80% of infrared heat energy, thereby saving about 40 to 60 kWh of electricity expenses per square meter per year while enhancing the building's beauty.

Esthetically Pleasing

Current monocrystalline modules generally use a round ribbon design. This tiny metal wire with a diameter of only 250 microns to 300 microns produces a shadow area under direct sunlight that is more than 30% less than that of traditional flat ribbons.

This technological improvement at the micro level not only improves instantaneous power generation efficiency by 1% to 1.5%, but also makes the module surface look like a single piece of smooth black crystal when observed from a distance of 10 meters, without the obvious cutting sensation of silver grid lines.

In terms of installation layout, monocrystalline silicon systems are usually fixed with 40 mm specification hidden clamps, which keeps the physical gap between modules within a constant range of 10 mm to 15 mm.

This precise geometric arrangement combined with bracket rails with an error of less than 1 mm ensures that within a 100 square meter rooftop area, the flatness deviation of all modules is lower than 5 mm, avoiding the cheap feeling brought by unevenness.

In order to achieve ultimate visual effects, many high-end monocrystalline modules have eliminated the front busbars and adopted back contact (IBC) technology to hide all electrodes on the back of the cell, which increases the effective light-receiving area on the front of the module by 3% to 5%.

This design without any metal shading not only allows the quantified conversion efficiency of the cells to break through 24%, but also allows the modules to show a matte black high-end texture in cloudy environments.

When investing in a 5 kW home power station, choosing monocrystalline modules with optimized esthetic design has an initial investment cost of about $6,000 to $8,000.

Although this is about $500 more than ordinary modules, considering the 25-year asset premium it brings and the extra 200 to 300 kWh of clean electricity produced each year, its internal rate of return (IRR) is usually maintained at a high level of about 12.5%, which is 1.5 percentage points higher than low-end appearance systems.

Meticulous Installation

When installing all-black monocrystalline modules, it is recommended to use 4 square millimeter photovoltaic special DC cables with UV-resistant black outer layers, and fix all exposed cables inside the bracket with black nylon ties to ensure that no messy hanging lines are seen when observing from the ground.

This quantitative requirement for construction details can reduce the risk of system electrical failure by 5% and reduce the visual clutter during installation by more than 95%.

The horizontality of the bracket system is recommended to be calibrated with a laser level with an accuracy of 0.1 degrees to ensure that the square array composed of 20 modules has a straightness deviation of no more than 3 mm over a 15-meter span.

Through this control of millimeter-level errors, monocrystalline silicon systems can perfectly match the modern architectural design style that emphasizes a sense of lines, making the entire set of power generation equipment not just an energy device, but also a decorative highlight in a $50,000 to $100,000 roof renovation project.

Choosing a 1.5 mm thick dark metal cover to hide the end of the bracket can compress the visual thickness of the entire system to within 5 cm, making the photovoltaic panels look like a second skin growing closely to the roof surface.

According to wind tunnel simulation test data, this compact installation structure produces 12 decibels less vibration noise than traditional brackets in high wind speed environments of 40 meters per second, which significantly increases living comfort and tranquility while enhancing esthetics.
