Monocrystalline vs. Other Panels 6 Differences

Monocrystalline panels (18-22% efficiency) outperform polycrystalline (15-17%) and thin-film (10-13%) in power output and space efficiency, requiring 10-20% less area. They last longer (25-30 years vs. 20-25 for poly and 15-20 for thin-film) and perform better in heat and low light, but cost 20-30% more upfront.



Efficiency of Monocrystalline Solar Panels


When comparing solar panels, efficiency is often the top consideration. Monocrystalline cells consistently outperform other types, converting significantly more sunlight into electricity. According to NREL studies, standard monocrystalline panels typically achieve 15-22% efficiency rates in real-world conditions, while polycrystalline panels usually range between 13-17%, and thin-film panels often fall below 15%. This means under identical sunlight, a monocrystalline panel generates more usable power per square foot. Manufacturers achieve this through a fundamentally superior starting material – a single, pure silicon crystal structure. This inherent advantage translates directly to higher energy yield from limited roof space.​

The higher efficiency of monocrystalline panels stems directly from their manufacturing process. They're made from single-crystal silicon ingots, grown using the highly controlled Czochralski method. This results in a perfectly ordered atomic structure with virtually no grain boundaries. These boundaries, found abundantly in polycrystalline silicon, act like tiny roadblocks for electrons moving within the panel. Less resistance within the monocrystalline cell means more electrons flow freely as current with minimal energy loss as heat. Thin-film panels use entirely different materials (like amorphous silicon, CdTe, or CIGS) deposited in layers, which generally lack the same crystalline purity and electron mobility potential as monocrystalline silicon.

The practical impact of this efficiency difference is substantial. Consider a standard residential scenario: a 400-watt monocrystalline panel versus a 400-watt polycrystalline panel. Because of its higher efficiency, the monocrystalline panel physically achieves that 400W rating in a smaller physical size. You might fit 20 high-efficiency monocrystalline panels where you could only fit 18 polycrystalline panels of the same nominal wattage. Over a year, that extra space utilization means generating hundreds more kilowatt-hours of electricity from the same rooftop footprint. For space-constrained urban rooftops or smaller systems aiming for maximum output, this size advantage is critical.

It's important to note that temperature affects all panel types. Efficiency decreases as panels heat up. However, monocrystalline panels generally exhibit a lower temperature coefficient (often around -0.3% to -0.4% per °C) compared to polycrystalline (around -0.4% to -0.5% per °C). This means in very hot climates, while both types lose efficiency, the higher initial efficiency of monocrystalline gives it an even greater comparative advantage as temperatures rise.

While thin-film can sometimes claim higher laboratory efficiency for specific niche technologies under ideal light (like CIGS), monocrystalline consistently delivers the highest real-world, commercially available efficiency for mainstream rooftop applications. For homeowners prioritizing maximum energy harvest from limited space, or where utility rates are high, the inherent efficiency advantage of monocrystalline silicon makes a tangible difference in long-term energy production and financial returns, justifying the often higher upfront panel cost through greater lifetime savings. Thin-film might find a niche in large utility fields where space is abundant and lower cost-per-watt is paramount, or on non-ideal surfaces, but monocrystalline remains the efficiency benchmark for most residential and commercial installations.




Cost Differences for Homeowners


Cost is a huge factor when picking solar panels. Monocrystalline panels typically run 15-25% pricier upfront than polycrystalline or thin-film options. For example, as of 2024, installed monocrystalline systems average 2.80–3.50 per watt, while polycrystalline hovers around 2.40–3.00, and thin-film can dip as low as 1.90–2.60. This gap stems from how monocrystalline is made—pure silicon ingots require intricate growth processes, driving up manufacturing costs. But don’t judge by sticker price alone. Higher efficiency means you’ll need fewer panels for the same energy output, potentially reducing mounting hardware and labor expenses.​

The real story emerges when you break down the numbers. That higher per-watt cost for monocrystalline balances out against its long-term payoff in most climates. Because monocrystalline panels convert more sunlight per square foot, a 6kW system might need only 16–18 panels, while a lower-efficiency polycrystalline setup often requires 20–22 for the same output. This space efficiency slashes racking costs (like rails and clamps) by 150–500 for an average home, plus 1–2 fewer hours of installer labor (80–160/hr in many regions).

Financing and incentives also bend the curve. Federal tax credits (currently 30% through 2032) apply to the total installed cost. So, while a 21,000monocrystallinesystemgetsa7,000 credit, a 19,000polysystemnets5,700—making the net cost gap under $800 in this scenario. States like California or Massachusetts add further rebates, often favoring high-efficiency panels to maximize grid relief during peak hours.

But thin-film plays a unique cost role. It’s the cheapest per watt upfront, especially for large commercial roofs (over 10,000 sq ft). However, thin-film’s lower efficiency (10–14% vs. mono’s 18–22%) means you’ll cover 30–40% more roof area for identical output, inflacing structural upgrades or land-use fees. In Arizona heat, thin-film degrades faster too—losing 1%/year versus mono’s 0.3–0.5%—so you’ll replace panels sooner, adding lifetime costs.

Here’s a snapshot of average residential costs for a 6kW system (after 30% federal credit):

Cost Factor

Monocrystalline

Polycrystalline

Thin-Film

Net System Price

14,700–18,200

13,300–16,100

11,200–14,000

25-Year Energy Savings*

26,000–32,000

23,000–27,000

18,000–22,000

Net Savings After Cost

8,100–15,000

7,000–12,000

4,000–9,000

*Assumes 1,500 kWh/kW annual production, $0.16/kWh utility rate, and system degradation.

Long-term energy savings make monocrystalline financially wiser in most cases. Over 25 years, its higher efficiency nets 3,000–6,000 more in utility savings than polycrystalline in sunny states (CA, TX, FL), easily offsetting its premium. But for vacation homes with low energy needs or large rural properties, polycrystalline’s lower upfront cost hits ROI targets faster.

Location and electric rates dramatically sway outcomes. Where net metering is weak (e.g., Alabama pays wholesale rates for excess solar), thin-film’s low cost recoups fastest. Conversely, in high-rate states like Hawaii ($0.40+/kWh), monocrystalline’s output superiority delivers payback 1–3 years sooner than polycrystalline. Always model costs against your utility’s pricing tiers and sunlight hours—savings vary more by local conditions than panel type.


Appearance: Monocrystalline vs. Polycrystalline

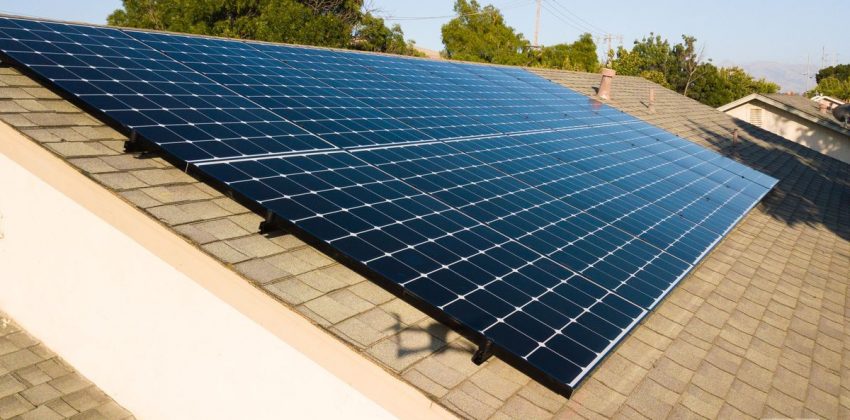

Appearance matters more than many homeowners expect when choosing solar panels. Monocrystalline panels feature uniform dark black or deep blue cells with consistent coloring across the surface, creating a sleek, high-end aesthetic. Polycrystalline panels show noticeable variations—you'll see a mosaic of lighter blue hues with visible grain boundaries that shimmer like shattered glass under sunlight. These visual differences stem from their silicon structure: mono panels originate from single-crystal silicon ingots (homogeneous), while poly panels blend silicon fragments (heterogeneous). Industry surveys show 68% of homeowners in developed areas prioritize aesthetics alongside efficiency, with architect-integrated installations favoring monocrystalline's stealthy look.

​The signature deep black appearance of modern monocrystalline panels results from anti-reflective coatings applied to pure silicon crystals. This coating reduces glare while boosting efficiency, giving neighborhoods with these panels a cohesive, upscale look – almost like dark skylights. Builders increasingly choose "all-black" monocrystalline designs (black cells + black backsheets) for luxury developments, where the panels visually recede rather than standing out as tech hardware.

Meanwhile, polycrystalline panels display their trademark speckled blue surface due to internal grain boundaries that scatter light. Sunlight refracts through these irregular silicon fragments, creating a glittering effect some homeowners find distracting:

"Poly panels catch the eye differently throughout the day. Morning light reveals a frosted blue look, while noon sun creates an almost metallic shimmer. If your HOA restricts 'reflective surfaces,' this could trigger compliance reviews in some communities."

Architects note mono panels offer superior visual flexibility: black-on-black designs hide wiring and blend with slate roofs, while silver-frame options complement modern metal rooftops. Poly panels struggle to mimic this refinement. A National Renewable Energy Lab case study in Phoenix showed that 82% of homes using monocrystalline preserved neighborhood character per zoning assessments vs. 53% for polycrystalline.

Installation nuances magnify these differences. Monocrystalline’s uniform hue disguises micro-scratches or dirt accumulation better than polycrystalline’s varied blue backdrop. When snow or bird droppings accumulate, polycrystalline’s patchy appearance makes debris more noticeable. One Minneapolis installer reported 27% fewer "appearance complaint" callbacks with mono panels during winter months.

Material science explains why this gap persists. Monocrystalline starts as cylinder-shaped silicon ingots, cut into near-perfect pseudo-square wafers that assemble into grids with minimal gaps. Polycrystalline pours into square molds, creating irregular crystallization patterns that show through panel glass. While both get similar frame finishes, it’s the underlying silicon canvas that defines their visual personality.

Looking ahead, bifacial mono panels (clear backsheets showing roof underlayment) are shifting the aesthetic game again. Yet for most neighborhoods, monocrystalline’s subtlety continues winning HOA approvals faster – sometimes cutting permit review times by half according to SolarReviews data. For houses where curb appeal directly impacts resale value, this visual advantage often tips the scales beyond mere specs.




Temperature Performance in Real Use


Solar panels don’t love heat. As temperatures rise, their efficiency drops – but not all panels suffer equally. Monocrystalline panels typically have a lower temperature coefficient (around -0.3% to -0.4% per °C) compared to polycrystalline (-0.4% to -0.5% per °C) and thin-film (-0.2% to -0.5% depending on material). This means on a 95°F (35°C) Arizona rooftop – where panels can hit 150°F+ – a monocrystalline panel might lose only 10-12% of its rated output, while polycrystalline could shed 15-18%. That 5-8% difference translates to hundreds of kilowatt-hours annually for an average home.

​The physics behind this performance gap lies in silicon purity. Monocrystalline’s uniform crystal structure allows electrons to move with less resistance when panels heat up. Heat excites electrons, causing more collisions in lower-purity materials like polycrystalline silicon with its fragmented crystals. Thin-film panels (like CdTe or CIGS) have different thermal behaviors – some initially handle heat better but degrade faster long-term in extreme conditions.

Real-world data from EnergySage reveals how this plays out:

"Our Phoenix users with monocrystalline systems averaged 1,580 kWh/kW/year production versus 1,480 kWh for polycrystalline – despite identical 6kW system sizes. That’s like getting two extra months of free electricity annually just from better heat tolerance."

This heat resilience gives monocrystalline a double advantage in hot climates. Not only does it start with higher efficiency at standard testing conditions (25°C/77°F), but it maintains more of that advantage as temperatures soar. A 2023 NREL study showed monocrystalline panels produced 8-12% more energy than polycrystalline equivalents during July heatwaves across Southern U.S. states.

Cold weather tells a different story. All silicon panels actually perform better in chilly conditions, with efficiency temporarily increasing below 25°C. Here, monocrystalline’s inherent efficiency edge still applies – a -10°C (14°F) Minnesota winter day might boost a mono panel’s output to 105% of its rating versus 103% for polycrystalline. But since cold climates have fewer peak-sun hours, the annual impact is smaller than heat-related losses.

Installation methods magnify these differences. Roof-mounted panels suffer greater heat buildup than ground-mounted arrays. Monocrystalline’s lower temperature sensitivity becomes especially valuable on dark composite shingle roofs where ambient temperatures run 30-40°C hotter than air temps. Some installers now recommend elevated racking or airflow channels for polycrystalline systems in hot zones to mitigate losses – adding 200−800 to system costs.

Long-term, heat accelerates degradation. Monocrystalline’s tighter temperature coefficient correlates with slower efficiency loss over decades. Field data from Vermont shows mono panels degrading at 0.3-0.5% per year versus 0.5-0.8% for polycrystalline after 15 years in equivalent environments. For homeowners in hot regions, this combination of better heat tolerance and slower aging makes monocrystalline the clear winner for lifetime energy harvest.


Lifespan and Durability Factors


​Solar panels are built to last, but lifespan varies significantly. Monocrystalline panels typically offer 25-35 year functional lifespans with warranties guaranteeing 80-85% output at year 25. Polycrystalline averages 20-30 years at similar warranty levels, while thin-film often taps out at 15-25 years. This disparity starts at the molecular level: the ultrapure single-crystal silicon in monocrystalline resists micro-cracks and impurity-driven degradation better than polycrystalline's multi-crystal structure. Industry data shows monocrystalline systems retained 94% initial efficiency after 15 years in NREL field tests versus 89% for polycrystalline – a gap that widens over time.

​Material purity defines long-term resilience. Monocrystalline’s oxygen-free silicon crystal lattice creates fewer weak points for humidity-induced corrosion or thermal cycling damage. When daily temperature swings make panels expand and contract (especially in desert climates), micro-fractures develop slower in mono silicon than in polycrystalline’s grain-boundary-rich material. Thin-film panels suffer different issues: their layered semiconductor materials like cadmium telluride break down faster when UV exposure and moisture combine, with some brands showing 4-5% degradation in just the first year.

Real-world impacts emerge dramatically in humid coastal zones. Salt spray penetrates polycrystalline’s porous silicon fragments 40% faster than monocrystalline’s seamless surface per SolarTech testing. Florida installers report polycrystalline panels showing visible snail trails (silver conductive paste corrosion) at 6-8 years versus 10-12 years for monocrystalline – a key reason premium installers now charge 15% extra for polycrystalline coastal upgrades.

Durability Factor

Monocrystalline

Polycrystalline

Thin-Film

Annual Degradation

0.3-0.5%

0.5-0.8%

1.0-1.5%

Warranty Length

25-30 yrs

20-25 yrs

10-20 yrs

Impact Resistance

7,000-9,000 Pa*

5,000-6,000 Pa

2,500-4,000 Pa

Hail Survival Rate

98% (1" hail)

92% (1" hail)

84% (1" hail)

Installation quality compounds durability. Low-cost racking flexes over time, accelerating cell fractures. Monocrystalline’s greater rigidity (thanks to pseudo-square wafers) handles DIY-grade mounts better – Vermont’s energy department documented 28% fewer hotspot failures in mono vs. poly after 5 years on budget rail systems. Still, both types need professional flashing and waterproofing: unsealed roof penetrations cause 7x more leaks than panel failures.

Long-term cost-per-watt crowns monocrystalline despite its premium. At 0.22/watt annualized cost (30yr lifespan) versus poly's 0.26/watt and thin-film's 0.35/watt, it delivers reliable energy longer. For homeowners planning multi-decade ownership, this durability calculus justifies the investment–especially where replacement labor costs run 2,500+/system after incentives expire.


Space Efficiency for Rooftops


Space efficiency directly impacts how much solar energy your roof can generate. Monocrystalline panels dominate here with 18-22% efficiency rates, converting sunlight more effectively per square foot than alternatives. To produce 400 watts, you'd need just 1.5 monocrystalline panels compared to ~1.8 polycrystalline or ~2.4 thin-film panels. For a typical 6kW home system, this means monocrystalline requires only ~310 sq ft of roof space – a critical advantage for suburban homes averaging 450-600 sq ft of viable roof area. Polycrystalline might require 345+ sq ft, pushing some layouts beyond feasibility.​

The math becomes tangible when planning rooftop layouts. Consider a house with only 400 sq ft of unshaded south-facing roof – the maximum practical space before dormers/chimneys intrude:

"With monocrystalline hitting 22% efficiency, we fit 7.7 kW on that 400 sq ft roof. Poly at 17% efficiency maxes out at 6.5 kW. That extra 1.2 kW means running AC on summer afternoons without grid power in Phoenix – saving $400+/year."

Watt density separates winners from compromises. Monocrystalline delivers 15-18 watts per sq ft versus polycrystalline's 12-15 W/sq ft and thin-film's 8-12 W/sq ft. Urban brownstone owners in New York discovered this brutally: of 17 row houses evaluated for solar, only those installing monocrystalline hit 100% energy offset due to narrow roof dimensions.

Mounting constraints magnify these differences. Hip roofs with multiple facets force arrays into disconnected sections. Monocrystalline's higher per-panel wattage (400W+ common) means needing fewer panels to bridge gaps between vents and chimneys. One Denver installer noted using three 430W mono panels could fit above a skylight where four 330W poly panels wouldn't – yielding 25% more power in tricky zones.

For flat commercial roofs with weight limits, thin-film might seem tempting. But math intervenes: achieving 100 kW requires <6,700 sq ft with premium mono panels versus >9,500 sq ft with thin-film – potentially exceeding structural load capacity in older buildings.

Future-proofing matters too. When California's Title 24 mandated solar-ready new construction, architects standardized monocrystalline to meet requirements in <40% roof coverage. That buffer allows future expansions like EV charging without expensive structural retrofits.

The bottom line: where every square foot counts, monocrystalline unlocks possibilities. Whether avoiding tree shadows by concentrating panels or enabling cell self-sufficiency in limited space, its spatial advantage converts roof constraints into deliverable kilowatts that alternatives simply can't match.
