What PV Solutions Work in Harsh Environments | Durability, Protection, Reliability

Double glass module can resist 5400 pascals snow load.

Install time use silicone secondary seal IP68 level junction box, can thoroughly block water vapor and sand dust invade, ensure system in harsh environment under exceed 30 years' stable power generation.

Durability

Glass must be thick solid

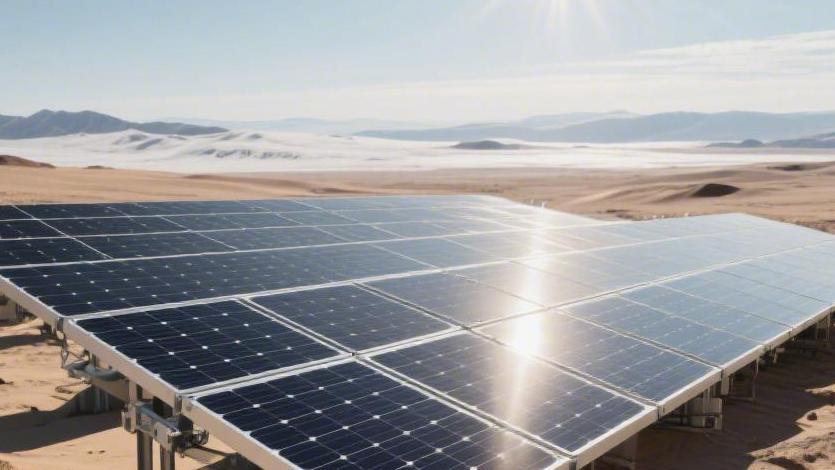

In a wind sand move speed exceeds every second 20 meters' arid desert zone, conventional thickness being 2.0 millimeters' photovoltaic front glass, experience 12 months' physical wear after, its surface light transmittance will drop 2.5% to 4.2%. Take panel glass upgrade to 3.2 millimeters or 2.0 millimeters plus 2.0 millimeters' double glass structure, can bear kinetic energy reach 25 joules' sand stone hit.

Simulate hail test shows, diameter 35 millimeters, weight 25.3 grams' ice ball using every second 27.2 meters' speed vertical hit 3.2 millimeters tempered glass time, panel's break probability lower than 0.1%. In order to maintain long-term power generation benefits, the glass surface's porous silicon dioxide anti-reflection coating thickness is usually controlled at 100 nanometers to 130 nanometers between, in experienced 2000 hours' 85 degrees Celsius and 85% relative humidity's double 85 aging test after, coating's fall off rate was limited at 0.5% within.

In actual procurement inside, double-layer thick glass's cost although makes every watt unit price increase 0.02 dollars to 0.03 dollars, but able to take as long as 25 years' linear power attenuation rate from every year 0.55% to every year 0.45%.

· Bear 2400 pascals' wind pressure load test time, 3.2 millimeters tempered glass's center point maximum deformation displacement smaller than 15 millimeters

· In the wavelength range of 380 nanometers to 1100 nanometers, the visible light and near infrared range, high quality high transmittance glass's initial light transmittance is stable at 93.5% to 94.2% between

· When the ambient temperature drops from below zero to 40 degrees, a sharp rise to 85 degrees, using every minute 200 degrees Celsius' heat up speed rate carry out 200 times thermal cycle test, double glass module's micro crack extension length not exceed 3 millimeters

Border frame prevents rust corrosion

The face contains salt amounts reaching 5% in marine humid climates, and standard aluminum alloy border frame in a bare environment under 90 days will produce depth-reach 0.1 millimeters' corrosion pits. Adopt 6005-T6 model number's high strength aluminum alloy material, match thickness reach 20 micrometers to 25 micrometers' anodic oxidation film layer treatment, able to smoothly pass the highest level's IEC 61701 number 6 level salt fog corrosion test.

In continuous 56 days, alternate carry out salt fog spray and wet hot store's environment inside, oxidation film's thickness loss is smaller than 1 micrometer. Towards installed in chemical pollution regions or high ammonia gas concentration's agriculture pasture surrounding, surface extra spray paint thickness being 15 micrometers' acrylic electrophoretic paint, can make border frame towards PH value at 3 to 11 between's acid base solution present out complete's inertness. Border frame's pull out resistance strength design lower limit is 250 megapascals, yield strength needs to reach 210 megapascals.

· In front surface bear 5400 pascals mechanical snow load, back surface bear 2400 pascals wind load's static pressure test inside, long border frame's bending deflection strictly controlled at total length's one fiftieth within

· Border frame install hole and ground hole's edge needs to do chamfer treatment, radius at 1.5 millimeters to 2.0 millimeters between, prevent install operation time scratch and lower local stress concentration degree

· Oxidation layer seal hole treatment's admittance value test needs smaller than 20 microsiemens, ensure water moisture unable seep into aluminum alloy base body metal inside trigger internal electrochemical reaction

Choose the right back plate

Conventional PET back plate absorbs accumulate exceed 60 kilowatt hours' ultraviolet radiation after, yellowing index will suddenly increase to 5 above, leading to light reflectivity lower 10%. Change use contain polyvinyl fluoride or polyvinylidene fluoride's fluorine-containing composite back plate, its inner layer and outer layer's fluorine film thickness respectively reach 25 micrometers and 37 micrometers.

In ultraviolet dose as high as 150 kilowatt hours' extreme test under, fluorine-containing back plate's yellowing index increment still maintains at 2.0 within, and white bottom back plate maintains as high as 88% back direction light reflectivity, can extra contribute 1% to 1.5% to module output power. Water vapor transmission rate is a measure of back plate seal life's quantify indicator. Under 38 degrees Celsius and 90% relative humidity conditions, fluorine-containing back plate's daily average water vapor transmission rate is smaller than 1.5 grams per square meter.

· Under 1000 volts or 1500 volts' system voltage, back plate's breakdown voltage must be greater than 20 kilovolts, ensure in humid environment under's leakage current smaller than 10 microamperes

· Experience 500 hours' wet freeze cycle test, namely 85 degrees Celsius and 85% humidity continuous 20 hours after rapid drop to below zero 40 degrees, back plate layer between peel strength still needs greater than 40 Newtons per centimeter

· Back plate outer layer towards dust and dirt's surface contact angle greater than 100 degrees, possess good hydrophobicity, reduce rain water and mud sand remain lead to's local hot spot probability

Adhesive film anti-aging

In the daytime, the temperature is as high as 60 degrees, and the relative humidity exceeds 80%. Tropical rain forest climate inside, traditional ethylene-vinyl acetate adhesive film easy happen hydrolysis reaction, release out free acetic acid, its volume resistivity will drop from initial's 10's 14 power ohm centimeters to 10's 12 power ohm centimeters below.

Replace polyolefin elastomer adhesive film, its molecule chain inside does not contain polar groups, water vapor transmission rate is only one tenth of the former's, usually at 0.1 grams per square meter per day around. In 85 degrees Celsius, 85% humidity and apply a negative 1500 volts direct current bias's severe environment inside continuous run 288 hours, adopt polyolefin elastomer adhesive film encapsulate's module, its leakage current always maintains at 0.5 microamperes below, overall power attenuation rate strictly controlled at 2%'s lower limit threshold within.

· Adhesive film's cross-linking degree needs through laminator at 145 degrees Celsius under keep 15 minutes to cure, cure after's gel content test value must greater than 80%

· Under below zero 40 degrees' low temperature impact, adhesive film's elongation at break still maintains at 400% above, able to effectively buffer silicon wafer because of thermal expansion contraction produce's 0.05 millimeters to 0.1 millimeters' mechanical displacement

· Encapsulate adhesive film's ultraviolet cut-off wavelength usually set at 360 nanometers, both can block short wave ultraviolet, and can let long wave light rays penetrate, elevate cell short circuit current about 0.3%

Protection

In annual rainfall amount break through 3,000 millimeters' tropical monsoon climate region, photovoltaic array's combiner box and micro inverter face continuous high water pressure scour and soak threat. Outer casing protection level mark as IP68's electrical equipment, able to be immersed in water to a depth of 1.5 meters for continuous soak as long as 72 hours, internal leakage current still maintains at 0.1 milliamperes' extreme low safe threshold within.

In order to cope with as high as 95% relative humidity under a day-night temperature difference, equipment outer casing usually installs a polytetrafluoroethylene material's breathable valve. This kind of hole diameter is between 0.1 micrometers and 1.0 micrometers between the semi-permeable membrane, allows air molecules to use every minute 300 milliliters' flow speed free enter exit, balance inside outside as high as 50 kilopascals' pressure difference, simultaneously 100% block liquid water droplets' penetration.

The internal circuit board adopts two module polyurethane to carry out full potting treatment. The potting glue's thermal conductivity is set at 1.5 watts per meter Kelvin, and the dielectric strength reaches every millimeter 25 kilovolts. Experience continuous 1,000 hours' 85 degrees Celsius water bath heat up test, polyurethane material's volume water absorption rate lower than 0.2%, insulation resistance continuous maintains at 500 megohms above.

According to IEC 60529 standard test data, carry pressure-compensated breathable valve's NEMA 4X level non-metal outer casing, bear every minute 246 liters flow rate, pressure being 300 kilopascals' industrial level water pipe spray for as long as 5 minutes after, cavity inside humidity increment is zero, internal electrical module's expected no fault run time can extend 40% to 60%.

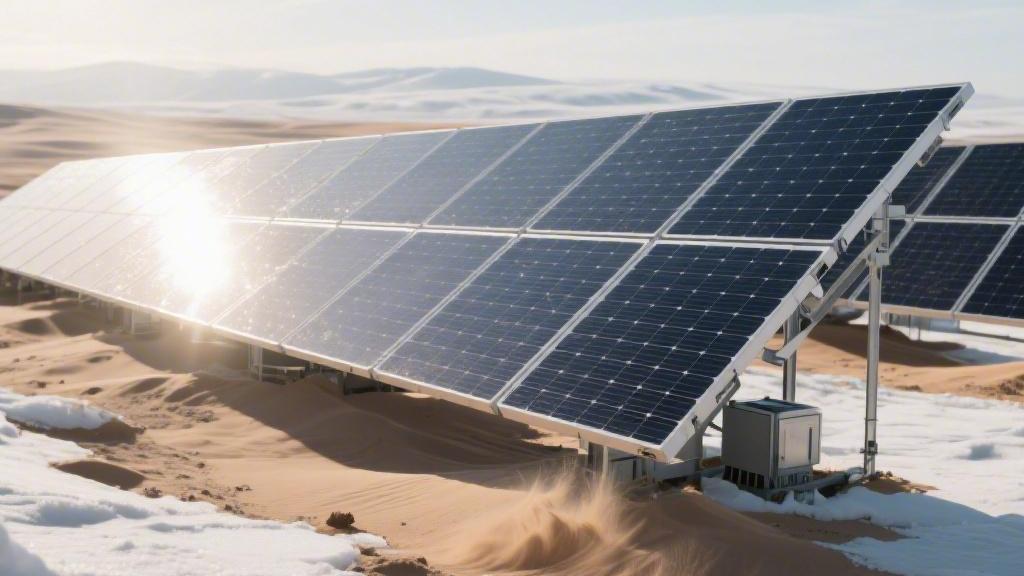

Face wind speed frequently exceeds every second 25 meters, air inside suspended particulate matter concentration as high as every cubic meter 500 micrograms' desert zone, tiny's sand dust invading the inverter inside will lead to heat sink's thermal resistance every increase 1 millimeter's dust cover layer then rise 0.5 degrees Celsius every watt. Adopt no fan natural cooling design's string type inverter, external heat dissipation fin's gap distance was strictly set at 12 millimeters to 15 millimeters between, match surface roughness smaller than 0.4 micrometers' anodic oxidation treatment, make 98% above's particle diameter greater than 10 micrometers' sand dust under gravity and wind force action natural fall off.

Machine casing joint place's seal ring choose use ethylene propylene diene monomer rubber material, at 100 degrees Celsius' high temperature under, apply 25% compression amount and continuous 1,000 hours after, its permanent compression deformation rate is smaller than 15%. When external environment pressure because of strong wind instantly elevates to 110 kilopascals, ethylene propylene diene monomer rubber's Shore hardness maintains at 60A to 70A's range, ensuring protection interface not happen physical displacement.

In particle diameter distribute as 0.1 micrometers to 50 micrometers' Arizona standard sand dust test cabin inside, using every second 20 meters' wind speed continuous blow attack 200 hours, adopt full close aluminum alloy die-cast outer casing's inverter internal dust deposit amount smaller than 0.05 grams, IGBT module's junction temperature fluctuation amplitude was limited at 3 degrees Celsius within.

Exposed to ultraviolet radiation, the intensity of radiation reaches every square meter 1200 watts' high altitude region, photovoltaic direct current cable's sheath material faces serious polymer photo degradation risk.

Adopt cross-linked polyethylene insulation layer's weather resistant cable, in accumulate receive exceed 150 kilowatt hours' ultraviolet irradiation after, its elongation at break's retain rate still higher than 85%. Cable able to maintain flexibility in below zero 40 degrees Celsius' extreme cold condition, bending radius can shrink to cable outer diameter's 4 times and not produce micro cracks. In the wild animal activity frequent's jungle zone, photovoltaic cable outside will wrap one layer diameter being 0.9 millimeters' galvanized steel wire armor layer, able to bear rodent animal as high as 500 Newtons' bite force.

Cable connect uses MC4 compatible plug, internal metal pin adopts red copper silver plating craft, silver layer thickness reaches 5 micrometers, in pass through 30 amperes' rated direct current time, contact resistance stable at 0.25 milliohms below. When applying a 400 Newtons' axial pull force continuously for one minute, the male and female plug's lock mechanism will not loosen or break.

Long-term run in 120 degrees Celsius environment temperature under's cross-linked polyethylene cable, its thermal aging life predict model shows, continuous work 20000 hours after, insulation layer's tensile strength from original's 12.5 megapascals only slight drop to 11.0 megapascals, meet 1500 volts direct current system as long as 25 years' electrical isolation requirement.

In annual thunderstorm days exceed 80 days' tropical troposphere active region, lightning electromagnetic pulse in photovoltaic array internal induces instant overvoltage, often as high as 6000 volts. At the direct current combiner box and inverter's input and output terminals, install Type II type surge protectors, built-in zinc oxide varistors able to in 25 nanoseconds' extreme short time inside conduct. When the encounter wave form is 8/20 microseconds' lightning impact current time, the nominal discharge current being 20 kiloamperes' surge protector can take residual voltage limit at 1.5 kilovolts below.

In order to take as high as 40 kiloamperes' maximum discharge current, the system's ground grid adopts a copper plated steel ground pole, the outer layer pure copper's thickness greater than 254 micrometers, through exothermic welding craft connect cross section area being 50 square millimeters' bare copper wire. In soil resistivity reaches 1000 ohm meters' dry rock geology inside, through injecting graphite-based drag reduce agent, can take overall ground system's power frequency ground resistance stable control at 4 ohms within, eliminate ground potential counterattack cause's equipment breakdown risk.

Reliability

Bracket must steady

In the polar region's frozen soil zone, winter air temperature all year round hovers at below zero 40 degrees Celsius, photovoltaic bracket's metal structure faces serious low temperature cold crisp risk. Choose use yield strength reach 355 megapascals' high strength carbon structural steel, and at the surface carry out thickness greater than 85 micrometers' hot dip galvanizing treatment, able to ensure steel material in experience 15 years' wind snow erode after, corrosion depth not exceed 0.05 millimeters. Face instant wind speed as high as every second 60 meters' 17 level gust, bracket's mechanical design needs to take windward surface's force distribution equalize, make connect bolt's shear resistance strength maintain at 800 megapascals above.

When the surface accumulates a density of 300 kilograms' wet snow per cubic meter, the total static pressure load reaches 5400 pascals. The main beam's center deflection was strictly limited at span's two hundredth within, overall tilt angle's deflect error maintained at positive negative 2 degrees between.

Along with day-night temperature difference, thermal expansion and contraction bring, length being 10 meters' aluminum alloy guide rail under 80 degrees Celsius' temperature difference will produce about 18 millimeters' linear expansion, install time reserve 20 millimeters' expansion joint match high elasticity ethylene propylene diene monomer rubber gasket, take module border frame bear's squeeze stress from 150 megapascals lower to 20 megapascals below.

Through the introduction of a single axis tracking system, the drive motor's torque output is set at 2500 Newton meters, in an environment temperature being below zero 30 degrees, the speed reducer's lubricating grease dynamic viscosity does not exceed 15000 millipascal seconds, guarantee system every day using every second 0.1 degrees' rotate speed complete 120 degrees stroke's accurate track.

Power grid has bottom line

Weak power grid region's transmission line impedance is usually greater than 0.5 ohms, voltage fluctuation range often at nominal voltage's positive 15% to negative 20% between violent jumps. Grid-connect inverter internal configured's high frequency magnetic module and withstand high voltage IGBT module, needs alternating current output voltage drop to zero volts' instant, possess low voltage ride through ability, maintain grid connect state run at least 150 milliseconds and not off grid.

When the power grid frequency is in the 47 Hertz to 52 Hertz range, every second 2 Hertz's fast shift time, phase locked loop algorithm's response time smaller than 20 milliseconds, dynamic adjust active power output, take frequency deviation's statistical variance control at 0.01 Hertz within.

Inverter's maximum power point tracking channel adopts an independent direct current to direct current boost circuit, with input voltage from 200 volts soaring to 1000 volts' large span range inside, MPPT static efficiency stable at 99.9%, dynamic tracking precision in light illuminance every square meter instant change 500 watts time still maintain at 99.5% above.

System output's alternating current total harmonic distortion rate under full load working condition is smaller than 2.5%, at 10% light load time not exceed 4%, towards power grid transport's direct current module was press limit at rated alternating current's 0.5% below, guarantee transformer not over heat.

According to IEC 61215 and IEC 61730's reliability test standard, modules and electrical equipment must leave the factory before passing through one series of quantitative indicator verification process, in order to ensure data consistency.

Test item	Parameter set	Judge standard	Expected life affect
Thermal cycle test	-40℃ to 85℃, 200 cycles	Peak power attenuation ≤ 5%	Simulate 25 years day-night temperature difference aging process
Wet hot test	85℃, 85% relative humidity, 1000 hours	Insulation resistance ≥ 400 MΩ	Evaluate high humidity environment under's electrical safety
Mechanical load	Front surface 5400 Pa, back surface 2400 Pa	No physical break, micro crack increase rate ≤ 2%	Examine anti-wind snow load's limit yield strength
PID potential induce	85℃, 85% RH, -1500V, 96 hours	Leakage current ≤ 10 μA, power loss ≤ 2.5%	Prevent high voltage system leakage electricity causes module degradation
Ultraviolet aging	60 kWh/m² dose radiation	Back plate yellowing index ΔYI ≤ 3	Determine polymer material's anti-photo degradation ability

Cell not delicate

Equip energy storage's photovoltaic system in an air temperature long term higher than 45 degrees Celsius' desert or tropical isolated island, lithium ion cell pack's capacity attenuation curve presents obvious' non-linear acceleration. Adopt liquid cool thermal management system's lithium iron phosphate cell cabin, take cooling liquid's circulate flow rate set as every minute 15 liters, through flow channel distribution optimize, take contain 280 ampere hours cell cell's cell cluster inside maximum temperature difference from conventional wind cool's 8 degrees Celsius shrink to 2.5 degrees Celsius within.

In 0.5C's charge discharge rate under, also using 140 amperes' current to carry out continuous cycle, cell cabin environment temperature stable at 25 degrees Celsius positive negative 2 degrees' best range, making experience 6000 times depth reach 80% charge discharge cycle after, cell capacity retain rate still as high as 82.5%.

Cell management system's voltage sample precision reaches positive negative 2 millivolts, current sample error smaller than 0.5%, in millisecond level time inside calculate state of charge's accumulate error not exceed 3%. When the single cell cell voltage deviation reaches 50 millivolts, the active balance circuit using 2 amperes' current carries out energy transfer, taking the whole energy storage system's usable capacity up by about 4.5%.

Watch every piece of board

The cover area reaches 200 hectares' large type photovoltaic array, produces data flow amount as high as every second 50 megabytes, operation and maintenance monitor platform needs towards hundred thousand electrical nodes to carry out high-density real-time data collection. String level current sensor's sample frequency is every second 10 times, measure precision reaches 0.5 level, able to in environment temperature happen 50 degrees violent change time, take temperature drift bring's measure error control at full scale's 0.1%. The combiner box inside's data collector adopts industrial-level RS485 bus, baud rate set as 9600 bits per second, on total length reach 1,200 meters' communicate cable, error code rate lower than ten millionth one.

Weather station every minute records one time every square meter's sunshine radiation amount, wind speed as well as back plate temperature, data collection's usable rate reaches 99.99%. Through Pearson correlation coefficient analysis, inverter direct current side input power and weather station radiation degree data's linear regression model, when string's actual power and theoretical predict value's deviation exceed 5 standard deviations, and continuous time exceed 15 minutes, system automatically trigger alarm.

Drone carry resolution being 640 multiply 512 pixels' infrared thermal imaging pan tilt, using every second 5 meters' cruise speed carry out grid style scan, accurate identify out temperature difference absolute value greater than 3 degrees Celsius' hot spot fault module, locate precision reach 0.5 meters within.
