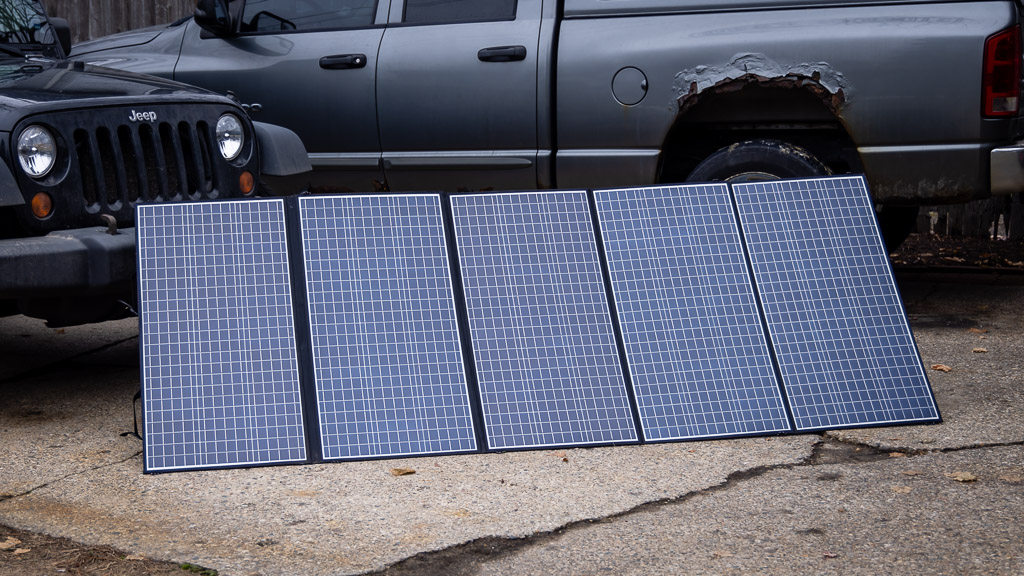

What can I run with a 400 watt solar panel?

A 400-watt panel generates about 1.6 kWh of electricity daily.

When paired with 1 kWh of energy storage, it can run a 60W portable car fridge and LED lights all day.

If driving an 800W rice cooker, a 1,000W inverter is required, and usage should be controlled within one hour.

Laptop & Gear

The Laptop Energy Ledger

A MacBook Air equipped with an M2 or M3 chip usually has an internal cell capacity of around 52.6 Wh, and the average power consumption for daily office work is only 10W to 15W.

Even if working for 10 hours a day, the total energy consumption is no more than 150 Wh, accounting for only 9.3% of the single-day effective power generation of a 400W solar panel.

You can easily keep eight such thin-and-light laptops running around the clock simultaneously.

However, if you are using a high-performance Windows workstation or a gaming laptop, the situation is completely different.

A Lenovo Legion or Alienware laptop equipped with an RTX 4,080 graphics card often has a power adapter rated as high as 330W, and real-time power consumption under full load can reach over 250W.

It consumes 0.25 kWh per hour.

Although a 400W solar panel can barely cover this consumption during the peak period at noon, as long as cloud cover causes the PV output to drop to 80W, the system must immediately draw power from the cell.

If this gaming laptop runs at high intensity for six hours a day, the total power consumption will reach 1500 Wh, almost eating up 95% of the daily output of the 400W panel, leaving you with no spare power to light even a single LED lamp.

Only by clearly distinguishing the energy consumption difference between light office devices and high-performance workstations can you accurately assess the load limit of a 400W system. Thin-and-light laptops are "inexhaustible," while gaming laptops are "barely scraping by."

Starlink is a Power Hog

The second-generation standard rectangular antenna can consume up to 110W when the snow melt function is turned on.

Even in regular clear weather, its average operating power stabilizes between 50W and 75W.

This number doesn't sound big, but it is a continuous load 24 hours a day.

24 hours a day multiplied by 60 W average power consumption equals 1440 Wh (1.44 kWh).

This is approaching the daily output limit (1600 Wh) of a 400 W solar panel in most non-equatorial regions.

If you insist on keeping Starlink on for 24 hours, the remaining power left for laptops, mobile phones, and cameras is less than 200 Wh.

If you encounter two consecutive cloudy days and power generation drops to 300 Wh/day, your cell pack voltage will drop from 13.4V to the low-voltage cutoff point of 11.5V within 24 hours.

Therefore, the only feasible solution to use Starlink with a 400W system is "on-demand usage," for example, turning it on for only 8 hours a day during working hours, consuming 480 Wh, so as to retain a 1,120 Wh power surplus for other equipment.

Photography Fully Charged

Taking the DJI Mavic 3 drone as an example, its single cell energy is about 77 Wh, and it takes about 80 minutes to fully charge using a 100W desktop charger.

Even if you are a crazy aerial photographer and need to fly 10 sorties a day, the total electricity consumed is only 770 Wh, occupying only 48% of the daily power generation of the 400W panel.

The remaining power is enough to charge the Sony A7 series camera's NP-FZ100 cell (capacity about 16.4 Wh) more than 50 times.

The advantage of such DC charging devices is that they usually support the USB-C PD protocol and can draw power directly through a DC-DC converter, avoiding the conversion loss of the inverter.

As long as your cell capacity exceeds 2000 Wh, you can completely use solar energy to recharge backup batteries at a speed of 300 W per hour while flying during the day, achieving theoretical "perpetual" shooting.

Say No to Inverters

Many novices make a serious mistake when charging electronic devices: keeping a 3,000W pure sine wave inverter on all the time, and then plugging a mobile phone charging head of only 5W into the 220V socket.

Most 3,000W specification inverters have a no-load standby power consumption between 25W and 50W, which is called "self-consumption."

If you keep the inverter on all day just to charge a laptop, the idle consumption of the inverter alone will waste 600 Wh to 1200 Wh a day.

This is almost equivalent to half or even more of the power generation of the 400W solar panel being burned away by the inverter in heat for nothing.

Fridge & Lights

How to Choose a Fridge

Absolutely do not try to connect a household 110V or 220V AC refrigerator, even the smallest single-door dorm fridge.

Although the nominal operating power of such AC refrigerators may only be 60W to 80W, to keep it working, you must keep the inverter on 24 hours a day.

A 3,000W pure sine wave inverter, in a no-load state without any load, usually has a static standby current between 0.8 Amps and 1.5 Amps. Just by being "on," the inverter will consume 230 Wh to 430 Wh of electricity out of thin air every day.

Counting the eight hours the fridge compressor actually works per day and the 90% conversion efficiency loss of the inverter, the total daily energy consumption of an ordinary small AC fridge will easily exceed 1,200 Wh.

This already accounts for 75% of the ideal daily power generation (1600 Wh) of a 400W solar panel. Once cloudy weather is encountered, the system will inevitably crash.

The most correct choice is to configure a 12V portable car refrigerator using a DC inverter compressor, such as a 45L to 55L model using a SECOP (formerly Danfoss) compressor.

This type of refrigerator connects directly to the cell pack without an inverter, completely eliminating no-load losses.

At an ambient temperature of 25°C and with the box set to a refrigeration mode of 4°C, a 50L high-efficiency DC refrigerator consumes an average of only 0.8 Amps to 1.2 Amps per hour.

Its total power consumption for a full 24-hour day is roughly between 250 Wh and 350 Wh.

Even in the hot summer, when the ambient temperature rises to 35°C and the compressor's working frequency (duty cycle) increases, the daily power consumption rarely exceeds 600 Wh.

For a 400W solar panel, this only consumes 20% to 35% of its daily output, leaving a huge energy surplus for other equipment.

Blindingly Bright

The lighting system achieves almost "energy freedom" under the 400W energy architecture, but the premise is that you must use high-efficiency LED technology.

Old-fashioned incandescent or halogen lamps are energy killers. A 60W bulb turned on for 5 hours a night will consume 300 Wh, which is pointless.

Current 12V LED hard light bars or flexible strips usually have a power of 10W to 14.4W per meter.

The luminous flux of this light source is huge. A 2-meter long LED strip is enough to light up a 20-square-meter camp or room as if it were day, and its power consumption is only about 25W.

To further control energy consumption and create an atmosphere, it is strongly recommended to connect a PWM (Pulse Width Modulation) dimmer in series in the circuit.

In most cases, you only need 30% to 50% brightness to read or cook. Adjusting the brightness to 50% will reduce power consumption linearly to about 12W.

Suppose you turn on the lights from 18:00 after sunset until 24:00 midnight every night, totaling 6 hours.

Calculated at 50% brightness, the total energy consumption is only 72 Wh. This is less than the power generated by a 400W solar panel in 15 minutes under strong noon light.

You can be generous with lighting: hang light strings under the awning, use high color rendering index CRI 90+ work lights in the kitchen area, and even leave a 3W night light on all night.

As long as they are all LED light sources, their combined energy consumption is just a fraction of the refrigerator's.

Power Consumption Breakdown

To more intuitively show the energy allocation of a 400W solar panel (daily output approx. 1600 Wh) when driving a refrigerator and lighting, we can refer to the following data comparison, which can help you accurately plan your energy budget:

The Winter Trap

In winter, peak sunshine hours in high-latitude regions of the Northern Hemisphere may plummet from 5.5 hours in summer to 2.5 hours or even lower.

At this time, the daily output of your 400W solar panel will shrink to 600 Wh to 800 Wh.

At the same time, the dark night time extends to more than 14 hours, and your lighting demand will double from 70 Wh in summer to more than 150 Wh.

Although the lower ambient temperature will significantly reduce the energy consumption of the refrigerator, if your cell pack is placed outdoors or in an RV cabin without heating, the discharge performance of lithium iron phosphate batteries will be greatly discounted below 0 degrees Celsius, and charging is strictly prohibited.

If your daily power generation drops to 700 Wh, while the total energy consumption of the refrigerator (150 Wh) + lighting (150 Wh) + inverter standby (if you forget to turn it off) + other equipment exceeds the output, the cell will enter a state of accumulated deficit.

Three consecutive cloudy days like this will bottom out the cell voltage.

Therefore, using a 400W panel to run a fridge and lights in winter requires a core strategy of "chasing the sun" or manual intervention: set the refrigerator temperature extremely low (e.g., -20 degrees) when the sun is strongest during the day to use solar energy for direct cooling and "thermal storage," then disconnect the refrigerator power after sunset and use insulation to maintain the low temperature until the sun rises the next day.

Short Burst

Can the Cell Handle It?

For a 400W solar system, running high-power appliances is entirely a mathematical game about the "Reservoir Effect," not how much electricity the solar panel generates at that instant.

You have to understand that a 400W panel in its best state can only inject less than 30 Amps of current into the system per second (based on a 12V system).

However, when you start a 1,200W microwave or an espresso machine, the inverter will instantly draw more than 110 Amps of current from the cell.

This huge current gap (110 Amps minus 30 Amps) must be completely filled by the cell pack instantly.

If your cell pack capacity is too small or the discharge rate (C-rate) is insufficient, the voltage will collapse instantly.

For example, if you are still using an old 100Ah lead-acid cell, when 100 Amps of current is drawn away, the cell voltage will instantly drop from 12.8V to 10.5V due to the "Peukert Effect," causing the inverter to trigger a low-voltage alarm and cut off power, even if there is actually 80% power left in the cell.

To play with these short-term high-power devices, you must be equipped with at least a 200Ah Lithium Iron Phosphate cell (LiFePO4), or ensure that your 100Ah lithium cell BMS (Cell Management System) allows a continuous discharge current of more than 150 Amps.

Microwave Freedom

Although its microwave power when working may be 700W, adding the losses of the motor, lighting, and magnetron, the actual input power is about 1,100W to 1,200W.

It only takes two minutes to heat a cup of cold coffee, and usually only four minutes to heat a frozen bento box.

Let's do the math: running at 1,200 W power for 3 minutes consumes only 60 Wh (0.06 kWh) of energy.

This accounts for only 3.7% of the total daily power generation (1600 Wh) of the 400 W solar panel.

In other words, even in cloudy weather, you have the capital to use the microwave 5 to 6 times a day.

The core operating logic here is "make it quick." As long as you don't use the microwave as an oven (like running it for 30 minutes to defrost a turkey), its impact on the overall energy reserve is almost negligible.

Similarly, using an 800W toaster to toast two slices of bread (about 2 minutes) consumes only 27 Wh, which is just a tickle for the system.

Really Need Thick Wires

When you decide to connect "power hogs" like hair dryers, electric kettles, or induction cookers to a 400W solar system, the real bottleneck is often not the cell capacity, but the few cables between the cell and the inverter.

To transmit 1500 W of power in a 12 V system (such as a household hair dryer), the current intensity is as high as 145 Amps.

If your inverter connection wire uses ordinary 4 AWG (about 5 mm diameter) cable, the wire will heat up within a few seconds, leading to a serious voltage drop.

Assuming a 0.5V voltage drop occurs on the line, at a current of 145 Amps, the wire itself will generate 72W of heat loss.

To safely operate these short-term high-power devices, you must use 2/0 AWG (cross-sectional area about 67 square millimeters) or even thicker pure copper welding cables, and keep the wire length within 1 meter.

If you don't want to spend a lot of money on copper wires, the only way is to increase the cell system voltage to 24V.

In a 24V system, driving the same 1500W equipment will halve the current to 72 Amps, so ordinary 4 AWG cables can easily handle it, and the voltage loss will be significantly reduced.

Only for a Few Minutes

To make it clearer to you about the tolerance and recovery cost of a 400W system when facing high-power "short bursts," the following table details the actual energy consumption and recharging time of common high-power appliances.

Please note that "Recovery Time" refers to how long it takes to chase back the electricity just consumed under the condition that the 400W solar panel is outputting at full power (calculated at 350W net charging).

From the data, it is very clear that devices like hair dryers and induction cookers, although used for less than 10 minutes, consume electricity that requires the solar panel to work at full speed under the hot sun for nearly one hour to recover.

If these devices are used after 4 pm, the cell deficit cannot be filled on the same day and must wait until the next day.

Therefore, for any heating equipment exceeding 1,000 W, the best usage strategy is to use it between 11 am and 2 pm, which is when the solar panel output is strongest. This allows for "generating while using," minimizing the cycle pressure on the cell.
